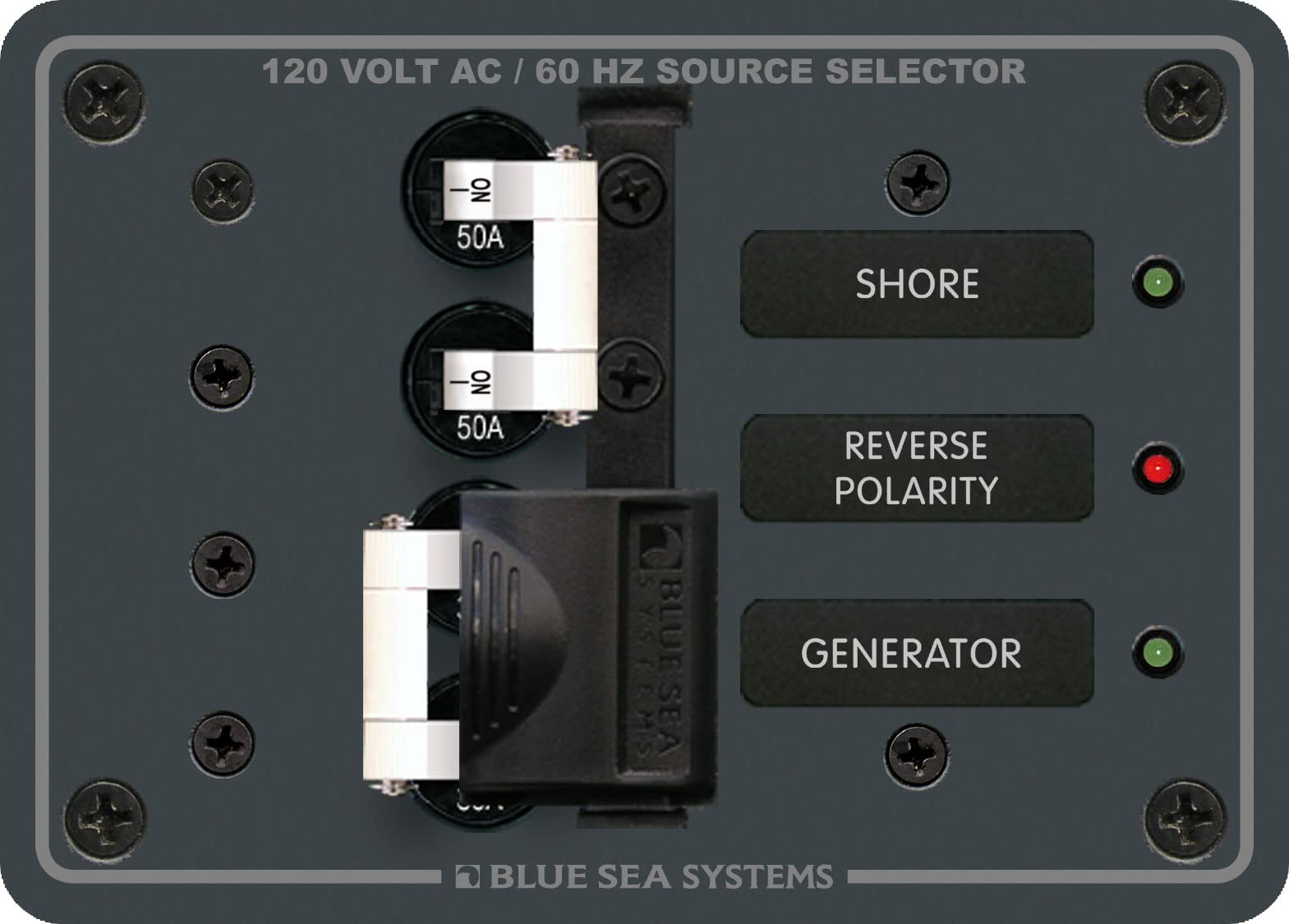

8061 AC Toggle Source Selector 120V AC - 50AMP Features: Double pole AC main circuit breakers with installed lockout slide Prevents connecting both AC sources simultaneously Maximum panel amperage - 50 Amperes Red reverse polarity indicating LED All hot, neutral and safety ground buses installed, fully pre-wired All circuit label positions are backlit on standard panels - No kit required "ON" indicating LEDs installed in all circuit positions Specifications: Source Selection: 2 Nominal Voltage: 120v AC Height: 3.75" Width: 5.25" Weight: 1.84 lbs Included: (2) 7242 A-Series White Toggle Circuit Breaker - Double Pole 50A (1) 8031 Basic AC Panel Label Set - 30 Labels (1) 8034 LED - 120v AC Green (1) 8066 LED - 120v AC Red WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Max Breaker Quantity: 2 , AC/DC: AC , Voltage: 120v
| Product Details | |
| Ac/dc | Ac |
| Actuator Type | Toggle |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Current Rating | 50 Amps |
| Max Breaker Quantity | 2 |
| Mounting Type | Panel Mount |
| Operation Mode | ON-OFF |
| Sizing & Dimensions | |
| Height | 10 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 0.01 x 10 inches |
| Size | 10 x 0.01 x 10 inches |
| Weight | 2.52 pounds |
| Width | 0.01 inches |
| Technical Specifications | |
| Operating Voltage | 120 Volts |
| Voltage | 120v |
