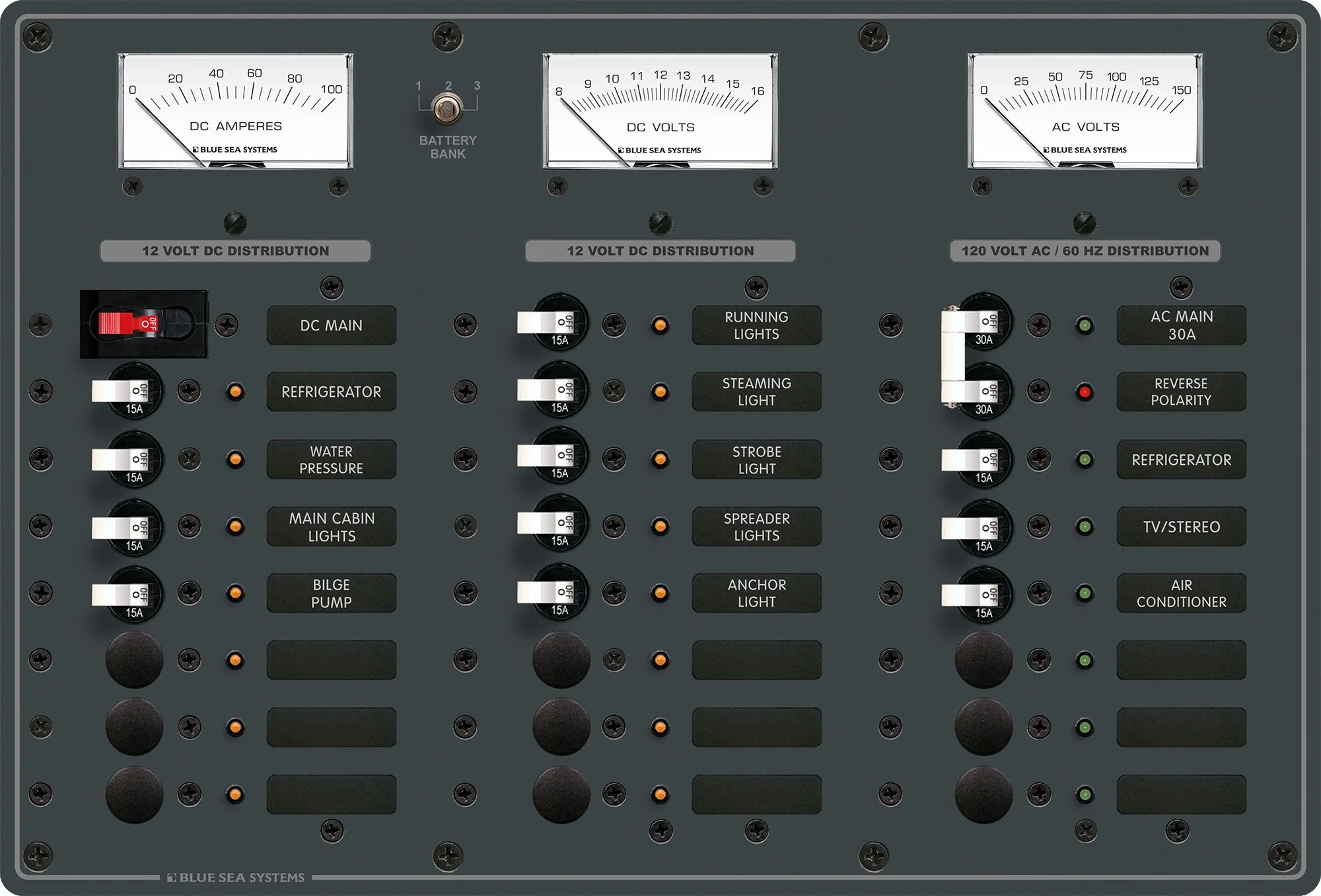

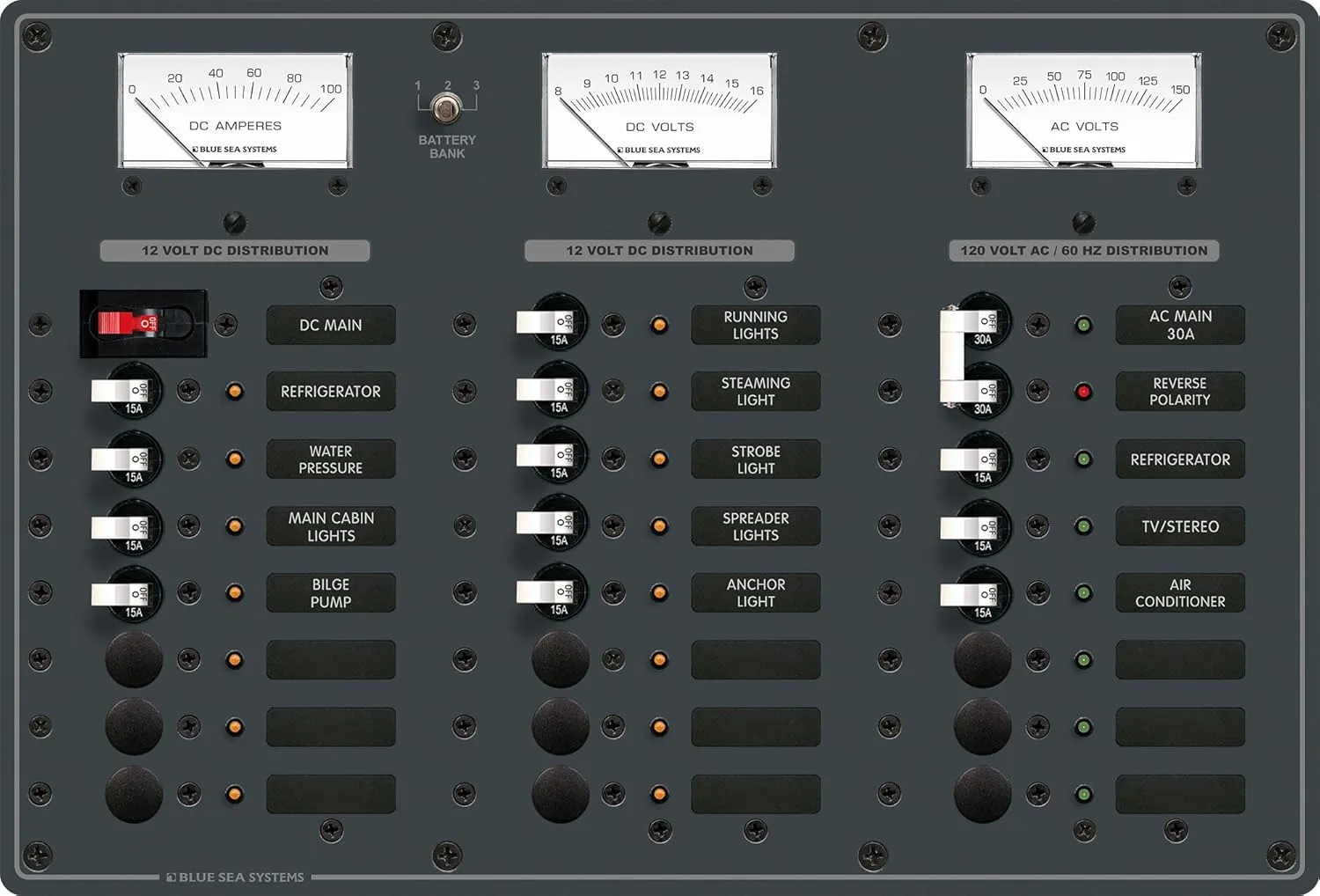

Blue Sea 8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches. Includes set of 30 common AC and 30 common DC labels. All AC and DC buses installed, fully pre-wired. Label backlighting pre-installed. All LEDs installed. Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC. AC Features: Red reverse polarity indicating LED. Ready for installation of optional 4029 AC Isolation Cover, 9353 0-150 Volt AC Voltmeter. DC Features: 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits; 8003 8-16 Volt DC Voltmeter; 8017 0-100 Amp DC Ammeter. Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter. Specifications: AC Positions: Main +6; DC Positions: Main +15; 120 Volts AC / 12 Volts DC; (1) 30A - (3) 15A AC Circuit Breakers; (1) 100A - (9) 15A DC Circuit Breakers. *Combined AC/DC panels require an AC Insulating Cover to meet ABYC Standards. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• All AC and DC buses installed and fully pre-wired
• Label backlighting pre-installed
• ON - indicating LEDs installed in all circuit positions
• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
• Maximum panel amperage - 100 Amperes DC, 50 Amperes AC
• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
