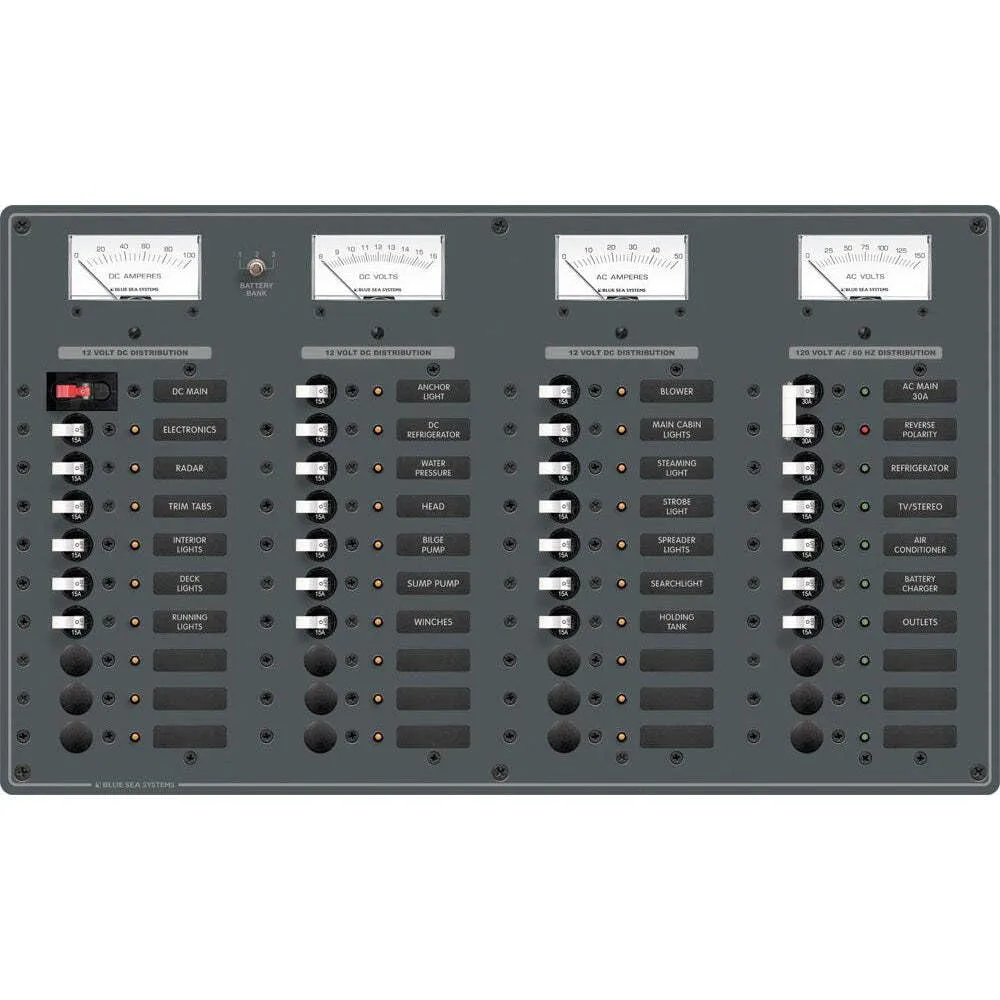

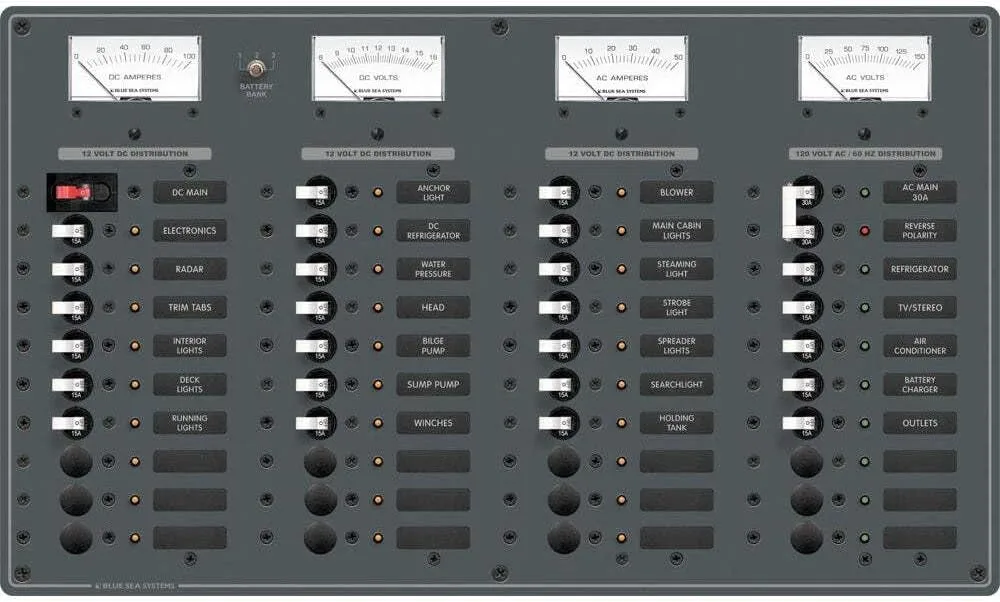

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)
Customize
Blue Sea Systems 8095 combined AC Main + 8 Positions / DC Main + 29 Positions toggle circuit breaker panel with white switches. All AC and DC buses installed and fully pre-wired. Label backlighting pre-installed. Includes set of 30 common AC and 30 common DC labels. All LEDs installed. AC features include red reverse polarity indicating LED 9353, 0-150 Volt AC Voltmeter 9630, and 0-50 Amp AC Ammeter. DC features include a 100 Amp C-Series circuit breaker for main DC protection and switching, 8-16 Volt DC Voltmeter 8017, and 0-100 Amp DC Ammeter. Owner-upgradeable to 24 Volts with 8240 and supports 18-32 Volt DC voltmeter. Combined AC/DC panels require an AC insulating cover to meet ABYC standards. Maximum panel amperage: 100 Amperes DC / 50 Amperes AC. Panels include pre-wired buses and label backlighting for easy installation. Max Breaker Quantity: 8 AC / 29 DC. Voltage: 120V AC / 12V DC.
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Ac/dc | Both |
| Circuit Breaker Type | Standard |
| Current Rating | 100 Amps |
| Global Trade Identification Number | 00632085080952 |
| Included Components | Great Product |
| Max Breaker Quantity | 8 Ac / 29 dc |
| Model Name | 8095 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number Of Poles | 3 |
| Part Number | 8095 |
| UPC | 632085080952 |
| Voltage | 120v/12v |
| Sizing & Dimensions | |
| Height | 7 inches |
| Length | 22 inches |
| Product Dimensions | 22 x 15 x 7 inches |
| Size | One Size |
| Weight | 8 pounds |
| Width | 15 inches |
| Technical Specifications | |
| Warranty | Warranty |
