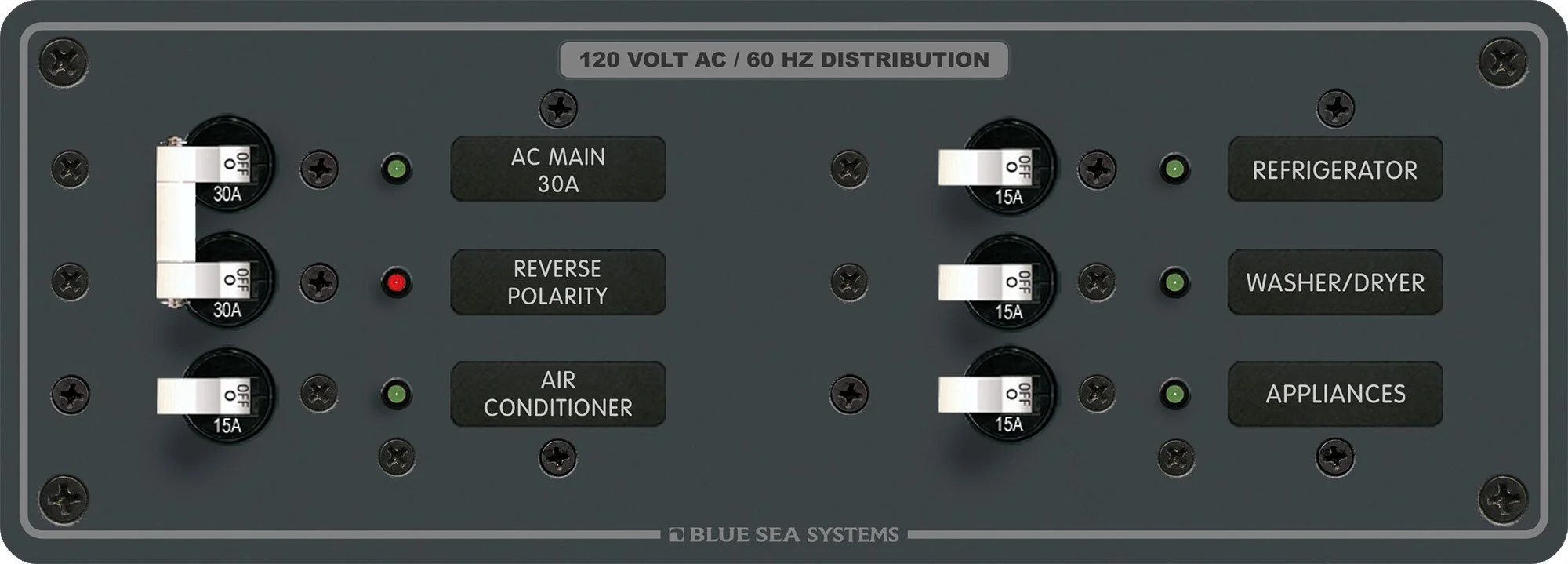

AC Main +4 Positions PN: 8099 White Switches. Red reverse polarity indicating LED. All hot, neutral and safety ground buses installed, fully pre-wired. Label backlighting pre-installed. All LEDs installed. Maximum panel Amperage - 50 Amperes. Includes (1) 30A Double Pole Circuit Breaker and (4) 15A Single Pole Circuit Breakers. 120 Volt. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- "ON" indicating LEDs installed in all circuit positions
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details |
| Global Trade Identification Number | 00632085080990 |
| Included Components | Blue Sea 8099 AC Main +4 Positions Toggle Circuit Breaker Panel (White Switches) |
| Material | Plastic |
| Number Of Circuits | 4 |
| Phase Type | Single Phase |
| Size | 4.5-inch Combi |
| UPC | 632085080990 |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Height | 5 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 8 x 5 inches |
| Size | 4.5-inch Combi |
| Weight | 2.4 pounds |
| Width | 8 inches |
| Technical Specifications |
| AC/DC | AC |
| Max Breaker Quantity | 4 |
| Max Panel Amperage | 50 Amperes |
| Voltage | 120v |
