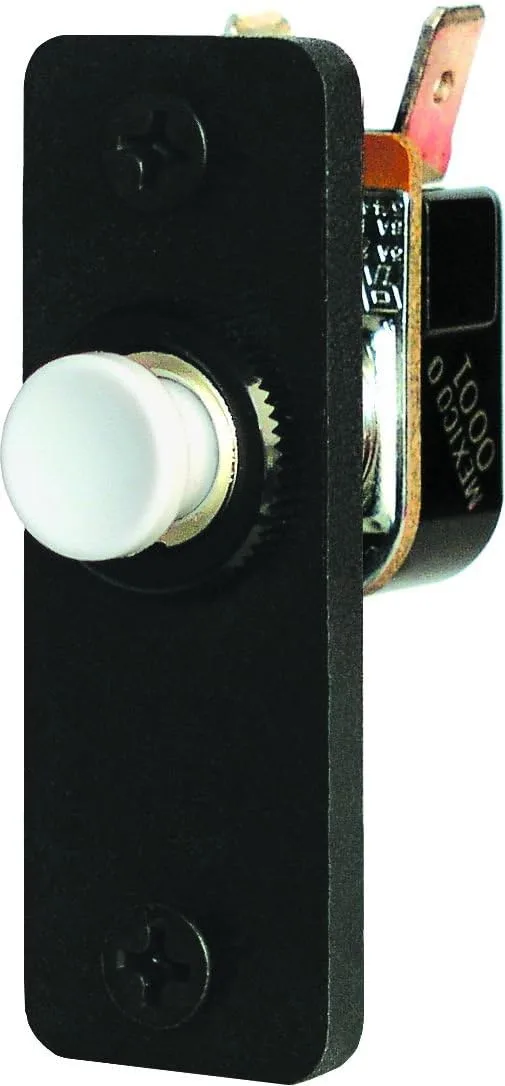

Blue Sea Systems 8200 Push Button SPST Panel Switch
Customize
Panel Switch PN: 8200 Type: Push Button Pole / Throw: SPST Action ( ) = momentary: OFF - (ON) Features: Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than ON-OFF or different pole configuration separate from circuit protection All panel switches mount in Blue Sea Systems toggle type circuit breaker panels Supplied with mounting adapter for standard 5/8" circuit breaker mounting hole Nickel-plated brass and phenolic non-corrosive construction Specifications Rating 250V AC 3 Amperes Rating 125V AC 6 Amperes Rating 32V DC 6 Amperes Terminal Size 0.25" (6.35mm) Terminal Type Quick Connect Tab Actuator Color White WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than ON-OFF or different pole configuration separate from circuit protection Panel switches mount in A-Series toggle circuit breaker apertures Easily installs directly onto shunt using existing sense screws.
- Max Amp: 3A @ 250V AC, 6A @ 125V AC, 6A @ 32V DC
- Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than ON-OFF or different pole configuration separate from circuit protection
- Panel switches mount in A-Series toggle circuit breaker aperatures
- Supplied with mounting adapter for standard 5/8" circuit breaker mounting hole. Nickel-plated brass and phenolic non-corrosive construction
- Action: (On)-Off. () = Momentary
Specifications:
| Materials & Construction | |
| Contact Material | Brass |
| Material | Plastic |
| Product Details | |
| Item model number | 8200 |
| Manufacturer Part No | 8200 |
| Model | SWITCH PUSH-BUTTON SPST OFF-ON |
| Mounting Type | Panel Mount |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 1 inches |
| Weight | 0.8 ounces |
| Width | 3 inches |
| Technical Specifications | |
| AC Adapter Current | 6 Amps |
| Connector Type | Screw |
| Current Rating | 6 Amps |
| Global Trade Identification Number | 00632085082000 |
| Operating Voltage | 250 Volts |
| Operation Mode | ON-OFF |
| Specification Met | Off-(on) |
| Terminal | Spst |
| UPC | 632085082000 357395696777 999994337684 |
| Voltage | 250 Volts, 125 Volts |
