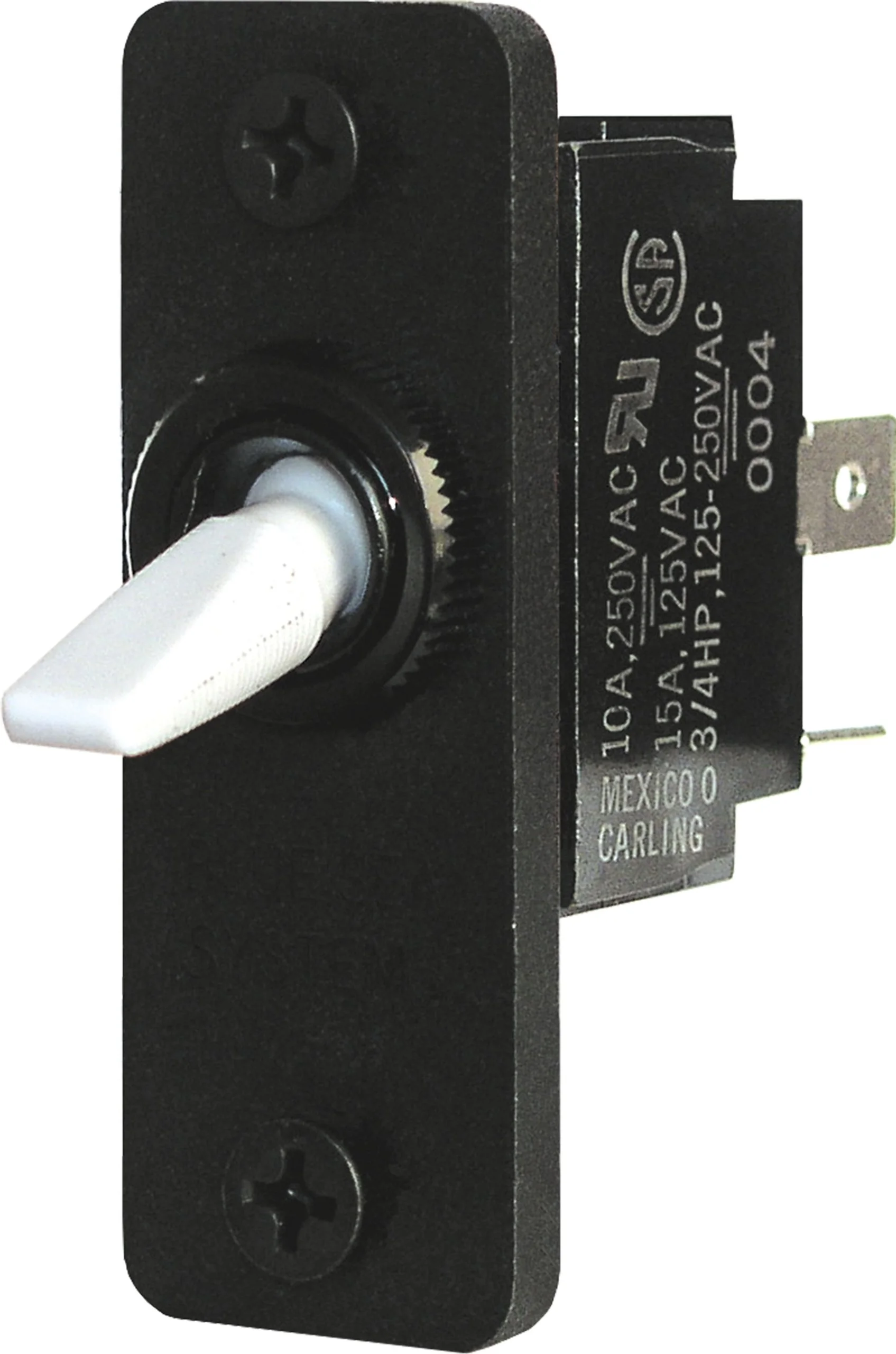

Blue Sea Systems 8204 Switch Toggle SPST Off-ON, 35 Feet
Customize
Panel Switch PN: 8204. Toggle, SPST, Action: OFF - ON (momentary option shown parenthetically). Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than simple ON-OFF or different pole configuration separate from circuit protection. All panel switches mount in Blue Sea Systems toggle type circuit breaker panels. Supplied with mounting adapter for standard 5/8" circuit breaker mounting hole. Nickel-plated brass and phenolic non-corrosive construction. Specifications: Rating 250V AC 10 Amperes; Rating 125V AC 15 Amperes; Rating 32V DC 15 Amperes; Terminal Size 0.25" (6.35mm); Terminal Type: Quick Connect Tab; Actuator Color: White. Additional technical specs: Mounting Type: Panel Mount; Terminal: Spst; Voltage: 125250 Volts; Current Rating: 15 Amps; Connector Type: Quick Connect; Contact Material: Brass; Insulation Resistance: 100 Megaohms. Product Dimensions (packaged and product) and weights available for shipping and spec reference.
- Max Amp: 10A @ 250V AC, 15A @ 125V AC, 15A @ 32V DC
- Perfect for generator starters, bilge pumps, horns, wipers, engine controls and any other application that requires switching action other than ON-OFF or different pole configuration separate from circuit protection
- Panel switches mount in A-Series toggle circuit breaker aperatures
- Supplied with mounting adapter for standard 5/8" circuit breaker mounting hole. Nickel-plated brass and phenolic non-corrosive construction
- Action: (On)-Off. () = Momentary
Specifications:
| Materials & Construction | |
| Color | White (Actuator) |
| Material | Nickel-plated brass, Phenolic |
| Outer Material | Phenolic |
| Product Details | |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Insulation Resistance | 100 Megaohms |
| Model Number | 8204 |
| Mounting Type | Panel Mount |
| Style | Toggle |
| Terminal | Spst |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 1 x 5 inches |
| Weight | 0.704 ounces |
| Width | 1 inches |
| Technical Specifications | |
| AC Adapter Current | 15 Amps |
| Current Rating | 15 Amps |
| Operation Mode | ON-OFF |
| Voltage | 125250 Volts |
