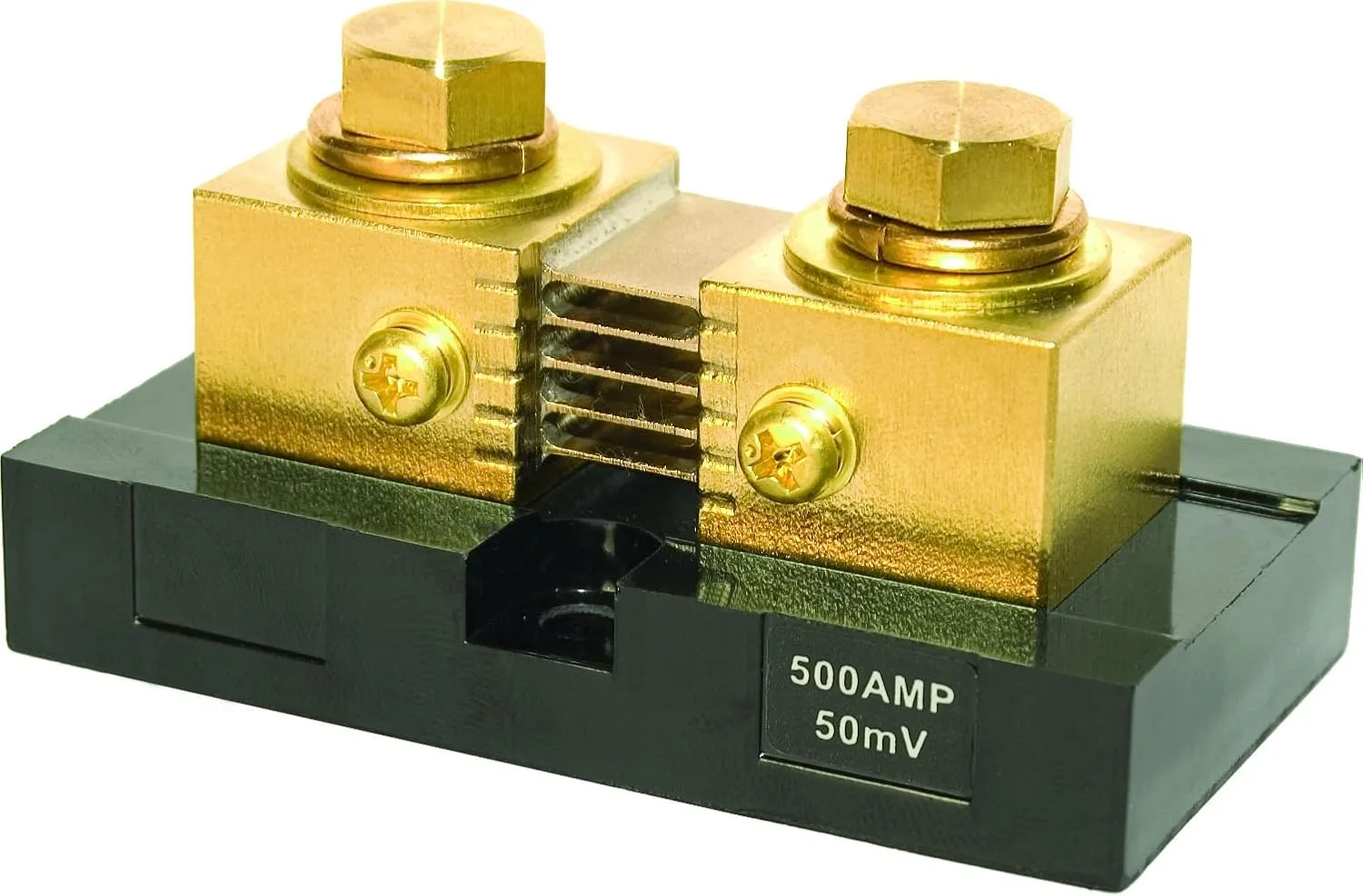

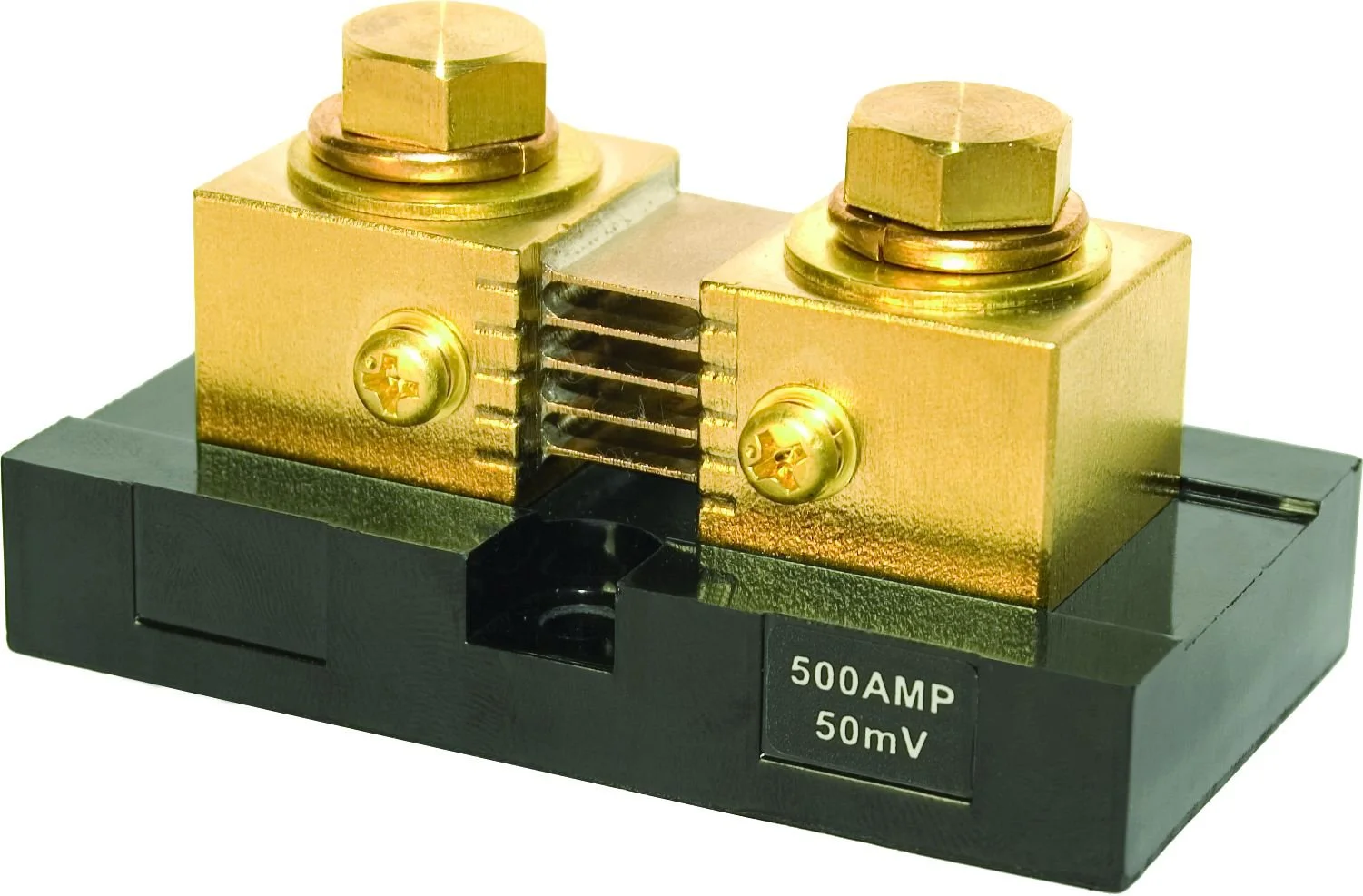

Blue Sea Systems 8255 DC Digital Current Shunt - 500A
BLUE SEA SYSTEMS 8255 DC digital current shunt (500A/50mV) for accurate battery/ammeter monitoring in marine and automotive applications. Durable plastic construction, easy in-line installation.
$104.99
Customize
Available Quantity
11 GSA Item
No GSA Compliant
Yes Product Details
Blue Sea Systems 8255 DC Digital Current Shunt - 500A/50mV. Designed for continuous DC measurement, the 8255 shunt provides a stable 50 mV output at rated 500A for use with DC ammeters and battery monitoring systems. For continuous operation it is recommended shunts not be run at more than two-thirds (66%) of rated current under normal conditions. Constructed with plastic insulation and single cable connections, this compact shunt is suitable for marine and automotive battery systems. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Product Type: Fishing Equipment
- Item Package Weight: 0.800 Pounds
- Item Package Dimensions: 10.921 L X 6.35 W X 4.826 H (Cm)
- Country Of Origin: Taiwan, Province Of China
Specifications:
| Materials & Construction | |
| Color | Regular |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Color | Regular |
| Global Trade Identification Number | 00632085082550 |
| Included Components | Great Product |
| Material | Plastic |
| No. of wires | 1 |
| Number of Cable Strands | 1 strand |
| Number of Items | 1 |
| Size | One Size |
| Voltage | 50 Volts |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1.97 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 2.99 x 1.97 inches |
| Size | One Size |
| Weight | 7.76 ounces |
| Width | 2.99 inches |
| Technical Specifications | |
| No. of wires | 1 |
| Number of Cable Strands | 1 strand |
| Voltage | 50 Volts |
