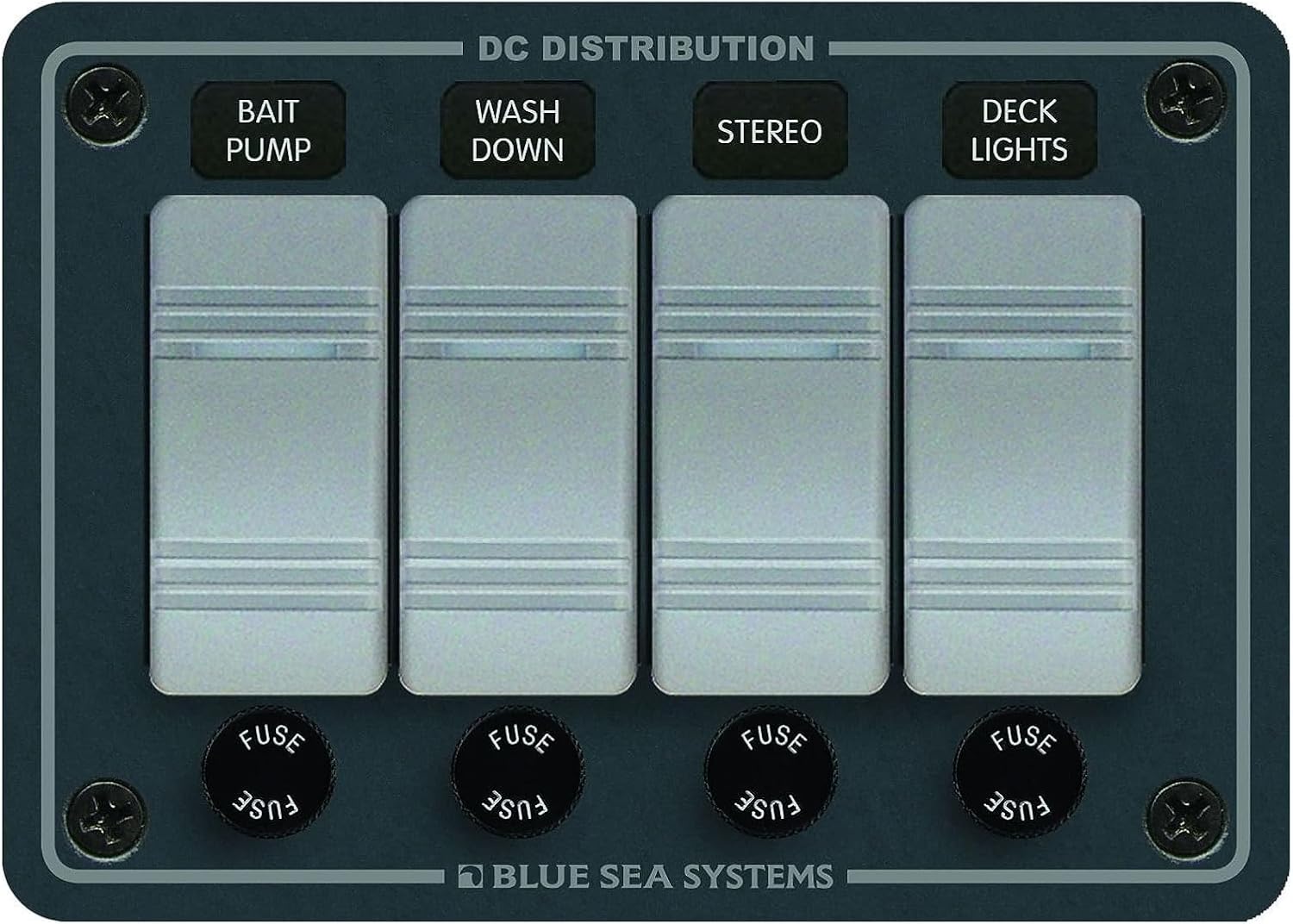

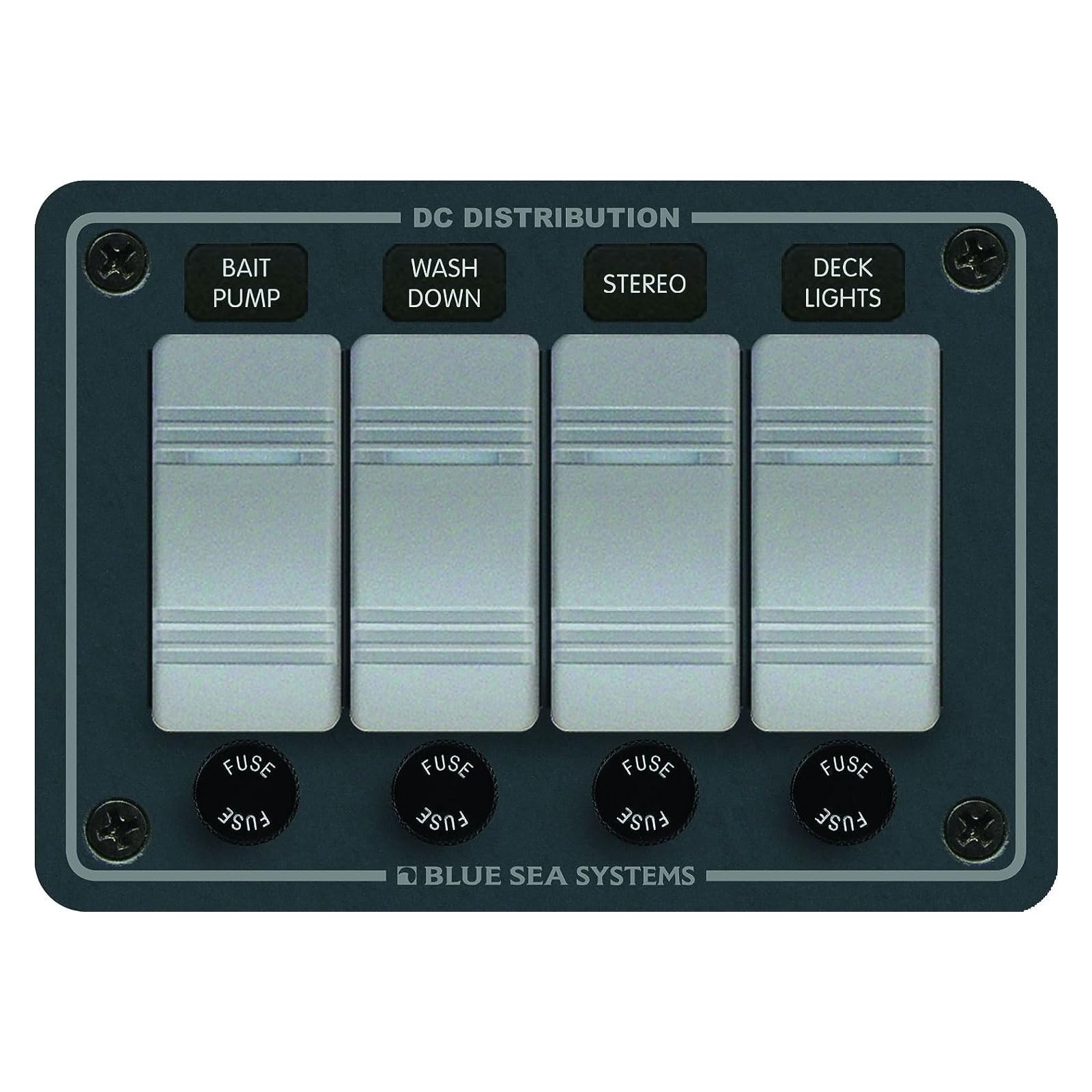

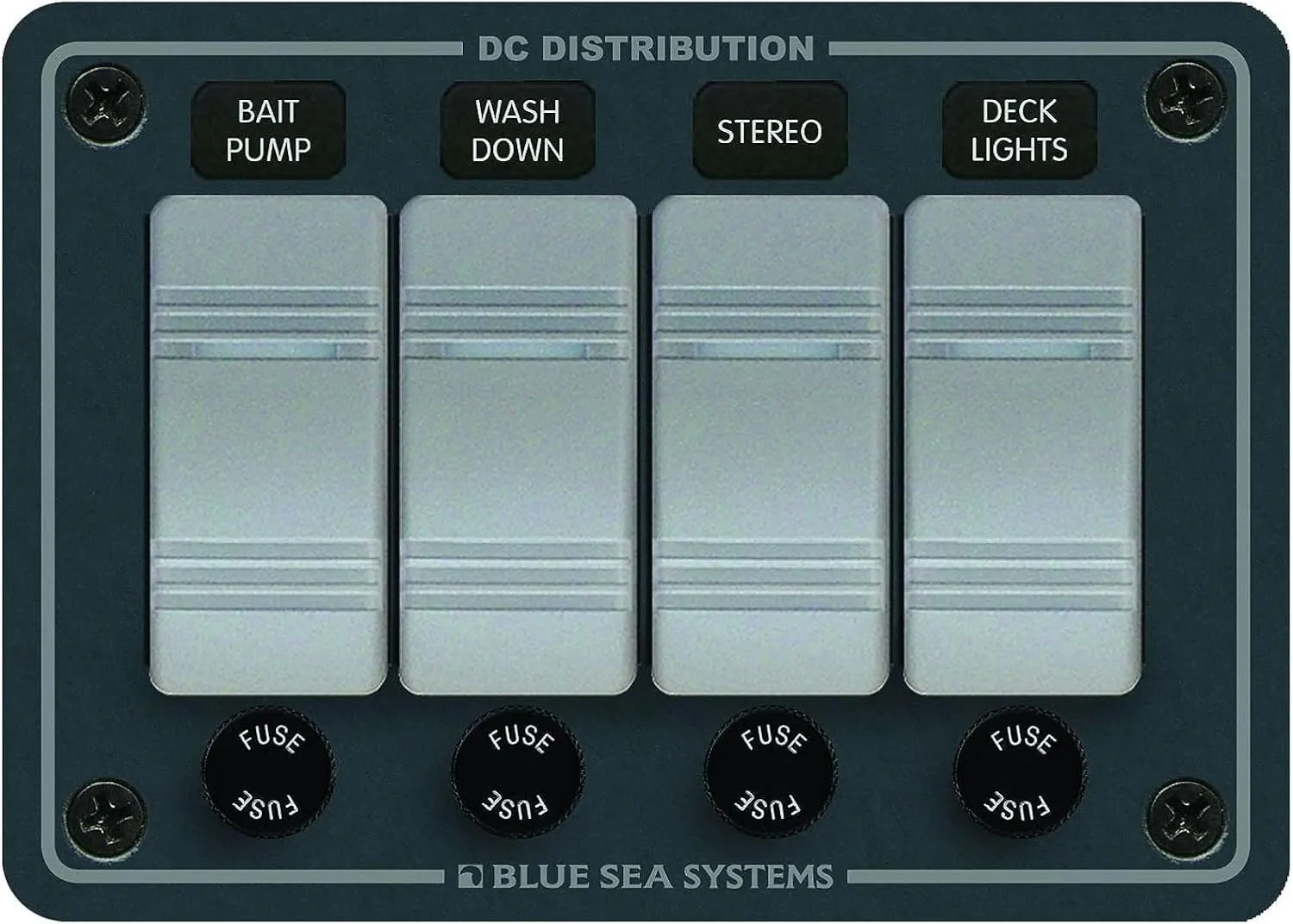

Blue Sea Systems 8262 Contura Water Resistant 12V DC Panel - 4 Position, Beige
Customize
8262 Waterproof Panel 4 Position - Slate Grey / Beige. Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions. Designed for flybridge and open cockpit applications. ON-OFF Contura Switches with ON indicating LEDs embedded in switches. Watertight mounting gasket included and countersunk mounting holes throughout. Two-part polyurethane slate gray finish. Industry standard height and width. Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion. Completely wired and ready to install. Specifications: Weatherproof/Water Resistant; Positions: 4; Nominal Voltage: 12v / 24v; Panel Cumulative Rating: 45A; Switch Rating: 20A @ 12v DC / 15A @ 24v DC. Included: (4) 5021 Panel Mount AGC/MDL Fuse Holder; (1) 8214 Black 60 Label Set; (4) 8230 Contura Switch SPST Gray - Off-On. Proposition 65 warning applies. Package Weight approx. 0.699 pounds.
- Package Dimensions: 11.43 H x 20.573 L x 15.748 W (centimetres)
- Country of Origin : United States
- Package Weight: 0.699 pounds
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose wash-downs, momentary immersions
Specifications:
| Materials & Construction | |
| Material | Plastic |
| Product Details | |
| Ac/dc | Dc |
| Item model number | 8262 |
| Max Breaker Quantity | 4 |
| Model | PANEL CS FUSE HOLDER 4-POS GRY |
| Number Of Circuits | 4 |
| Phase Type | single-phase or three-phase |
| Waterproof | Resistant |
| Wattage | 5 watts |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 8.1 inches |
| Product Dimensions | 8.1"L x 5.25"W x 3.75"H |
| Size | 4 Position |
| Weight | 3.2 ounces |
| Width | 5.25 inches |
| Technical Specifications | |
| Voltage | 12 Volts (DC) |
