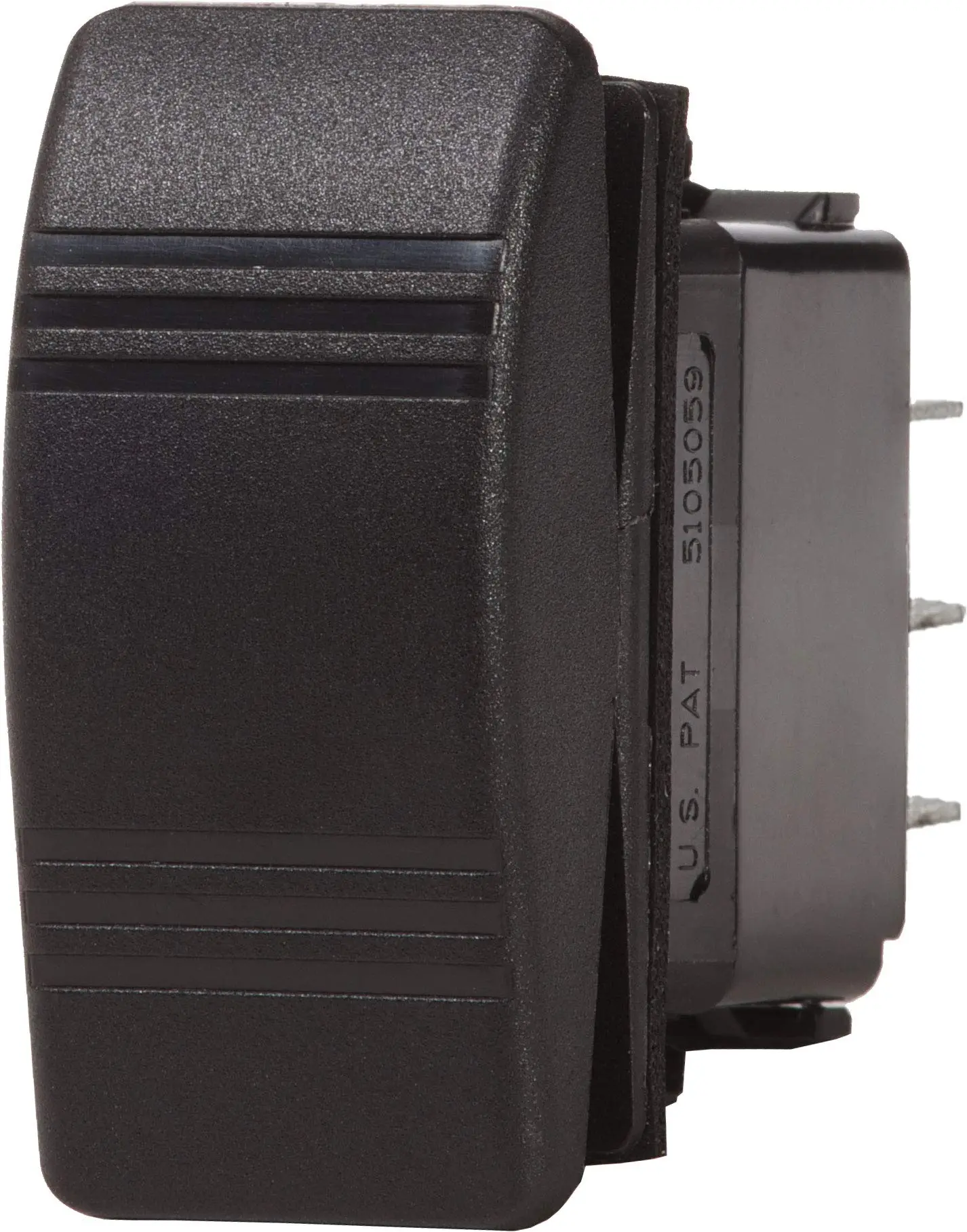

Blue Sea Systems 8290 Contura (ON)-OFF-(ON) DPDT Switch, Black
Customize
Blue Sea 8290 Contura III water-resistant DPDT switch in black. Vibration, shock, thermoshock, moisture, and salt spray resistant. Specially manufactured for mounting in Blue Sea Systems' water-resistant panels. Ignition protected and meets UL1500 and ISO8846 ignition protection requirements. Operation Mode: ON-OFF-ON. Current rating up to 20A @ 12V DC (15A @ 24V DC). Quick-connect terminals, copper contact material, normally closed contact type, and hinge lever actuator. Product dimensions approx. 1.75 x 2.69 x 4.38 inches; item weight approx. 1.44 ounces. Ideal for marine and boating electrical applications where water resistance and ignition protection are required. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- AFFORDABLE PARTS
- Max. Operating Current: 20A @ 12V DC, 15A @ 24V DC
- Vibration, shock, thermoshock, moisture and salt spray resistant
- CE Marked, Meets UL 1500 and ISO 8846 external ignition protection requirements
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Copper |
| Product Details | |
| Action | (On)/Off/(On) |
| Actuator Type | Hinge Lever |
| Circuit Type | 1-way |
| Color | Black |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Material | Copper |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Is Discontinued By Manufacturer | No |
| Item model number | 8290 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Manufacturer Part No | 8290 |
| Mirror Lighting Type | Non-Illuminated |
| Model | SWITCH CONTURA DPDT (ON)OFF(ON) |
| Number of Items | 1 |
| Number of Positions | 3 |
| Operating Voltage | 24 Volts |
| Operation Mode | ON-OFF-ON |
| Specification Met | CE, UL |
| Terminal | Dpdt |
| Throw/Pole | Dpdt |
| Upper Temperature Rating | 1 Degrees Celsius |
| Voltage | 12 Volts |
| Sizing & Dimensions | |
| Height | 4.38 inches |
| Length | 1.75 inches |
| Product Dimensions | 1.75 x 2.69 x 4.38 inches |
| Weight | 1.44 ounces |
| Width | 2.69 inches |
