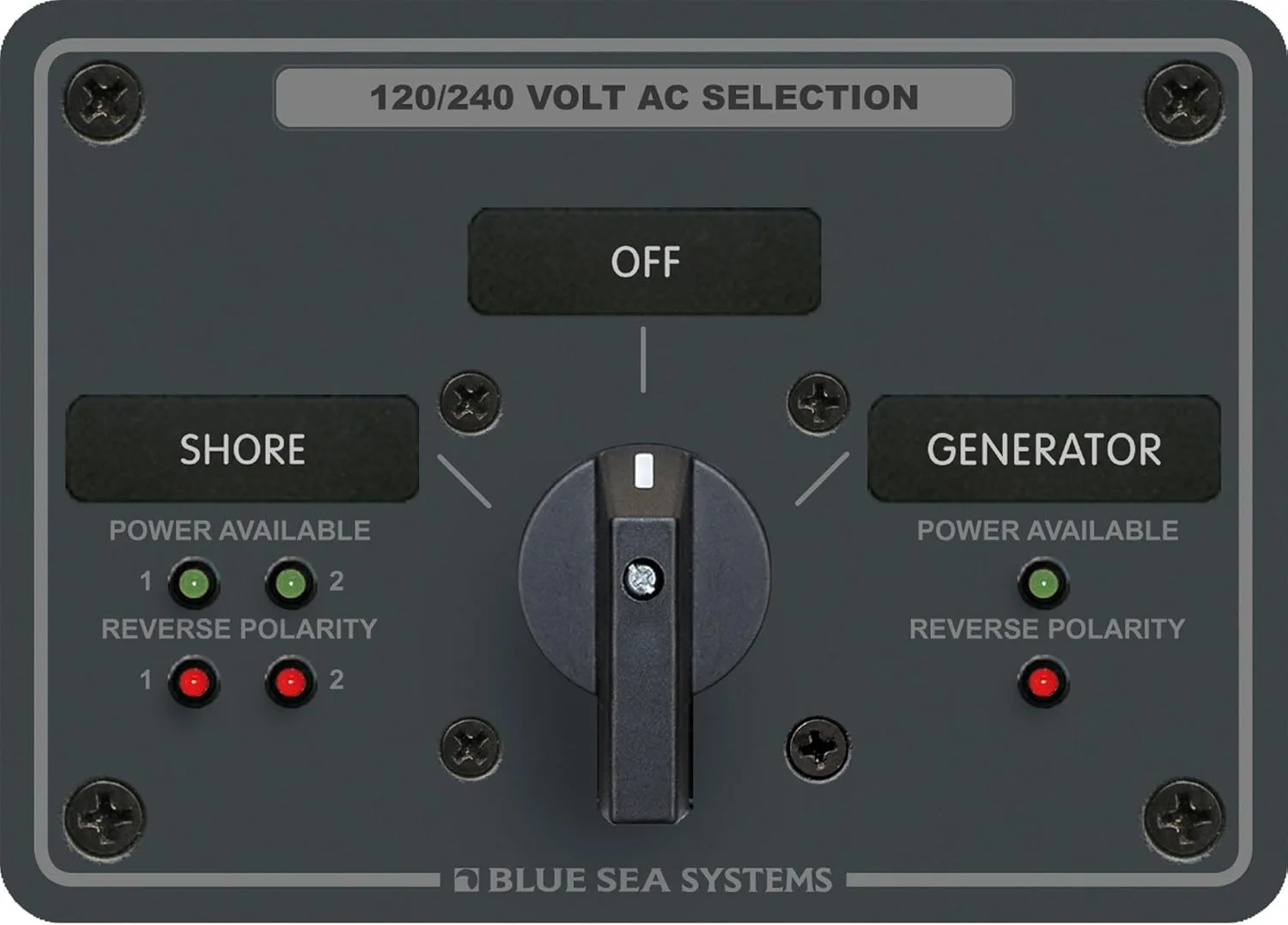

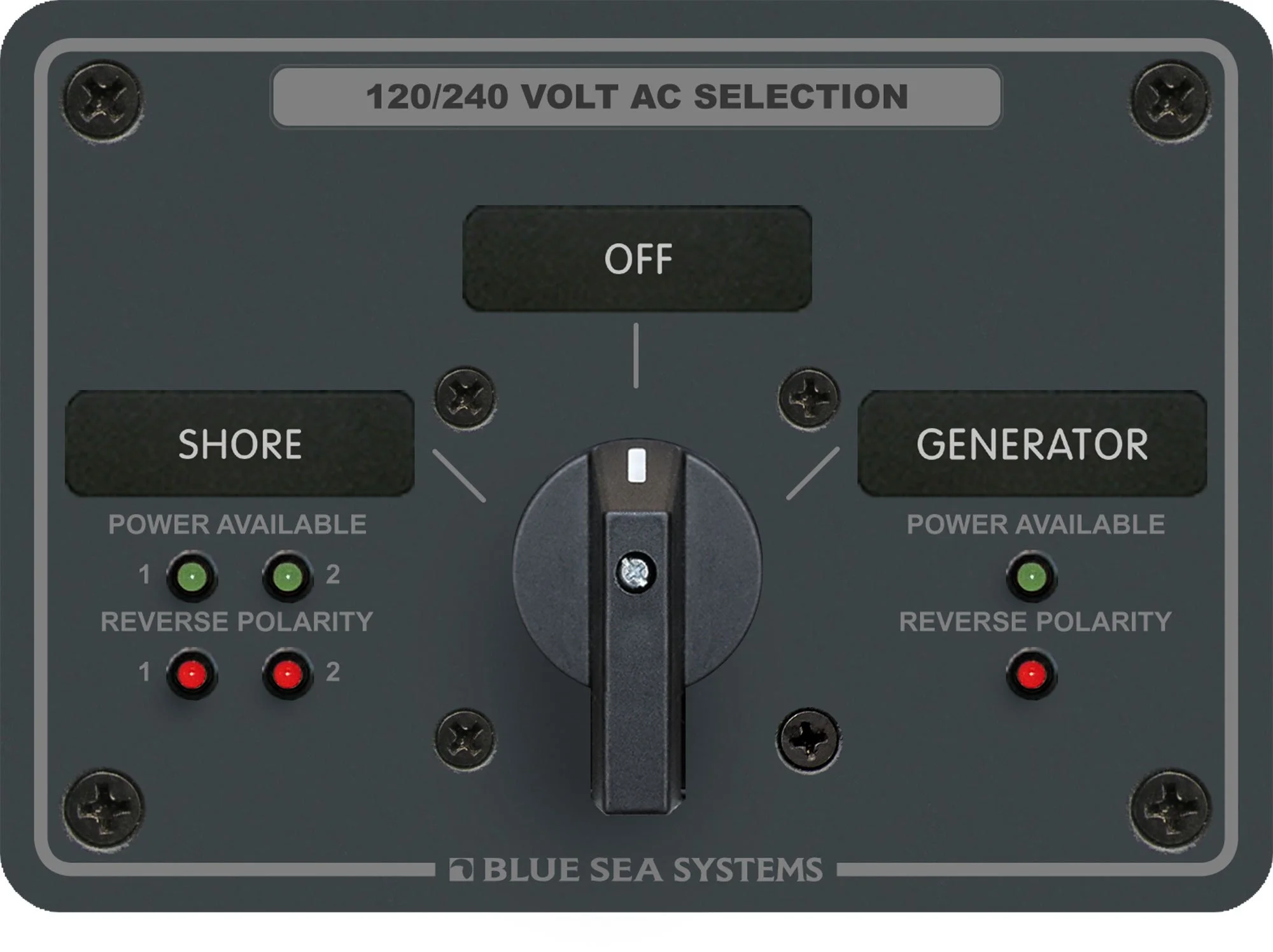

Blue Sea Systems 8386 AC Rotary Switch Panel 30 Ampere 2 positions + OFF, 4 Pole
Customize
AC Rotary Switch Panel 30 Ampere 2 Positions + OFF, 4 Pole. Switches between two 120V AC shore power sources and a 120/240V AC source to two 120V AC load groups. Includes heavy-duty industrial rated switch (model 9011/6337 depending on configuration), "ON" indicating LEDs installed in all circuit positions, red reverse polarity LED indicators and green power available LEDs. Two-part polyurethane slate gray finish on heavy 1/8" aluminum 5052 alloy. Compact solution when circuit protection is provided elsewhere. Voltage: 120V/240V. Amperage: 30A. Max breaker quantity: 2 + OFF. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Switches between 2 - 120 Volt AC shore power sources and 1 - 120/240 Volt AC source to 2 - 120V AC load groups
- Includes 9011 heavy duty industrial rated switch
- "ON" indicating LEDs installed in all circuit positions
Specifications:
| Materials & Construction | |
| Finish | Two-part polyurethane slate gray finish |
| Housing Material | Heavy 1/8" aluminum 5052 alloy |
| Included Components | Great Product |
| Product Details | |
| AC/DC | Ac |
| Actuator Type | Rotary |
| Circuit Details (Max Breaker Quantity) | 2 +off |
| Circuit Type | Multiple Configuration |
| Control Method | Touch |
| Controller Type | Rotary |
| International Protection Rating | IP54 |
| Mounting Type | Pole |
| Number of Positions | 2 |
| Operation Description | Switches between 2 - 120 Volt AC shore power sources and 1 - 120/240 Volt AC source to 2 - 120V AC load groups |
| Operation Mode | Off,Rotary Switch |
| Terminal | Screw |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 7 x 5 inches |
| Weight | 12.8 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Contact Type | Normally Open |
| Current Rating | 30 Amps |
| Operating Voltage | 240 Volts |
| Warranty | Warranty |
