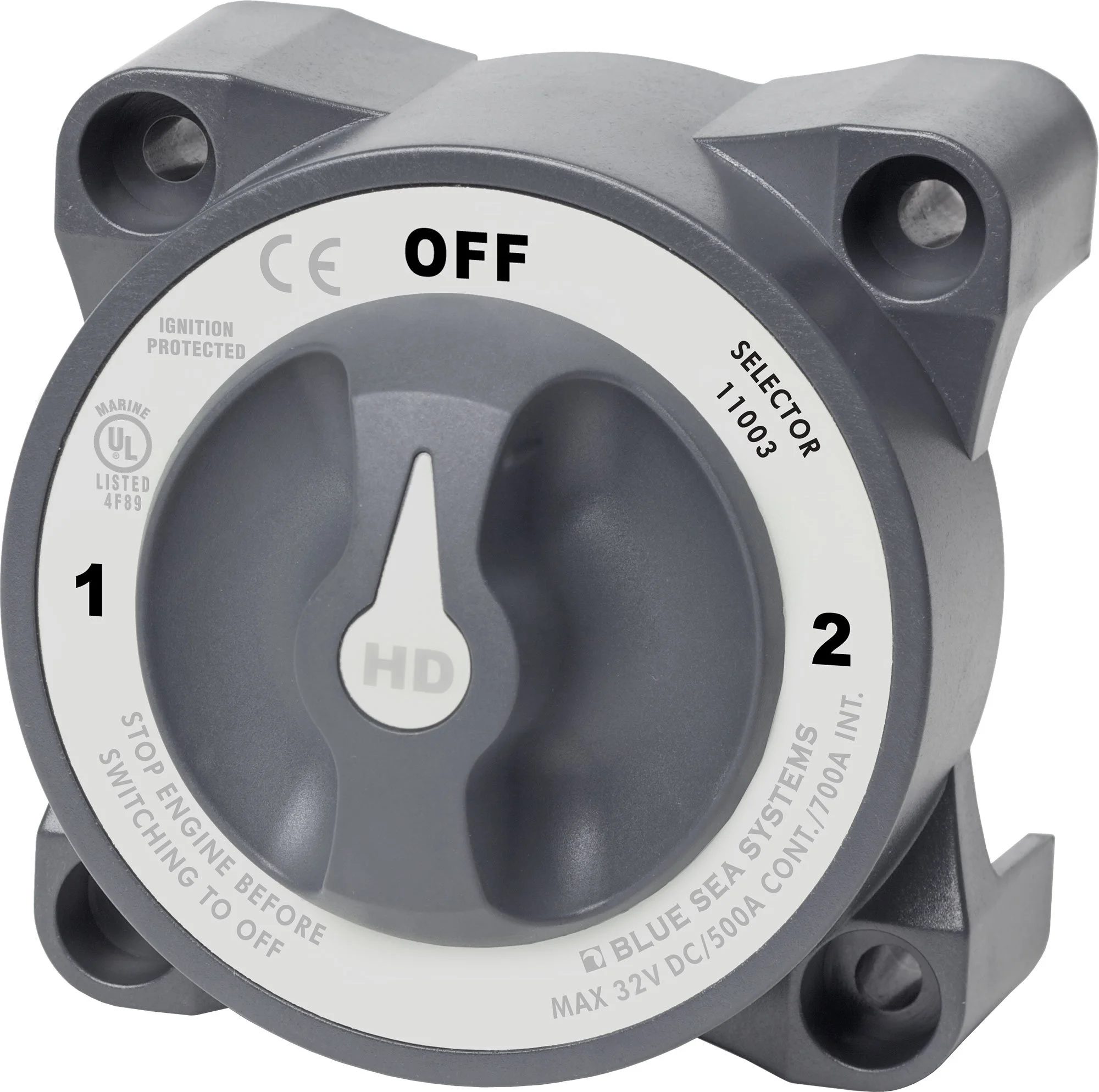

Blue Sea Systems 11003 HD-Series Heavy Duty 3 Position Selector Battery Switch with AFD, Beige
Customize
11003 Features: Meets American Boat and Yacht Council (ABYC) requirements for battery switches. Ignition protected — safe for installation aboard gasoline powered boats. Case design allows surface or rear panel mounting. Accepts two 4/0 AWG (95mm) battery cables. M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals. 7/8" (22.22mm) stud length to accept multiple cable terminals. Tactile textures indicate knob position by feel only. Case design allows surface or rear panel mounting. Switch Ratings: 10 Sec: 2750A; 60 Sec: 1150A; 5 Min: 700A; Continuous: 500A; Max Voltage: 32V DC. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Includes AFD (Alternator Field Disconnect). Positions: 3. Marketing / technical highlights: Switches a single battery to a single load group. Does not include Combine position. IP66 waterproof; contact material: silicon bronze; actuator type: manual; connector type: crimp. Item dimensions L x W x H: 9 x 7 x 3 inches. Item weight: 1 pounds. Country of origin: USA. National Stock Number: 5930-01-630-2117.

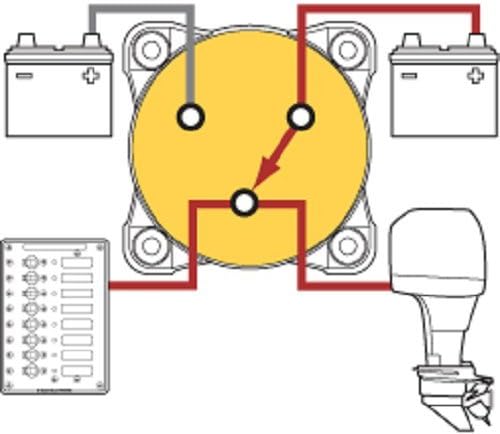

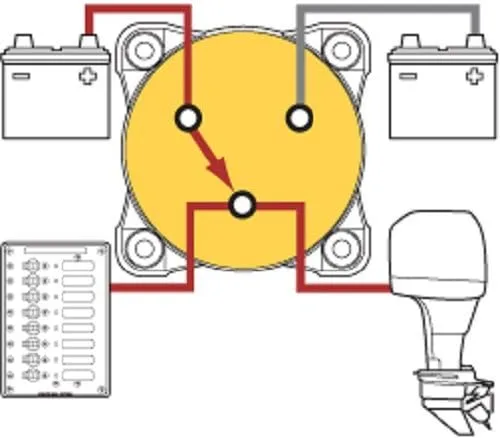

- Switches isolated battery banks to all loads. Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats
- IP66 waterproof, ISO 8846 and meets ABYC requirements
- Accepts two 4/0 AWG (95mm²) battery cables. Terminal Stud Size: 1/2"
- Continuous Rating: 500A, Max Voltage: 32VDC
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Silicon Bronze |
| Outer Material | Silicon Bronze |
| Product Details | |
| Actuator Type | Manual |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Material | Silicon Bronze |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Country of Origin | USA |
| Global Trade Identification Number | 00632085110031 |
| International Protection Rating | IP66 |
| Model | HD BATTERY SELECTOR 3POS AFD |
| National Stock Number | 5930-01-630-2117 |
| Number of Items | 1 |
| Number of Positions | 3 |
| Operation Mode | ON-OFF |
| Terminal | Physical |
| Unit Count | 1.0 Count |
| UPC | 632085110031 |
| Wattage | 1.6E+4 |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 7 x 3 inches |
| Weight | 1 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Accepts Cable Size | two 4/0 AWG (95mm²) |
| Current Rating | 500 Amps |
| Operating Voltage | 32 Volts |
| Switch Ratings (10 Sec / 60 Sec / 5 Min / Continuous) | 2750A / 1150A / 700A / 500A |
| Terminal Stud Size | 1/2" |
