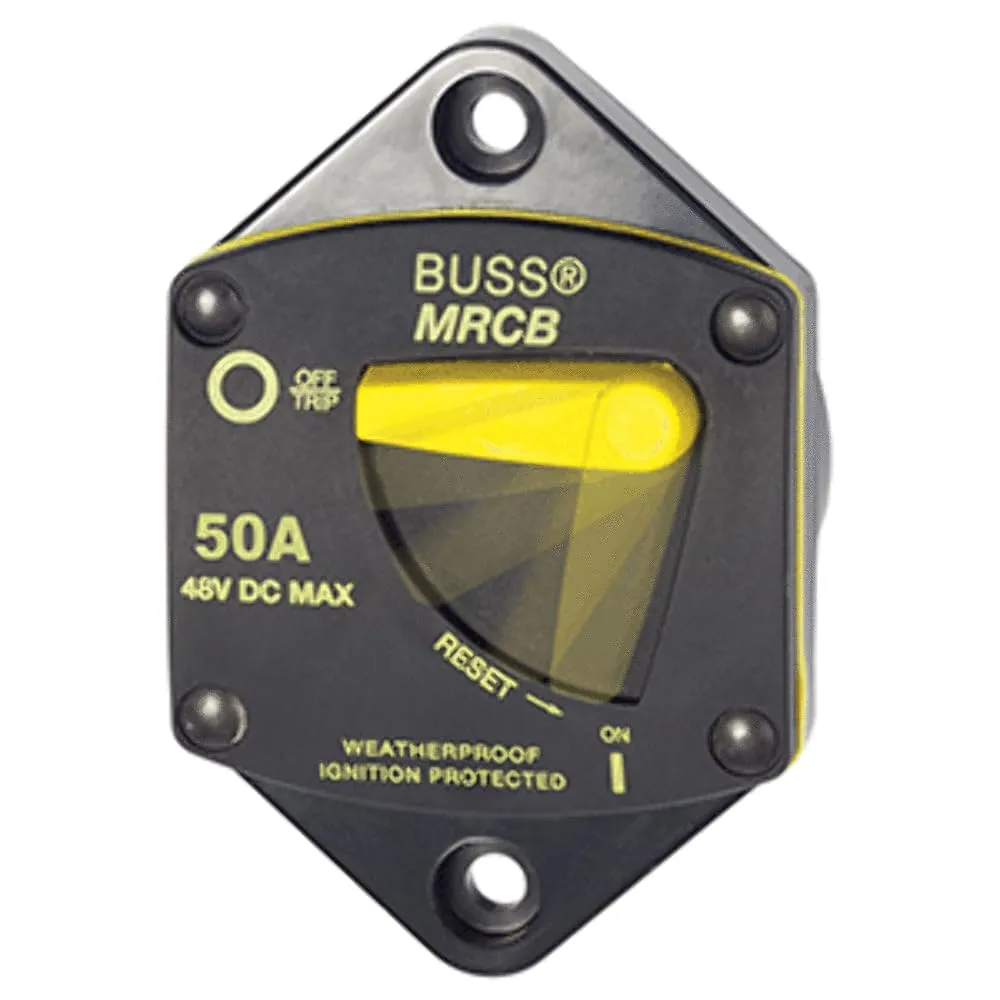

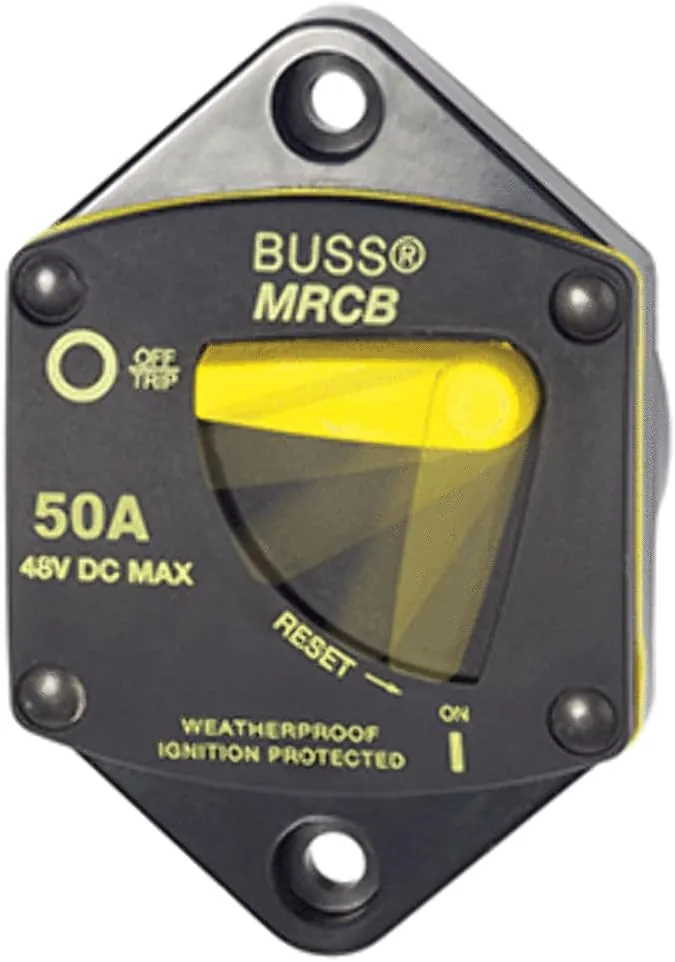

187 - Series Thermal Circuit Breakers - Panel Mount. 50 Amp Circuit Breaker PN: 7039. Combines switching and circuit protection into a single device. All components meet SAE J1171 external ignition protection requirements. Clear, single lever operation. "Trip Free" design cannot be held "ON" during fault current condition. Waterproof. Recessed mounting holes for clean appearance. Self-trimming case eliminates the need for mounting panels or trim bezels. Round case permits easy installation with standard sized hole saw. Large clearance around terminal studs accept heavy gauge wire lugs. Robust 5/16 terminals provide high torque connections. Large lever with vertical/horizontal orientation provides indication of trip status. Ignition protected - safe for installation aboard gasoline powered boats. Amperage: 50a.
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Amperage | 50a |
| Circuit Breaker Type | Standard |
| Color | No Color |
| Current Rating | 50 Amps |
| Included Components | Great Product |
| Item Package Dimensions L x W x H | 8 x 4 x 2 inches |
| Material | Plastic |
| Model Name | 7039 |
| Mounting Type | Plug-In Mount |
| Number of Items | 1 |
| Size | One Size |
| UPC | 632085170394 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 8 inches |
| Size | One Size |
| Weight | 8 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Warranty | Warranty |
