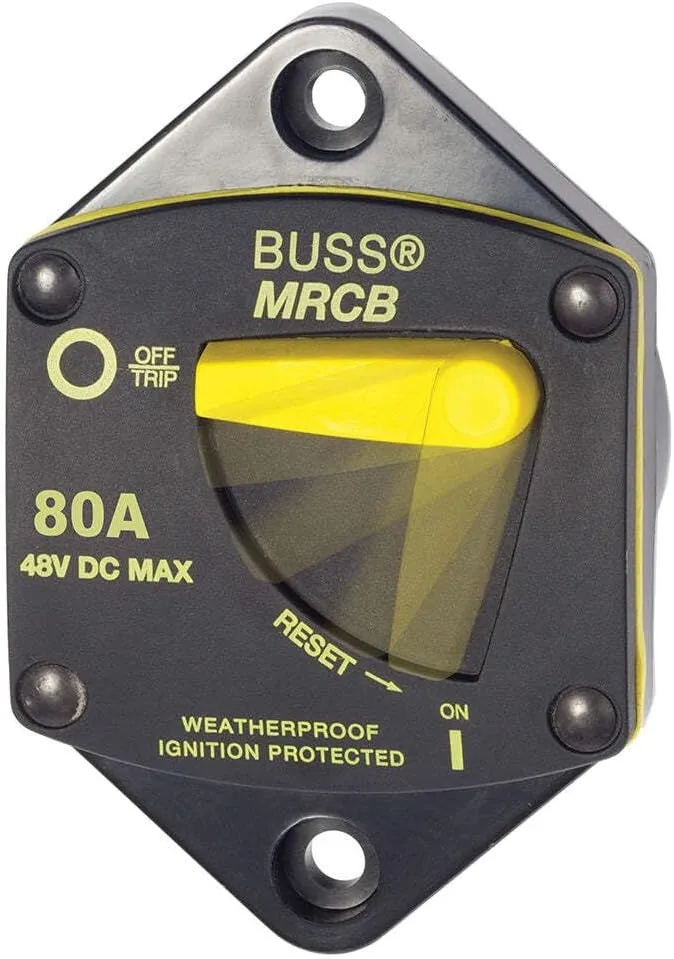

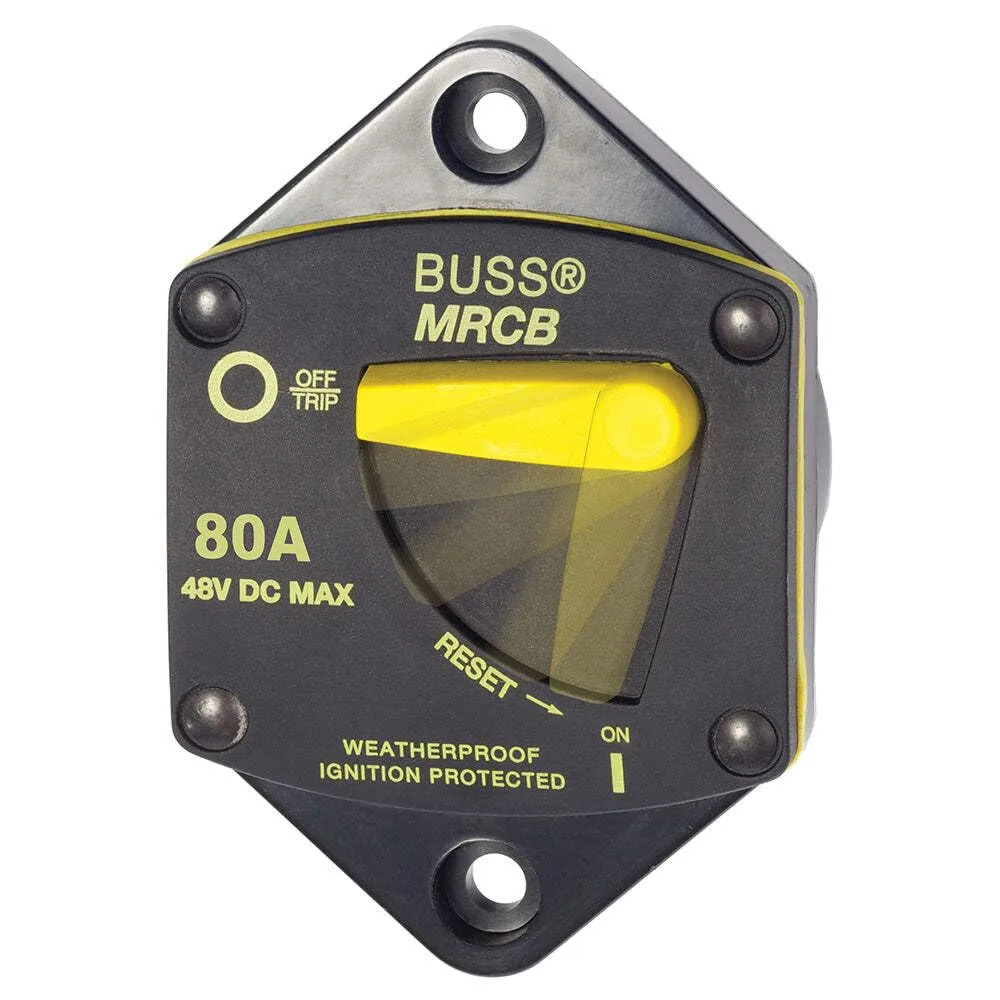

Blue Sea 7042 187-Series Circuit Breaker - Panel Mount 80A

7042 187-Series Circuit Breaker - Panel Mount 80A Features: Combines switching and circuit protection into a single device* Precise, single-lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Ample Clearance around terminal studs accepts heavy gauge wire lugs Robust 5/16 M8 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition-protected - Safe for installation aboard gasoline powered boats Specifications: Amperage: 80A Maximum Voltage: 48V DC Mounting: Panel Mount Circuit Breaker Type: Thermally responsive Bi-metal blade Terminal Stud Torque: 75 in-lb (8.47 Nm) Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Case Material: Thermoset Polyester Circuit Breaker Class: Type III - switchable/manual reset - trip-free Mounting Hole: Accept #10 (M5) Screw Terminal Stud Size: 5/16" - 18 Weight: 0.5lb (0.23 kg) Weight: 0.50lb (0.23 kg) * Do not use as a switch where high inrush currents are expected. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
