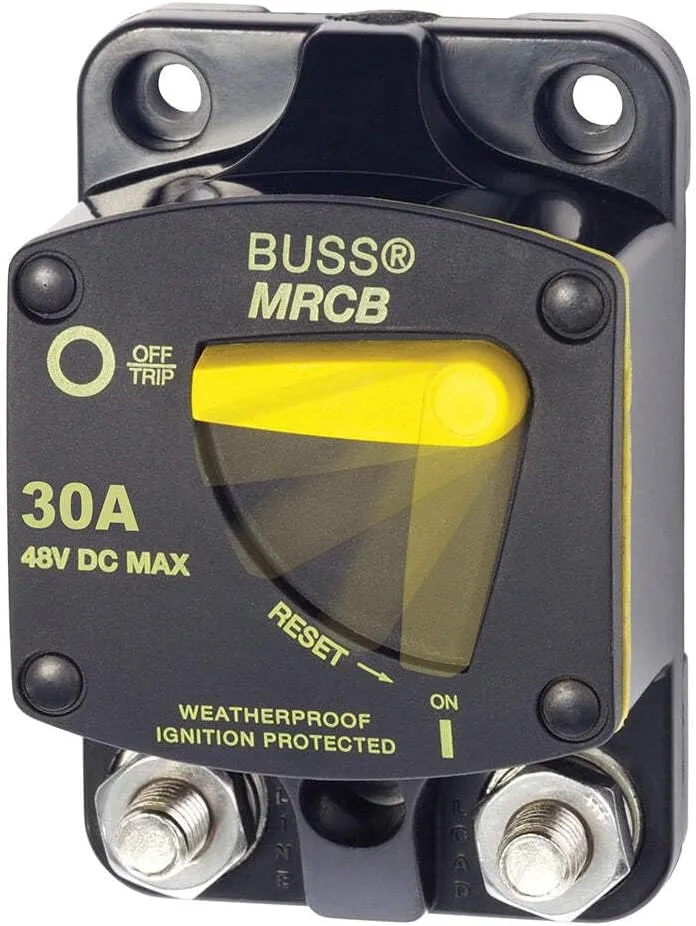

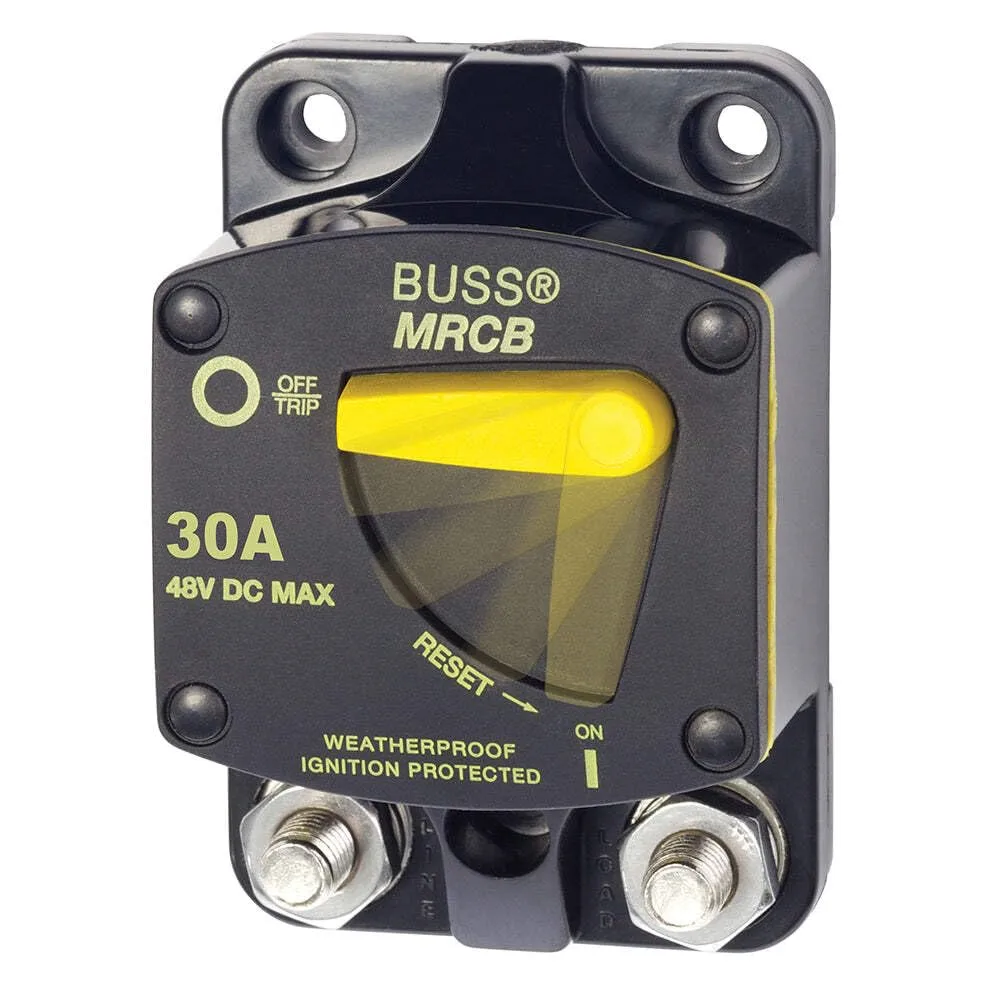

Blue Sea 7136 187 - Series Thermal Circuit Breaker - 30Amp
Customize
187 - Series Thermal Circuit Breakers - Surface Mount 30 Amp Circuit Breaker PN: 7136 Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC 3,000 Amperes @24 Volts DC 1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Amperage: 30a Great Product
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Amperage | 30a |
| Circuit Breaker Type | Standard |
| Current Rating | 30 Amps |
| Mounting Type | Surface Mount |
| Number Of Poles | 1 |
| UPC | 632085171360 |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Package Dimensions L x W x H | 6 x 4 x 3 inches |
| Length | 6 inches |
| Product Weight | 0.4 Pounds |
| Weight | 6.4 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Included Components | Great Product |
| Warranty | Warranty |
