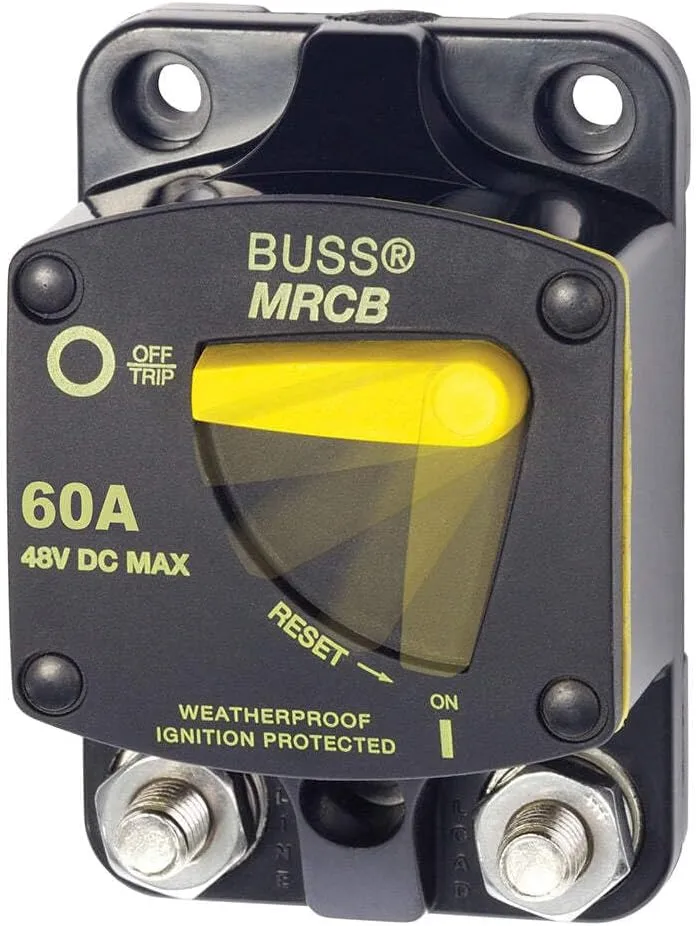

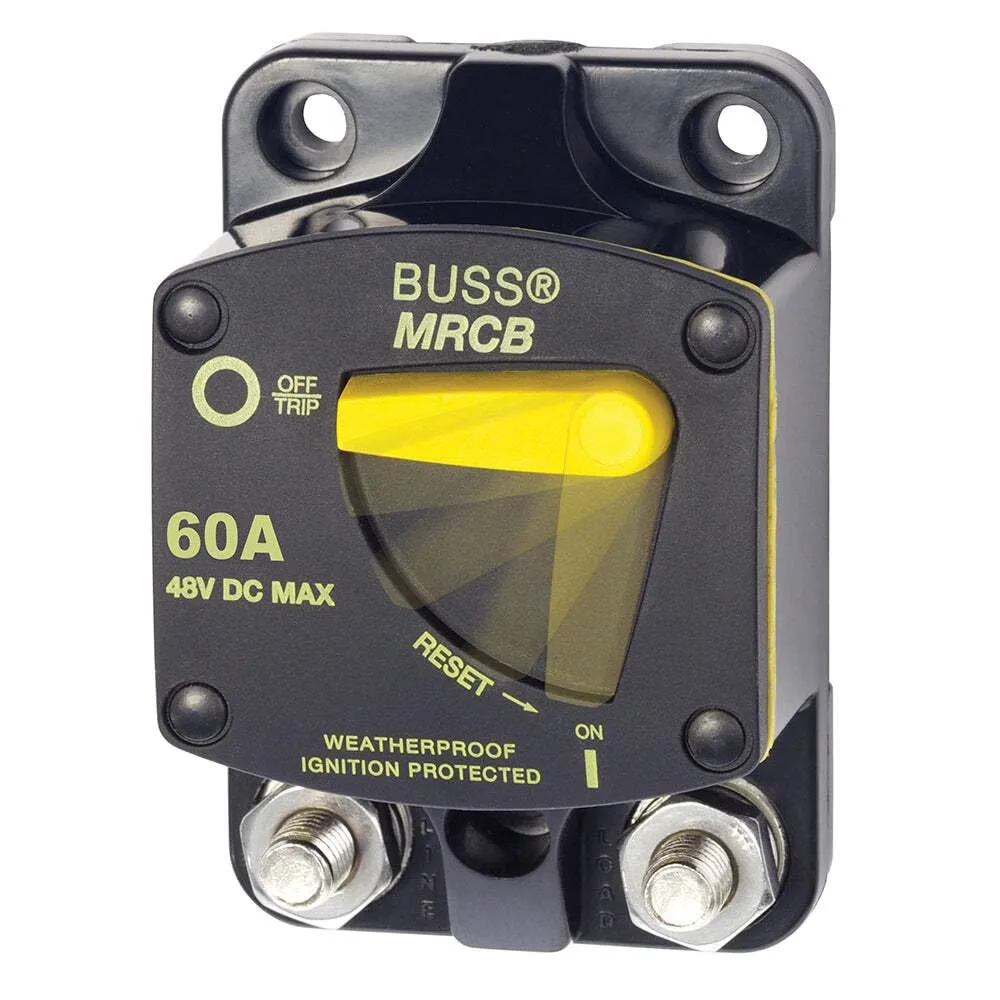

Blue Sea 7140 187 - Series Thermal Circuit Breaker - 60Amp
Customize
187 - Series Thermal Circuit Breakers - Surface Mount. 60 Amp Circuit Breaker PN: 7140. Features: Combines switching and circuit protection into a single device. All components meet SAE J1171 external ignition protection requirements. Clear, single lever operation; "Trip Free" design cannot be held "ON" during fault current condition. Waterproof. Recessed mounting holes for clean appearance. Large clearance around terminal studs accepts heavy gauge wire lugs. Robust 5/16 terminals provide high torque connections. Large lever with vertical/horizontal orientation provides indication of trip status. Ignition protected - safe for installation aboard gasoline powered boats. Specifications: Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free. Type: Thermally Responsive Bi-Metal Blade. Case Material: Thermoset Polyester. Voltage Rating: 48 Volts DC Maximum. Interrupt Rating: 5,000 Amperes @12 Volts DC; 3,000 Amperes @24 Volts DC; 1,500 Amperes @42 Volts DC. Operating Temperature Range: -25°C to +82°C. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Amperage: 60a. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 60a |
| Circuit Breaker Type | Standard |
| Current Rating | 60 Amps |
| Model Number | 7140 |
| Mounting Type | Panel Mount |
| Number Of Poles | 1 |
| Sizing & Dimensions | |
| Size | One Size |
| Weight | 9.59 ounces |
| Technical Specifications | |
| Interrupt Rating | 5,000 Amperes @12 Volts DC; 3,000 Amperes @24 Volts DC; 1,500 Amperes @42 Volts DC |
| Operating Temperature Range | -25°C to +82°C |
| Voltage Rating | 48 Volts DC Maximum |
| Warranty | Warranty |
