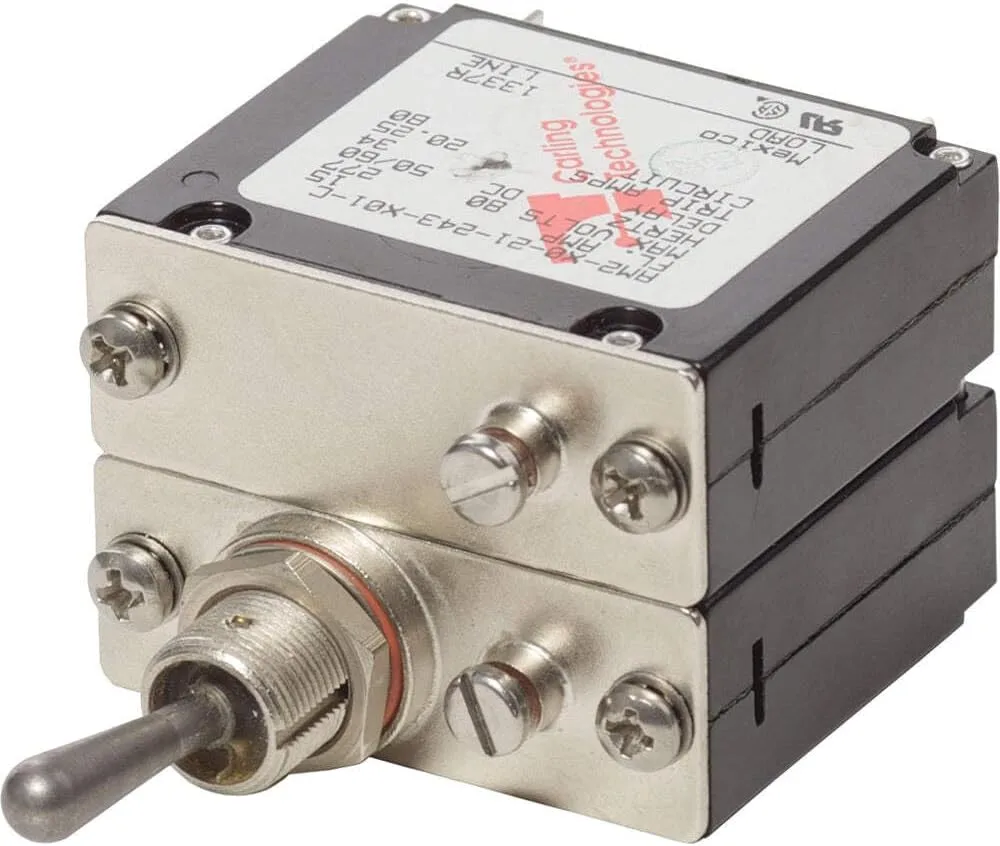

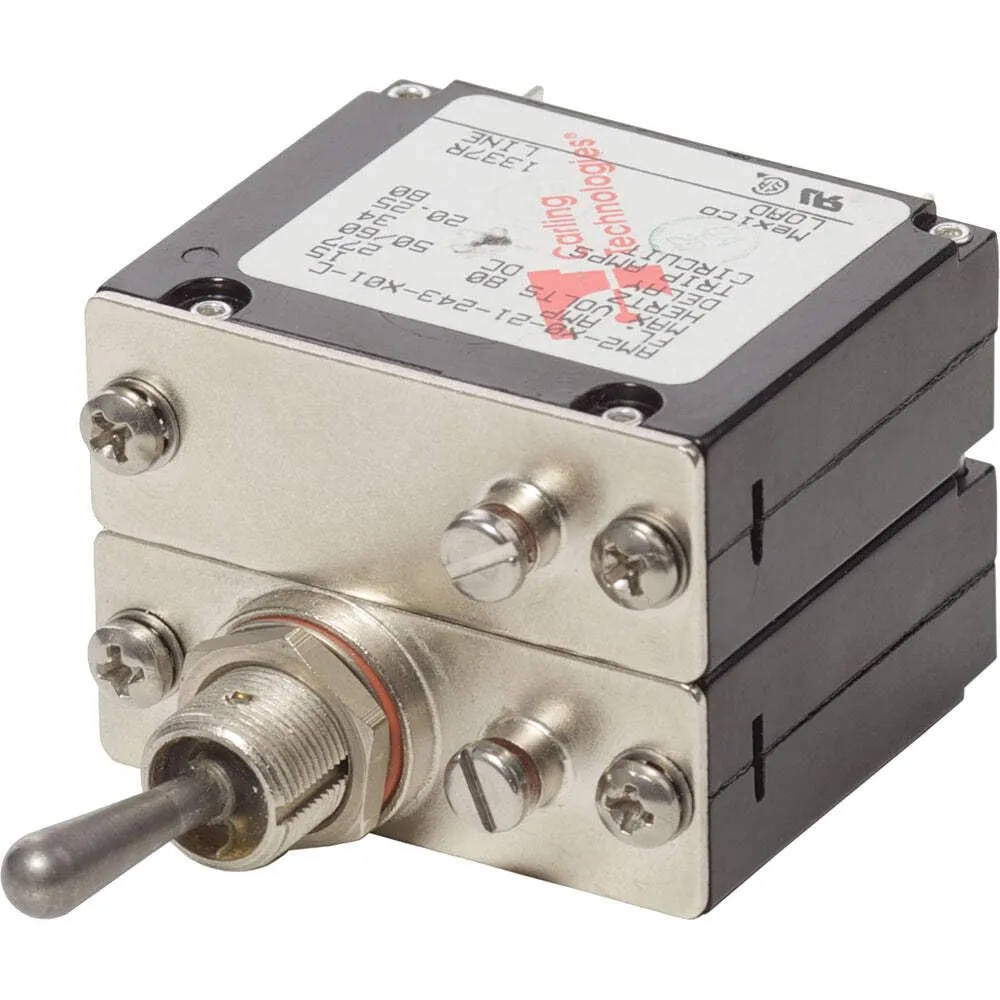

7312 COTS Military Grade A-Series 15 Amp circuit breaker. May be suitable for use when military specifications are required under CFR 46. Specifications include: 15A amperage, metal toggle actuator, 2 poles, Max Voltage 277V AC / 65V DC, magnetic hydraulic trip-free circuit breaker, interrupt capacity 1500 A AC (7500 A DC), operating temp -40°C to 85°C, mounting boss 1/2-32 hex nut SS, mounting nut torque 30"-lb, screw terminal torque 14"-lb, switching cycles 6000 electrical / 4000 mechanical, terminal screw #10-32 SS. UL 1077. Manufacturer: BLUE SEA SYSTEMS. Includes components as listed by manufacturer. (Product database long description combined with marketplace specifications and package details.)
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Plastic |
| Product Details |
| Amperage | 15a |
| Included Components | Great Product |
| Model Name | 7312 |
| Number of Items | 1 |
| UPC | 632085173128 |
| Warranty Description | Warranty |
| Sizing & Dimensions |
| Height | 2 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 2 inches |
| Weight | 5.6 ounces |
| Width | 3 inches |
| Technical Specifications |
| Circuit Breaker Type | Magnetic Hydraulic - Trip Free |
| Interrupt Capacity | 1500 A AC, 7500A DC |
| Max Operating Temp | 85°C |
| Max Voltage | 277V AC, 65V DC |
| Min Operating Temp | -40°C |
| Mounting Boss | 1/2-32 Hex Nut SS |
| Mounting Nut Torque | 30"-lb |
| Screw Terminal Torque | 14"-lb |
| Switching Cycles | 6000 Electrical / 4000 Mechanical |
| Terminal Screw | #10-32 SS |
