Blue Sea Systems 2356100 100A Water-Resistant Busbar, Manual Cover
Customize
2356100 - Water Resistant 100A Busbar with Cover Water-resistant bussing for harsh environments. Built with wing screws for toolless access. Features: Accepts a wide range of wire sizes Includes 3 wire plugs to maintain a water-resistant rating if less than 4 wires are used Nests with other water-resistant 100A common busbars and ST-Blade water resistant fuse block for space-saving wiring Ideal for positive distribution and for the collection of negative or AC ground circuits Meets ABYC/USCG insulation requirements Tin-plated copper busses and fuse clips Includes four (4) write-on circuit labels Small format standard and custom labels are available Wing-screws designed for tool-free installation of cover to meet ABYC compliance Technical Specifications: Cover - yes Maximum Voltage - 300V AC - 48V DC Terminal Stud - 1 x #10-32 Continuous Rating - 100A AC or DC Bus Material - Tin-plated Copper Mounting Holes - Accepts 1/4" (6mm) screws Terminal Screws - 4 x # 8-32 Wire Size - Input - (1) 8 AWG to 4 AWG Wire Size - Load - (4) 16 AWG to 10 AWG In the Box: 2356100 Busbar Instruction Manual *Sold as an Individual
- Ideal for positive distribution and for the collection of negative or AC ground circuits
- Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
- Wing-screws designed for tool-free installation of cover to meet ABYC compliance
- Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used, and 4 write-on circuit labels
- Accepts a wide range of wire sizes
- Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
- Maximum Voltage: 300V AC/ 48V DC, Terminal Stud: 1 x #10-32, Continuous Rating: 100A AC/ 100A DC, Bus Material: Tin-Plated Copper C11000, Mounting Holes: Accepts 1/4" (6mm) Screws, Terminal Screws: 4 x #8-32, Wire Size: (1) 8 AWG to 4 AWG - Input/ (4) 16 AWG to 10 AWG - Load
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Tin-Plated Copper |
| Outer Material | Tin-Plated Copper |
| Product Details | |
| Color | Black |
| Connector Type | Spade |
| Current Rating | 100 Amps |
| Gauge | 8.0 |
| Included Components | BusBar, (4) write on circuit labels |
| Model Name | Blue Sea Systems Boating Electrical Equipment |
| Mounting Type | Screw Mount |
| Number Of Contacts | 5 |
| Number of Items | 1 |
| Number Of Poles | 5 |
| Size | One Size |
| Specification Met | Abyc/Uscg |
| Sport Type | Boating |
| Voltage | 300 Volts |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |
| Height | 2.1 inches |
| Length | 4.96 inches |

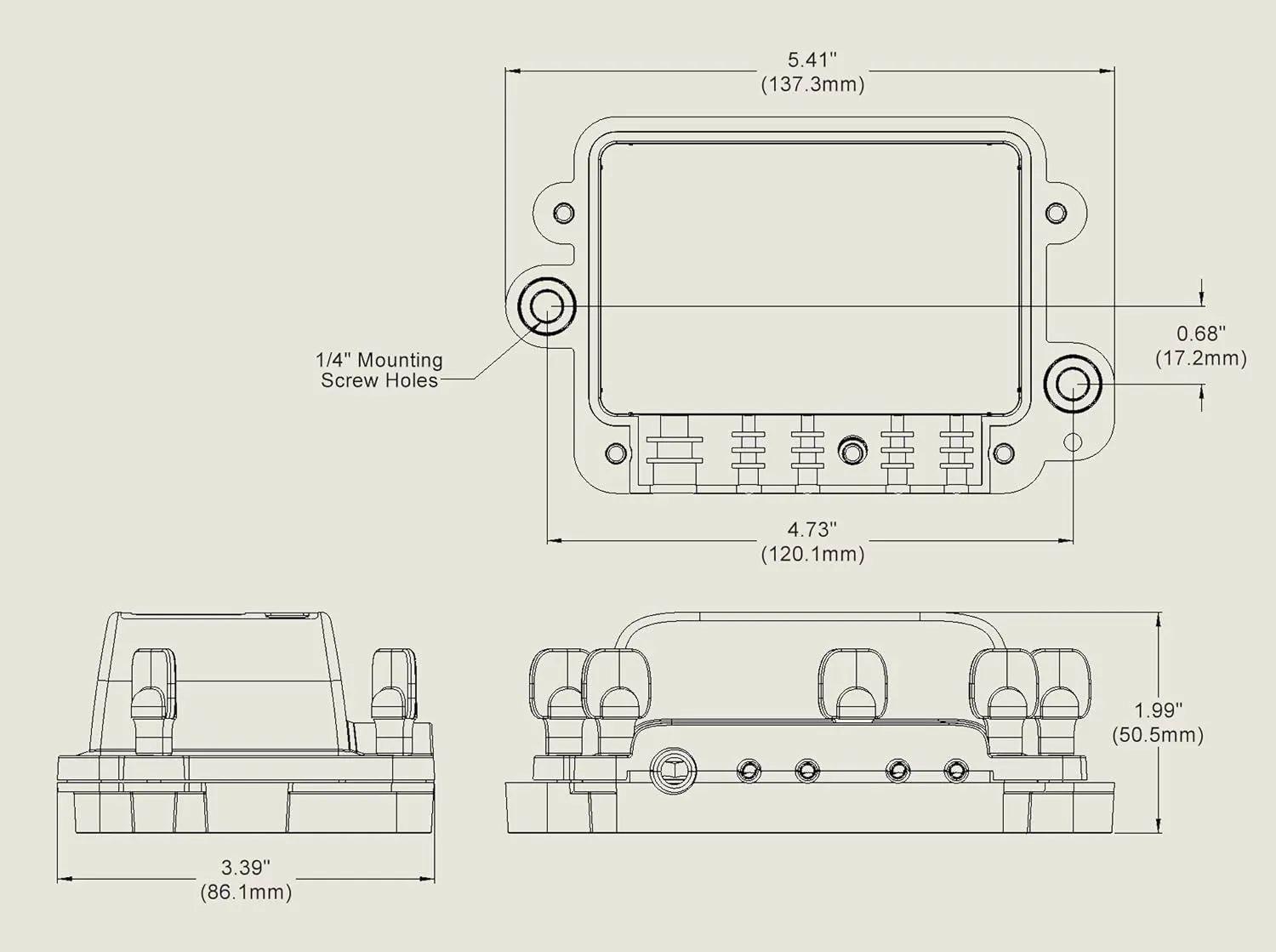

| Product Dimensions | 4.96 x 3.4 x 2.1 inches |
| Size | 4.96 x 3.4 x 2.1 inches |
| Weight | 6.72 ounces |
| Width | 3.4 inches |
| Technical Specifications | |
| Warranty | Limited Lifetime |
