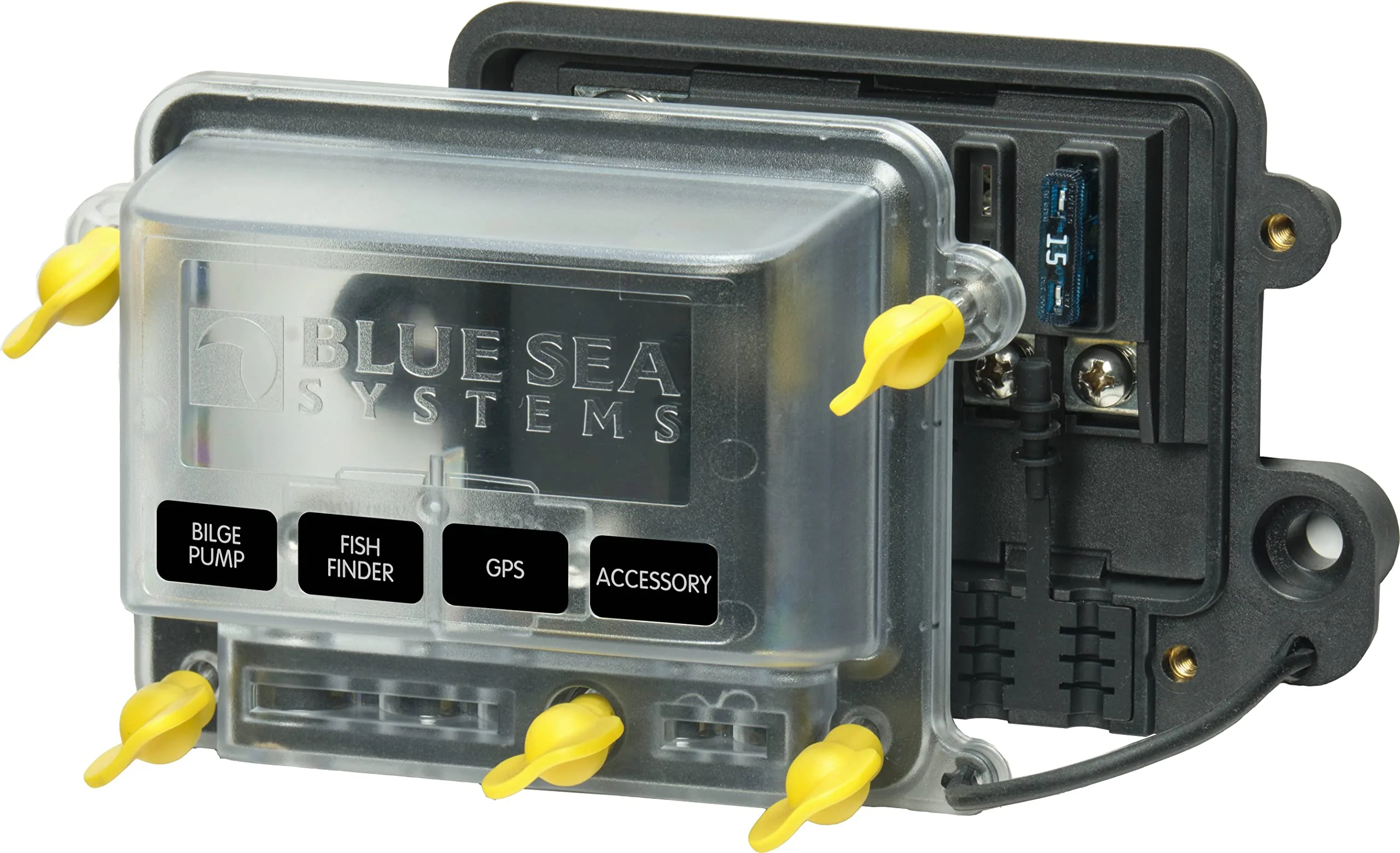

Blue Sea Systems 5056100 ST Blade Water-Resistant Fuse Block, Manual Cover, 80 Amps
Customize
5056100 - Water Resistant ST-Blade Fuse Block with Cover. This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access. Features: water-resistant design with a standard ring or spade-type terminals; allows for simple wiring with standard tools; accepts a wide range of wire sizes; includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required; accepts ATO and ATC fast acting blade fuses; accepts ATO/ATC-Style Low Profile Circuit Breakers; nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire; 5056100 meets ABYC/USCG insulation requirements; tin-plated copper busses and fuse clips; includes four write-on circuit labels; spare fuse and fastener storage in cover; wing screws designed for tool-free installation of cover to meet ABYC compliance. In the box: 5056100 Busbar, Instruction Manual. Sold as an individual. Technical specifications include cover (yes), maximum voltage 32V DC, tin-plated copper bus material, mounting holes accept 1/4" (6mm) screws, terminal screws 4 x #8-32 with captive star lock washer, input wire size 8 AWG to 4 AWG, load wire size (4) 16 AWG to 10 AWG.
- Tin-plated copper buses and fuse clips
- Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
- Accepts ATO and ATC fast acting blade fuses and Low Profile Circuit Breakers
- Includes three wire plugs to maintain water-resistant rating if less than four loads are required
- Water-resistant design with standard ring or spade type terminals allow for simple wiring with standard tools
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic, Tin-plated Copper |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Screw |
| Current Rating | 80 Amps |
| Gauge | 8.0 |
| Included Components | Fuse block, (4) write on circuit labels |
| Model Name | Blue Sea Systems Boating Electrical Equipment |
| Mounting Type | screw mount |
| Number Of Contacts | 4 |
| Number of Items | 1 |
| Number Of Poles | 4 |
| Specification Met | Abyc/Uscg |
| Temperature Range | 1.3E+2 Degrees Fahrenheit |
| Upper Temperature Rating | 1.3E+2 Degrees Fahrenheit |
| Voltage | 32 Volts (DC) |
| Warranty Description | Limited Lifetime |

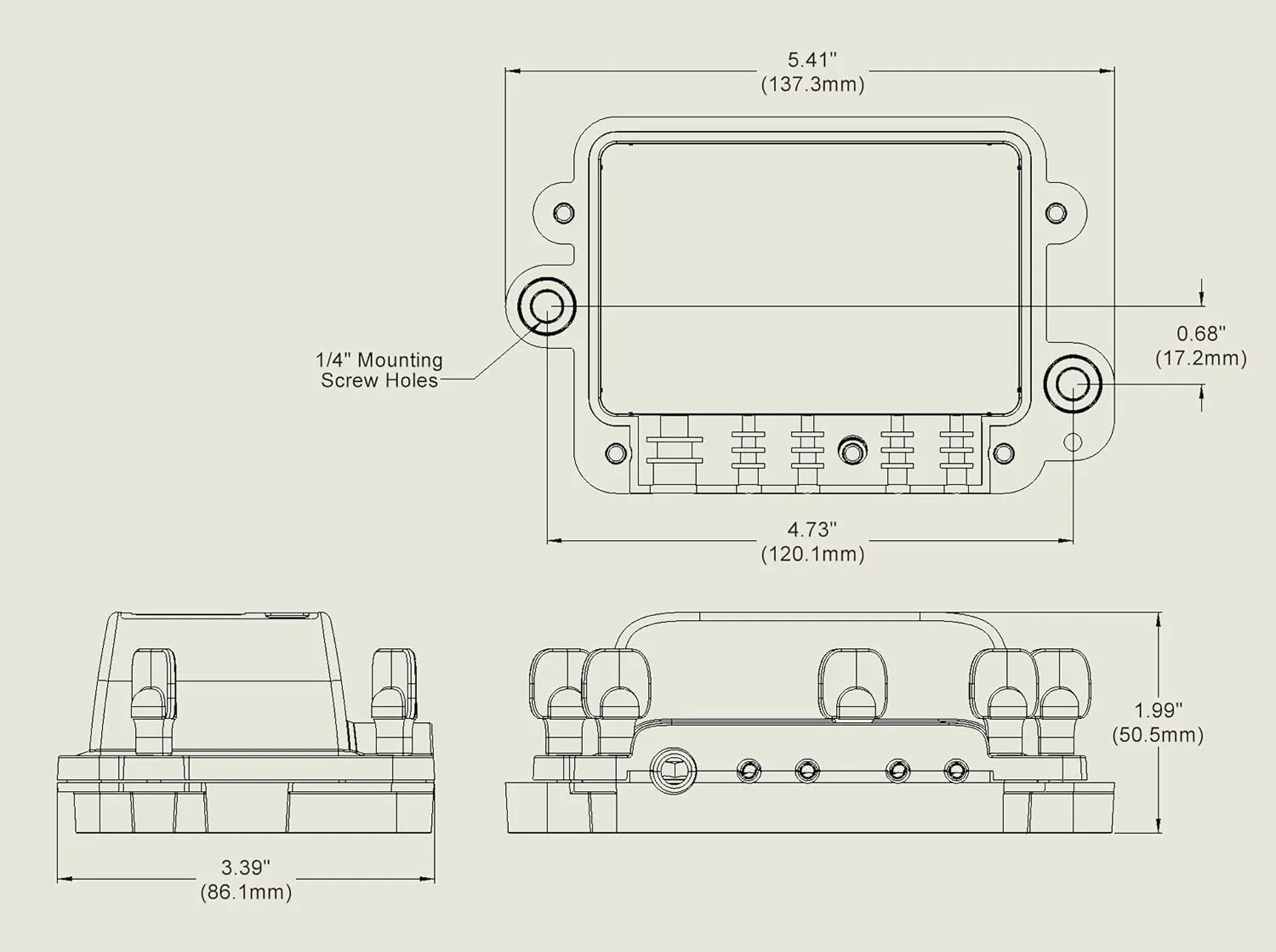

| Sizing & Dimensions | |
| Height | 2.1 inches |
| Length | 4.96 inches |
| Product Dimensions | 5.41"W x 2"H |
| Size | One Size |
| Weight | 6.72 ounces |
| Width | 3.4 inches |
| Technical Specifications | |
| Current Rating | 80 Amps |
| Warranty | Limited Lifetime |
