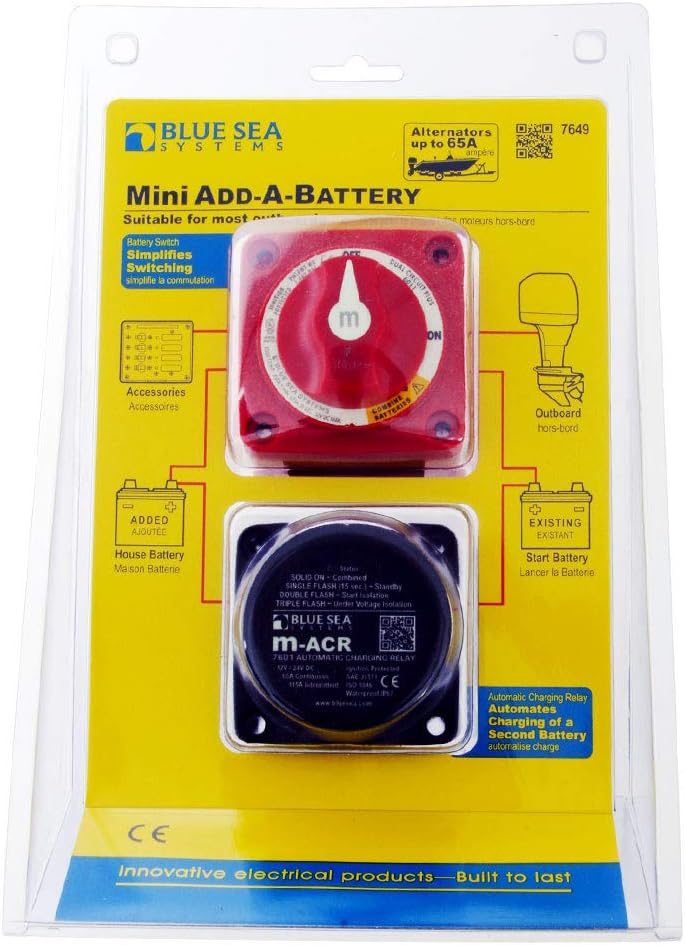

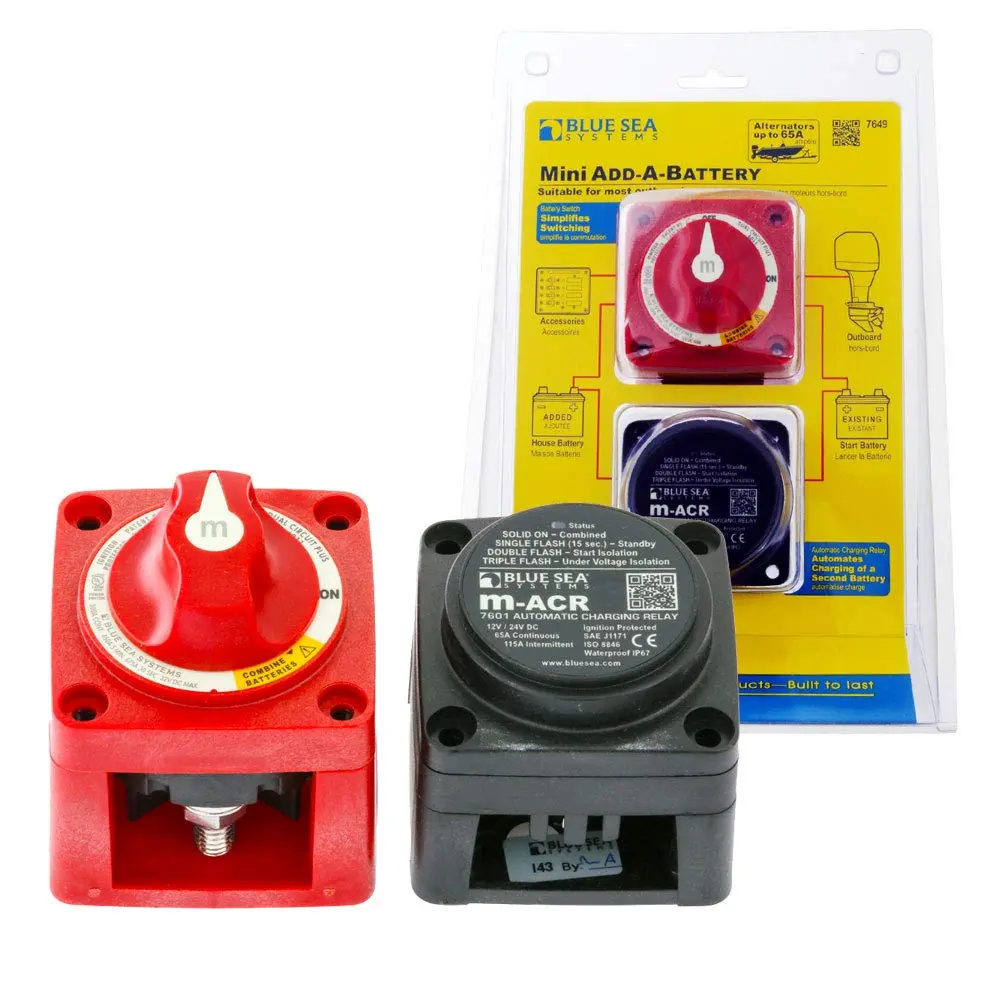

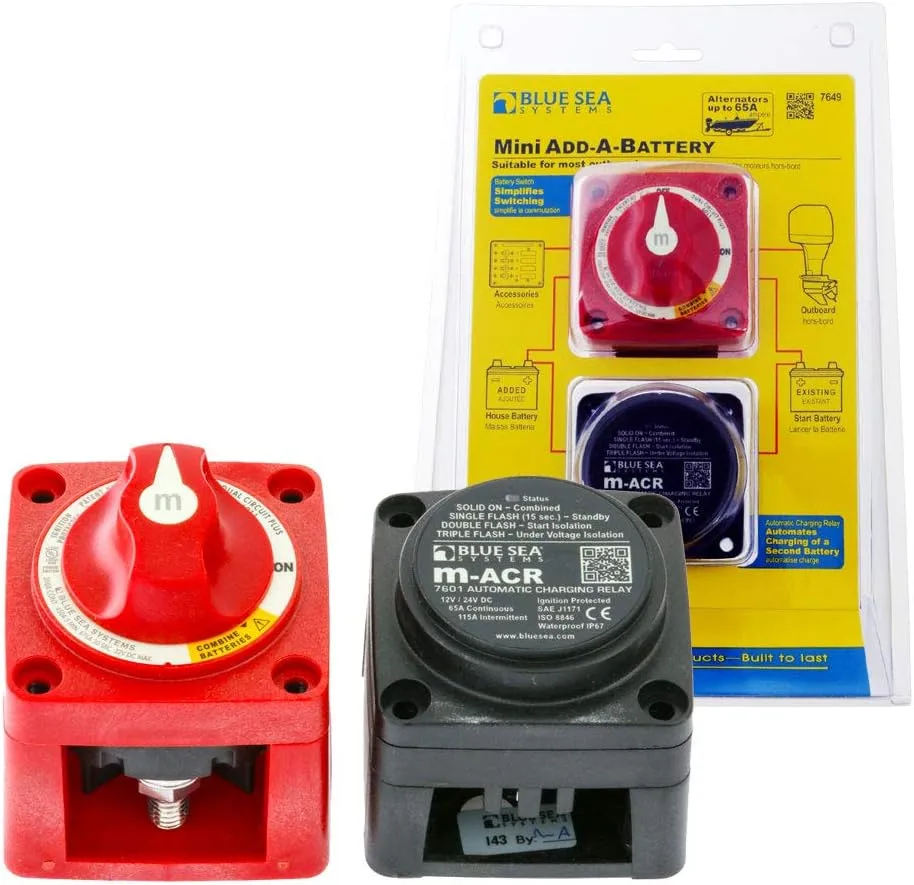

Blue Sea Systems Add-A-Battery Kit, 65A, Display Pack
Customize
7649 Mini Add-A-Battery Kit - Boxed Packaging What does the Mini Add-A-Battery do? Adding a second battery prevents getting stranded with a dead battery by isolating the start battery from the house loads that can quickly discharge a battery. The Mini Add-A-Battery offers a compact, simple way to control the switching with the m-Series Dual Circuit PlusT Battery Switch and automatically share a single source of charging between two batteries with the Mini ACR Automatic Charging Relay. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Continuous Amperage: 65a Features: Waterproof and includes battery temperature compensation, start isolation and comes with an external indicator remote. Battery temperature compensation allows you to charge a battery based on its temperature. It's always receiving safe and optimal charging voltages. Start isolation ensures that sensitive electronics are not subjected to the voltage sags from engine cranking. Isolates batteries during engine cranking and when not charging. Includes M-series mini dual circuit plus battery switch. Tin-plated copper studs for maximum conductivity and corrosion resistance. Automatically combines batteries during charging. Simplifies switching. Isolates engine and house circuits. Combines batteries for emergency starting.
- Waterproof and includes battery temperature compensation, start isolation and comes with an external indicator remote. Battery temperature compensation allows you to charge a battery based on its temperature.
- It's always receiving safe and optimal charging voltages. Start isolation ensures that sensitive electronics are not subjected to the voltage sags from engine cranking.
- Isolates batteries during engine cranking and when not charging Includes M-series mini dual circuit plus battery switch.
- Tin-plated copper studs for maximum conductivity and corrosion resistance. Automatically combines batteries during charging.
- Simplifies switching. Isolates engine and house circuits. Combines batteries for emergency starting.
Specifications:
| Materials & Construction | |
| Color | No Color |
| Contact Material | Copper |
| Material | Copper |
| Product Details | |
| Actuator Type | Hinge Lever |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminals |
| Contact Type | Normally Open |
| Continuous Amperage | 65a |
| Control Method | Remote |
| Included Components | Add-A-Battery Kit, 65A, Display Pack |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operation Mode | Automatically |
| Terminal | Physical |
| Unit Count | 1 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 10.79 inches |
| Length | 2.52 inches |
| Product Dimensions | 2.52 x 6.97 x 10.79 inches |
| Product Weight | 16 ounces |
| Size | One Size |
| Weight | 1 pounds |
| Width | 6.97 inches |
| Technical Specifications | |
| Current Rating | 65 Amps |
| International Protection Rating | IP65 |
| Wattage | 7.8E+2 |
