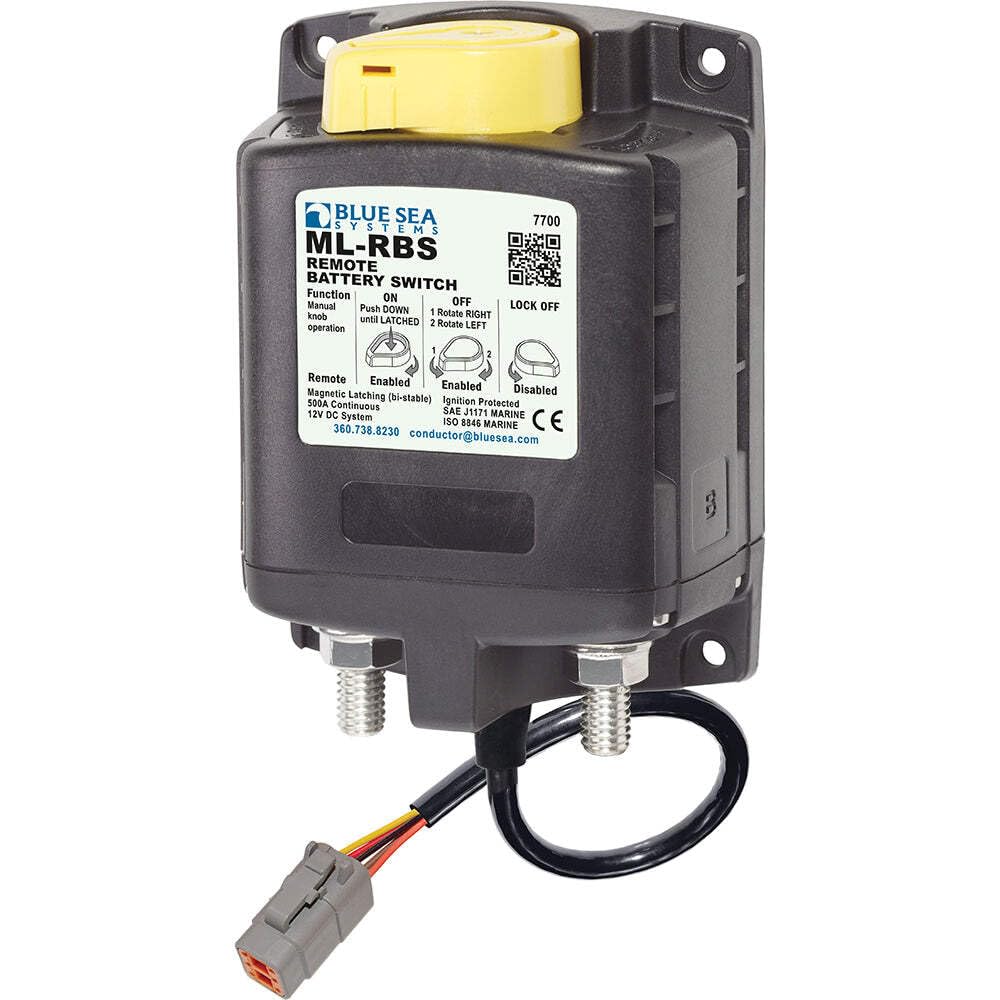

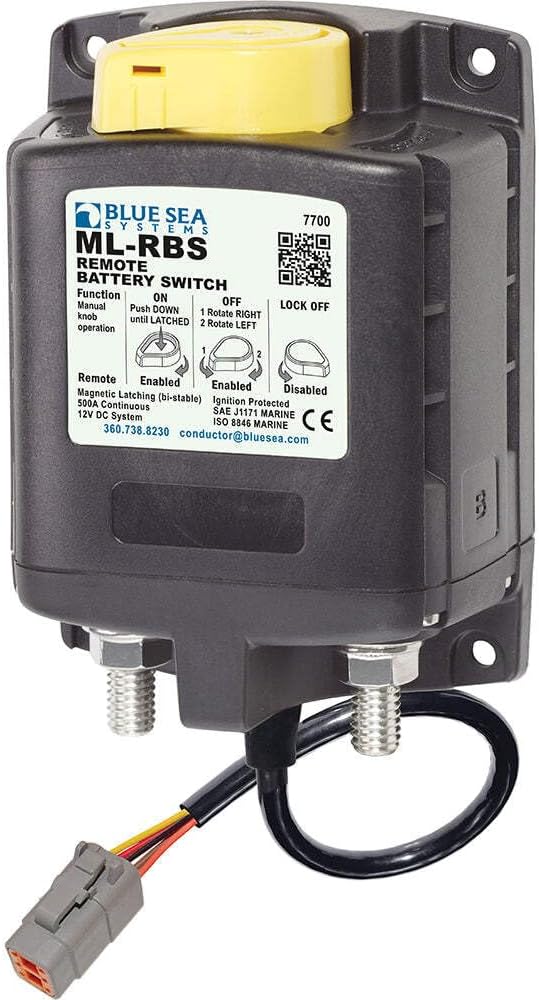

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector
Customize

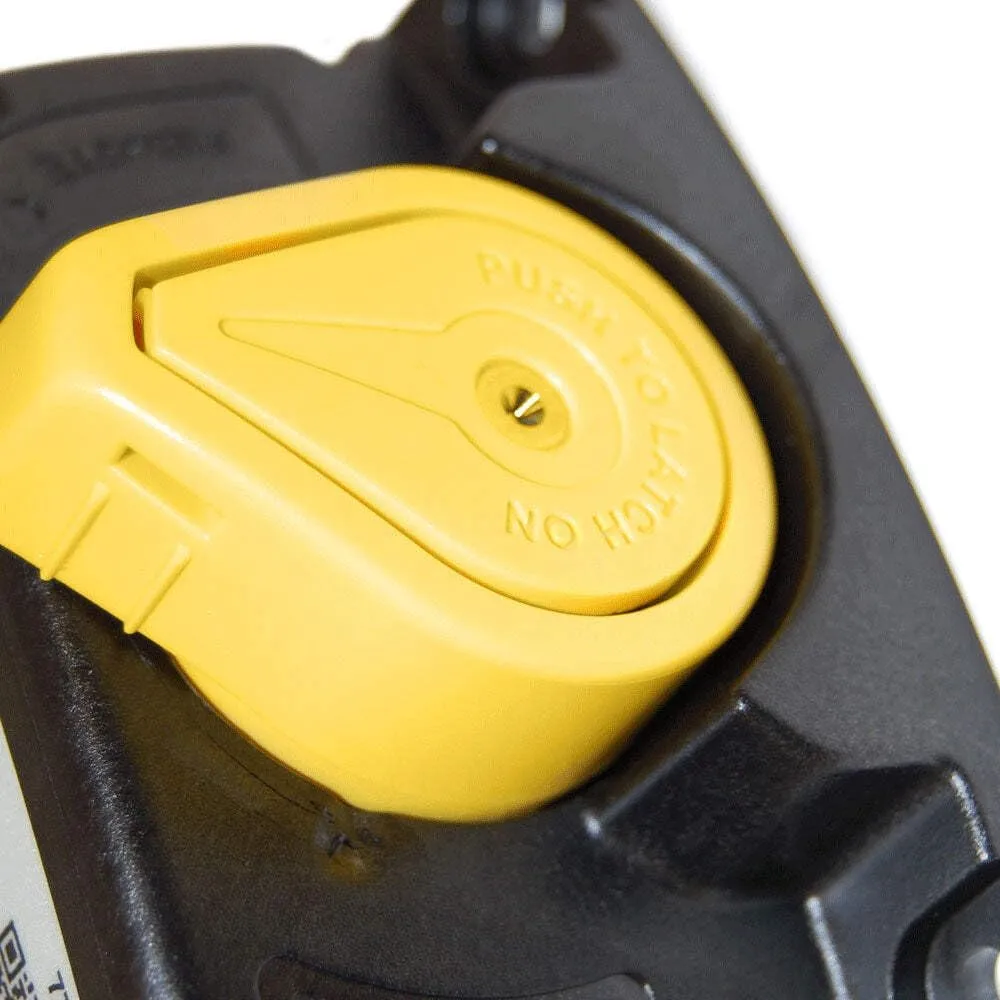

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector. 500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations. Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing. LED output to remotely indicate switch state - requires optional LED. 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance. 7/8" (22 mm) stud length accepts multiple cable terminals. Label recesses for circuit identification. Silver alloy contacts provide high reliability for switching live loads. Specifications (from manufacturer/marketing): Control Circuit Connection: Deutsch DTM; Nominal Voltage: 12VDC; Coil Function: Bi-Stable; Mounting: #10; Amperage Operating Current Continuous: 0mA; Terminal Stud Torque: 140 in-lb (15.82 Nm); Continuous Rating: 500A; Intermittent Rating: 700A (5 min); Cranking Rating 30 Seconds: 1450A; DC Cable Size to Meet Ratings: 2x (4/0); Live Current Switching: 300A@12VDC; Master Control Switch Capability: No; Mechanical Endurance: 100,000 Cycles; Terminal Ring Diameter Clearance: 1.18" (29.97 mm); Terminal Stud Length: 0.875" (22.23 mm); Terminal Stud Size: 3/8" - 16 (M10). WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Color | No Color |
| Included Components | Great Product |
| Item Package Dimensions L x W x H | 12 x 10 x 4 inches |
| Material | Metal |
| Model Name | 7700100 |
| Number of Items | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 12 inches |
| Size | One Size |
| Weight | 2.55 pounds |
| Width | 10 inches |
| Technical Specifications | |
| Amperage Operating Current Continous | 0mA |
| Coil Function | Bi-Stable |
| Continuous Rating | 500A |
| Control Circuit Connection | Deutsch DTM |
| Cranking Rating 30 Seconds | 1450A |
| DC Cable Size to Meet Ratings | 2x (4/0) |
| Intermittent Rating | 700A (5 min) |
| Live Current Switching | 300A@12VDC |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 Cycles |
| Nominal Voltage | 12VDC |
| Terminal Ring Diameter Clearance | 1.18" (29.97 mm) |
| Terminal Stud Length | 0.875" (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
