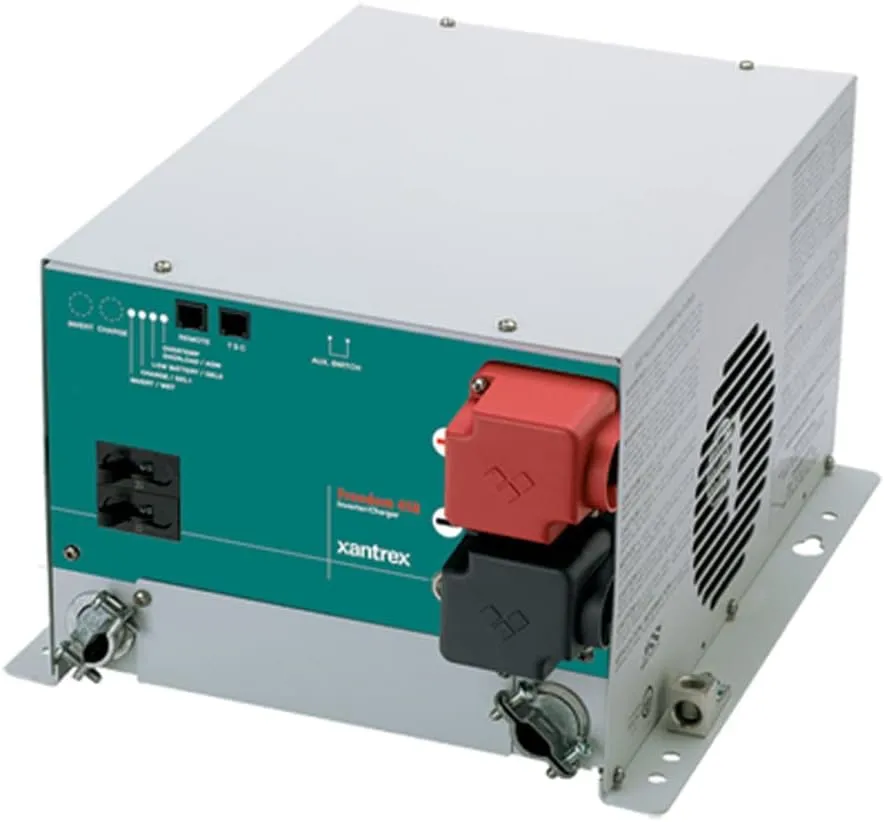

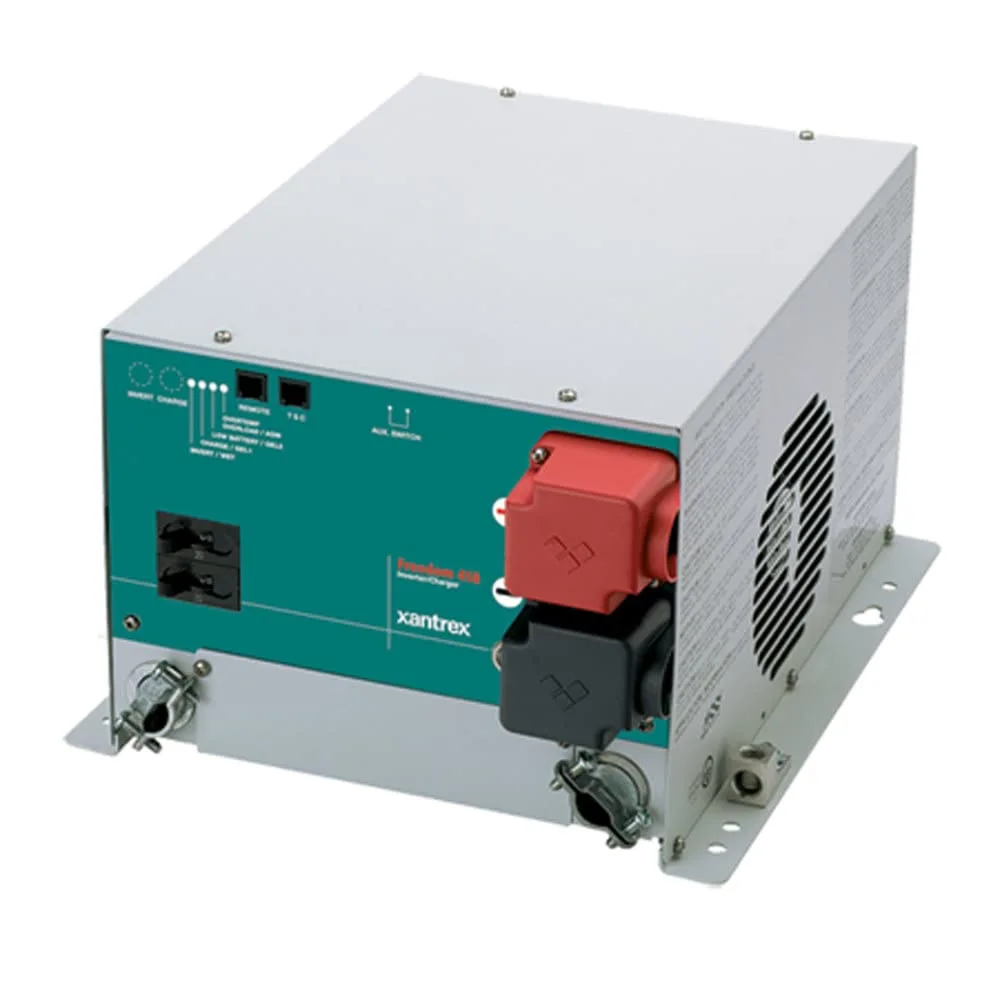

Schneider Electric 81-2530-12 2500W Inverter and 3-Stage Battery Charger
Customize
Freedom 458 Inverter/Charger - 2500W 120 Vac / 60 Hz With filtered modified sine wave output, the Freedom 458 inverter/charger has the ability to run electrical equipment, appliances and even sensitive electronics. Perfect for any RV, the temperature controlled multistage charging ensures that your batteries are recharged quickly, and safety features such as automatic shut down protects your expensive deep-cycle batteries from excessive depletion. AC Power Inverter with High Surge Capability, 3-Stage Charger With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from electrical equipment to appliances and electronics in your RV. Temperature controlled multistage charging ensures that your batteries are recharged quickly, and automatic shutdown and other safety features protect your expensive deep-cycle batteries from excessive depletion. For inverter/charger control and basic system monitoring, use the Freedom Basic Remote. For advanced battery monitoring and remote control, Freedom 458 systems can be paired with optional Link instrumentation. Product Features: MSW AC power inverter with high surge capability Automatic 3-stage battery charger Temperature compensation with equalization stage provides optimal charging of deep cycle batteries Built-in transfer switch automatically transfers between inverter power and incoming AC power Power sharing prevents source AC input circuit breaker from tripping Customized settings can be programmed with the Freedom Basic Remote or Link 1000 panels Includes battery temperature sensor 30 month warranty Hardwired AC Output (Dual In/Dual Out) Protection Features: Over voltage and under voltage protection Over-temperature protection Overload protection Short circuit protection. The most popular inverter in the RV market. Three stage battery charger recharges batteries quickly while protecting your battery bank. Programmable front panel and LED indicators. Temperature sensitive charging provides optimal care of all types of deep cycle batteries. Built-in 30 amp transfer switch automatically transfers between inverter power and incoming AC power. Power sharing prevents nuisance tripping of shore power breaker. Customized settings can be programmed with the Xantrex Freedom Basic Remote. Option of dual input and dual output connections for easy installation 30 month warranty. Approved to the UL 458 regulatory standard. With filtered modified sine wave output, Freedom inverter/chargers run virtually anything, from office equipment to household appliances and electronics. Temperature controlled multi-stage charging ensures that your batteries are recharged quickly when supplied with electricity from your RV's generator or campground hookup. Automatic low/high DC voltage shutdown and other safety features help to protect your expensive deep-cycle batteries from excessive depletion.
- Built-in 30 amp transfer switch automatically transfers between inverter power and incoming AC power sharing prevents nuisance tripping of shore power breaker
- Temperature sensitive charging provides optimal care of all types of deep cycle batteries
- Programmable front panel and LED indicators
- Three stage battery charger recharges batteries quickly while protecting your battery bank
- The most popular inverter in the RV market
Specifications:
| Product Details | |
| Model Name | Schneider Electric 81-2530-12 2500W Inverter and 3-Stage Battery Charger |
| Power Source | Battery Powered |
| Recommended Uses For Product | Recreational Vehicle |
| Wattage | 2500 watts |
| Sizing & Dimensions | |
| Height | 12.5 inches |
| Length | 19 inches |
| Product Dimensions | 19 x 15.12 x 12.5 inches |
| Size | 19 x 15.12 x 12.5 inches |
| Weight | 12 pounds |
| Width | 15.12 inches |
| Technical Specifications | |
| Charger Input - Voltage | 120v |
| Charger Output - Amps | 130a |
| Charger Output Voltage | 12v |
| Charging Banks | 1 |
| Inverter Cont. Output Wattage | 2500w |
| Inverter Input Voltage | 12v |
| Inverter Output Voltage | 120v |
| Outlet Qty | None |
