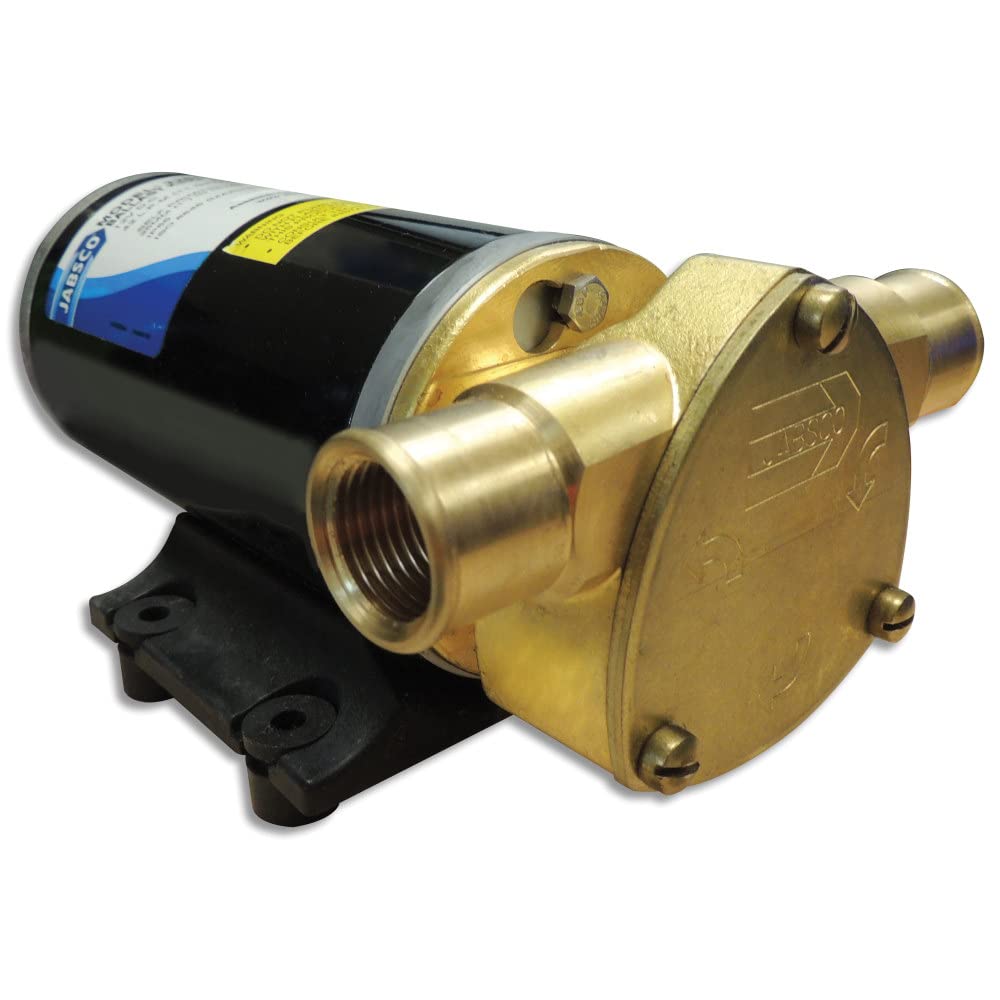

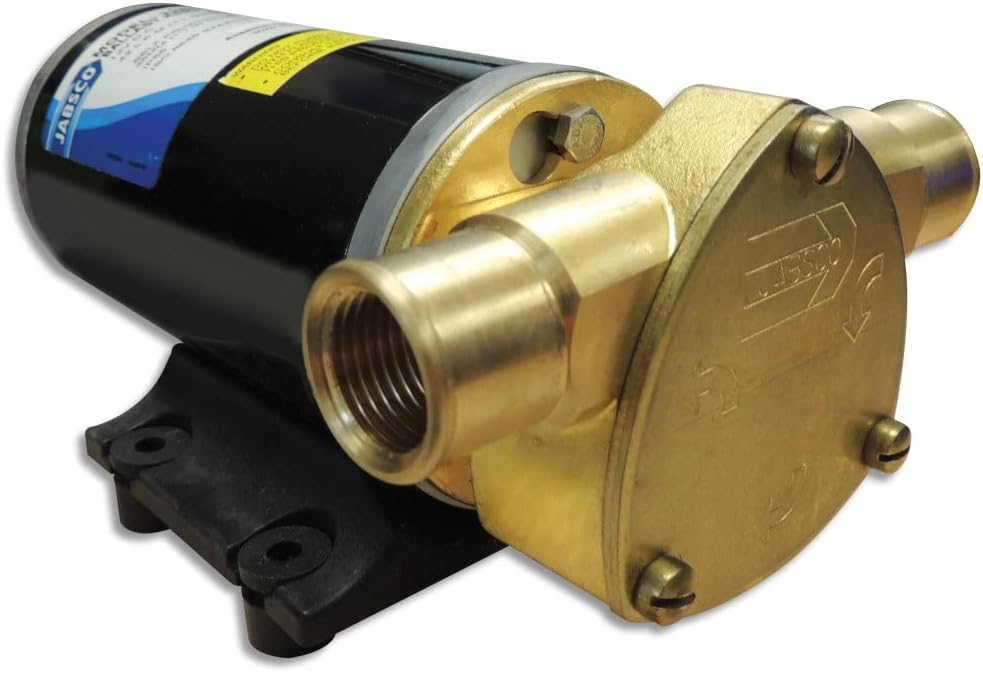

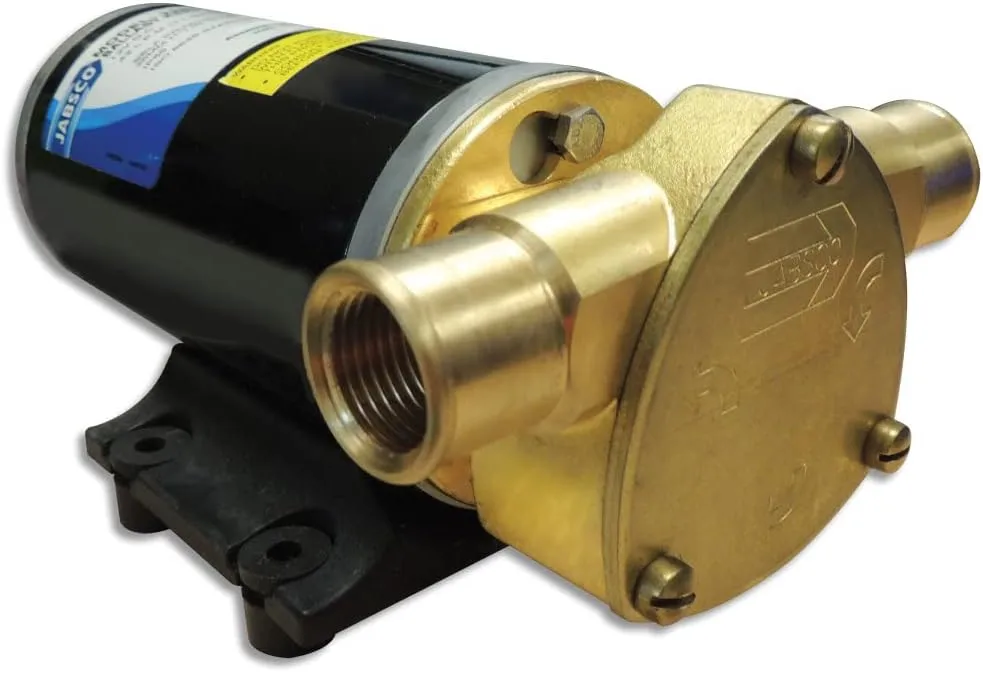

Jabsco Ballast King Bronze DC Pump w/o Switch - 15 GPM
Customize
Ballast King Bronze DC Pump without Switch - 15 GPM. The Ballast King is designed to pump water into wakeboard and ski boat liquid ballast tanks and, when reversed, will pump water out. Flow rate: 15 US gallons/min (57 Litres/min). Self-priming from dry up to 1.2m (4ft). Adds approx 125 lbs (56 kgs) of ballast per minute. Reversible to both fill and empty tanks. Simple design means fewer wearing parts. ISO 8846 MARINE (Ignition protection). Equipped with Run-Dry Protection Device (patent pending) to automatically shut off the pump and protect the impeller from run-dry damage. Specifications include bronze body material, Jabsco neoprene compound impeller, lip type seal, ports: 1/2" internal pipe threads and 1" external hose barb, Voltage: 12 Vdc, Amp Draw: 19 amp, Fuse Size: 25 amp, Permanent magnet motor, fully enclosed stainless steel shaft, ball type shaft bearing. Duty cycle: 30 minutes max. Dimensions roughly 3 5/8 x 8 x 4 3/4 inches (manufacturer listing) and marketplace dimensions listed as 12 x 6 x 5 inches. Ideal for marine ballast applications where reliable, reversible pumping and run-dry protection are required.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Bronze |
| Outer Material | Bronze |
| Product Details | |
| Color | Black |
| Global Trade Identification Number | 00671880626286 |
| Material | Bronze |
| Maximum Lifting Height | 4 Feet |
| Power Source | Ac/dc |
| Style | Submersible |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 12 inches |
| Product Dimensions | 12 x 6 x 5 inches |
| Size | 12 x 6 x 5 inches |
| Weight | 7 pounds |
| Width | 6 inches |
| Technical Specifications | |
| Amp Draw | 19 (amp) |
| Duty Cycle | 30 Minutes Max |
| Fuse Size | 25 (amp) |
| Gallons Per Minute | 15 Gpm |
| Maximum Flow Rate | 15 Gallons Per Minute |
| Voltage | 12 Volts (DC) |
