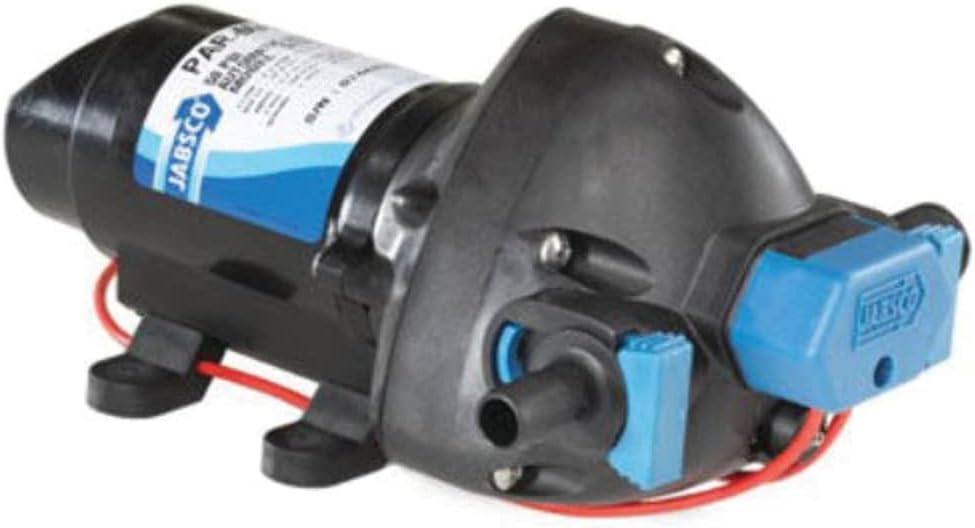

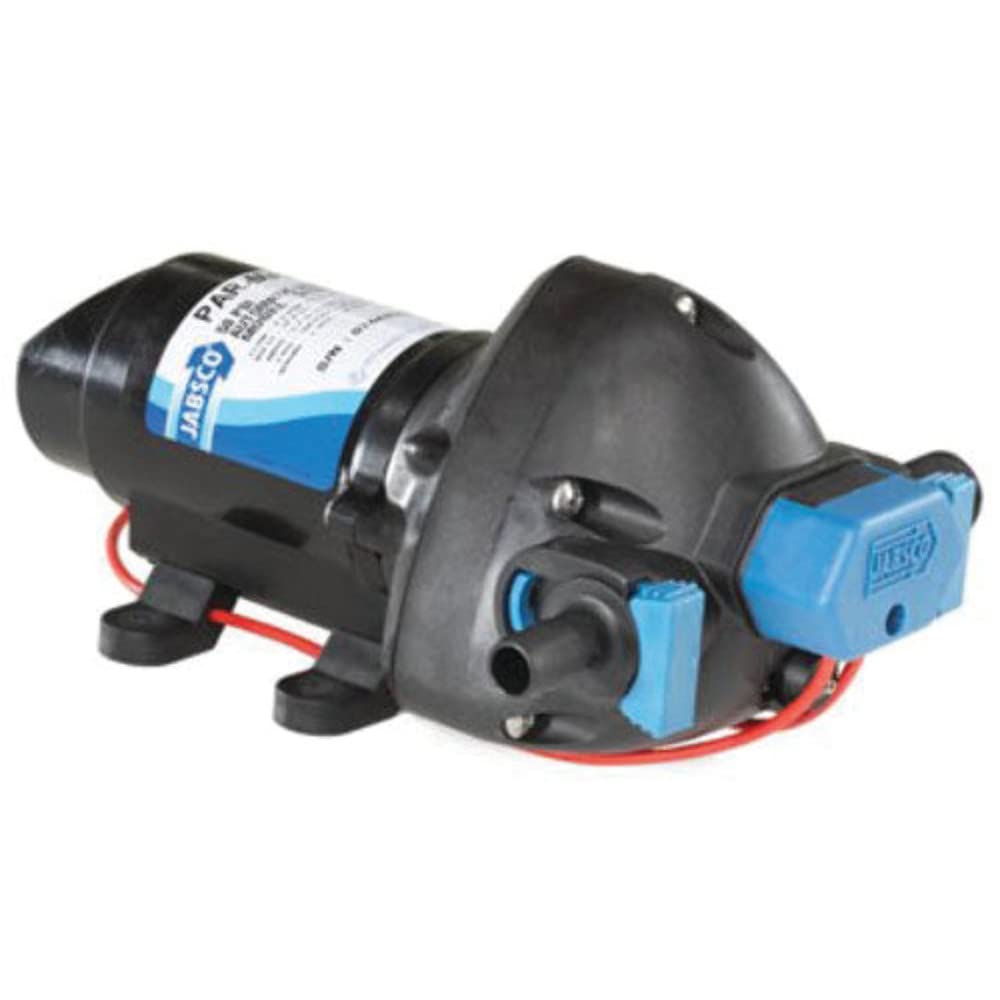

Jabsco Hotshot 3 Washdown Pump - 12V - 3 GPM - 50 PSI
Customize
HotShot 3 Washdown Pump - 12V - 3 GPM - 50 PSI Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion. Features: Co-molded diaphragm technology for long life and durability HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures Efficient and quiet operation Integrated, sealed pressure switch for on-demand operation Self-priming allows for installation versatility Can run dry without damage Quick connect ports for ease of installation, servicing, and maintenance Vibration dampening mounting feet Full kit versions available which include 25' (7.6m) hose coil Specifications: Motor design: Brushed, permanent magnet TENV Pumphead upper housing material: Glass fiber reinforced polypropylene Diaphragm: Co-molded TPV Check valves: EPDM Max inlet pressure: 30 PSI (2.1 Bar) Fluid temperature range: 32°F – 140°F (0°C – 60°C) Dry self-priming capability: 7ft min (2.1m min) Certifications: CE, ISO8846, RCM Ingress protection: IPX6 Fittings & Accessories: Quick Connect straight hosebarb and GHT fittings. Size varies by model. Inline 40 mesh Quick Connect strainer Trigger nozzle & Quick Connect hose adapters No kit versions with hose offered. Product marketing note: Great Product
- Great Product
Specifications:
| Materials & Construction | |
| Color | Multicoloured |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Check valves | EPDM |
| Diaphragm | Co-molded TPV |
| Dry Self-Priming Capability | 7 ft min (2.1 m min) |
| Ingress Protection | IPX6 |
| Max PSI | 50 PSI |
| Maximum Flow Rate | 3 Gallons Per Minute |
| Maximum Lifting Height | 118.11 inches |
| Power Source | Corded Electric |
| Powerhead / Pumphead Material | Glass fiber reinforced polypropylene |
| Voltage | 12 Volts (DC) |
| Sizing & Dimensions | |
| Height | 4.17 inches |
| Length | 9.09 inches |
| Product Dimensions | 9.09 x 4.25 x 4.17 inches |
| Size | One Size |
| Weight | 5.1 pounds |
| Width | 4.25 inches |
| Technical Specifications | |
| Certifications | CE, ISO8846, RCM |
| Fittings & Accessories | Quick Connect straight hosebarb and GHT fittings; Inline 40 mesh Quick Connect strainer; Trigger nozzle & Quick Connect hose adapters |
| Motor design | Brushed, permanent magnet TENV |
| Warnings | This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. |
| Warranty | Warranty |
