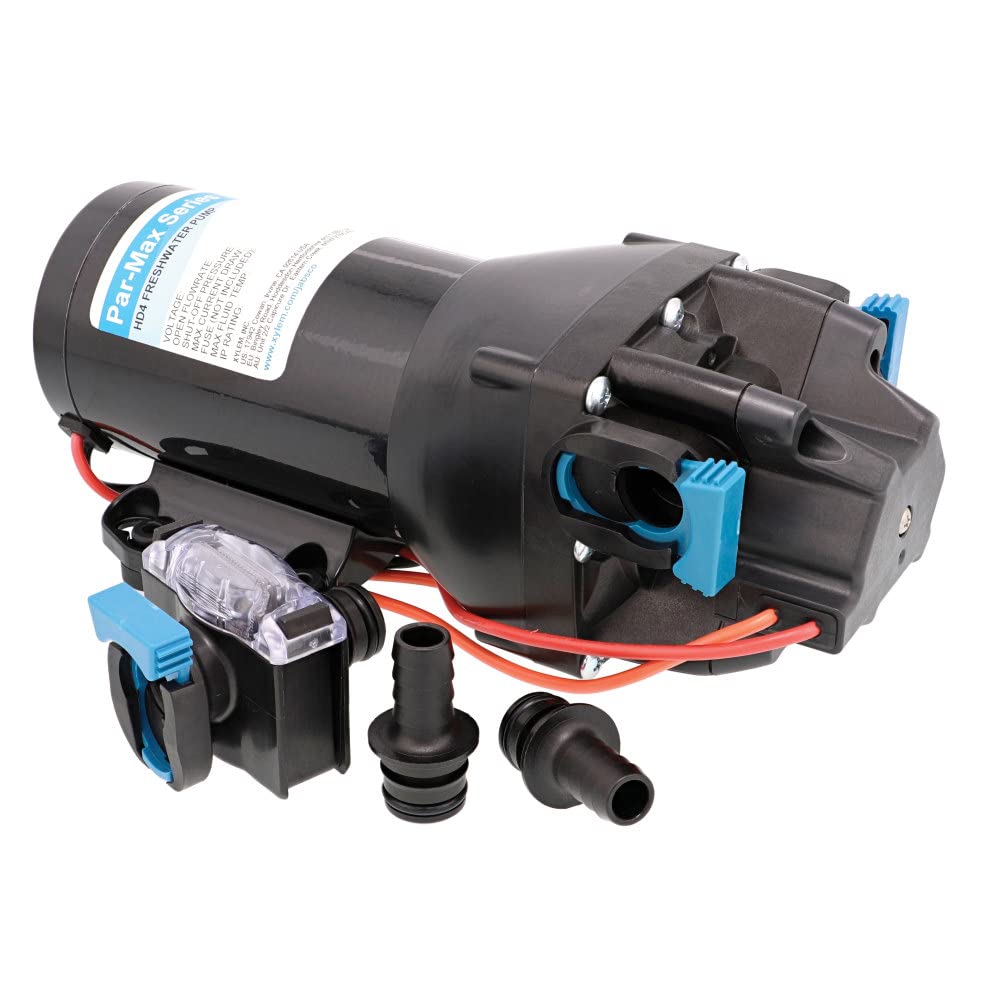

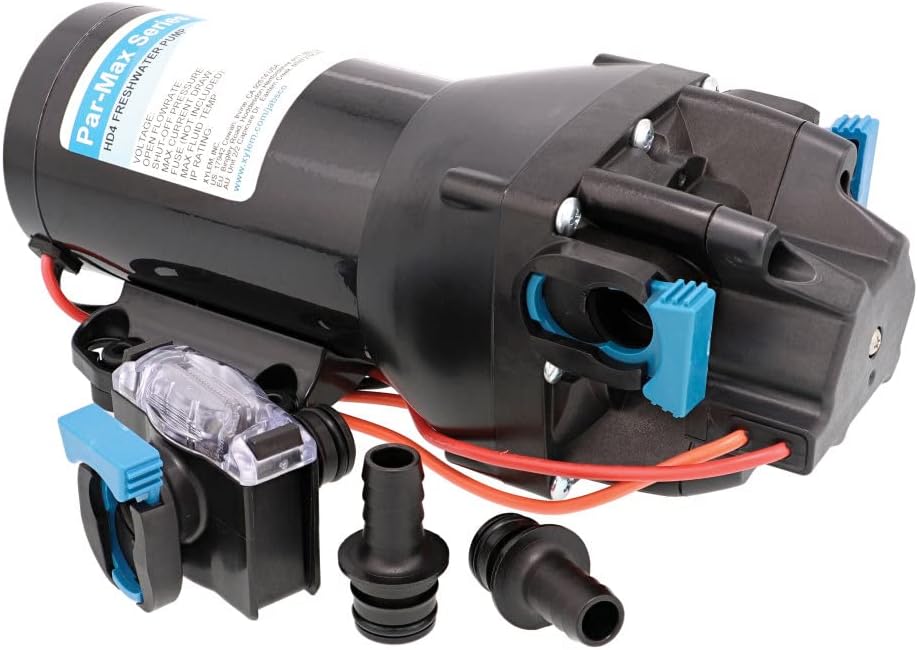

Jabsco Q401J-115S-3A ParMax HD4 Marine Freshwater Delivery Pump - 12V, 4 GPM, 40 PSI Shut-Off
Customize
Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 40 PSI. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features: Co-molded diaphragm technology for long life and durability. HD models feature heavy duty motors and cast aluminum lower housings which allow for long life, even at high pressures. Efficient and quiet operation. Integrated, sealed pressure switch for on-demand operation. Self-priming allows for installation versatility. Can run dry without damage. Quick connect ports for ease of installation, servicing, and maintenance. Vibration dampening mounting feet. Equipped with integrated bypass module to reduce cycling and provide smoother flow. Specifications: Motor design: Brushed, permanent magnet TENV. Pumphead upper housing material: Glass fiber reinforced polypropylene. Diaphragm: Co-molded TPV. Check valves: EPDM. Max inlet pressure: 30 PSI (2.1 Bar). Fluid temperature range: 32°F – 140°F (0°C – 60°C). Dry self-priming capability: 7ft min (2.13m/min). Certifications: CE, ISO8846, RCM. Ingress Protection: IPX6.
- Heavy-duty coated motor
- Integrated pressure switch
- Efficient, quiet operation
- Self-priming
- Runs dry without damage
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Jabsco Q401J-115S-3A ParMax HD4 Marine Freshwater Delivery Pump - 12V, 4 GPM, 40 PSI Shut-Off |
| Model Name | Q401J-115S-3A |
| Power Source | 12V DC |
| Style | Diaphragm |
| UPC | 671880841863 |
| Warranty Description | 1-year warranty |
| Sizing & Dimensions | |
| Gallons Per Minute | 4 Gpm |
| Height | 4.17 inches |
| Item Package Dimensions L x W x H | 15.39 x 6.22 x 5.55 inches |
| Length | 7.72 inches |
| Max Psi | 40 |
| Product Dimensions | 7.72 x 4.17 x 4.17 inches |
| Size | No Size |
| Volts | 12v |
| Weight | 7.5 pounds |
| Width | 4.17 inches |
| Technical Specifications | |
| Certifications | CE, ISO8846, RCM |
| Check valves | EPDM |
| Diaphragm | Co-molded TPV |
| Dry self-priming capability | 7ft min (2.13m/min) |
| Maximum Flow Rate | 3 Gallons Per Minute |
| Motor design | Brushed, permanent magnet TENV |
| Pumphead upper housing material | Glass fiber reinforced polypropylene |
| Voltage | 12 Volts |
