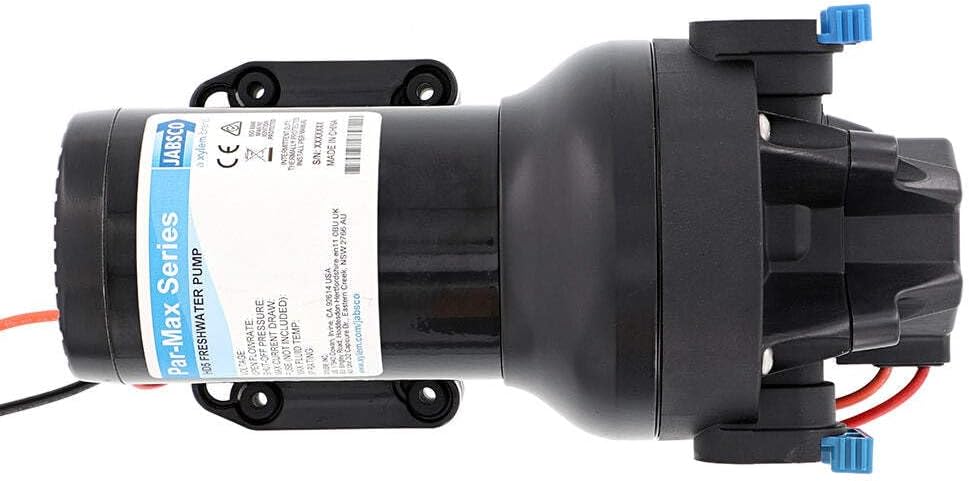

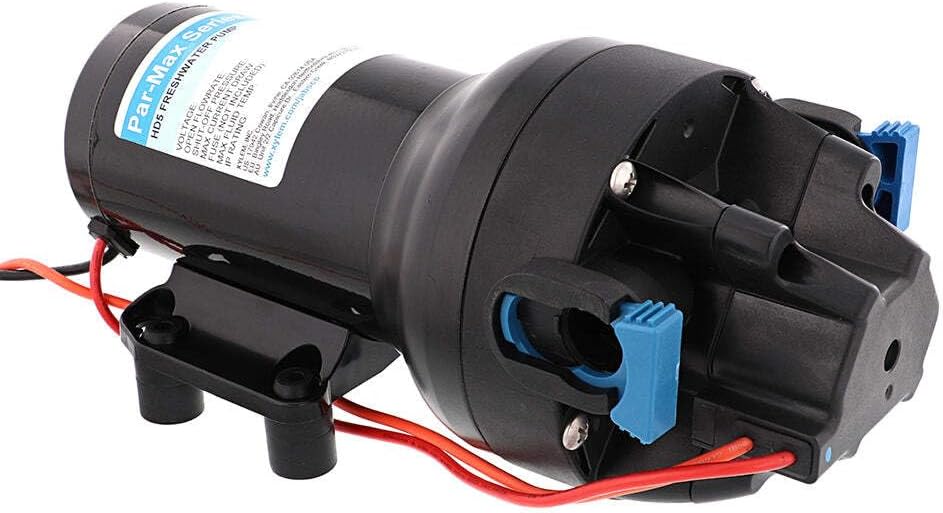

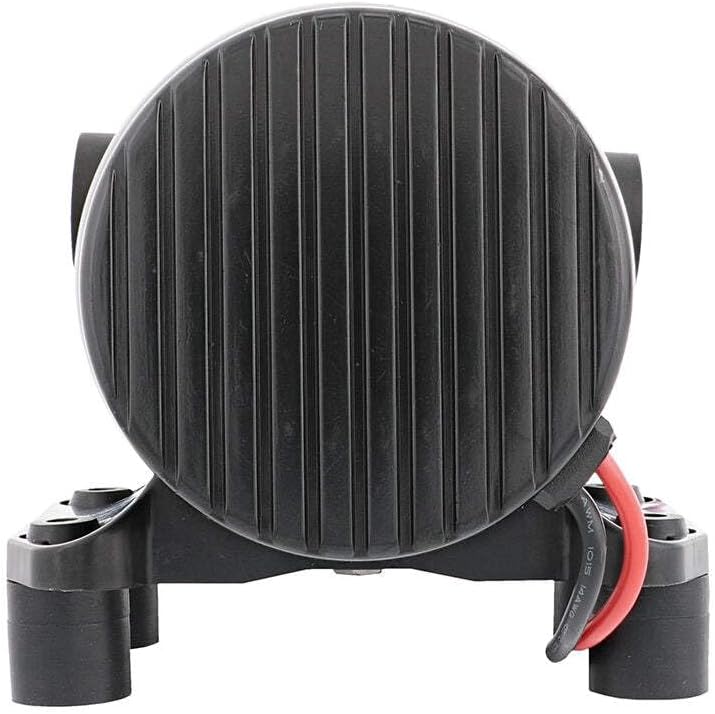

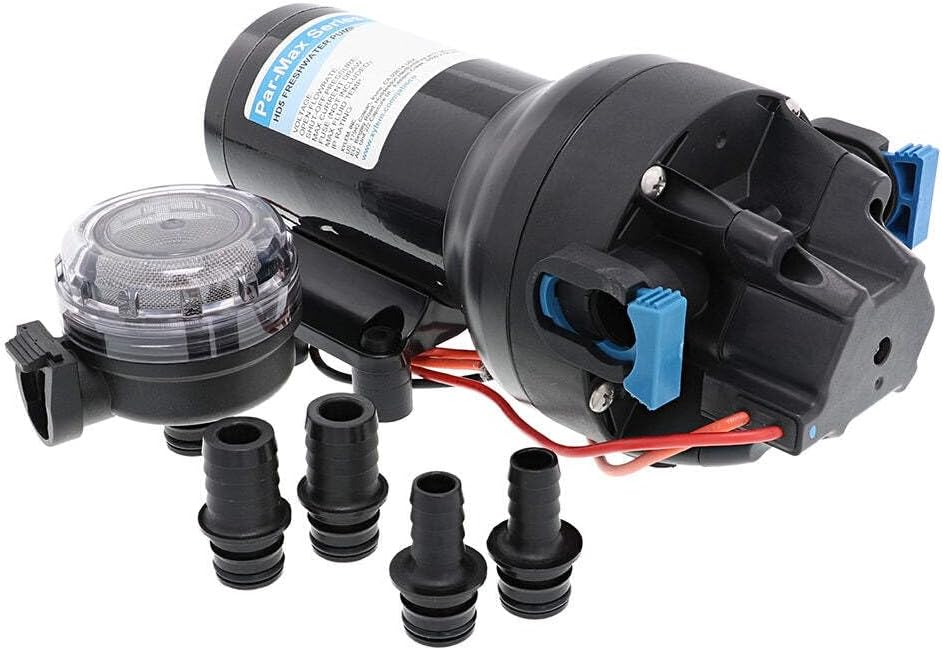

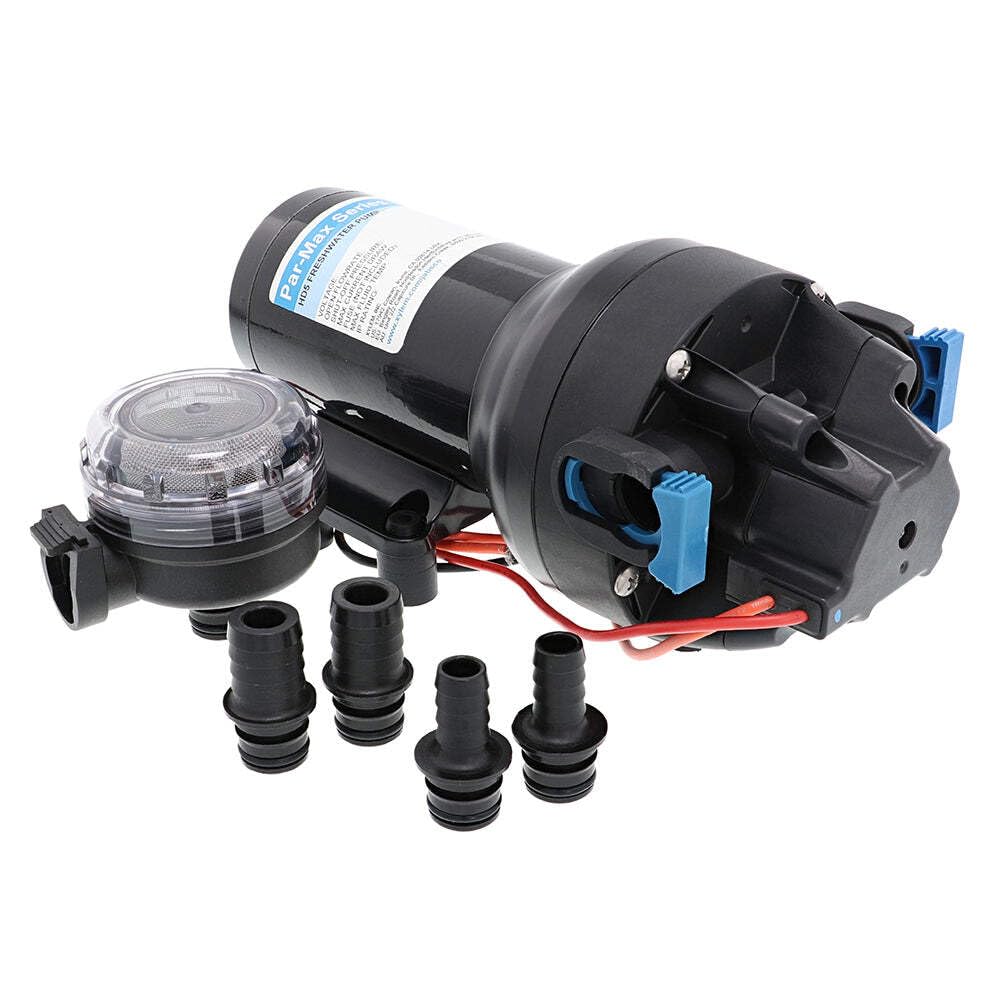

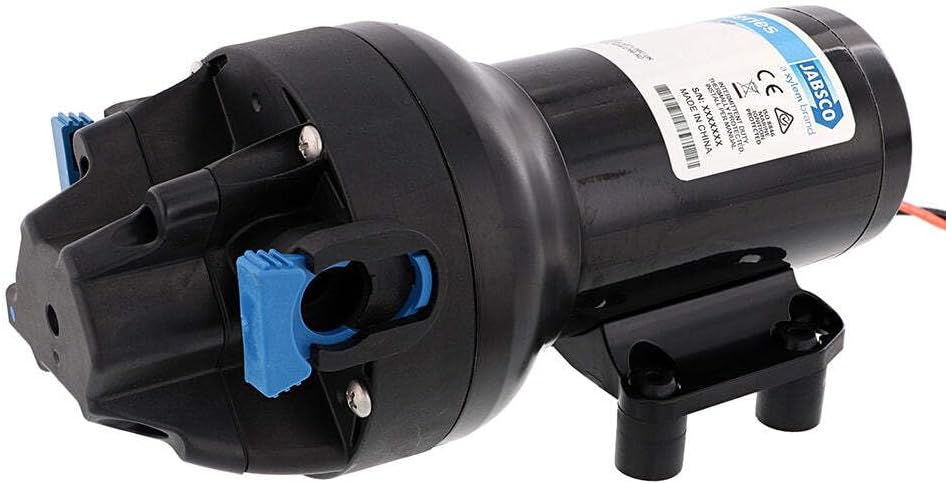

Jabsco Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 60 PSI. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features include co-molded diaphragm technology for long life and durability; HD models feature heavy duty motors and cast aluminum lower housings allowing long life even at high pressures; efficient and quiet operation; integrated, sealed pressure switch for on-demand operation; self-priming capability; ability to run dry without damage; quick connect ports for ease of installation and servicing; vibration-dampening mounting feet; and an integrated bypass module to reduce cycling and provide smoother flow. Additional Rainforest-sourced highlights: Built for longer life even at high pressures; self-priming up to ~2.4 m (8 ft) vertical lift; water resistant (IPx6); new 5-chamber design for improved performance. Specifications summarized: Motor design: Brushed, permanent magnet TENV. Pumphead upper housing material: Glass fiber reinforced polypropylene. Diaphragm: Co-molded TPV. Check valves: EPDM. Max inlet pressure: 30 PSI (2.1 Bar). Fluid temperature range: 32°F – 140°F (0°C – 60°C). Dry self-priming capability: 7 ft min (2.13 m). Certifications: CE, ISO8846, RCM. WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

• New 5 chamber design: Features a new 5 chamber design for improved performance
• Heavy duty, coated motor: Equipped with a heavy duty, coated motor for longer life
• Diaphragm design allows dry running: Allows for dry running without damage
• High Flow/High Pressure: Provides high flow and high pressure for efficient use
• Water resistant (IPx6): Designed to be water resistant with a rating of IPx6
• Self-priming up to 2.4m / 8ft vertical lift: Can self-prime up to 2.4m / 8ft vertical lift
• Heavy duty models feature motors and cast aluminum lower housings: Built for longer life even at high pressures
