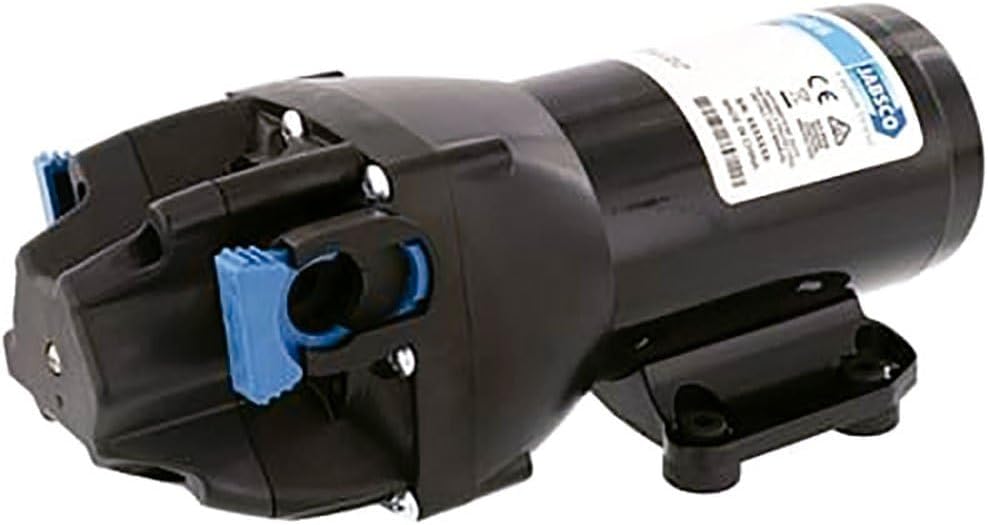

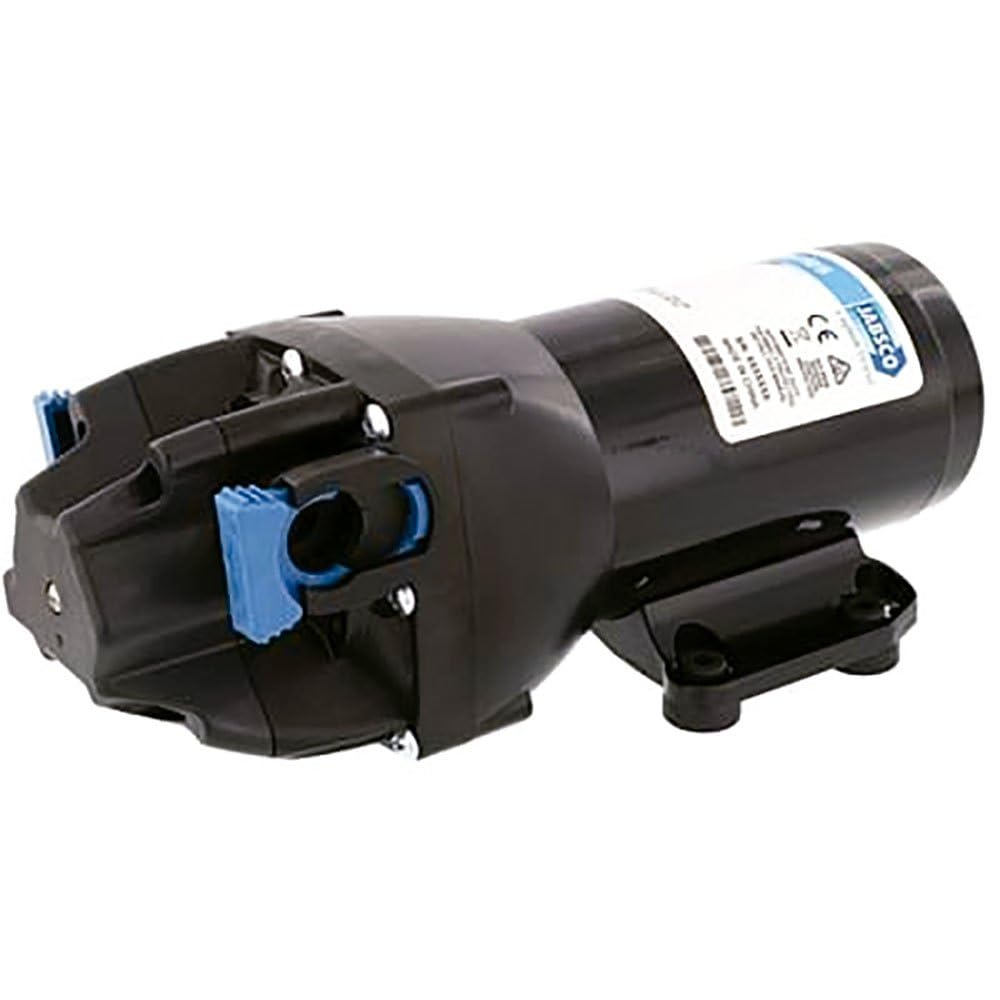

Jabsco Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI

Par-Max HD4 Heavy Duty Water Pressure Pump - 12V - 4 GPM - 60 PSI. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features include co-molded diaphragm technology for long life and durability, heavy-duty motors and cast aluminum lower housings on HD models for long life even at high pressures, efficient and quiet operation, integrated sealed pressure switch for on-demand operation, self-priming capability, dry-run protection, quick connect ports for ease of installation and servicing, vibration-dampening mounting feet, and an integrated bypass module to reduce cycling and provide smoother flow. Specifications include motor design: brushed, permanent magnet TENV; pumphead upper housing material: glass fiber reinforced polypropylene; diaphragm: co-molded TPV; check valves: EPDM; max inlet pressure: 30 PSI (2.1 Bar); fluid temperature range: 32°F – 140°F (0°C – 60°C); dry self-priming capability: 7 ft min (2.13 m/min); certifications: CE, ISO8846, RCM; ingress protection: IPX6.

• Heavy-duty coated motor
• Integrated pressure switch
• Efficient, quiet operation
• Self-priming
• Runs dry without damage
