StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, 7x USB, 85W PD
Customize

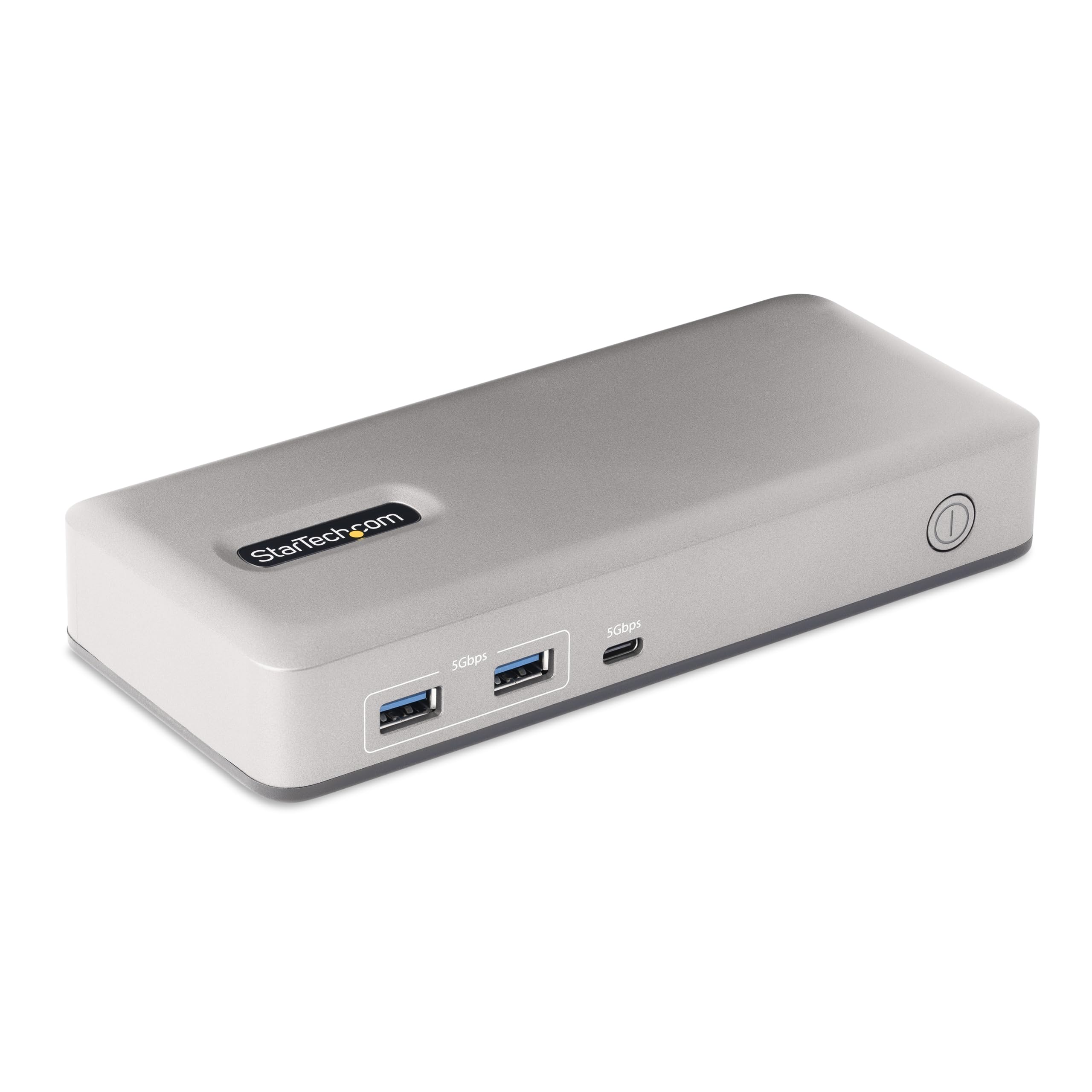

This USB Type-C Docking Station expands the connectivity of a USB-C laptop. It enables dual-monitor support with uncompressed dual 2560x166 30Hz video performance, depending upon the host computer. The dock can support single-4K 60Hz. The dock also supports the use of ultrawide monitors. The dock adds seven downstream USB ports: 2x USB-A (5Gbps), 1x USB-C (5Gbps), 4x USB 2.0 (480Mbps). The docking station features driverless installation and is compatible with USB-C and Thunderbolt 3/4 computers. It is compatible with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable. 2x K-Slots (regular/nano) enable dock tethering, using a cable lock (sold separately). This dock features a mounting pattern that enables mounting when paired with StarTech.com mounting accessories (SSPMSUDWM/SSPMSVESA - sold separately). The USB-C docking station supports 85W power delivery. Backed for 3-years.

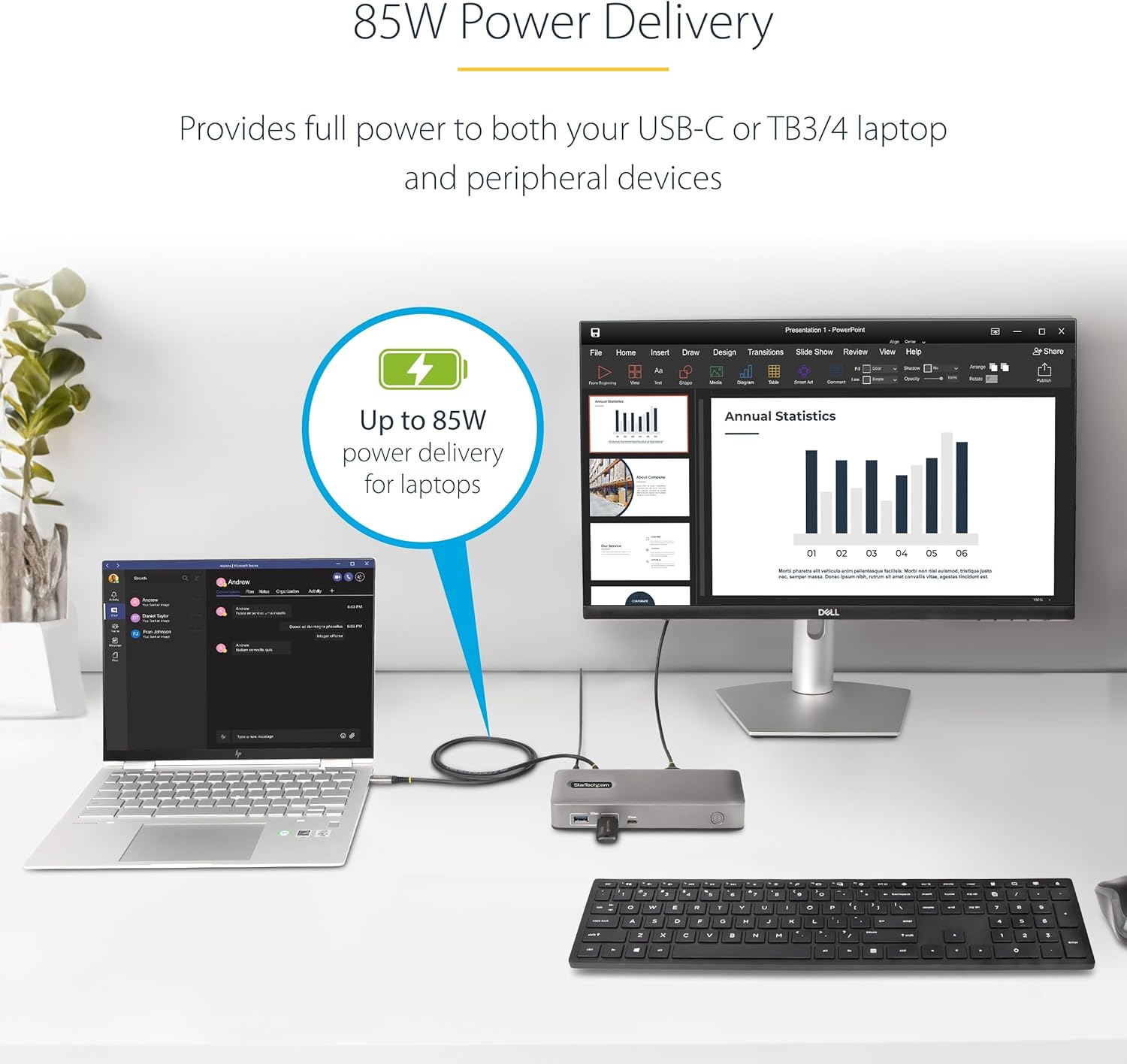

- 85W POWER DELIVERY 3.0: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; Front-facing power button to turn docking station on/off

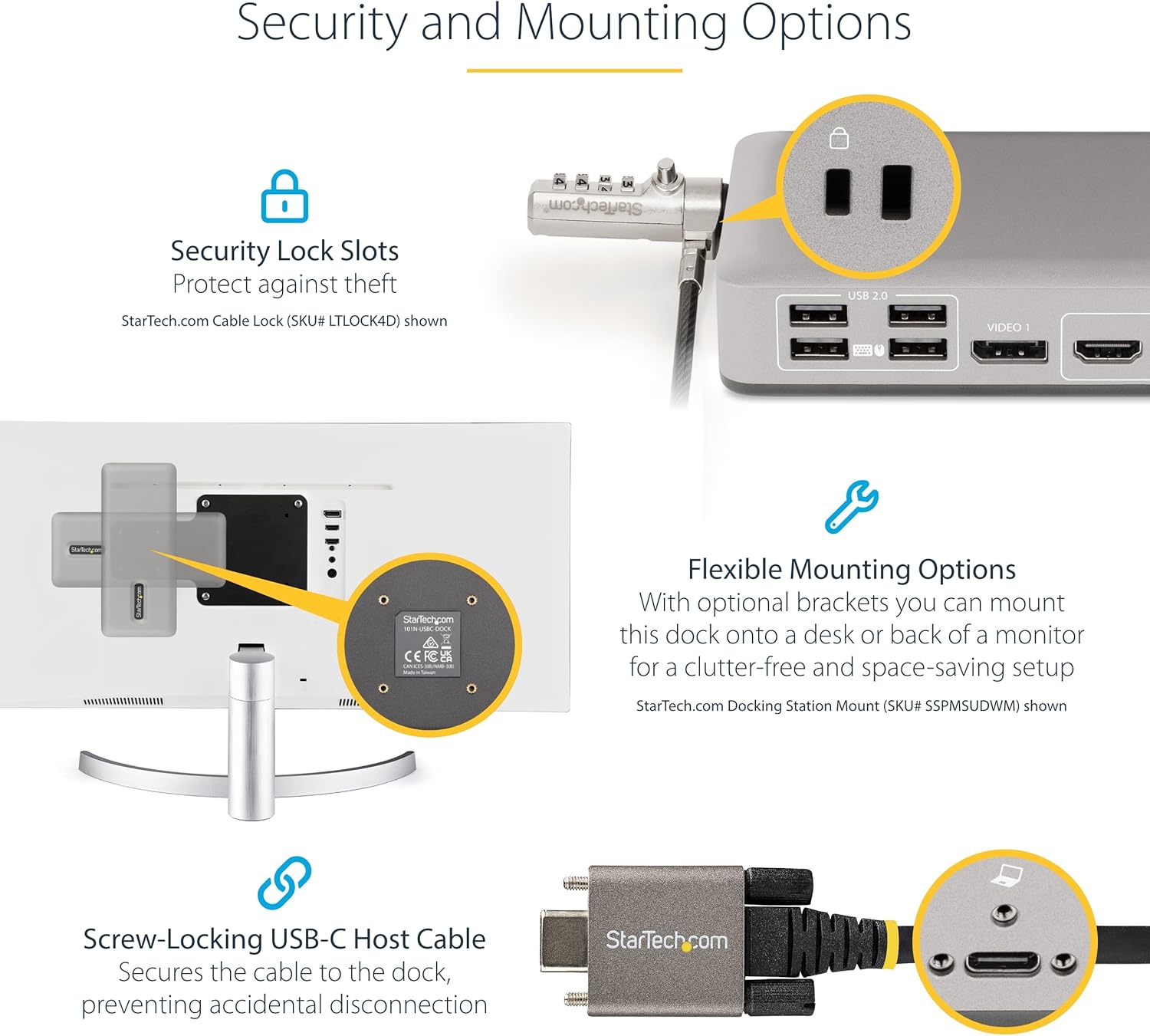

- DEVICE SECURITY: Includes USB-IF Certified 3.3ft (1m) Locking USB-C host cable; Locking USB-C host port; Mounting holes for optional bracket; K-slot and Nano Slot; USB Event Monitoring & Windows Layout utilities

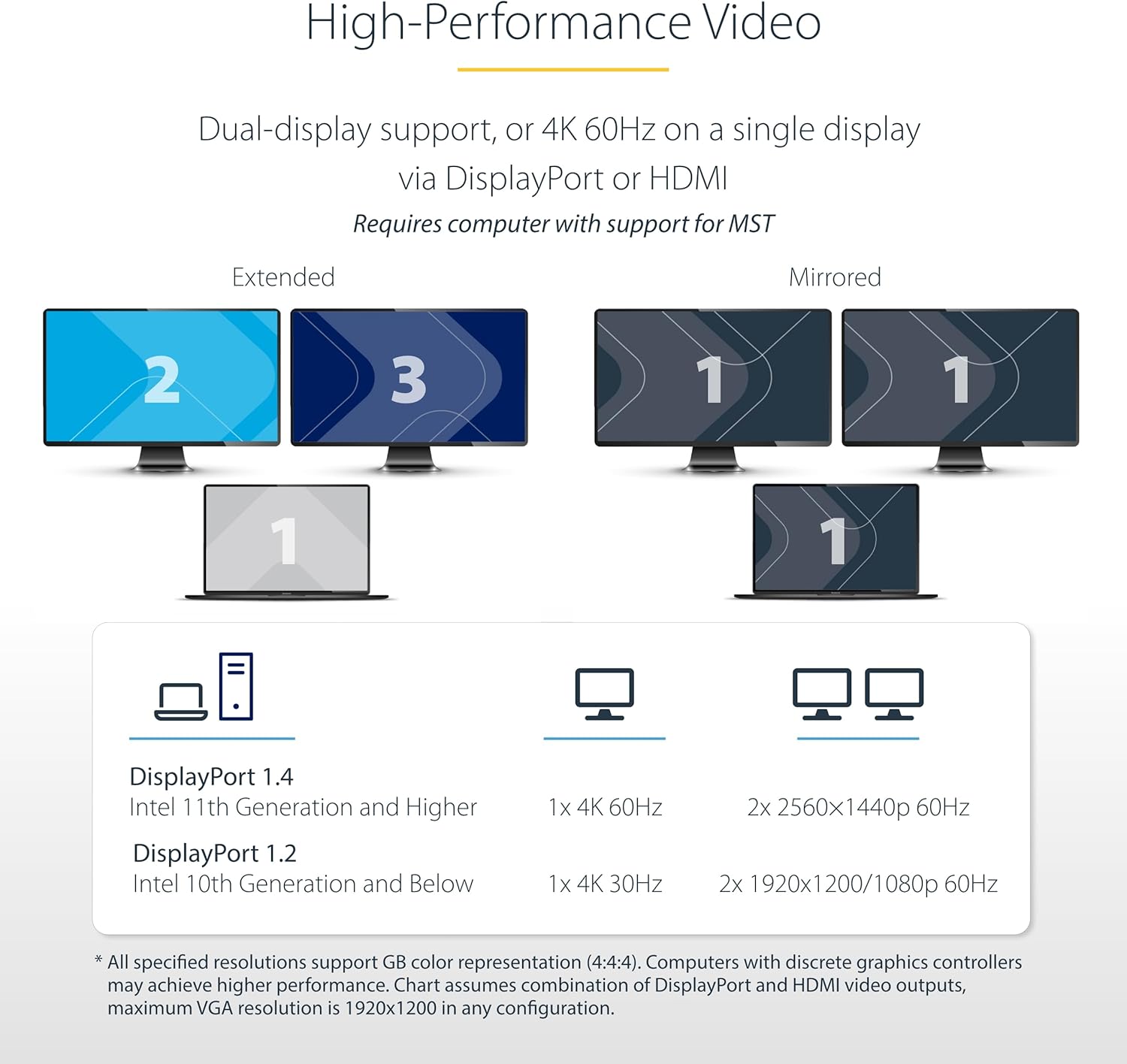

- HIGH-PERFORMANCE VIDEO: Supports up to 2x 2560x1440 60Hz through DP & HDMI ports or single 4K 60Hz (Intel 11th Gen or higher with DP 1.4 Alt Mode & MST req. for max performance); 1080p VGA; MST utilizes laptop GPU for uncompressed video & low CPU usage

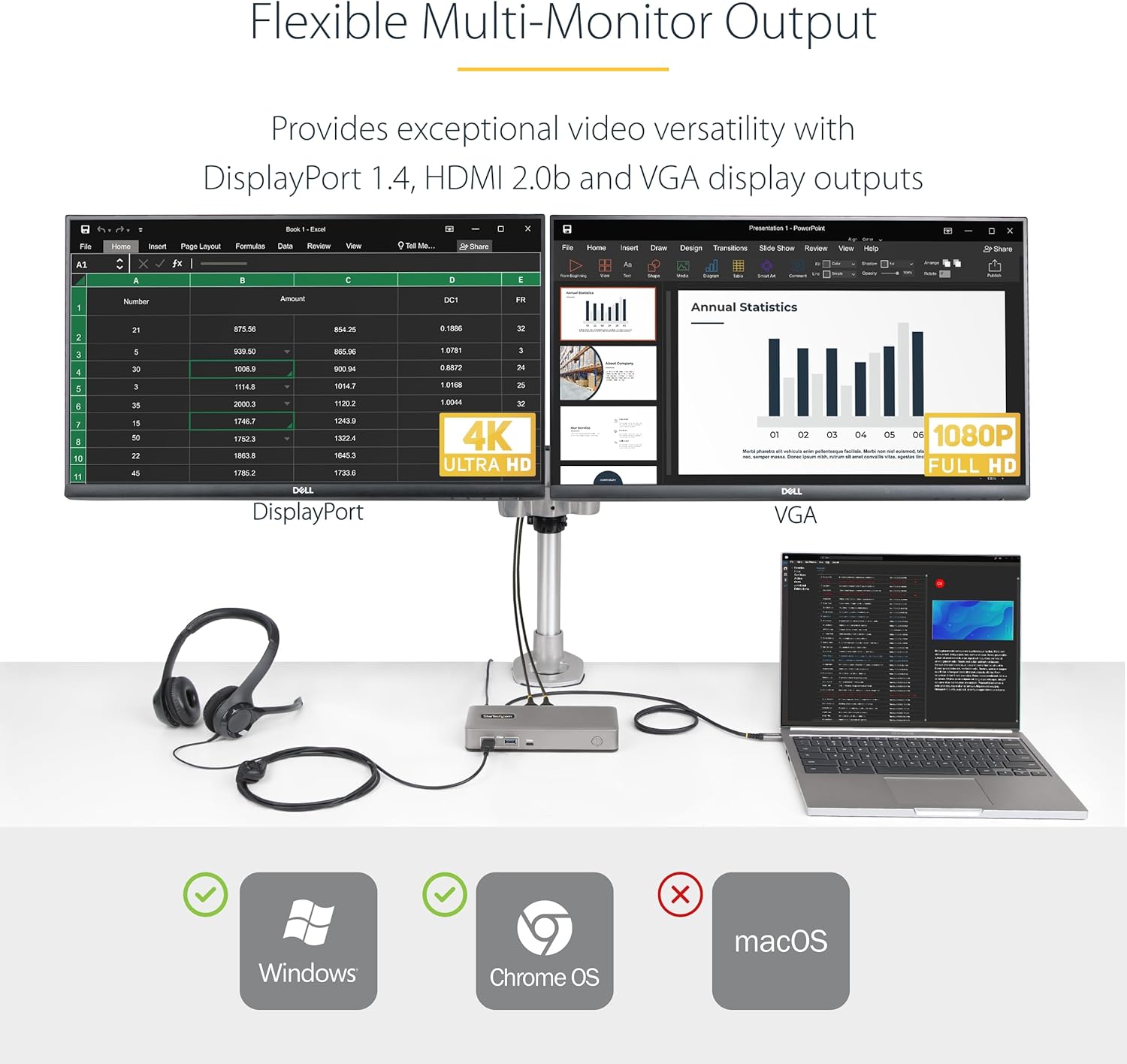

- FLEXIBLE MULTIMONITOR OUTPUT: Provides video versatility with DisplayPort (DP) 1.4, HDMI 2.0b and VGA display outputs; Choose between single or dual video; For dual video pair DP as the primary output with HDMI or VGA as the secondary output

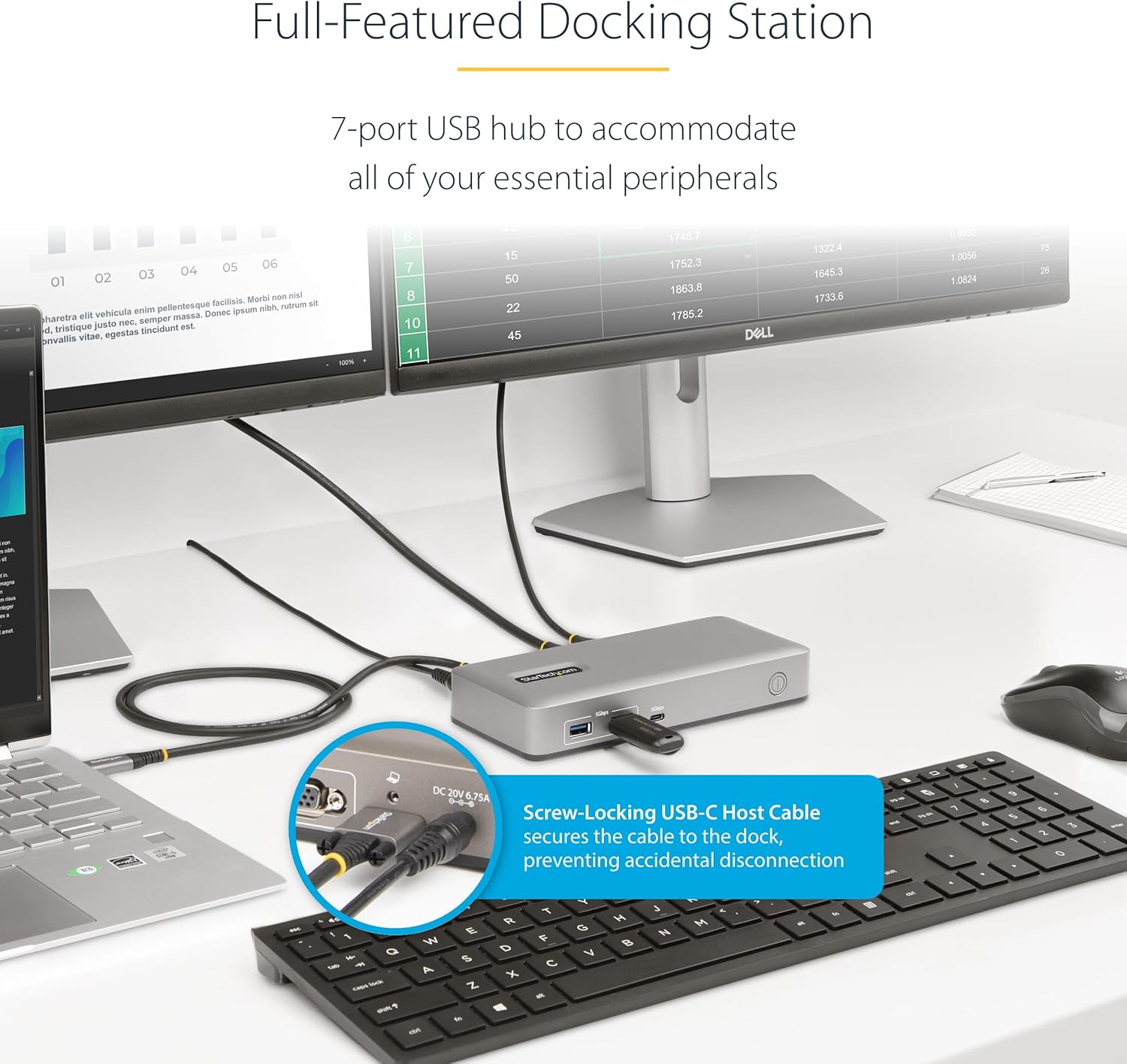

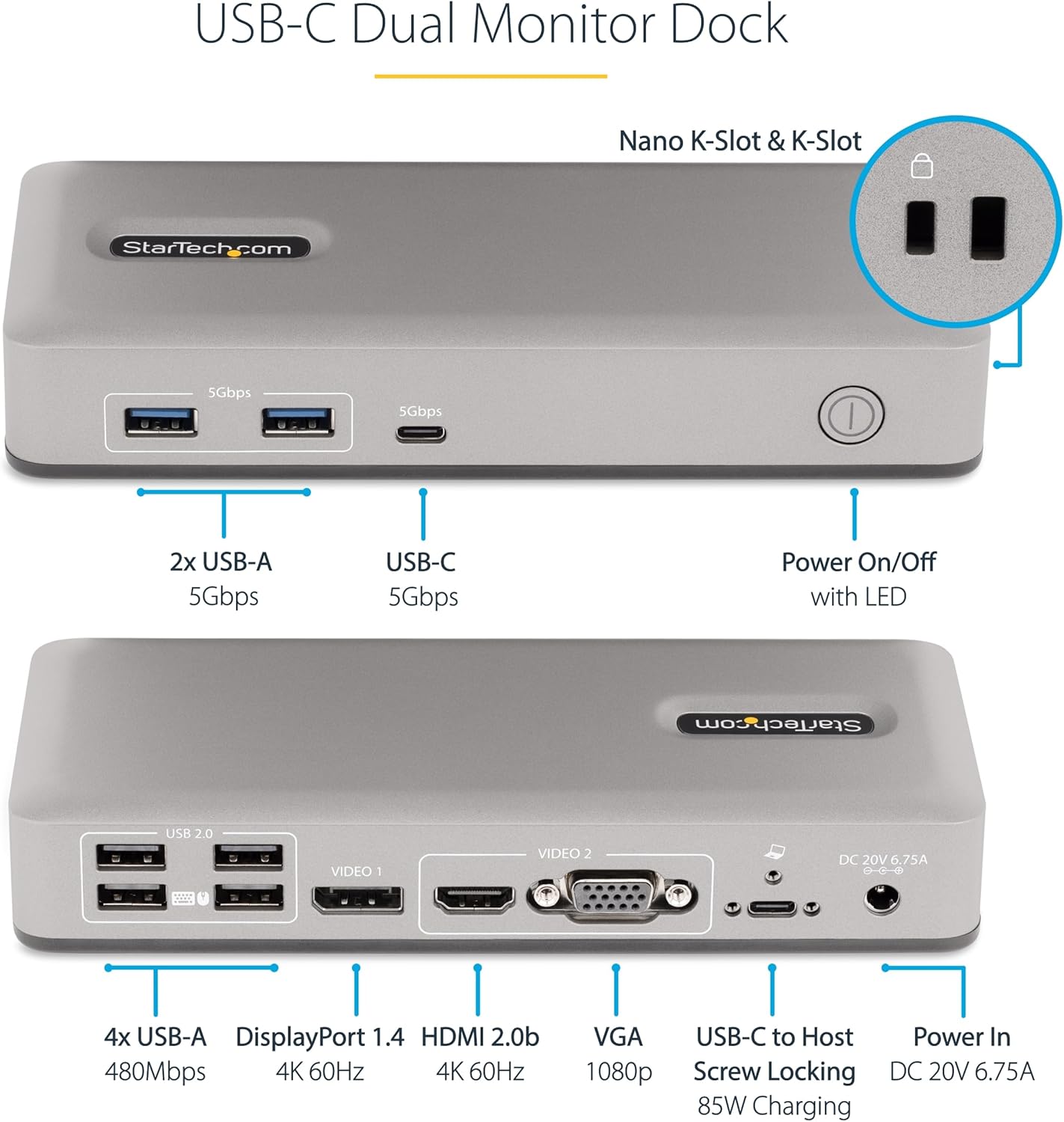

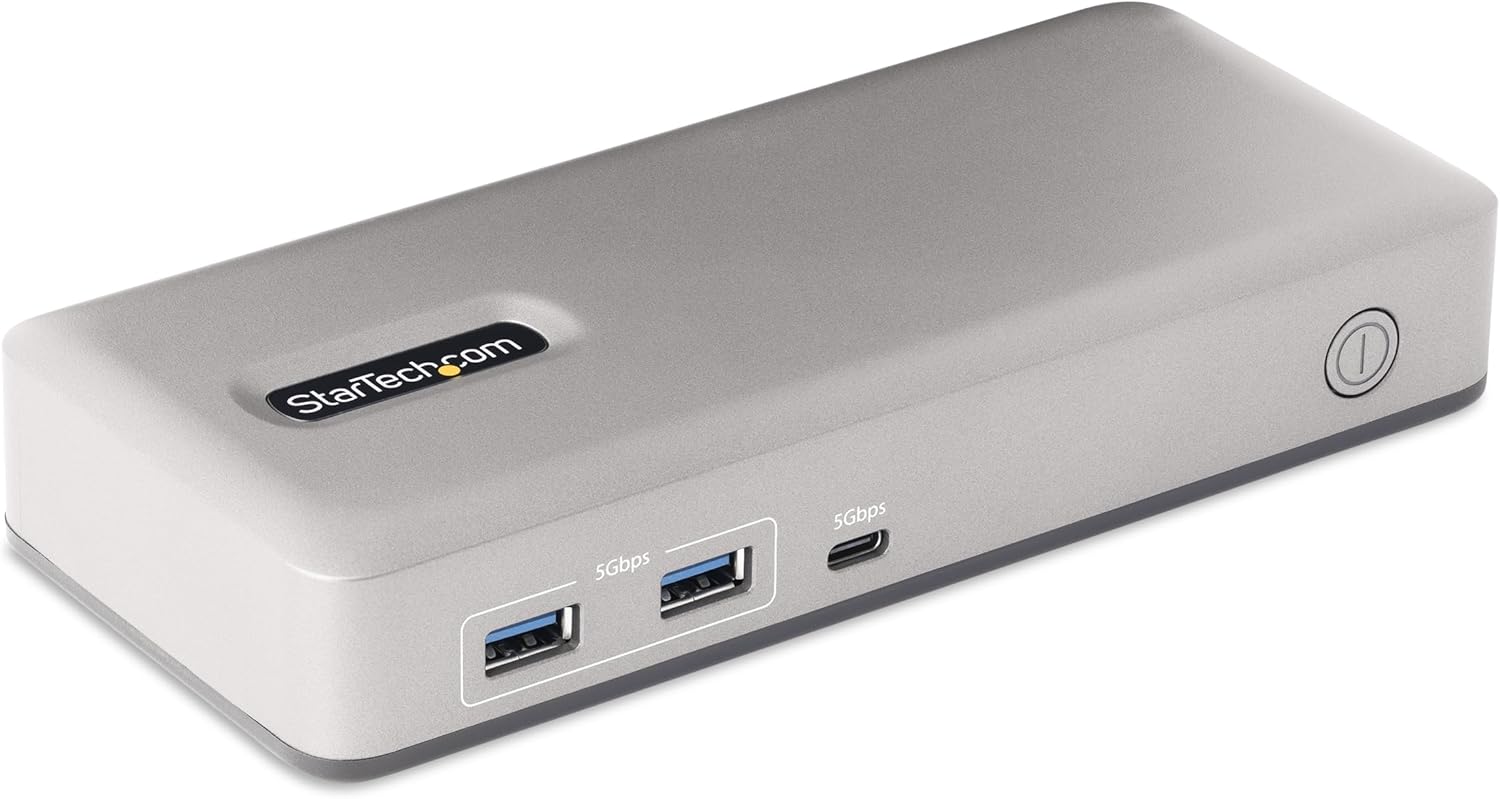

- 7-PORT USB HUB: The dock features a wide variety of extra USB ports for device connectivity; 2x USB 3.2 Type-A (5Gbps) front facing ports, 1x USB 3.2 5Gbps Type-C front facing port, 4x USB 2.0 Type-A HID rear facing ports; Features Driverless installation
Specifications:
| Materials & Construction | |
| Color | Space Gray |
| Depth | 3-1/10 In. |
| Height | 1-2/10 In. |
| Width | 7-3/10 In. |
| Product Details | |
| Compatible With | Compatible With Usb-C And Thunderbolt 3/4 Computers |
| Displayport Version | 1.4 |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs); Waste Electrical And Electronic Equipment Directive (Weee) |
| Hardware Interface | USB 3.2 Gen 1 |
| Hdmi Version | 2.0b |
| Item model number | 101N-USBC-DOCK |
| Model | Dual-Monitor Usb-C Docking Station, Displayport & Hdmi Or Vga, Multi Monitor Dock Up To 4k 60hz - Usb 3.2/3.1 (5gbps) Type-C Dock - 7x Usb Hub, 85w Pd, Windows & Chromeos |
| Model Number | 101N-USBC-DOCK |
| Number Of Displayports | 1 |
| Number Of Displays Supported | 2 |
| Number Of Hdmi Ports | 1 |
| Number Of Ports | 7 |
| Number Of Usb 3.2 Gen 1 Type-A Ports | 2 |
| Number Of Usb Type-A Ports | 6 |
| Number Of Usb Type-C Ports | 1 |
| Number Of Vga Outputs | 1 |
| Operating System Supported | Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Chromeos |
| Ports | Vga 15-Pin D-Sub; Hdmi |
| Power Source Type | Power Adapter |
| Screen Mode Supported | 4k @ 60hz; Full Hd; Wuxga; Qhd |
| Supported Resolutions | 3840.000216; 1920.000108; 1920.00012; 2560.000144 |
| Usb Power Delivery | 85w |
| Usb Type-A | Yes |
| Usb Type-C | Yes |
| Usb Type-C Detail | 2 X Usb 3.2 Type-C (24 Pin, Gen 1, 5gbps) |
| Warranty | 3-Year Limited |
| Wattage | 85 |

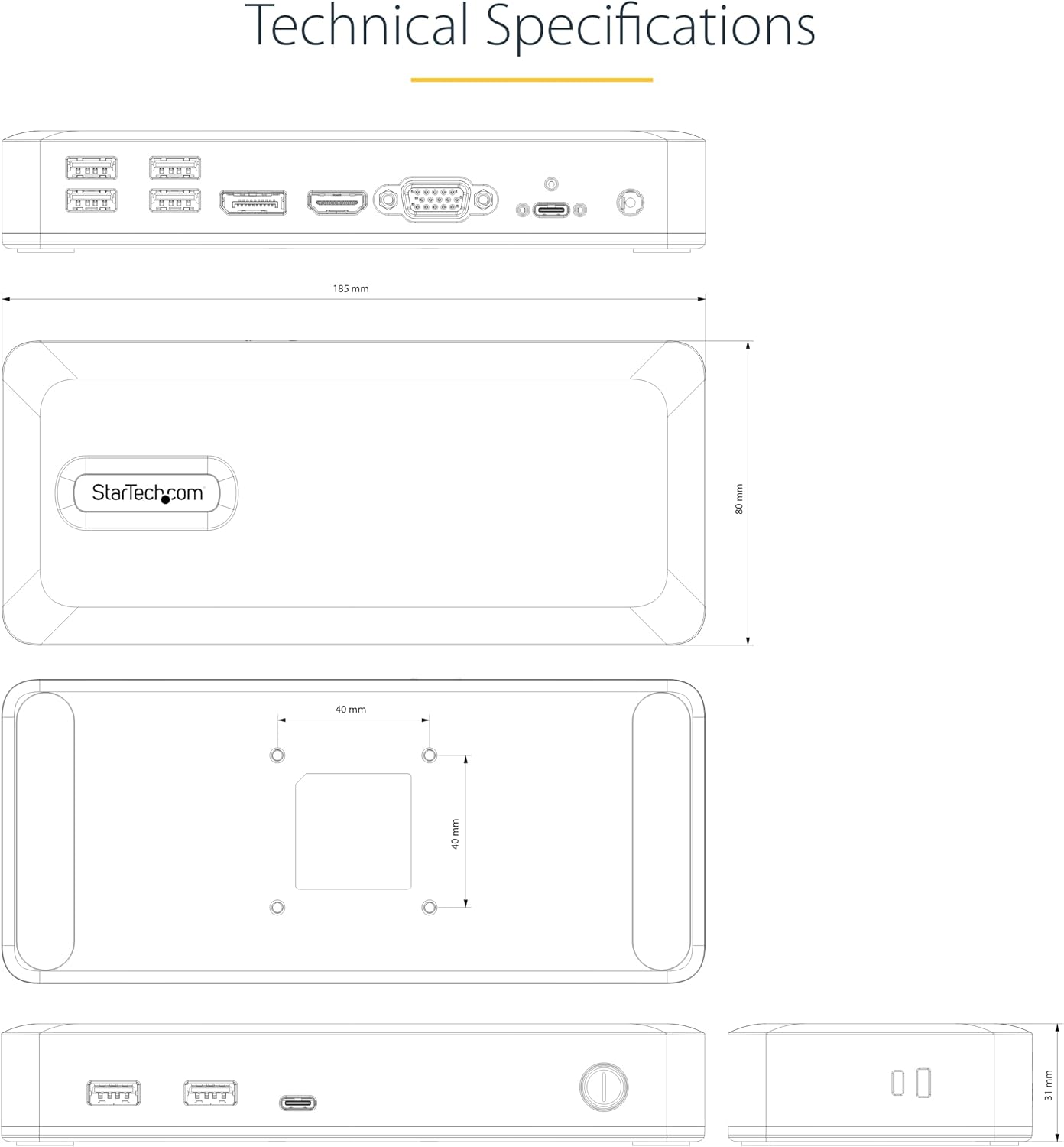

| Sizing & Dimensions | |
| Height | 1.2 inches |
| Item Dimensions Lx Wx H | 3.1 x 7.3 x 1.2 inches |
| Length | 3.1 inches |
| Product Dimensions | 3.1"L x 7.3"W x 1.2"H |
| Product Weight | 2.26 |
| Size | 3.1 x 7.3 x 1.2 inches |
| Weight | 0.61 pounds |
| Width | 7.3 inches |
| Technical Specifications | |
| Compatible Devices | Windows 7, 8, 8.1, 10, 10 ARM, 11, 11 ARM Chrome OS, laptop, monitor |
| Displayport Version | 1.4 |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs); Waste Electrical And Electronic Equipment Directive (Weee) |
| Hardware Interface | USB 3.2 Gen 1 |
| Hdmi Version | 2.0b |
| Number of Ports | 12 |
| Operating System Supported | Windows 7; Windows 8; Windows 8.1; Windows 10; Windows 11; Chromeos |
| Total HDMI Ports | 1 |
| Total USB Ports | 8 |
| Warranty | 3-Year Limited |
| Wattage | 85 |
