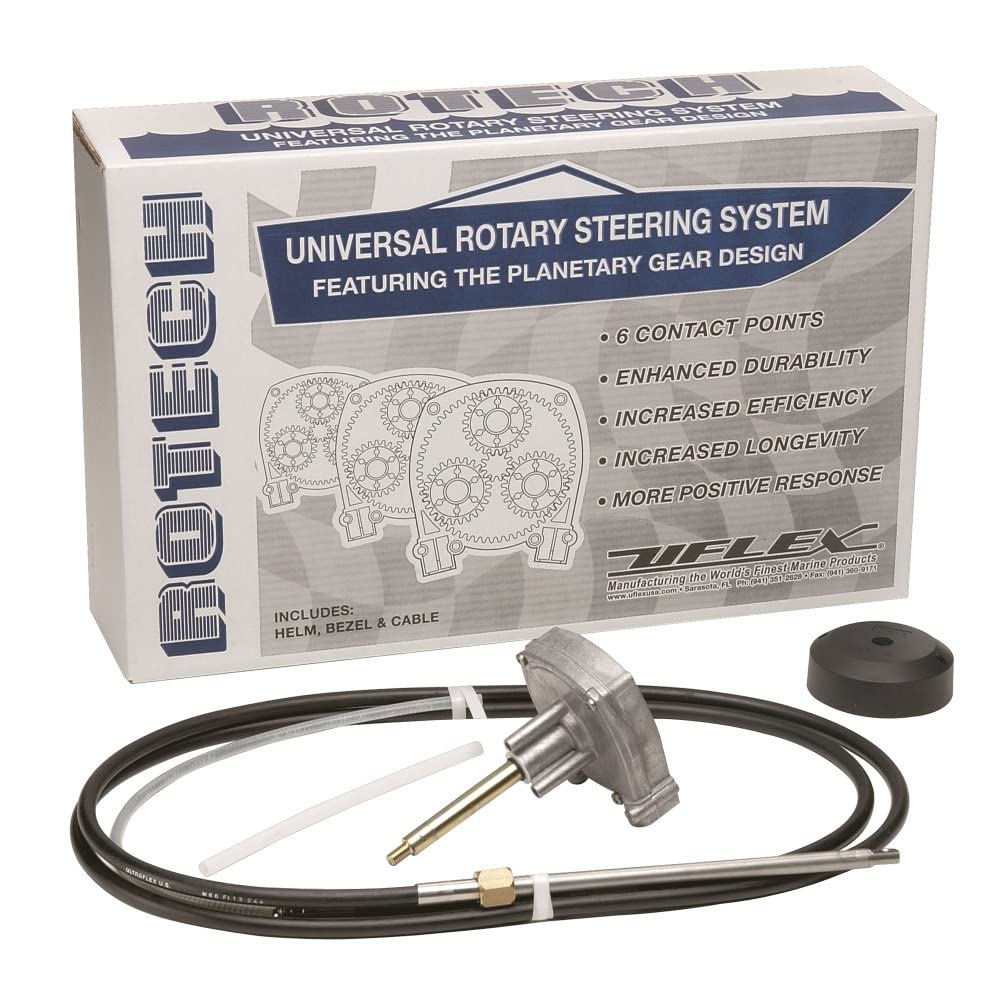

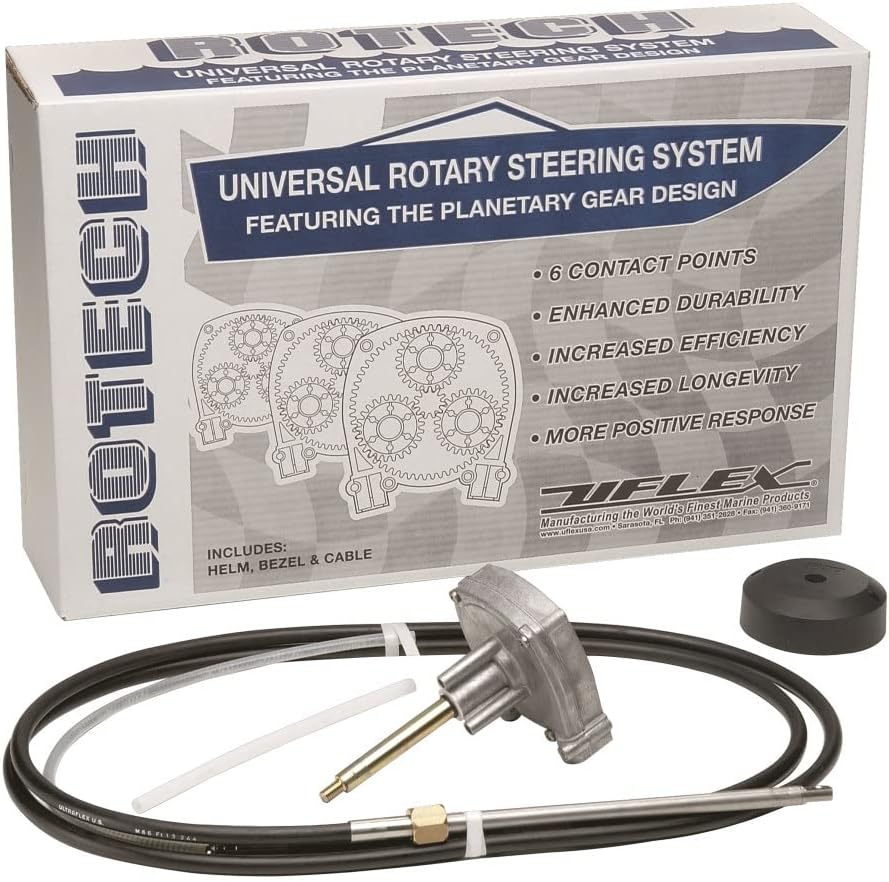

UFlex Rotech 16' Rotary Steering Package - Cable, Bezel, Helm

ROTECH™ STEERING SYSTEM ROTECH - X16 T71FC - helm X34 - 90° bezel M66 - 16' steering cable UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX: A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable. FEATURES AND TECHNICAL SPECIFICATIONS: Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited Standard 3/4" tapered shaft Lock-to-lock steering wheel turns: approx. 3,8 Stroke: 9" (228 mm) Maximum allowable steering wheel diameter: 16" (406 mm) Minimum steering cable bend radius: 7.9" (200 mm) Minimal feedback Compact for mounting T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph the twin cable steering system T72FC is recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards **The wheel is not included, Cable Length (Feet): 16'

• Kit includes: T71FC - helm, X34 - 90 degree bezel, M66 - steering cable
• Centered on the main drive shaft, this helm requires less room behind the dash and is a direct "drop in" replacement for competing system; requiring no new holes for installation
• Unique design offers a wider wear area which reduces lost motion and improves durability
• Rotech reduces steering effort and delivers more balanced loads on the steering wheel
