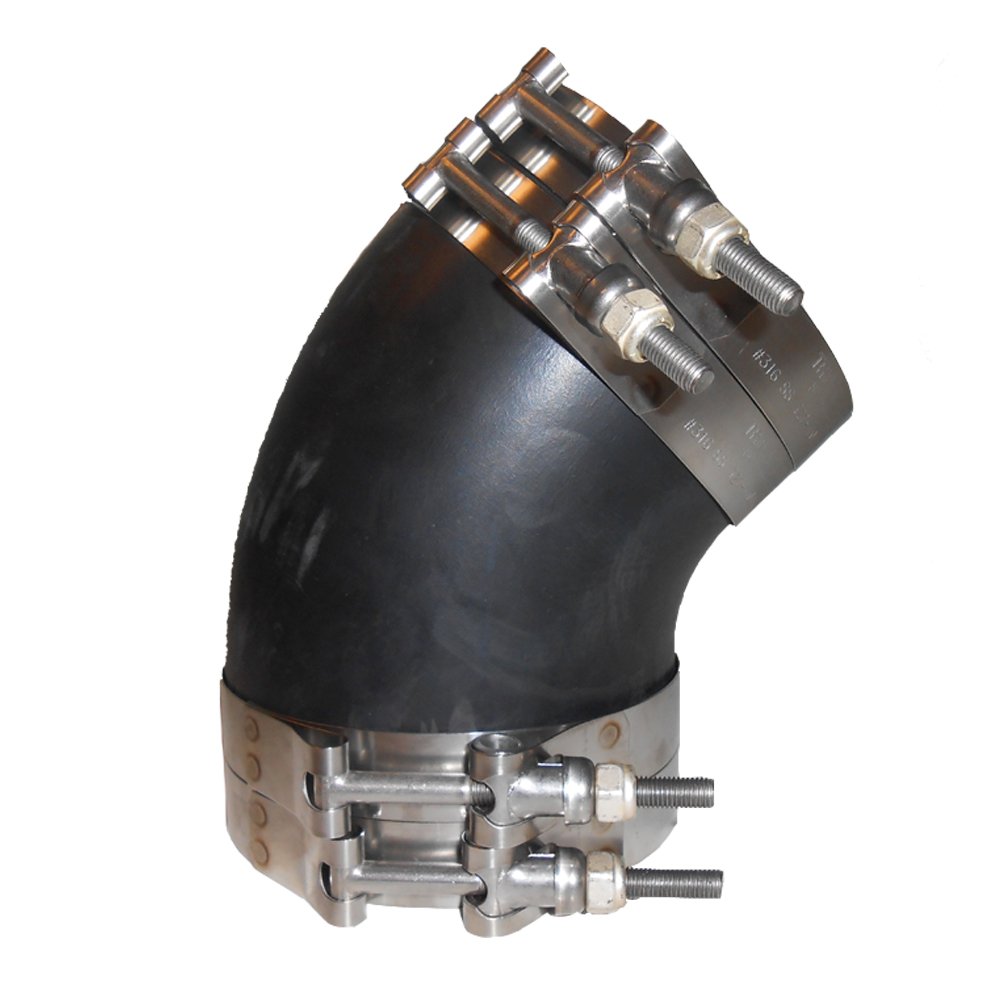

Trident Marine Trl-445-S/S Black Epdm Rubber 45-Degree Marine Wet Exhaust Elbow with 4 Stainless Steel T-Bolt Clamps, 4"
Customize
4" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside. Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 Outer Diamter: (inch) 4.5" / (mm) 114.3 A: (inch) 1.5” / (mm) 38.1 B: (inch) 1.5” / (mm) 38.1 C: (inch) 5.5” / (mm) 139.7 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 0.95 / (Kg/Ea) 0.43, ID Diameter (inches): 4"
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | EPDM Rubber |
| Outer Material | EPDM Rubber |
| Product Details | |
| Color | Black |
| Global Trade Identification Number | 00704917000459 |
| Item model number | TRL-445-S/S |
| Material | Plastic |
| Package Dimensions | 5.8 x 5.1 x 5.1 inches; 0.01 ounces |
| Style | Modern |
| UPC | 704917000459 |
| Sizing & Dimensions | |
| Size | 4" ID |
| Weight | 0.95 pounds |
| Technical Specifications | |
| A (inch) | 1.5" |
| B (inch) | 1.5" |
| C (inch) | 5.5" |
| Clamps Included | Four stainless steel T-bolt clamps |
| Elbow Degree | 45 degrees |
| Inner Diameter (inch) | 4" |
| Outer Diameter (inch) | 4.5" |
| Standards | Exceeds SAE J2006-R1, ABYC & NMMA P-1 |
| Temperature Range | up to 250°F (121°C) |
| W (inch) | 0.25" |
