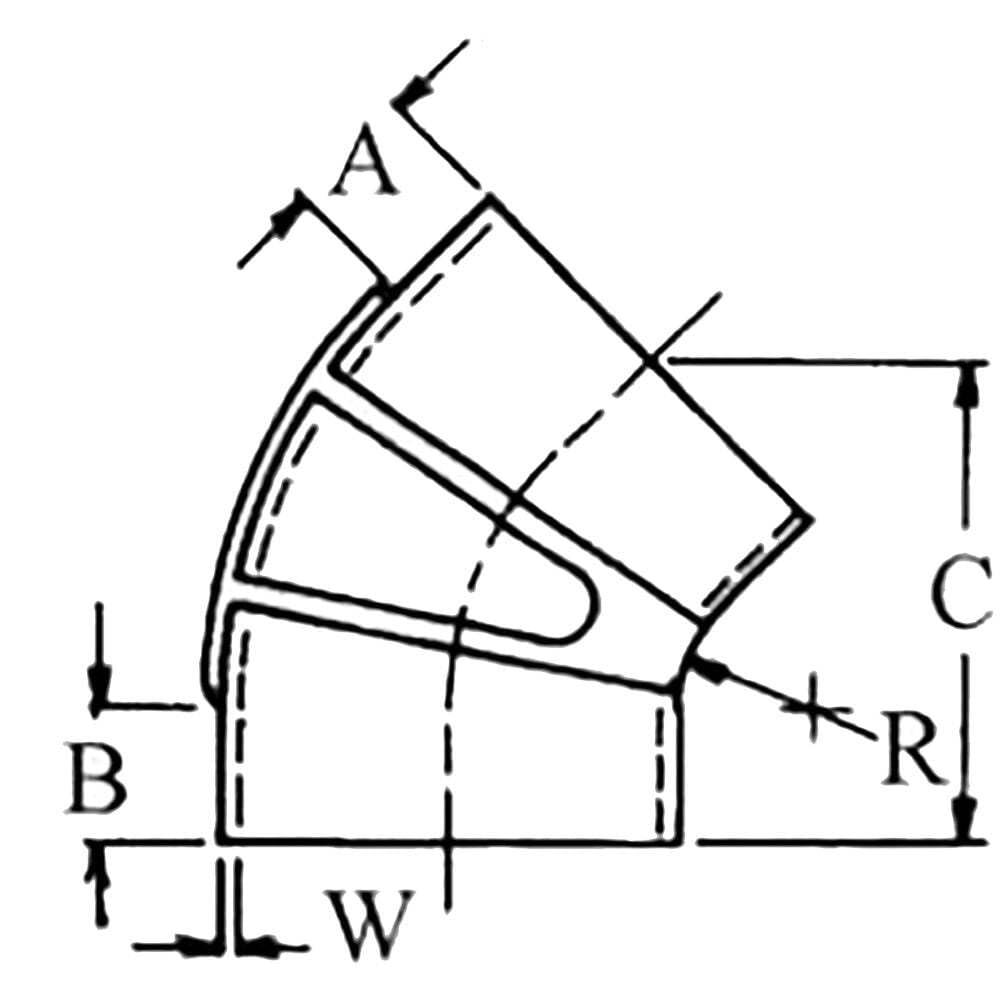

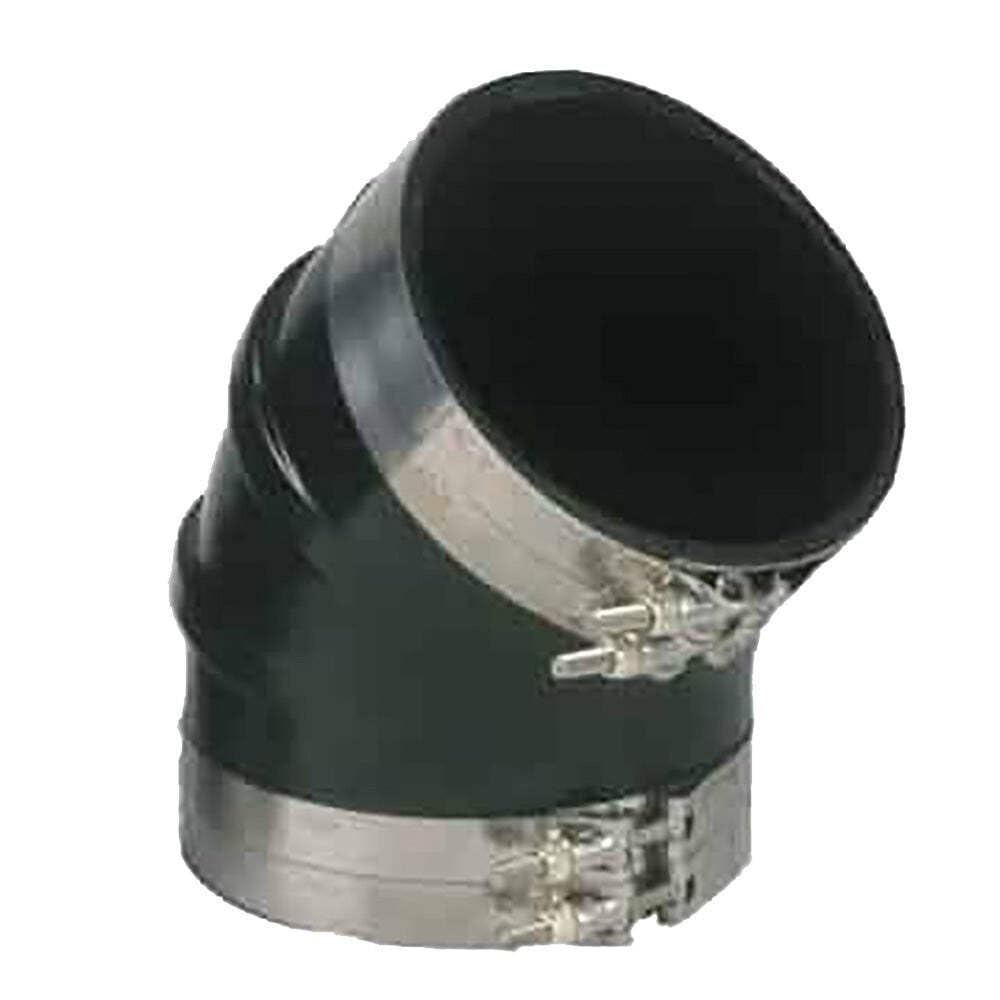

5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside. Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 5” / (mm) 127 Outer Diamter: (inch) 5.5" / (mm) 139.7 A: (inch) 1.62” / (mm) 48.1 B: (inch) 1.62” / (mm) 48.1 C: (inch) 5.75” / (mm) 146 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478, ID Diameter (inches): 5"
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | EPDM Rubber |
| Product Details | |
| Global Trade Identification Number | 00704917000466 |
| Item model number | TRL-545-S/S |
| Model Number | TRL-545-S/S |
| UPC | 704917000466 |
| Sizing & Dimensions | |
| Inner Diameter (Inches) | 5" |
| Size | 5" ID |
| Weight | 2.1 pounds |
| Technical Specifications | |
| Elbow Degree | 45 degrees |
| Included Components | 4 stainless steel T-bolt clamps |
| Outer Diameter | 5.5" |
| Temperature Range | up to 250°F (121°C) |
| Weight (each) | 1.05 pounds |
