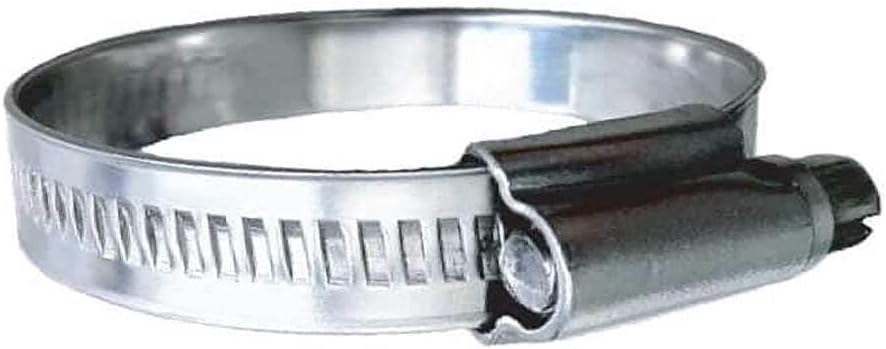

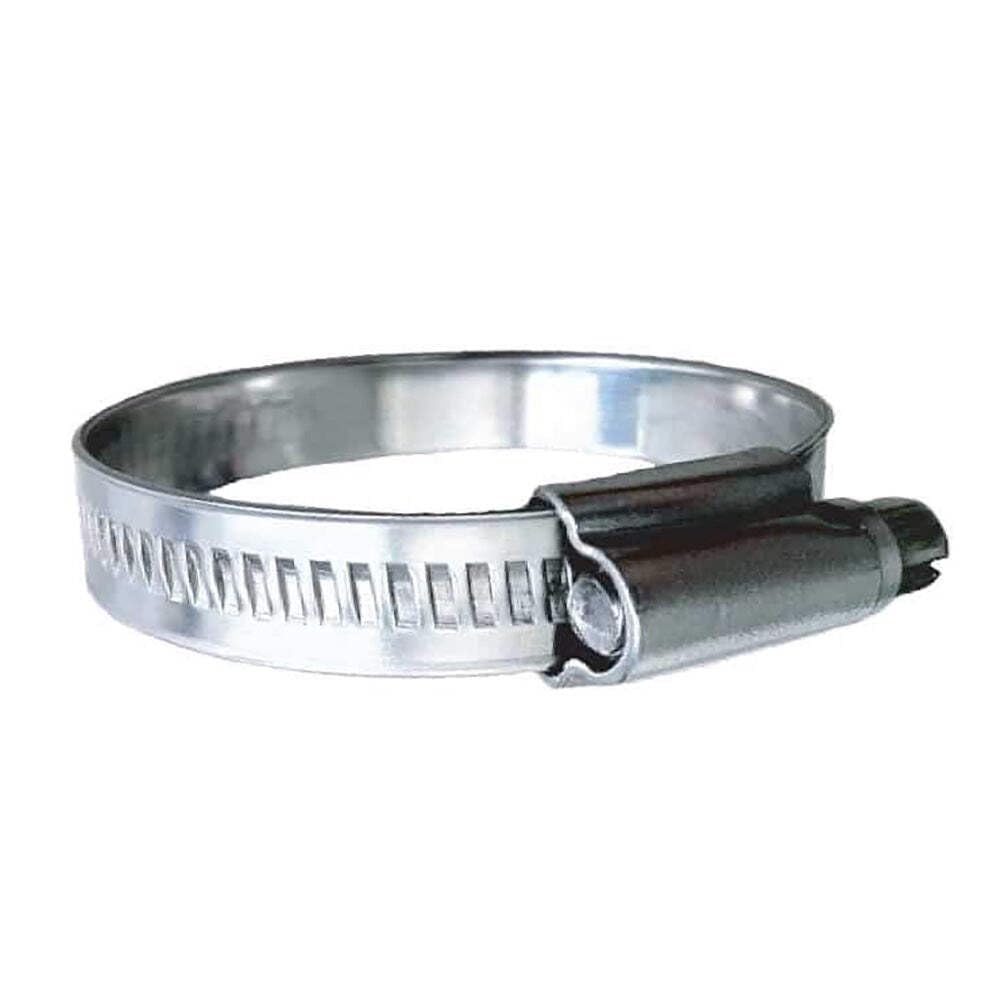

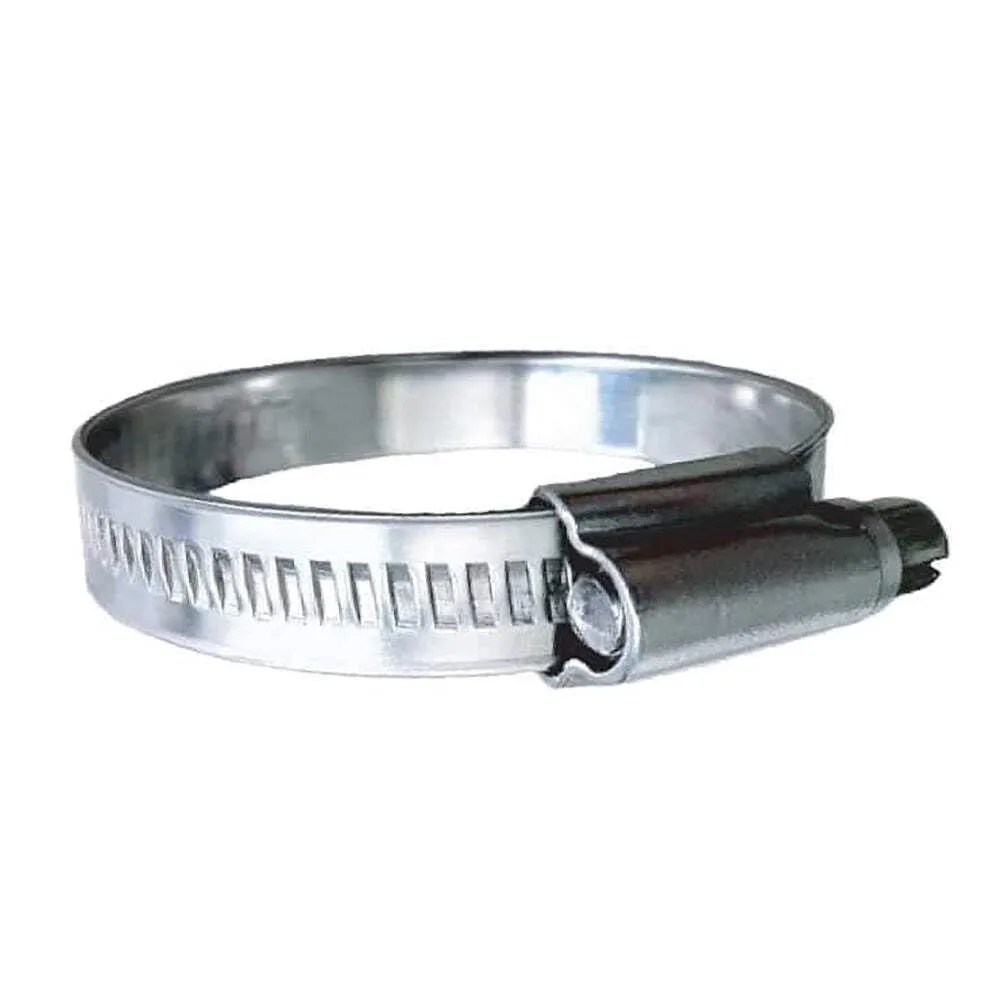

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32 inch Band - (1-3/4 inch – 2-1/4 inch) Clamping Range - 10-Pack - SAE Size 28. Premium marine grade, all AISI 316 (high tensile strength) stainless steel “HD NON-PERF” worm gear hose clamp. The 11.7 mm (0.46 inch) wide band is non-perforated and smooth on the inside with rolled edges to eliminate hose damage while increasing clamping force. The high-strength, compact, one-piece 16 mm (0.63 inch) wide housing provides one of the highest clamping force ratings of any worm gear style clamp. Features: 7 mm screw head for long service life and safety for general-purpose hose applications and connections. Recommendations: measure hose O.D. before selecting clamp size for proper fit; double clamp on each hose end for critical applications. Construction: Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9 mm thick. Screw Drive: 316 Stainless Steel 7.0 mm screw head. Specifications: SAE Size: 28. Hose Inner Diameter: 1-1/2 inch - 1-5/8 inch. Clamping Range: 1-3/4 inch – 2-1/4 inch / (mm) 44-56. Recommended Torque Inch lbs: 45-60.
| Materials & Construction | |
| Color | Multicolor |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 710-1121 |
| Number of Items | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 4 inches |
| Weight | 11.2 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Package Dimensions | 4 x 4 x 4 inches |
