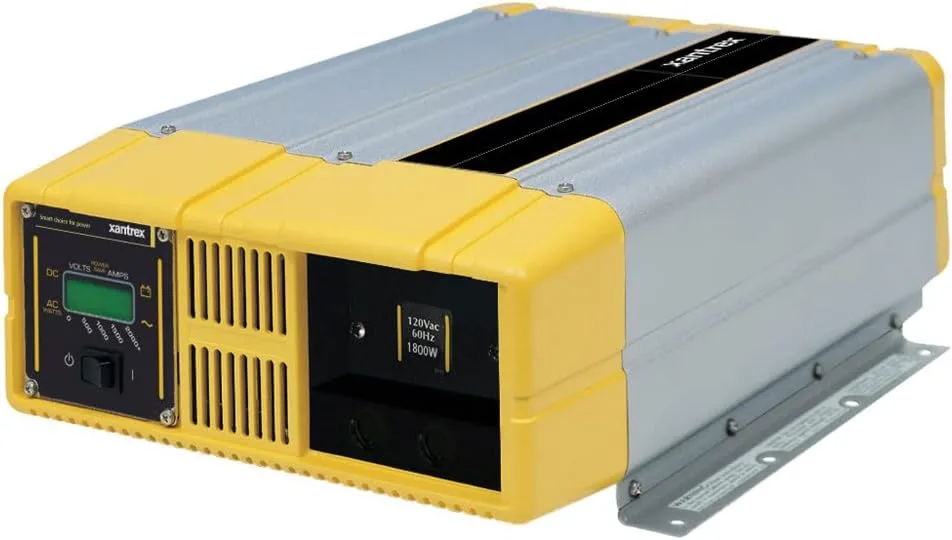

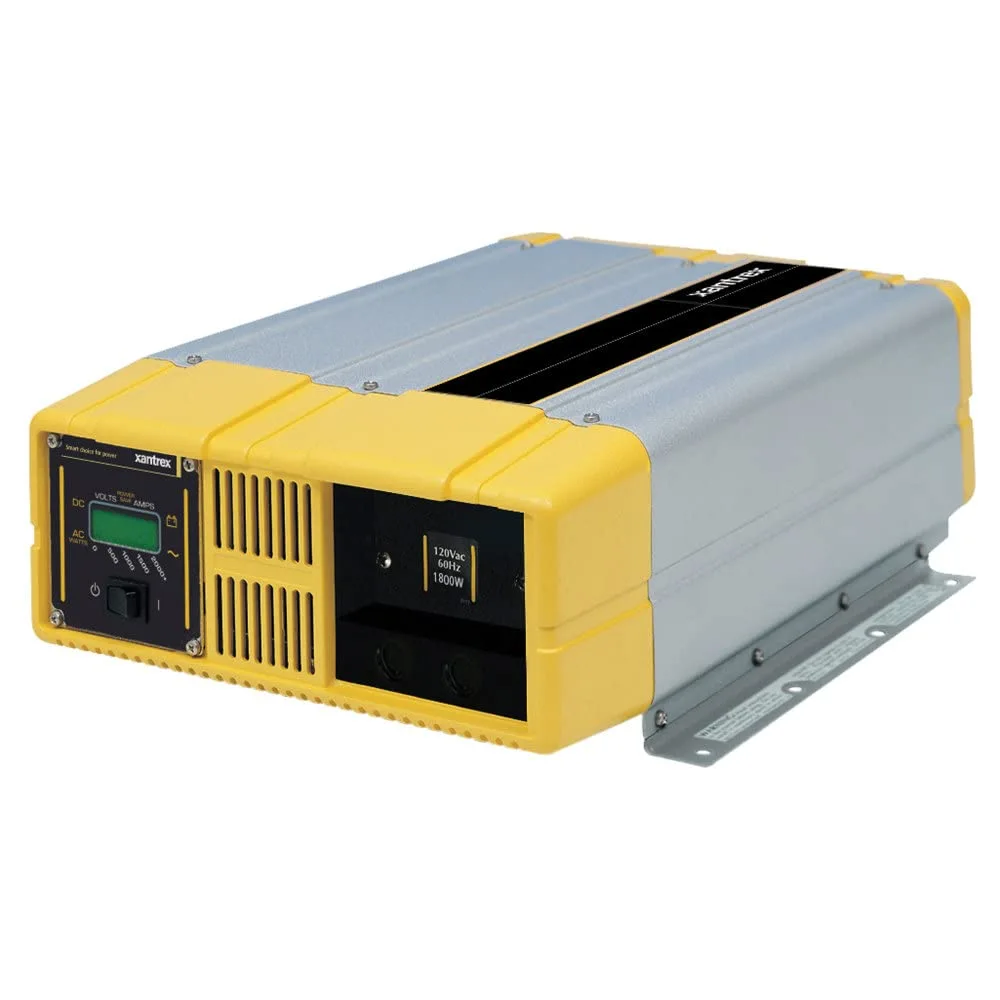

Xantrex Technologies 1800PS 1800 Watt - 2900 Watt Prosine Power Inverter (806-1800)
Customize
PRODUCT DESCRIPTION PROsine Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance. FROM THE MANUFACTURER A true Sine wave provides a smooth, accurate representation over a cycle from zero volts to peak voltage, not a rough estimation like modified sine waves. It also helps motor loads start easier and reduces the stress on surge protection circuitry. Features backlit LCD graphical output display that can be mounted on unit in four positions or used remotely. Inverter protects against automatic overload, short circuit, over temp, reverse polarity, AC backfeed and over/under input voltage. Standard duplex outlet, 85% efficiency at a full load, 12V. Dimensions: 15.4 in. x 11 in. x 4.5 in. Provides 1800 watts of sine wave AC power from a DC source. Offering superior quality true sine wave output, the Prosine 1800 stand-alone inverter is ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely. Product Features: 1800 watt inverter (2900 watt surge capability); True sine wave AC output (crystal controlled); Removable LCD display can be mounted remotely for control and monitoring; Unique DC terminals offer 180-degree connections for easy installation in tight places; Powersave mode draws only 1.5 watts under no load; Two year warranty. Protection Features: Over temperature shutdown and automatic overload protection; Over voltage and under voltage protection; Short circuit and AC backfeed protection. With less than 3% total harmonic distortion, Prosine inverters deliver true sine wave output that is identical to AC power supplied by your utility. Light and compact design using high-frequency switching technology.
- Multi-stage charging capability
- High frequency switching technology
- Surges to 2900 watt peak
- 1800 watt continuous power
- True Sine wave AC output
- Two-year warranty
- Powersave mode draws only 1.5 watts under no load
- Unique DC terminals offer 180-degree connections for easy installation in tight places
- Removable LCD display can be mounted remotely for control and monitoring
- True sine wave AC output (crystal controlled)
Specifications:
| Materials & Construction | |
| Color | Beige |
| Product Details | |
| Ac Connection Type | Hardwire |
| Dc Connection Type | Hardwire |
| Gfci | Yes |
| Inverter Cont. Output Wattage | 1800w |
| Inverter Input Voltage | 12v |
| Inverter Output Voltage | 120v |
| Inverter Surge Rating | 2000w |
| Model | 806-1800 |
| Outlet Qty | 1 Duplex Gfci |
| Waveform | True Sine Wave |
| Sizing & Dimensions | |
| Height | 14 inches |
| Length | 19.5 inches |
| Product Dimensions | 19.5 x 16 x 14 inches |
| Weight | 12 pounds |
| Width | 16 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | Yes |
| Power Source | Battery Powered |
| Voltage | 120 Volts |
| Wattage | 1800 watts |
