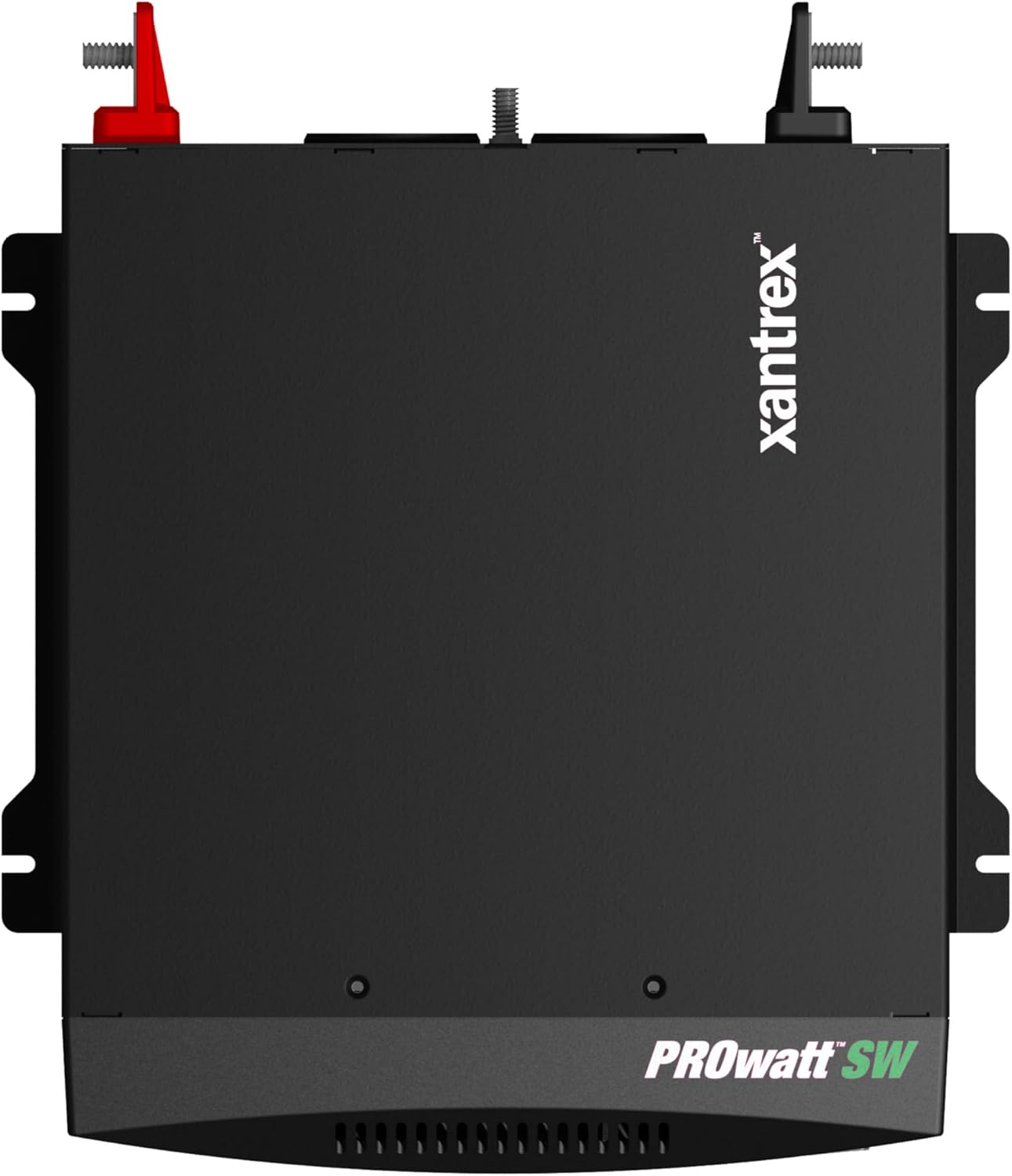

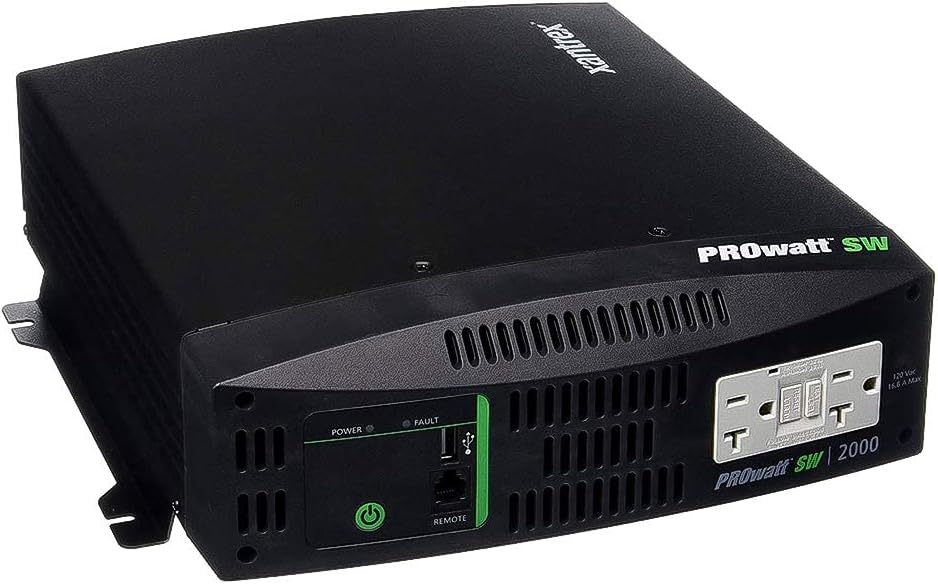

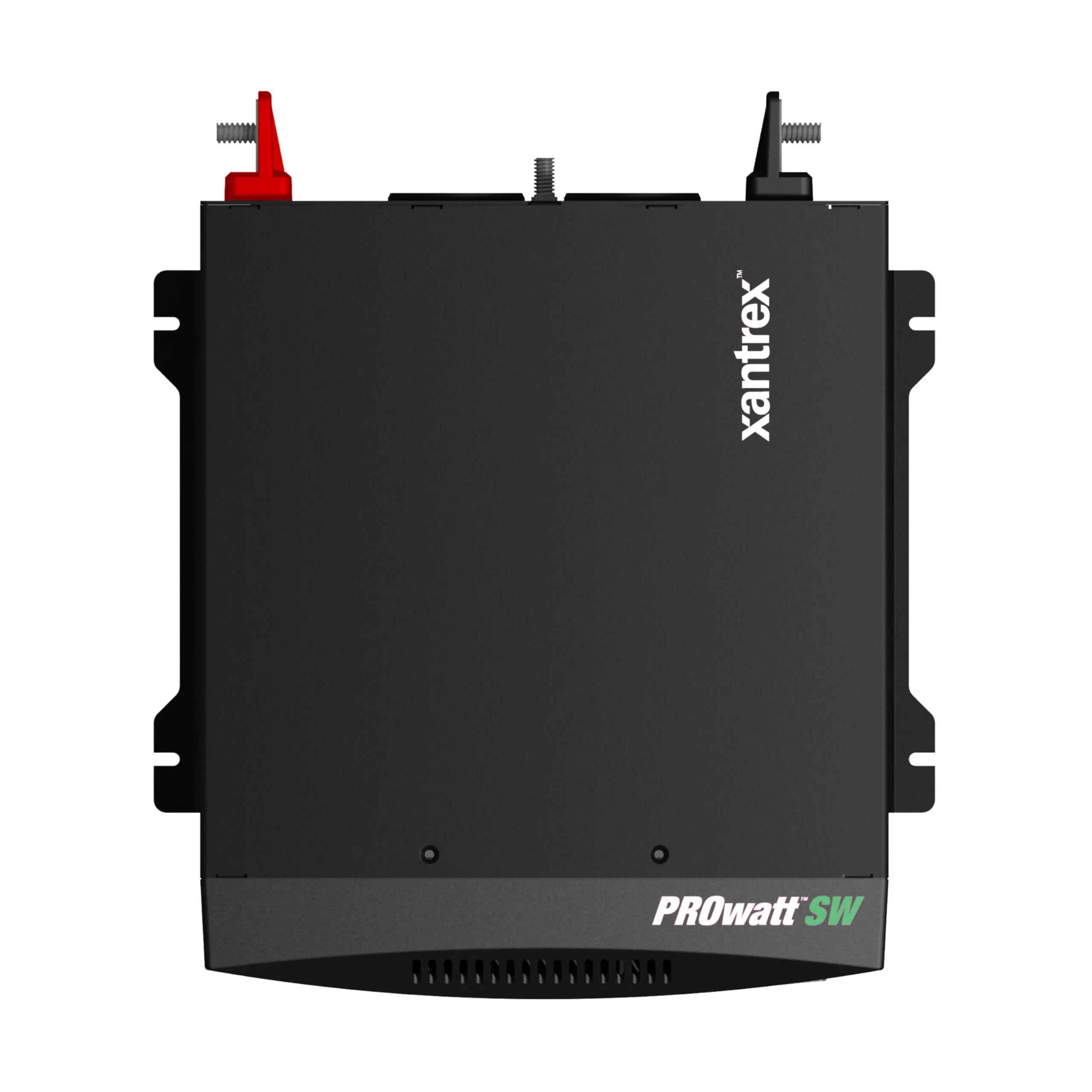

Xantrex Prowatt SW2000 2000W True Sinewave Inverter Model# 806-1220
Customize
The Xantrex PROwatt SW2000 is a compact, easy-to-install true sine wave inverter that delivers household AC power wherever you need it — in RVs, commercial trucks, marine applications and remote locations. The PROwatt SW Series provides robust starting current for demanding loads (1800W continuous, 3000W surge) and supports variable-speed power tools, advanced appliances and microwaves. Key user features include dual GFCI AC receptacles for safe operation, an innovative USB Type-A port for charging portable devices, a built-in digital display showing DC volts and AC output power, and heavy-duty terminals for trouble-free battery connections. When equipped with the optional ON/OFF remote switch, the unit supports ignition lockout to shut down output when vehicle ignition is off. The inverter meets UL458 safety standards and includes multiple protection features: low-voltage shutdown (10.5 Vdc), low-voltage alarm (11.0 Vdc), over-voltage protection (15.5 Vdc), overload shutdown, over-temperature shutdown and GFCI protection. Recommended DC fuse: 250 A. Operating temperature range: 32°F - 104°F (0°C - 40°C). Dimensions, mounting, and compact design make this inverter suitable for RV, marine and commercial installations. Two-year warranty.
- Built-in digital display for DC volts and output power
- Built-in USB port. Meets stringent UL458 regulatory standard. Low voltage shutdown (10.5 Vdc). Low voltage alarm (11.0 Vdc). Over voltage protection (15.5 Vdc)
- Dual gfci AC receptacles for safe Operation
- Heavy duty terminals for trouble-free Battery connection
- Available on/off remote switch (with ignition lockout)
Specifications:
| Materials & Construction | |
| Exterior | Milled |
| Product Details | |
| Ac Connection Type | Hardwire |
| Country of Origin | USA |
| Dc Connection Type | Hardwire |
| Exterior | Milled |
| Gfci | Yes |
| Inverter Cont. Output Wattage | 1800w |
| Inverter Input Voltage | 12v |
| Inverter Output Voltage | 120v |
| Inverter Surge Rating | 3000w |
| Item model number | 806-1220 |
| Manufacturer Part No | 806-1220 |
| Model | Xantrex PROwatt SW2000 - True Sine Wave Inverter |
| Outlet Qty | 1 Duplex Gfci |
| Power Source | Battery Powered,Corded Electric |
| Wattage | 1800 watts |
| Waveform | True Sine Wave |
| Sizing & Dimensions | |
| Height | 7.2 inches |
| Length | 16.6 inches |
| Product Dimensions | 16.6 x 13.8 x 7.2 inches |
| Weight | 8.82 pounds |
| Width | 13.8 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
| Power Source | Battery Powered,Corded Electric |
| Recommended Uses For Product | Spying |
