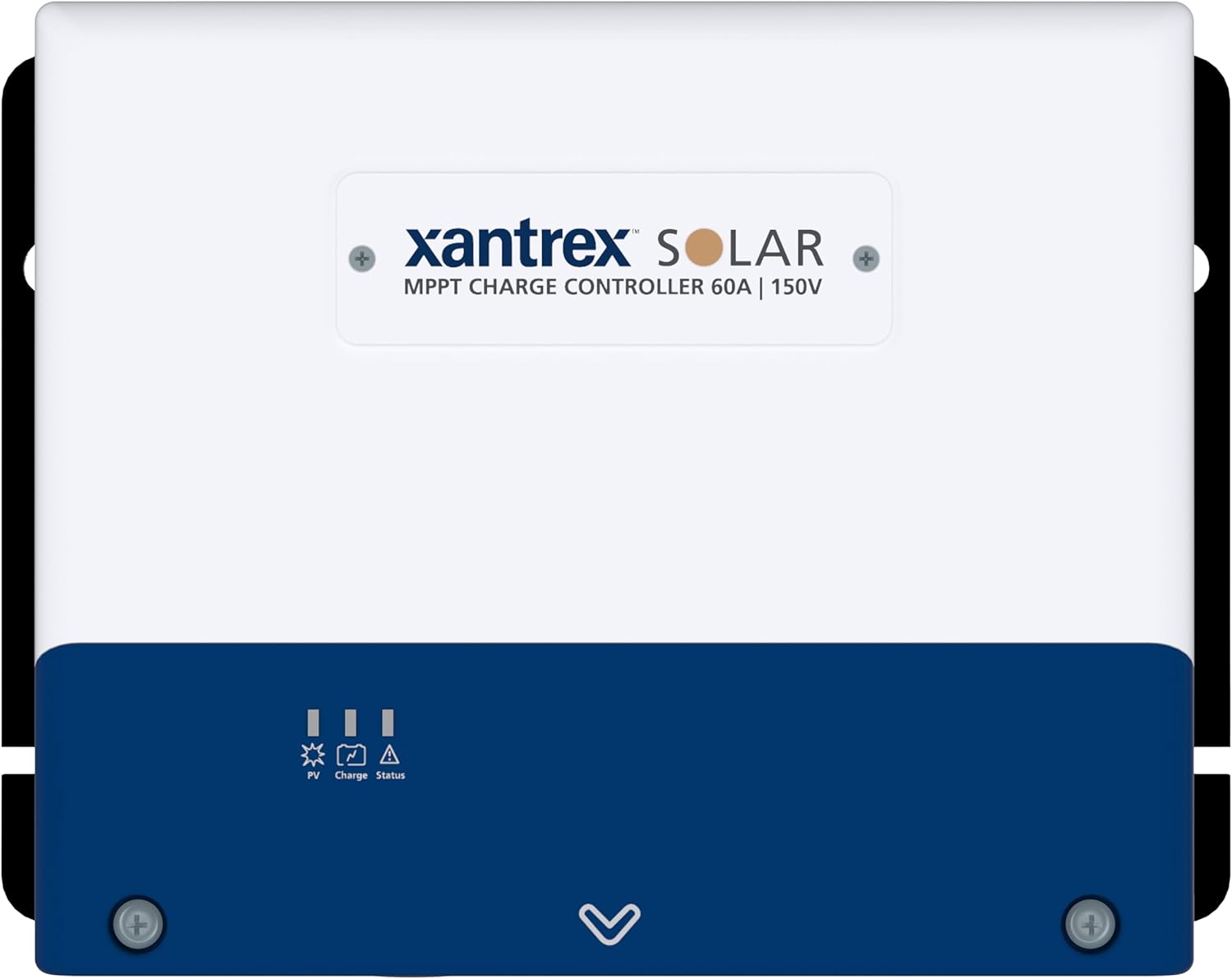

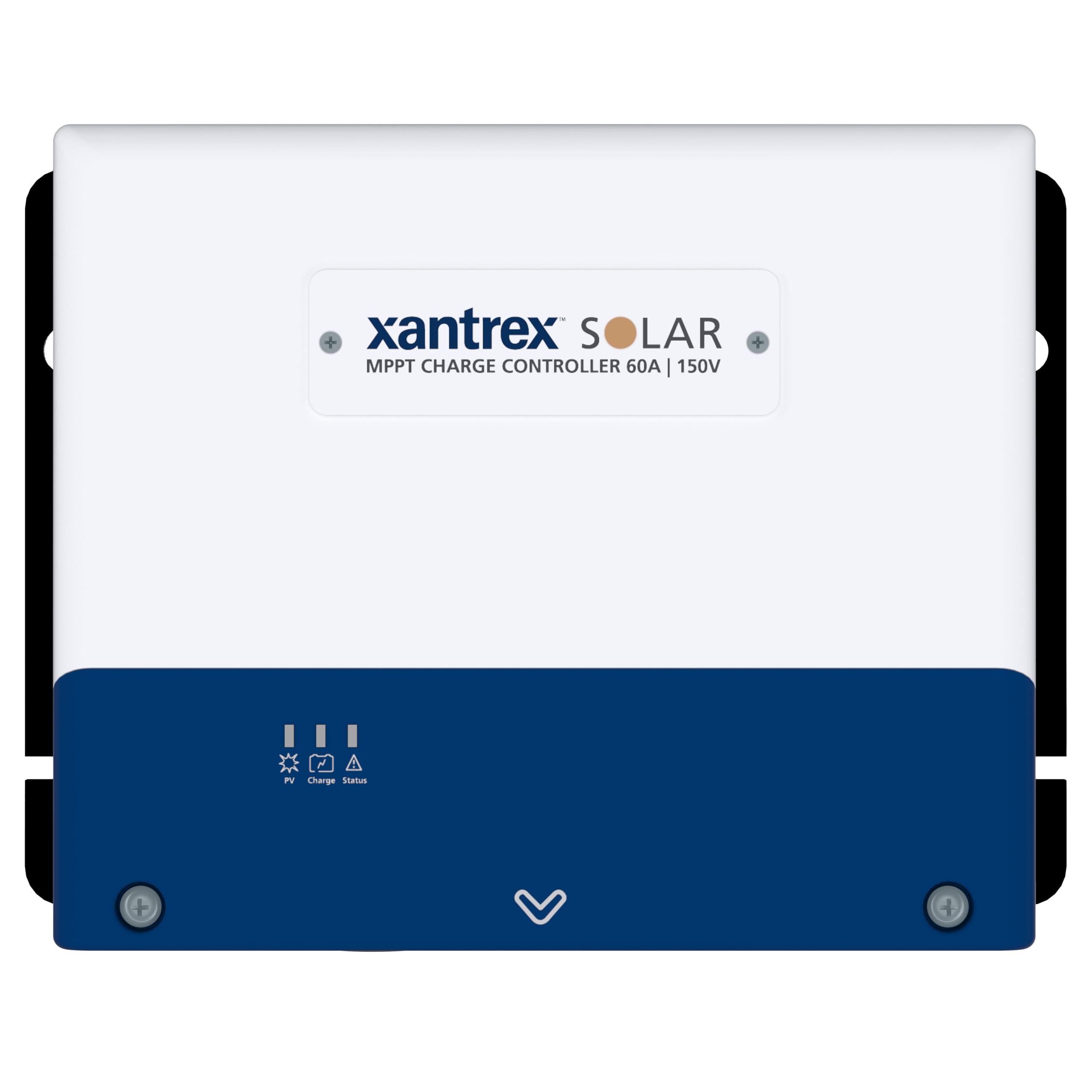

Xantrex 710-6048-01 MPPT Charge Controller 60A / 150V
Customize
The Xantrex Solar Charger Controller MPPT60 delivers superior efficiency and performance, supporting up to 150V and 60A for optimal power harvesting and seamless scalability in your solar system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it offers up to 30% more power compared to PWM charge controllers, enhancing overall energy efficiency. Compatible with 12V, 24V, 36V, and 48V battery systems, the MPPT60 optimizes performance across various energy requirements. This controller provides real-time energy monitoring and comprehensive historical data, empowering informed decisions for improved system performance, energy savings, and reliability. Features include ultra-fast tracking speed including multiple power point peaks with a 99.5% efficiency rating, an Xantrex MPPT control algorithm to maximize solar system efficiency, management and optimization of power output from diverse arrays of solar panels, regulation of power and current flow to protect and prolong battery lifespan, battery temperature compensation, short-circuit and input overload protection, dynamic power reduction to prevent overheating, LED indicators for PV charging and charger status, remote panel support (Solar MPPT Remote Panel), and built-in RV-C, Modbus, and Bluetooth connectivity. The MPPT60 supports lead-acid, AGM (sealed), Gel, Flooded, Lithium batteries and custom battery settings. Compliance: UL1741CSA C22.2#107.1.
- Xantrex app for ultimate control
- Supports lead acid, AGM(sealed), Gel, Flooded, Lithium, and Custom battery types
- 12/24/36/48 VDC compatibility
- Built in RV-C, Modbus, Bluetooth
- 30% more efficient than PWM charge controllers
Specifications:
| Materials & Construction | |
| Color | White |
| Product Details | |
| Display Type | LED |
| UPC | 715535906955 |
| Voltage | 48 Volts (DC) |
| Sizing & Dimensions | |
| Height | 3.3 inches |
| Length | 7.2 inches |
| Product Dimensions | 7.2 x 4 x 3.3 inches |
| Weight | 11.5 pounds |
| Width | 4 inches |
