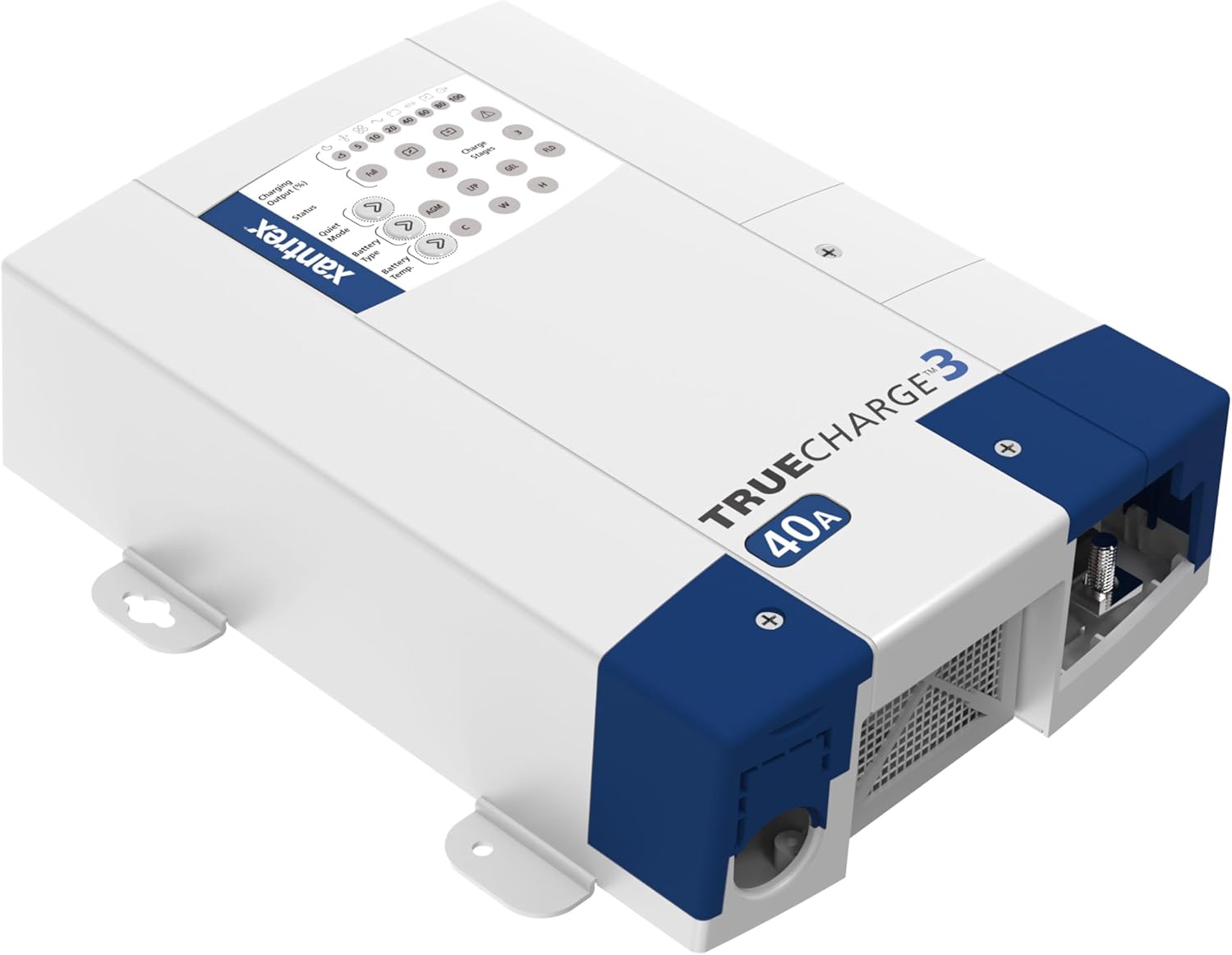

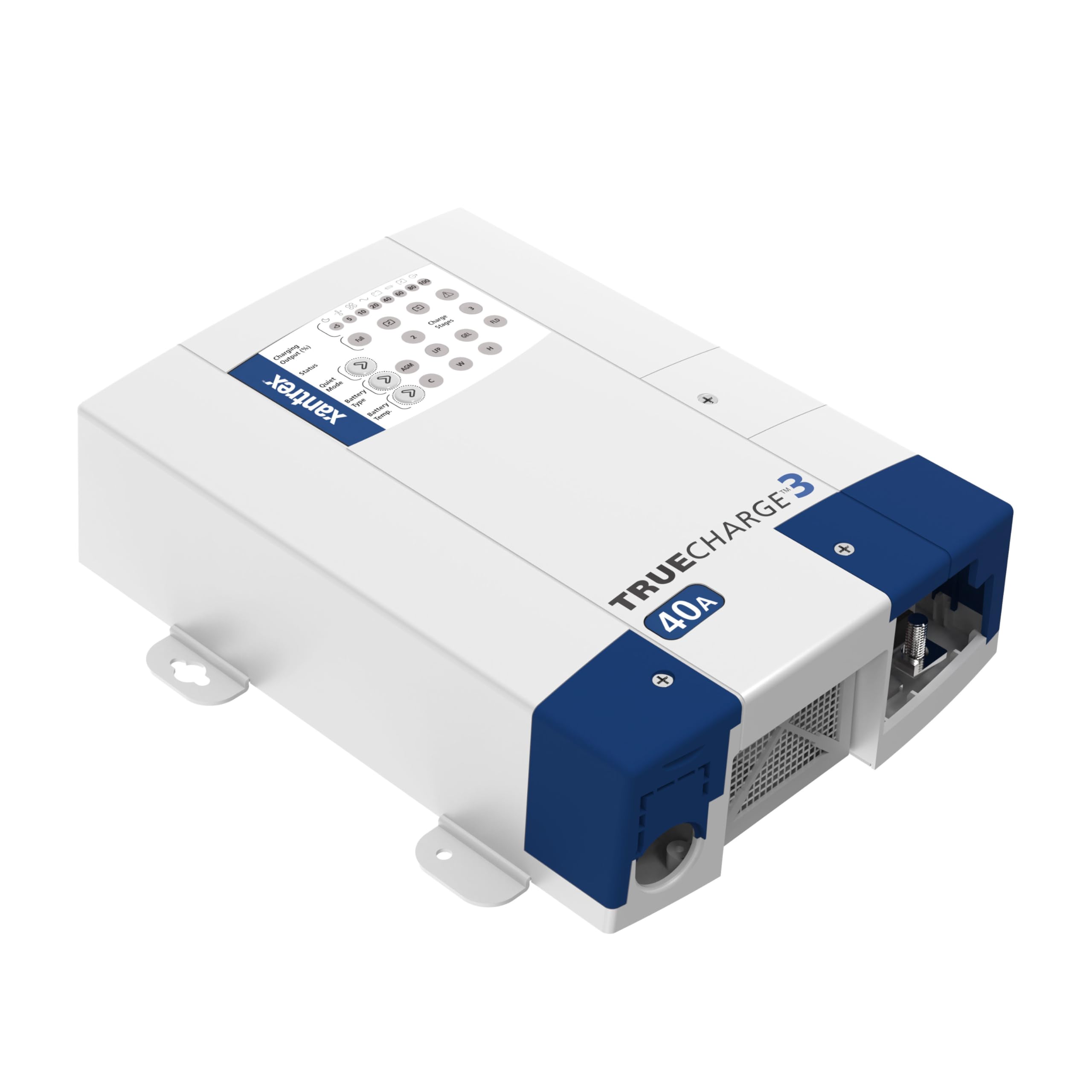

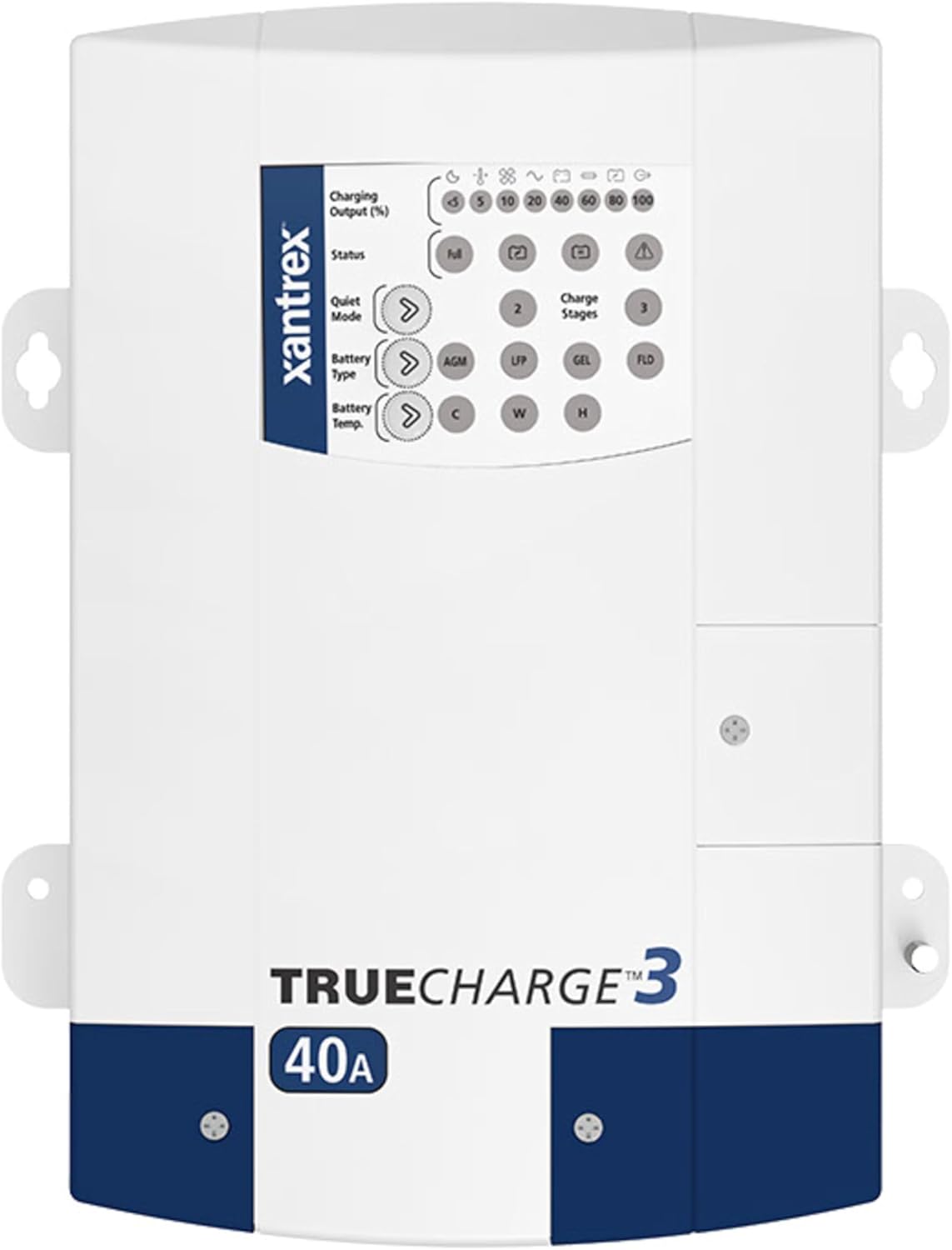

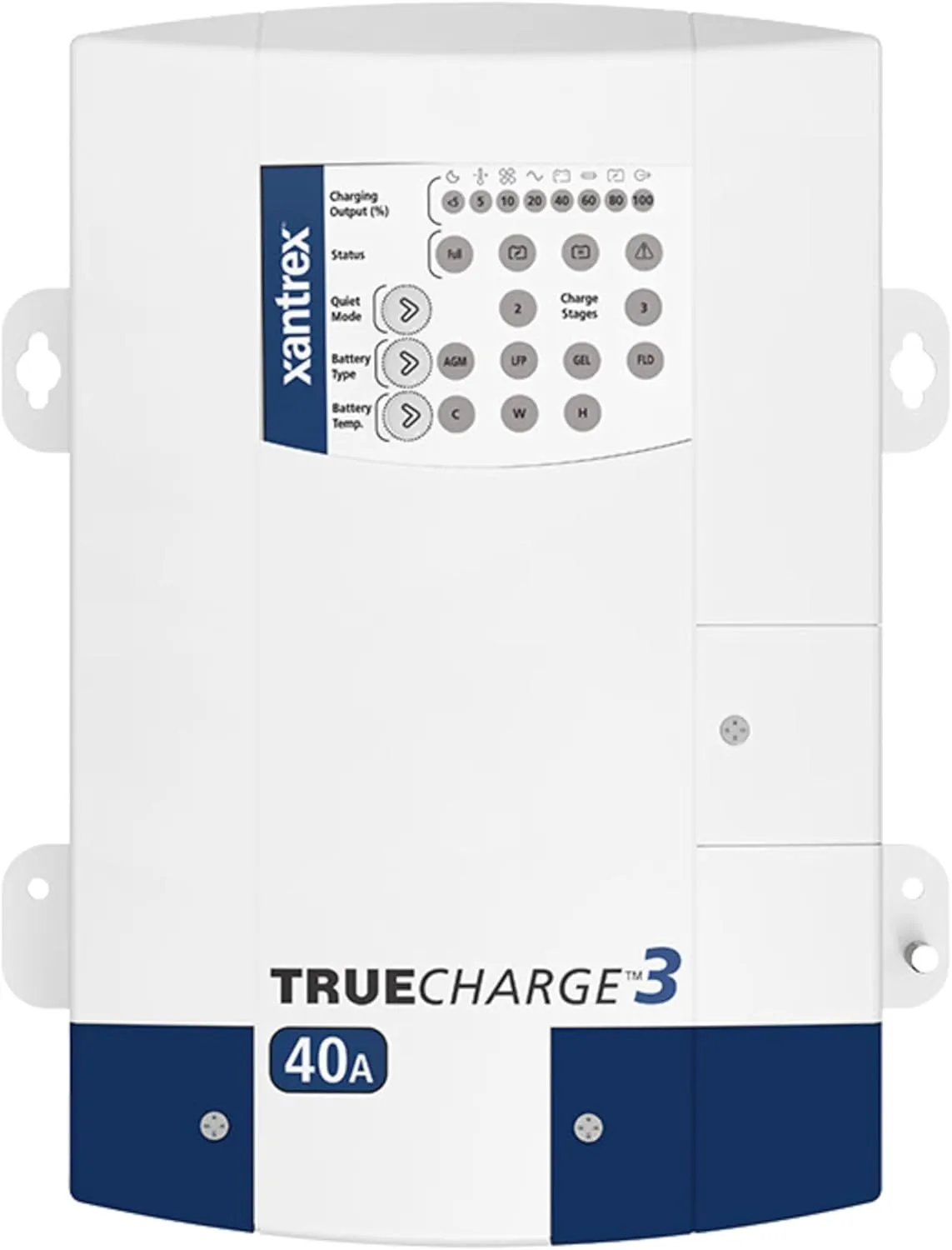

Xantrex 804-1240-10 TRUEcharge3 Multistage Charger - 12V/40A, Hardwire, 3-Bank

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. They meet global safety and regulatory standards and feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design. TRUEcharge3 is lithium-ion battery compatible. Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz. The easy-to-read display of the TRUEcharge3 12 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line. Features include microprocessor-controlled multistage charging algorithms, battery-equalization, settings for flooded/gel/AGM/LiFePO4 batteries, parallel stacking capability (remote panel required), quiet mode, and multiple protection features (reverse-battery polarity protection, drip-proof design, DC over-voltage protection, over-temperature protection, circuit breaker protection). Electrical specs include nominal output current 40 A and output voltage ranges depending on settings; AC input 90–265 Vac (47–63 Hz). Dimensions and weights vary by configuration; regulatory approvals include CSA 60335-2-29, CE Mark, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B, ABYC A-31, and DOE/CEC energy efficiency compliance.

• Small footprint and ultra-compact design
• Drip proof design for flexible mounting and safety in marine environments
• Universal input voltage capable 95-265 Vac, 47-63 Hz
• Parallel Stacking to allow two chargers to work together to combine the output current, achieving up to 120A for large battery banks; Remote panel 808-8040-10 required for stacking
• Lithium-Ion Compatible Connect TrueCharge3 battery charger with Lithium, flooded, gel, AGM
