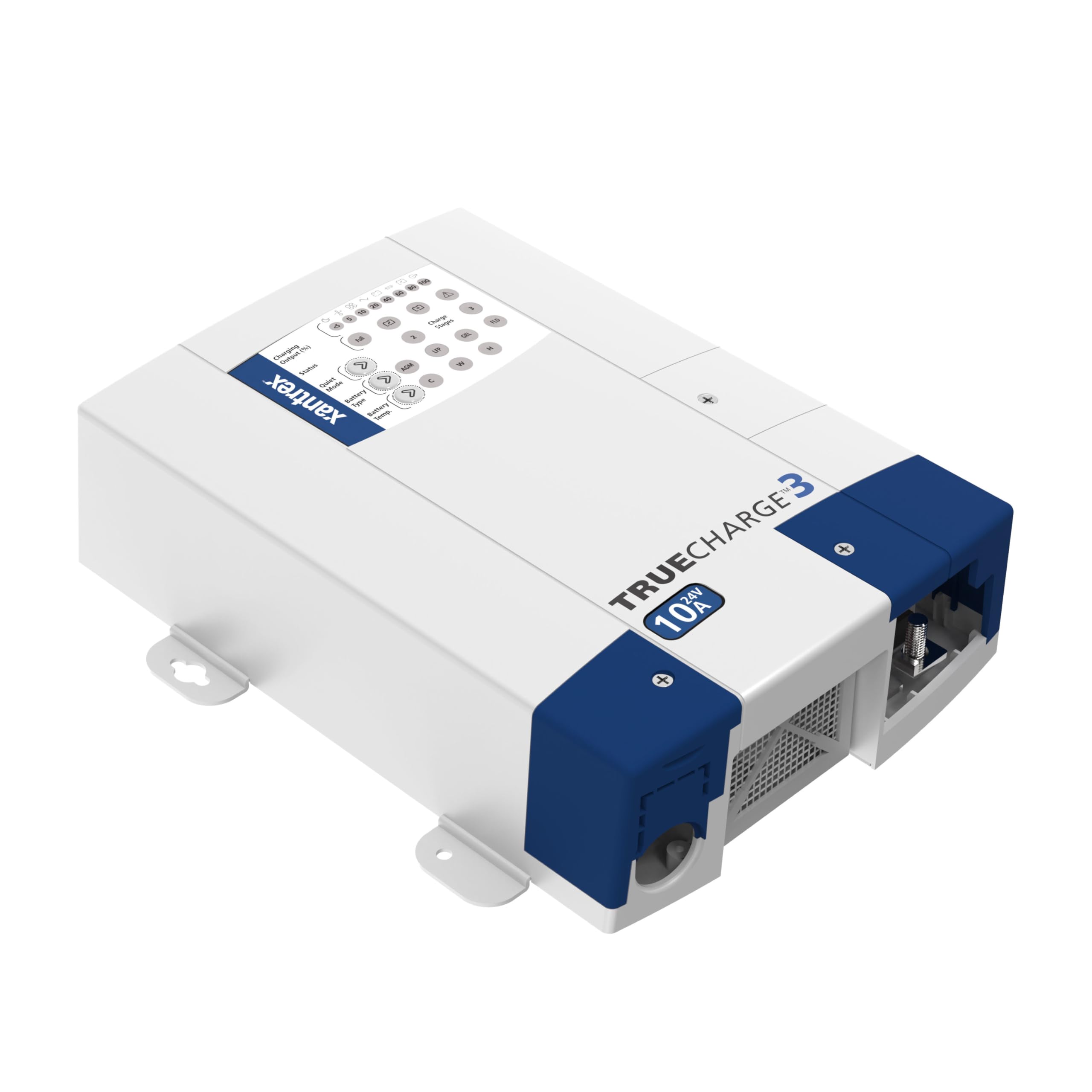

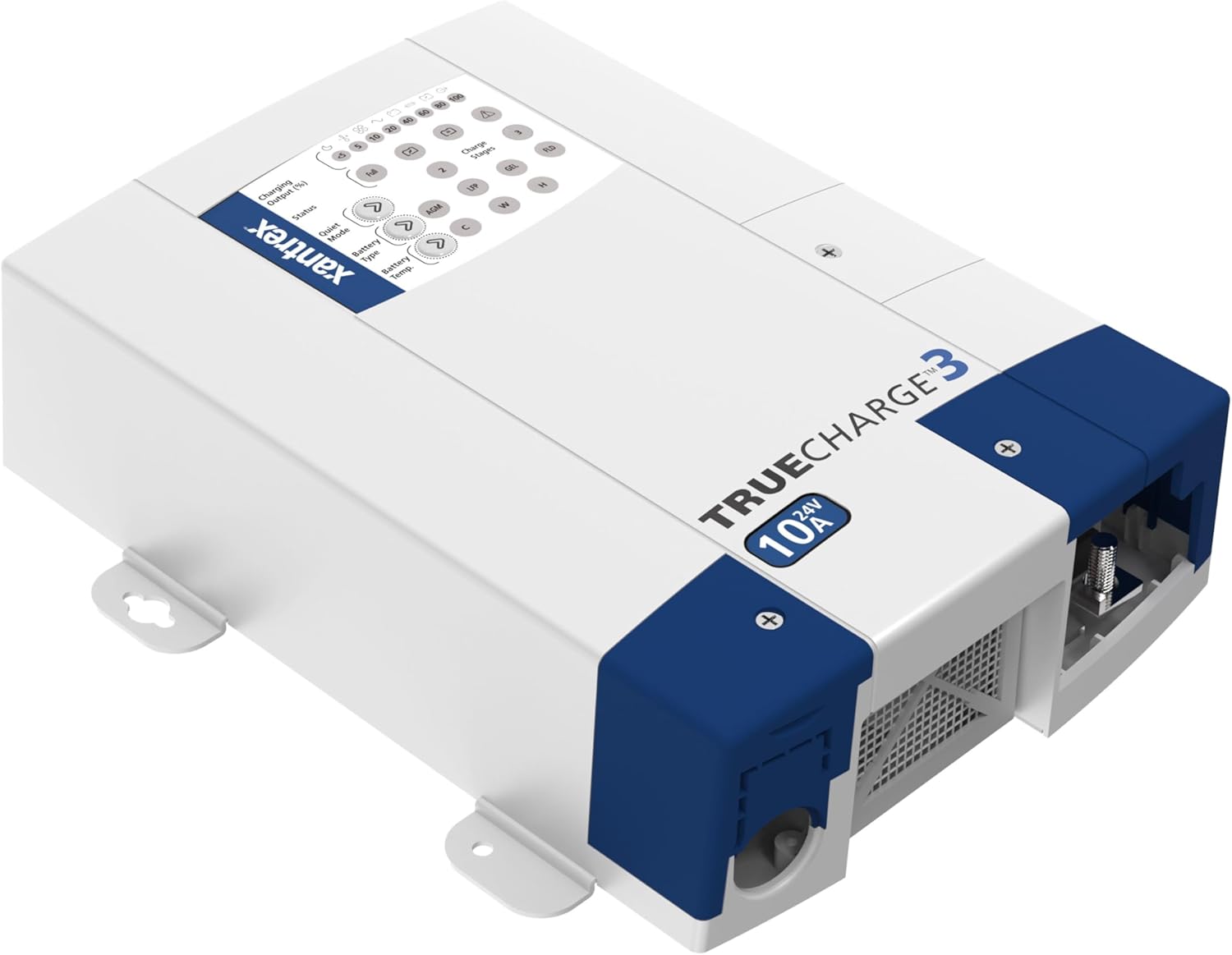

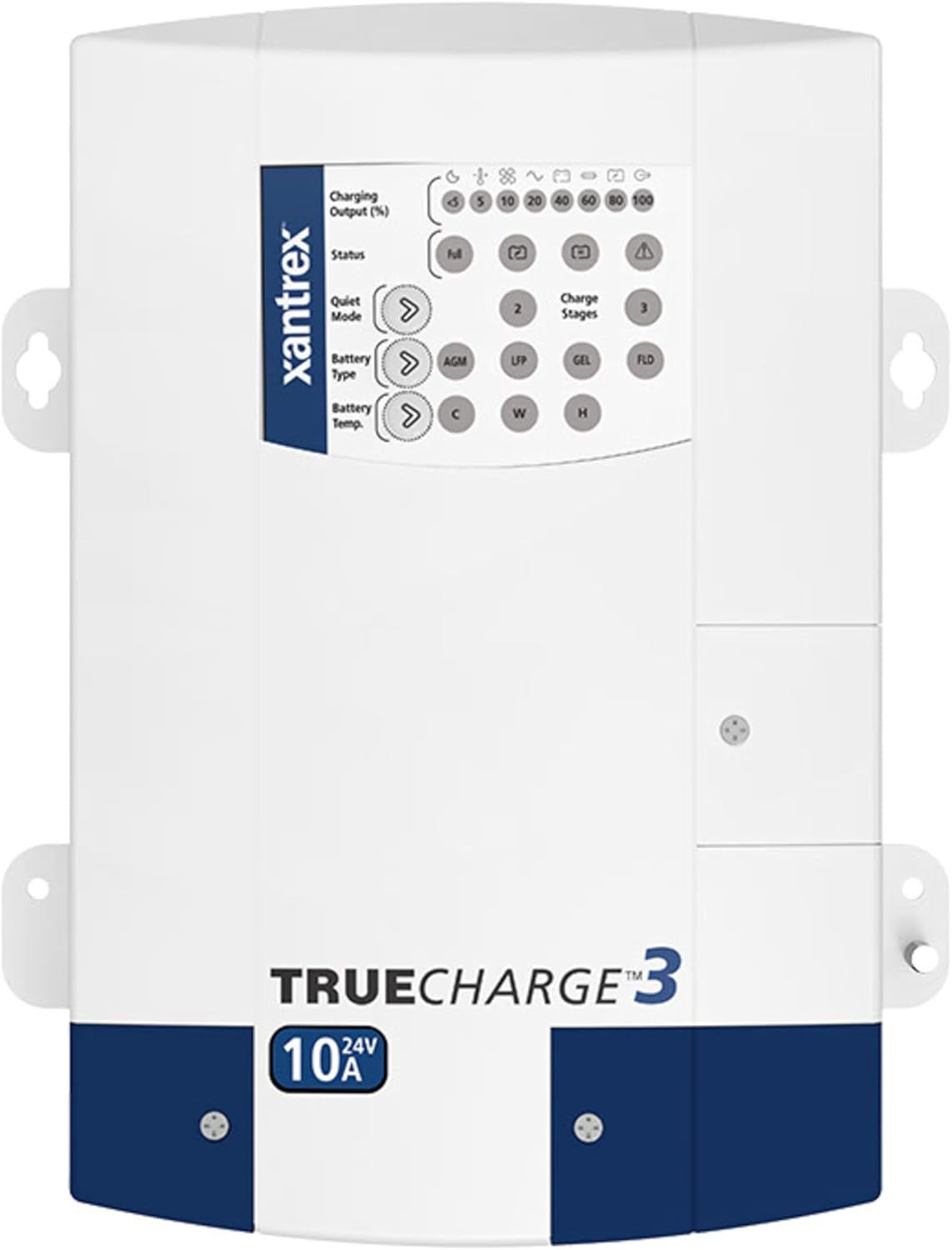

Xantrex 804-2410-10 TRUEcharge3 Multistage Charger - 24V/10A, Hardwire, 3-Bank
Customize
TRUEcharge 3 10A 3 Bank Battery Charger - 24V TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible. Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line. Features: Microprocessor-controlled, multistage charging algorithms; Settings for two and three-stage charging; Battery-equalization feature; Settings for flooded, gel, AGM, or lithium-ion batteries; Equipped with parallel stacking (remote panel required); Ability to charge batteries drained to extremely low voltage; Added quiet mode. Protection Features: Reverse-battery polarity protection; Drip-proof design; DC over-voltage protection; Over-temperature protection; Circuit breaker protection. Three-Stage Charging: Multistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate; Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate; Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge. Power Factor Corrected (PFC) Charging: Less shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers. Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 10 A; Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc DC Output Connections: Three; AC Input Voltage: 90–265 Vac; 47–63 Hz; Temperature Compensation: Three settings; Charger Efficiency: > 80%; Battery Type: Gel, Flooded, AGM, LiFePO4; Minimum Recommended Battery Bank Size: 20 Ah. General Specifications: Operating Temperature Range: 0–60°C (32–140°F); Storage Temperature -40–80°C (-40–176°F); Battery Connection: Three positive terminals and one negative terminal; Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”); Weight 2.2 kg (4.8 lb); Regulatory Approvals: Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.
- Lithium-Ion Compatible Connect TrueCharge3 battery charger with Lithium, flooded, gel, AGM
- Parallel Stacking to allow two chargers to work together to combine the output current, achieving up to 120A for large battery banks; Remote panel 808-8040-10 required for stacking
- Universal input voltage capable 95-265 Vac, 47-63 Hz
- Drip proof design for flexible mounting and safety in marine environments
- Small footprint and ultra-compact design
Specifications:
| Product Details | |
| Charger Output - Amps | 10a |
| Charging Banks | 3 |
| Input Voltage | 240 Volts |
| Output Voltage | 24 Volts (DC) |
| Portable | No |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 13 inches |
| Product Dimensions | 13 x 10 x 5 inches |
| Size | 13 x 10 x 5 inches |
| Weight | 6.2 pounds |
| Width | 10 inches |
