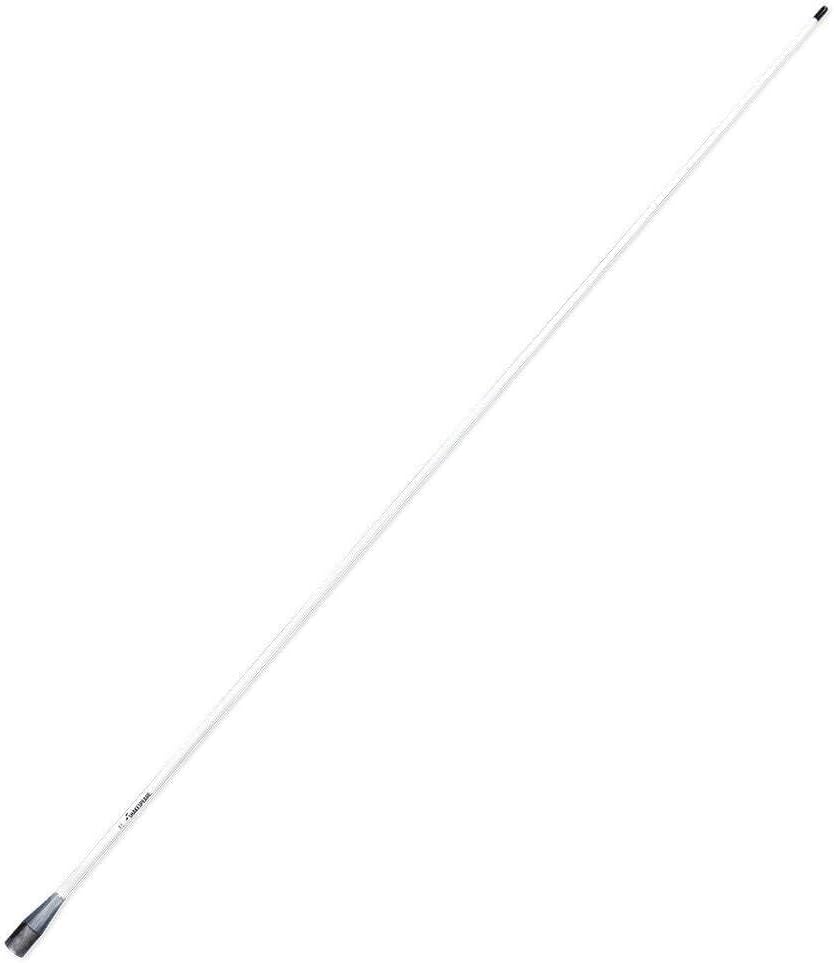

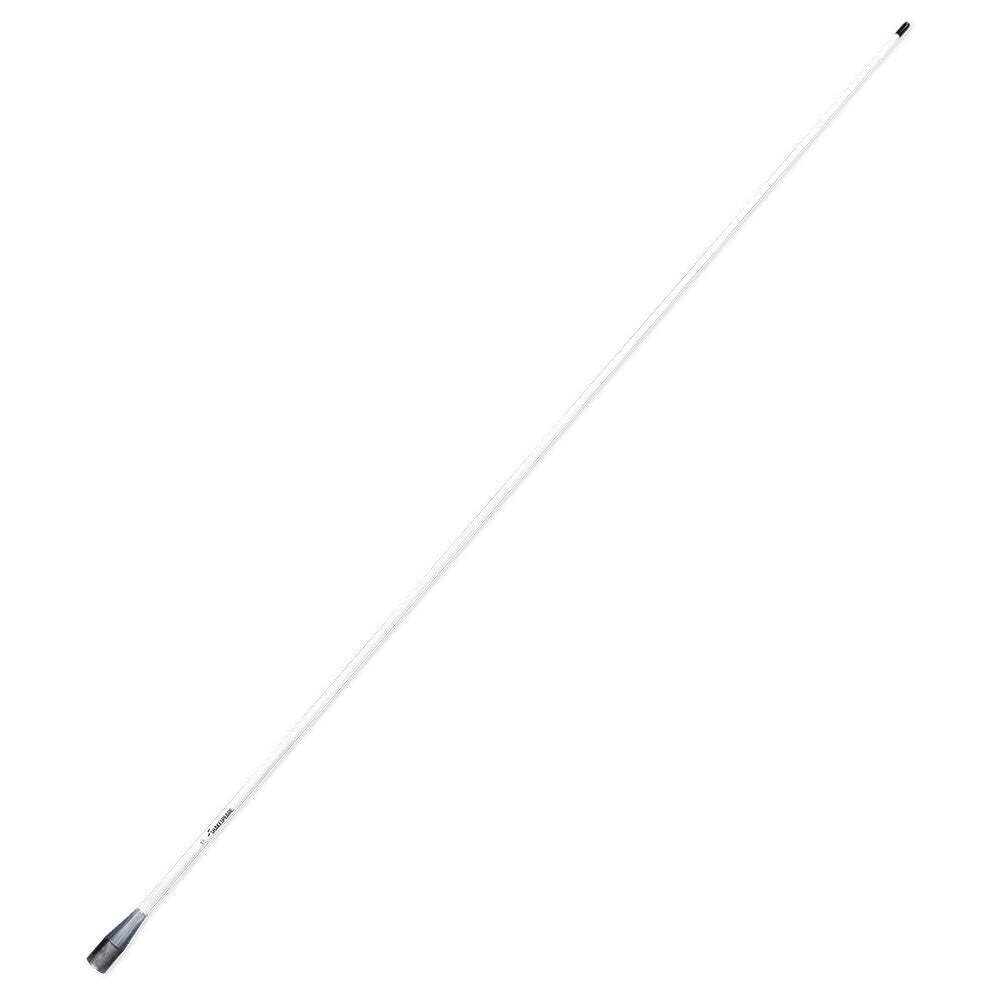

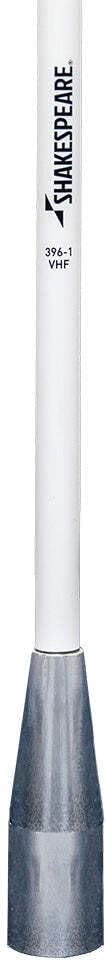

Style 396-1 VHF 3dB Center-fed 1/2-wave coaxial sleeve Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels. Brass and copper elements Chrome-plated brass ferrule with standard 1-14 thread Includes 15' RG-58 cable and a PL-259 connector Suggested mount: Style 4187 Ratchet Mount One section Technical Specifications: Frequency: VHF Marine band Bandwidth: (within 2.0:1 SWR): 5 MHz SWR: 1.5:1 at 156.8 MHz Impedance (Ohms): 50 Gain: 3 dB Max Input (Watts): 50 DC Ground: NO Termination: 15' RG-58 cable Height (feet): 5 Polarization: Vertical Radiation pattern: Omni-directional, Antenna Band: VHF , Color: White , Construction: Fiberglass , Ferrule Type: Chrome Plated , Length (Inches): 60" Designed to meet the broader bandwidth requirements of all popular AIS transceivers, commercial-grade construction of this 4' broadband antenna is complete with a mast mounting sleeve. Brass and copper elements sealed within the durable, fiberglass radome enhance quality transmissions.
| Materials & Construction | |
| Color | White |
| Ferrule Type | Chrome Plated |
| Material | Fiberglass |
| Outer Material | Fiberglass |
| Product Details | |
| Antenna | Marine |
| Antenna Band | Vhf |
| Color | White |
| Construction | Fiberglass |
| Ferrule Type | Chrome Plated |
| Impedance | 5E+1 Ohm |
| Length (Inches) | 60" |
| Number of Channels | 1 |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 63 inches |
| Product Dimensions | 63 x 3 x 3 inches |
| Size | 63 x 3 x 3 inches |
| Weight | 0.106 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Antenna Band | Vhf |
| Impedance | 5E+1 Ohm |
| Number of Channels | 1 |
