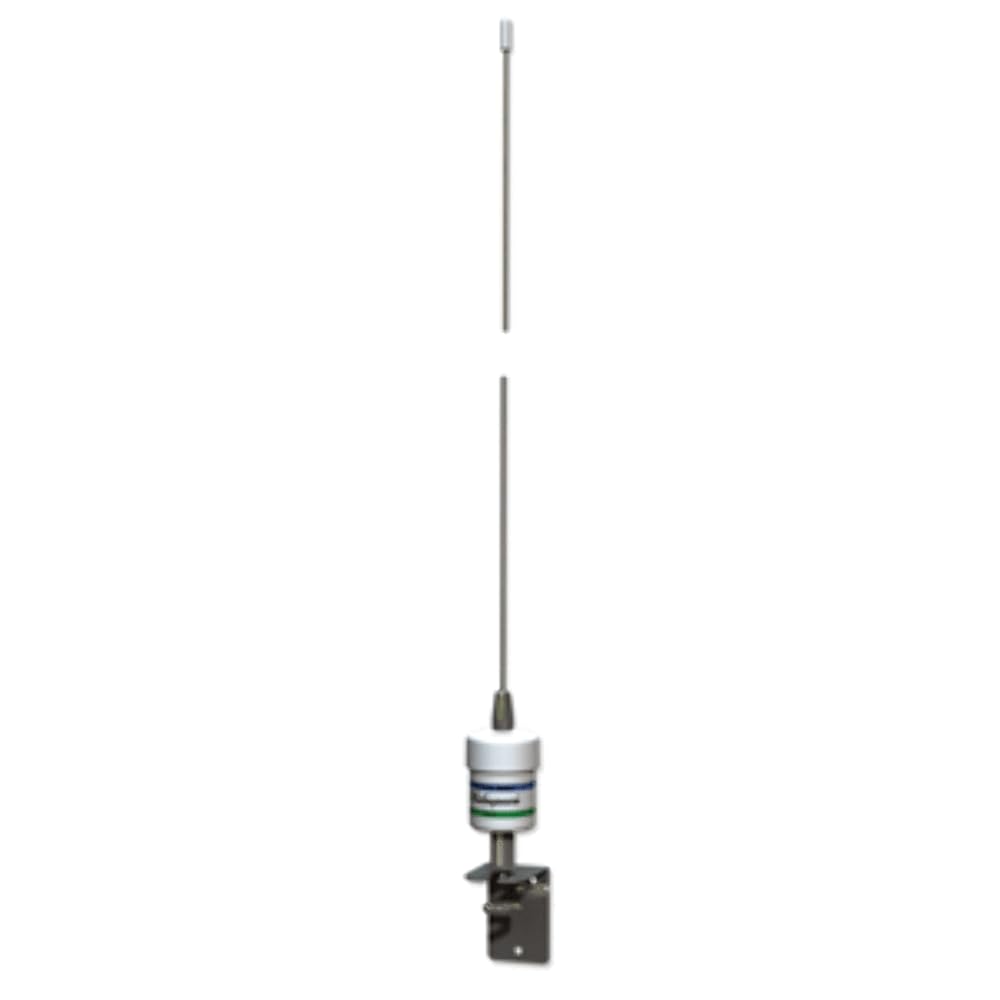

Shakespeare 5215 3' Stainless Steel Whip Antenna
Customize
Shakespeare Style 5215 SQUATTY BODY VHF Marine 36" LENGTH, 3dB END-FED 1/2-WAVE STAINLESS STEEL WHIP. A favorite with sailboat owners, this lightweight, low-profile stainless steel antenna is specially designed for masthead mounting. Hermetically sealed, tin-plated copper wire coil. Stainless steel body and whip. SO-239 connector - cable sold separately. Mount: Stainless steel "L" bracket supplied for mast mounting. Shakespeare Limited Warranty: 2 years. Technical Specifications: Frequency: VHF Marine band. Bandwidth: 7 MHz. SWR: 1.5:1 @ 156.8 MHz. Impedance: 50 Ohm. Gain: 3 dB. Max Input (Watts): 50. DC Ground: NO. Termination: SO-239 connector. Height (feet): 3. Polarization: Vertical. Radiation pattern: Omni-directional. Antenna Band: VHF. Color: Stainless. Construction: Stainless Steel. Length (Inches): 36".
- Shakespeare limited warranty: 2 years
- 5215 has an SO-239 connector on the bottom
- A stainless steel “L” bracket (supplied) is recommended for mounting
- SHAKESPEARE VHF 3FT 5215 3DB
- Great Product
Specifications:
| Materials & Construction | |
| Color | Stainless |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Antenna | Marine VHF Band |
| Antenna Band | Vhf |
| Color | Stainless |
| Construction | Stainless Steel |
| Impedance | 5E+1 Ohm |
| Included Components | Great Product |
| Length (Inches) | 36" |
| Material | Plastic |
| Maximum Range | 3 Feet |
| Model Name | 5215 |
| Number of Channels | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 43.5 inches |
| Length | 2 inches |
| Product Dimensions | 43.5 x 2 x 2 inches |
| Size | One Size |
| Weight | 1.5 pounds |
| Width | 2 inches |
| Technical Specifications | |
| Antenna | Marine VHF Band |
| Impedance | 5E+1 Ohm |
| Maximum Range | 3 Feet |
| Number of Channels | 1 |
