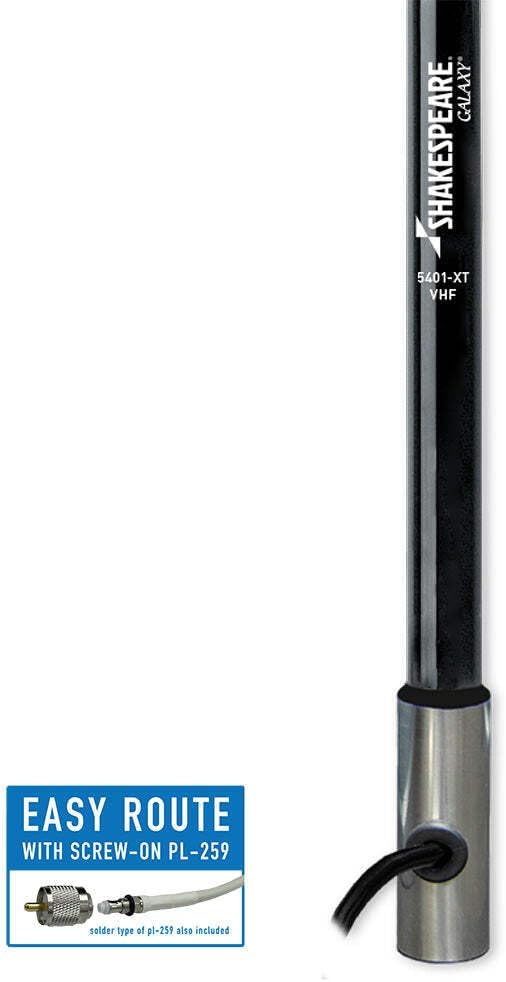

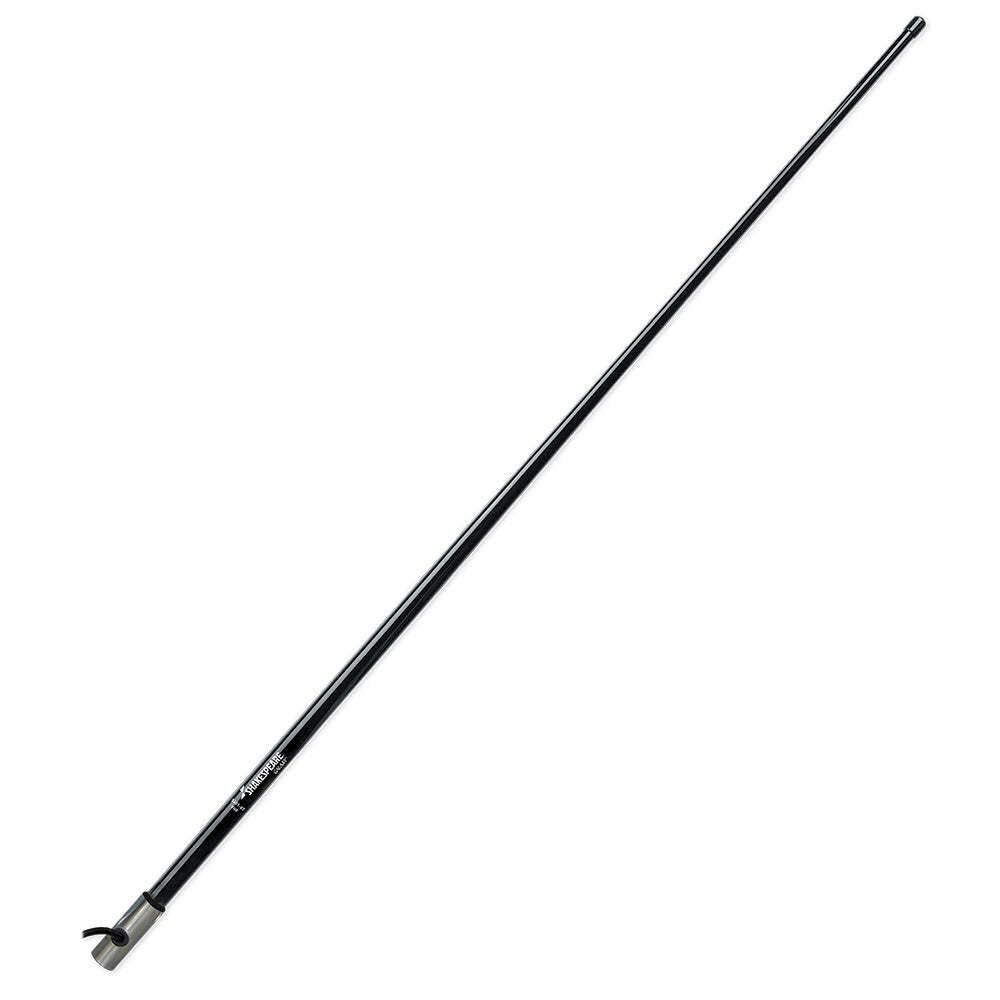

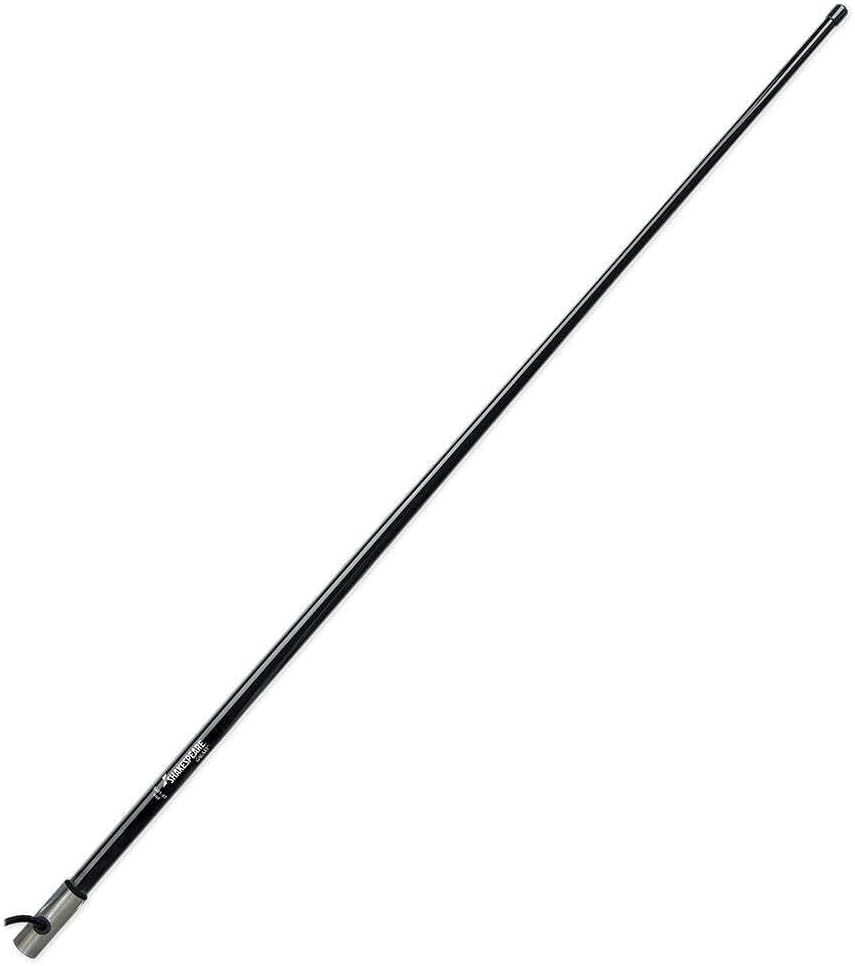

Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain
Customize
5401-XT Galaxy 4' Antenna - 3dB Gain This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range. Features: Center-fed 1/2 wave coaxial sleeve Brass and copper elements for maximum range Stainless steel ferrule with standard 1"-14 thread Includes 20' RG-8/X cable and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 5 years Includes FME Cables Technical Specifications: Frequency: VHF Marine Band Bandwidth: 5 MHz within 2.0:1 VSWR SWR: Nominally 1.5:1 at 156.8 MHz Gain: 3 dB Max Input (Watts): 50 watts Height (feet): 4, Antenna Band: VHF , Color: Black , Construction: Fiberglass , Ferrule Type: Stainless Steel , Length (Inches): 48"
- Center-fed 1/2 wave coaxial
- Brass and copper elements to maximum range
- Stainless steel ferrule with standard 1 inch to 14 thread
- Includes 20 feet cable and a connector
- Suggested mount shakespeare style 4187
Specifications:
| Materials & Construction | |
| Color | Black |
| Construction | Fiberglass |
| Ferrule Type | Stainless Steel |
| Product Details | |
| Antenna | Radio |
| Antenna Band | Vhf |
| Country of Origin | China |
| Ferrule Type | Stainless Steel |
| Impedance | 5E+1 Ohm |
| Item model number | 5401-XT |
| Maximum Range | 20 Feet, 15 Feet |
| Model | Shakespeare 5401-XT Galaxy Black 4' Marine Antenna |
| Number of Channels | 1 |
| Number of Items | 1 |
| Sizing & Dimensions | |
| Height | 55 inches |
| Length | 2.99 inches |
| Product Dimensions | 2.99 x 2.99 x 55 inches |
| Size | 48 inches |
| Weight | 0.141 ounces |
| Width | 2.99 inches |
| Technical Specifications | |
| Bandwidth | 5 MHz within 2.0:1 VSWR |
| Gain | 3 dB |
| Includes | 20' RG-8/X cable and a PL-259 connector |
| Max Input (Watts) | 50 watts |
| Suggested mount | Shakespeare Style 4187 Ratchet Mount |
| SWR | Nominally 1.5:1 at 156.8 MHz |
| Warranty | Shakespeare Limited Warranty: 5 years |
