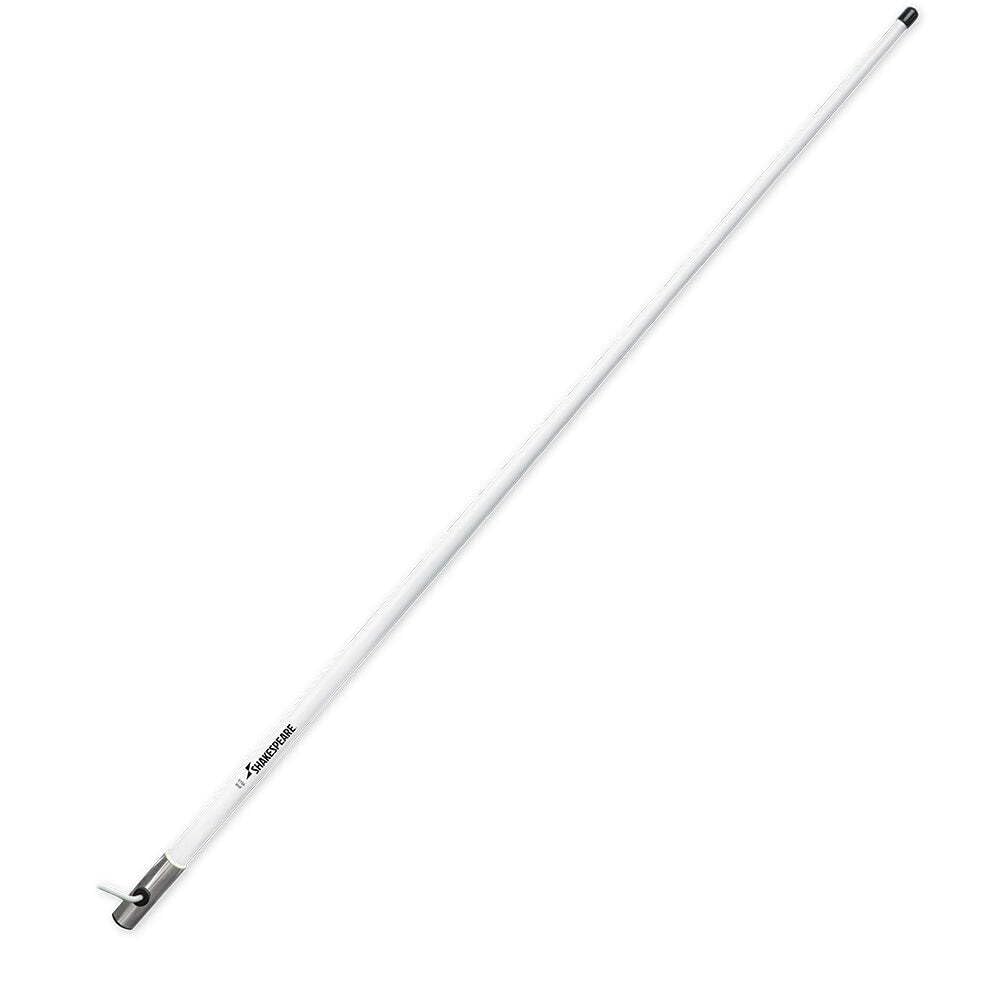

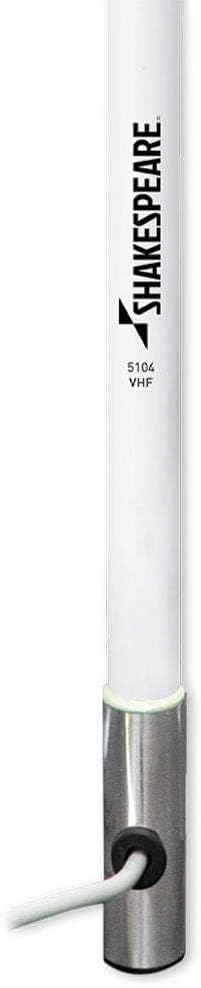

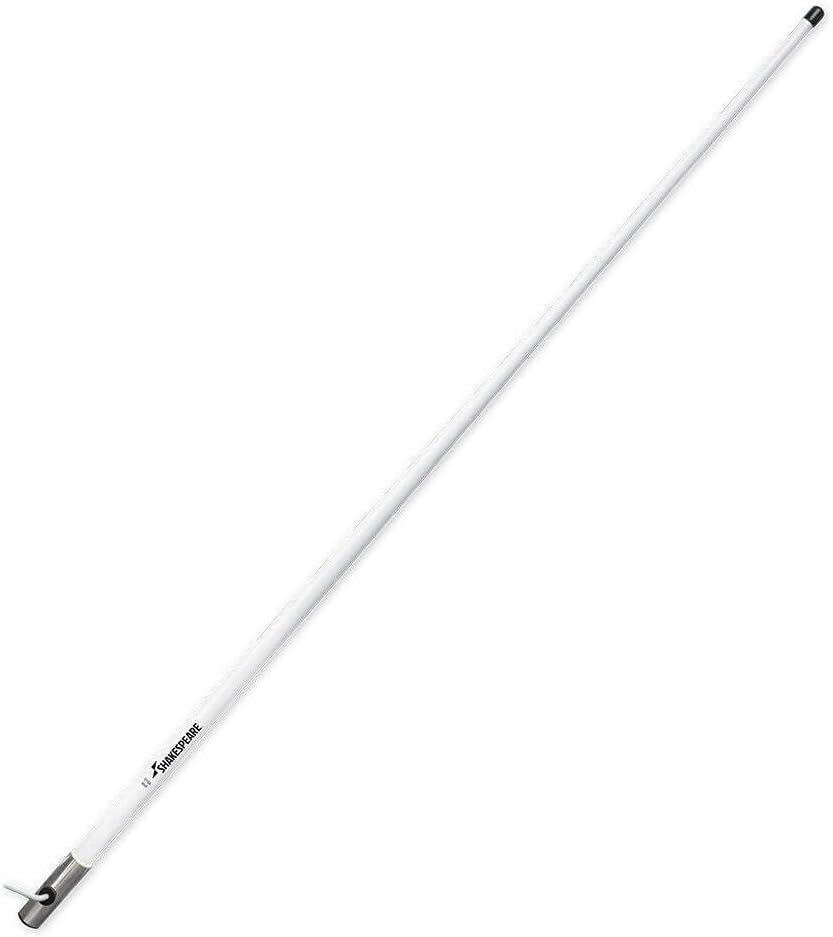

Classic Style 5104 4' (1.2m) VHF Marine Band 3dB End-Fed with Matching Stub. Four-foot, 3dB antenna with brass and copper elements for performance, plus a smooth, high-gloss, polyurethane white finish that resists yellowing. Chrome-plated brass ferrule with standard 1-14 thread. Includes 15 ft (4.5m) RG-58 cable (can be cut to size) and a PL-259 connector (not installed). Suggested mount: Style 4187 or 5187 Ratchet Mount (each sold separately). Specifications include VHF Marine Band operation, 3 dB gain, 50W max input power, nominal 1.5:1 SWR at 156.8 MHz, 5 MHz bandwidth within 2.0:1 VSWR, 50 ohm impedance. Shakespeare limited 2-year warranty. Additional marketing/features: smooth, durable high-gloss finish; suggested mount style 119352 ratchet mount; includes RG-58 cable and PL-259 connector; chrome-plated brass ferrule; end-fed with matching stub.
| Materials & Construction | |
| Color | White |
| Material | Brass, Copper |
| Product Details | |
| Antenna Band | Vhf |
| Ferrule Type | Chrome Plated |
| Item model number | 5104 |
| Length (Inches) | 48" |
| Sizing & Dimensions | |
| Height | 55 inches |
| Length | 3 inches |
| Product Dimensions | 3" x 3" x 55" inches |
| Size | 4 Feet |
| Weight | 2.1 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Impedance | 5E+1 Ohm |
| Maximum Range | 4 Feet |
| Number of Channels | 1 |
| Voltage | 12 Volts |
| Warranty | 2 years |
