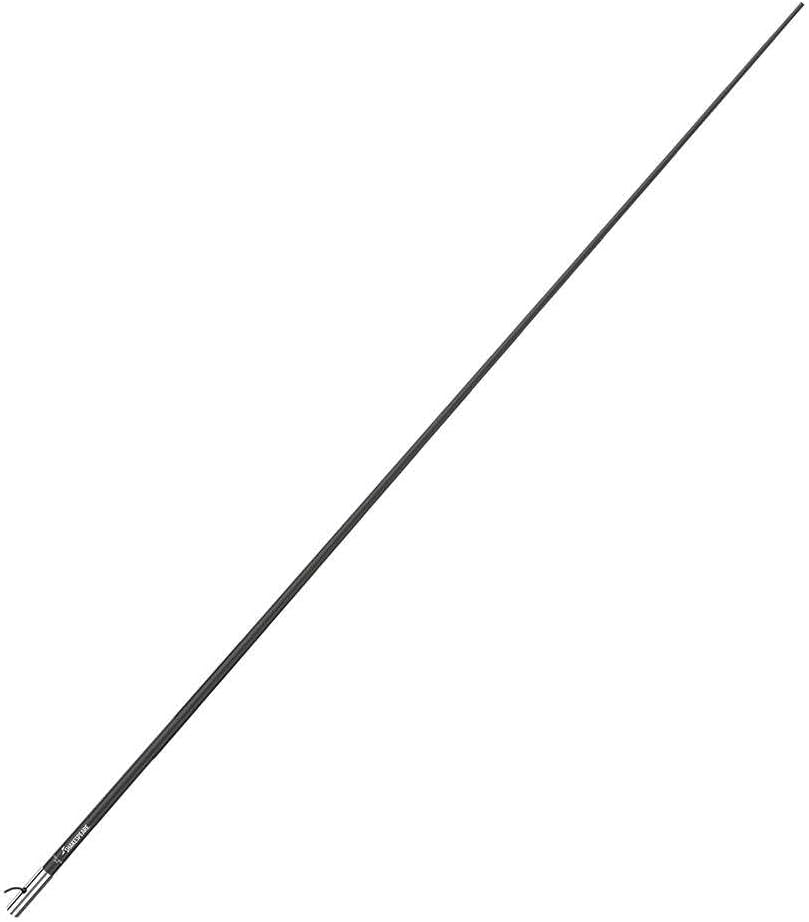

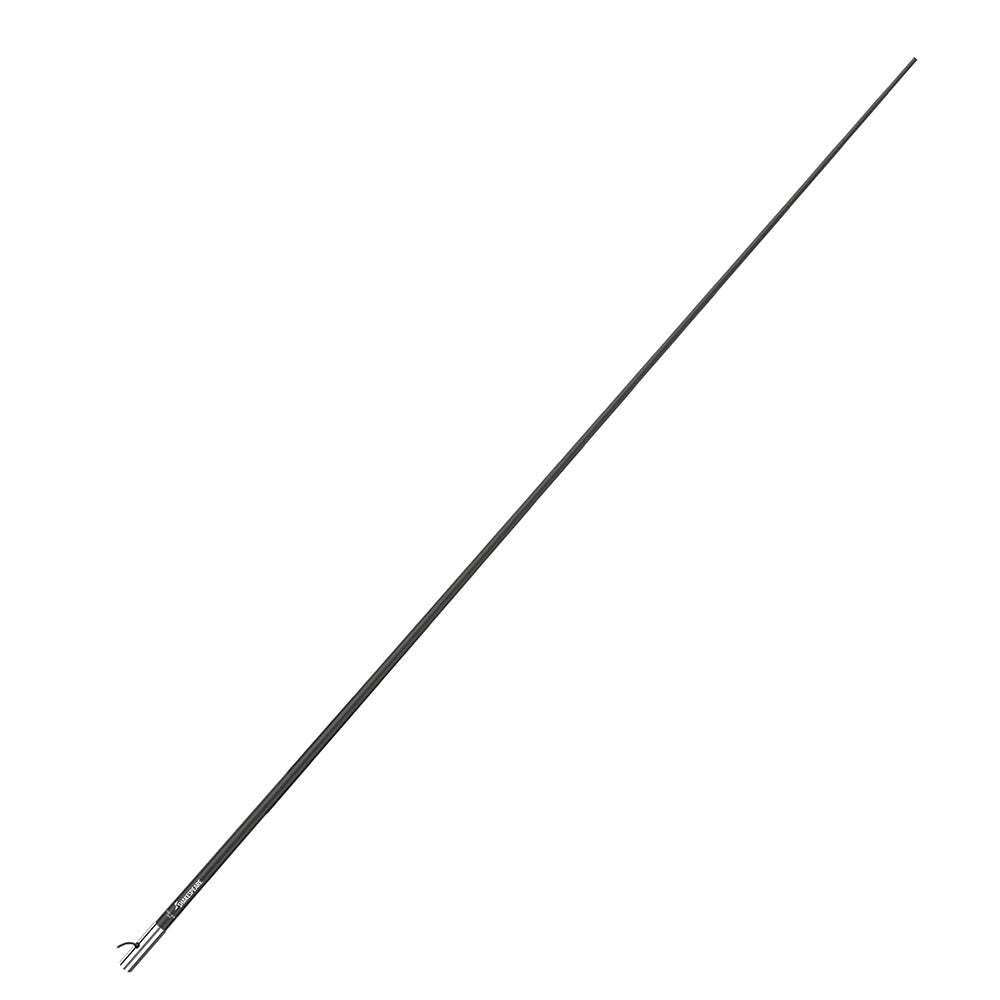

Shakespeare 5101 8’ Classic VHF Antenna w/15' RG-58 Cable - Black
Customize

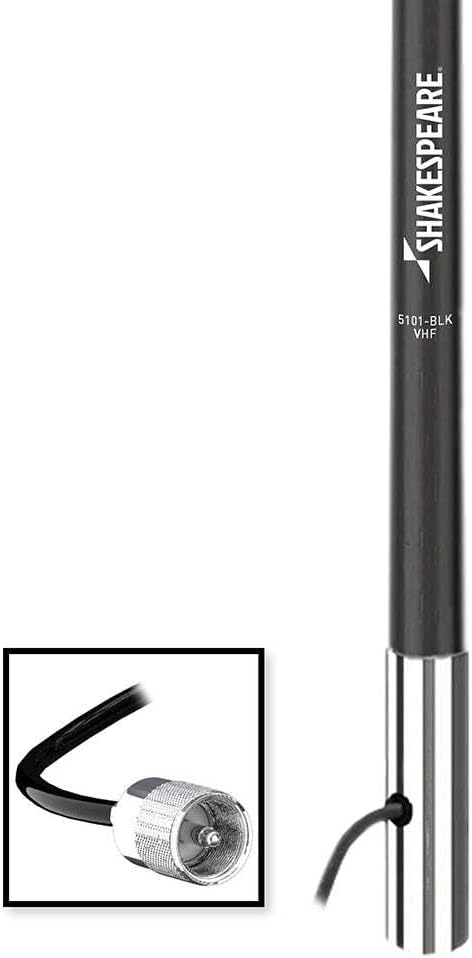

5101 8' Classic VHF Antenna with 15' RG-58 Cable - Black. A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance but superb value. Features: Brass and copper elements; Chrome-plated brass ferrule with standard 1"-14 thread; Includes 15' RG-58 cable and a PL-259 connector; Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system; One section; Shakespeare Limited Warranty: 2 years. Specifications: Frequency: VHF Marine Band; Bandwidth: (within 2.0 1 SWR): 5 MHz; SWR: 1.5:1 at 156.8 MHz; Impedance (Ohms): 50; Gain: 6 dB; Max. Input (Watts): 50; DC Ground: YES - however, the antenna will read "open circuit" when tested with ohmeter.; Termination: 15' RG-58 cable; Height (feet): 8'; Polarization: Vertical; Radiation pattern: Omni-directional; Antenna Band: VHF; Color: Black; Construction: Fiberglass; Ferrule Type: Chrome Plated; Length (Inches): 96".
- Great Product
Specifications:
| Materials & Construction | |
| Color | black |
| Construction | Fiberglass |
| Material | Plastic |
| Product Details | |
| Antenna | Radio |
| Antenna Band | Vhf |
| Construction | Fiberglass |
| Ferrule Type | Chrome Plated |
| Included Components | Great Product |
| Length (Inches) | 96" |
| Number of Channels | 1 |
| Number of Items | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 95 inches |
| Product Dimensions | 95 x 2 x 2 inches |
| Size | 8 ft |
| Weight | 3 pounds |
| Width | 2 inches |
| Technical Specifications | |
| Bandwidth | (within 2.0 1 SWR): 5 MHz |
| DC Ground | YES - however, the antenna will read "open circuit" when tested with ohmeter. |
| Frequency | VHF Marine Band |
| Gain | 6 dB |
| Impedance (Ohms) | 50 |
| Max. Input (Watts) | 50 |
| Polarization | Vertical |
| Radiation pattern | Omni - directional |
| SWR | 1.5:1 at 156.8 MHz |
| Termination | 15' RG-58 cable |
