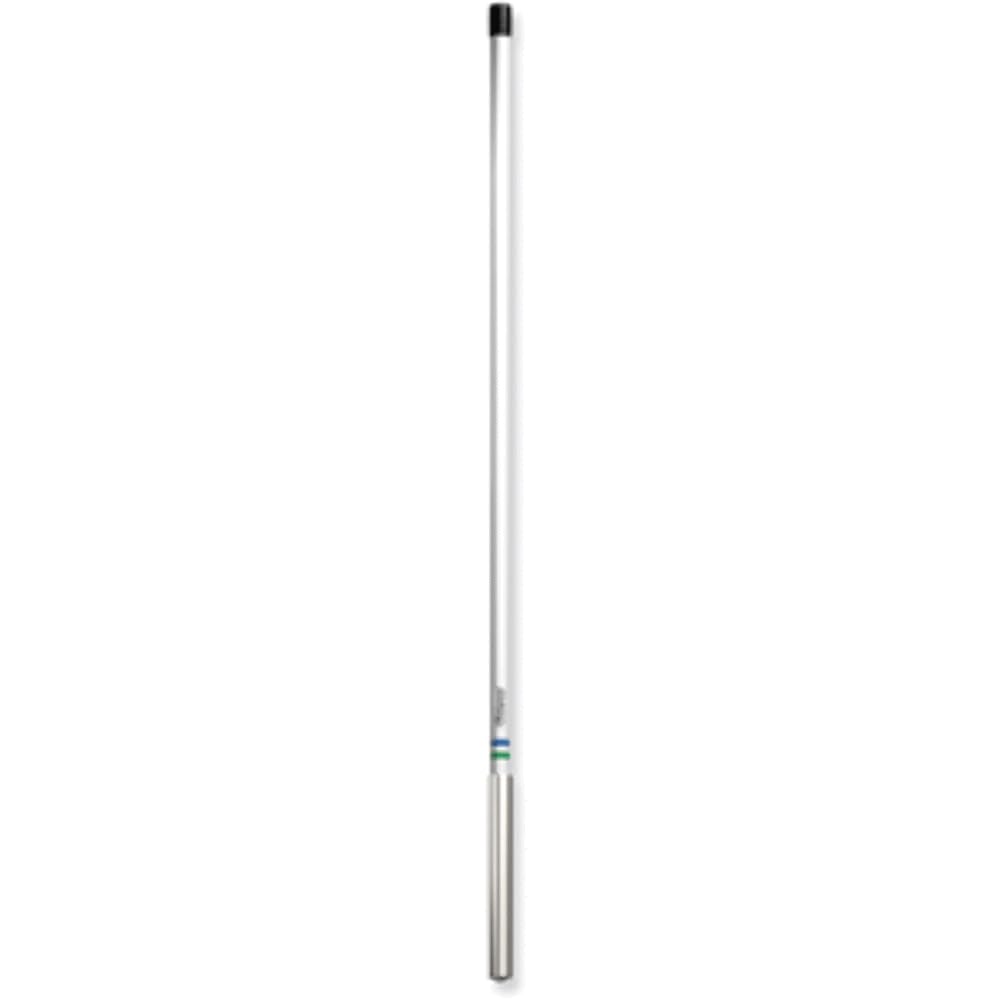

Shakespeare Style 396-1-AIS VHF Marine AIS 4' LENGTH 3dB 4' MAST MOUNT AIS ANTENNA The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve. Brass and copper elements SO-239 connector at the base Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied) One section Coax cable sold separately Shakespeare Limited Warranty: 2 years Technical Specifications: Frequency: VHF Marine Band Bandwidth within 2.0:1 SWR: 6.0 MHz SWR: 1.5:1 at 156.8 MHz Gain: 3dB Impedance (Ohms): 50 Gain: 3dB Max. Input (Watts): 100 DC Ground: no (will read open-circuit with ohmeter test) Termination: SO-239 at bottom of antenna Height (feet): 4 Polarization: Vertical Radiation pattern: Omni-directional, Antenna Band: VHF , Color: White , Construction: Fiberglass , Length (Inches): 48"
| Materials & Construction | |
| Color | White |
| Material | Fiberglass |
| Outer Material | Fiberglass |
| Product Details | |
| Included Components | Shakespeare 396-1-AIS Broadband VHF for AIS System |
| Model Name | Shakespeare 396-1-AIS Broadband VHF for AIS System |
| Number of Channels | 1 |
| Size | One Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.25 inches |
| Length | 24 inches |
| Product Dimensions | 24 x 2.25 x 2.25 inches |
| Size | One Size |
| Weight | 2.94 pounds |
| Width | 2.25 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 24 x 2.25 x 2.25 inches |
| Item Package Dimensions L x W x H | 0.98 x 0.98 x 0.98 inches |
| Number of Channels | 1 |
