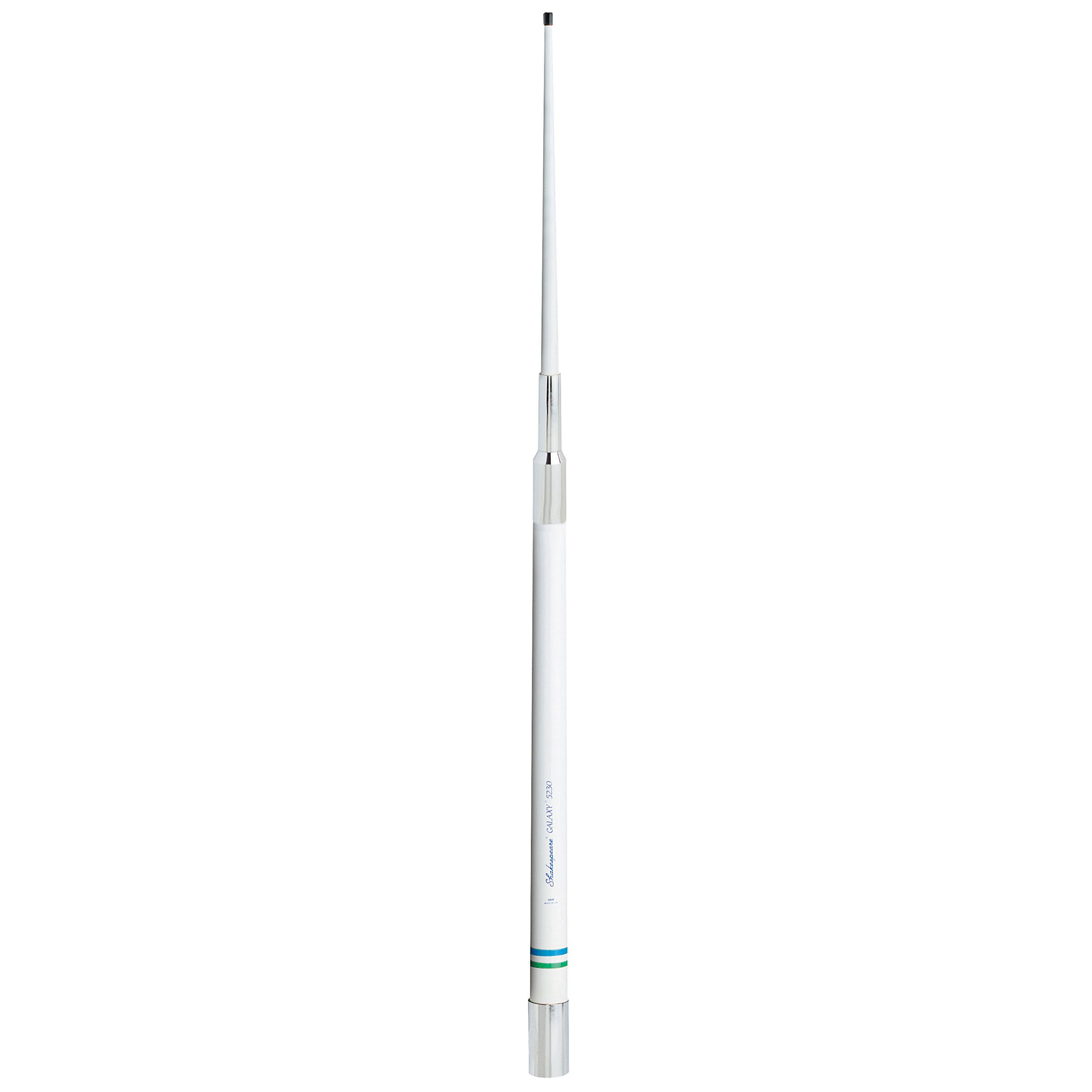

The Shakespeare Galaxy Style 5230 is a high-performance 14' VHF marine antenna engineered for maximum range and signal capture. Constructed with fiberglass and brass/copper elements for efficient signal transmission, the antenna features a stainless steel ferrule with standard 1"-14 thread and ships in two sections (base 94", tip 74") for convenient UPS shipping. It includes 20 feet of RG-8/X cable and a PL-259 connector. Technical highlights include 8 dB gain, 50 ohm impedance, nominal SWR of 1.5:1 at 156.8 MHz, DC ground, and a 200-watt max input. Suggested mounts: Shakespeare Style 409-R or 410-R Mounting Kit. Shakespeare Limited Warranty: 5 years.
| Materials & Construction | |
| Color | Silver |
| Construction | Fiberglass |
| Ferrule Type | Stainless Steel |
| Outer Material | Fiberglass |
| Product Details | |
| Antenna | Radio |
| Antenna Band | Vhf |
| Global Trade Identification Number | 00719441200084 |
| Impedance | 5E+1 Ohm |
| Item model number | 5230 |
| Maximum Range | 20 Feet |
| Number of Channels | 1 |
| Number of Items | 1 |
| Sizing & Dimensions | |
| Height | 168 inches |
| Length | 168 inches |
| Product Dimensions | 168 x 2 x 2 inches |
| Size | 14 ft |
| Weight | 12 pounds |
| Width | 2 inches |
| Technical Specifications | |
| DC Ground | YES |
| Gain | 8 dB |
| Includes | 20 feet of RG-8/X cable and a PL-259 connector |
| Max Input (Watts) | 200 watts |
| SWR | Nominally 1.5:1 at 156.8 MHz |
| Warranty | Shakespeare Limited Warranty: 5 years |
