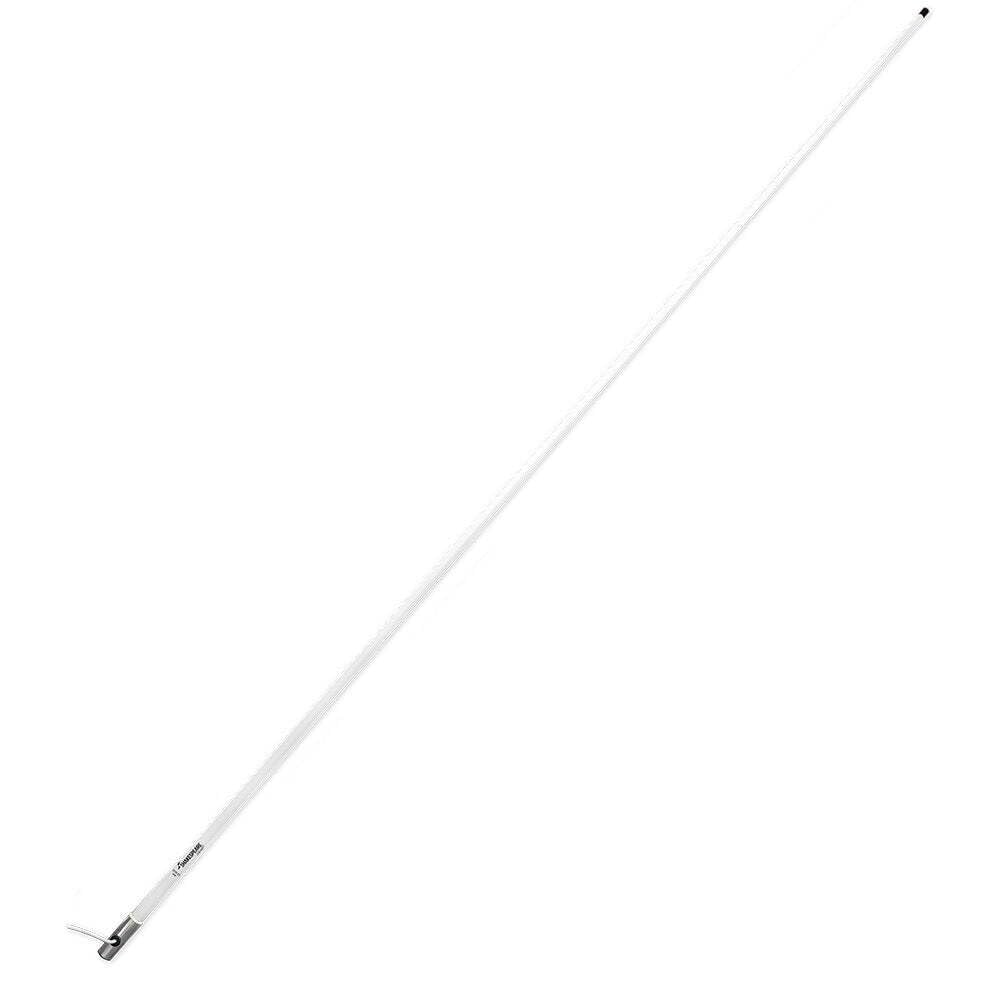

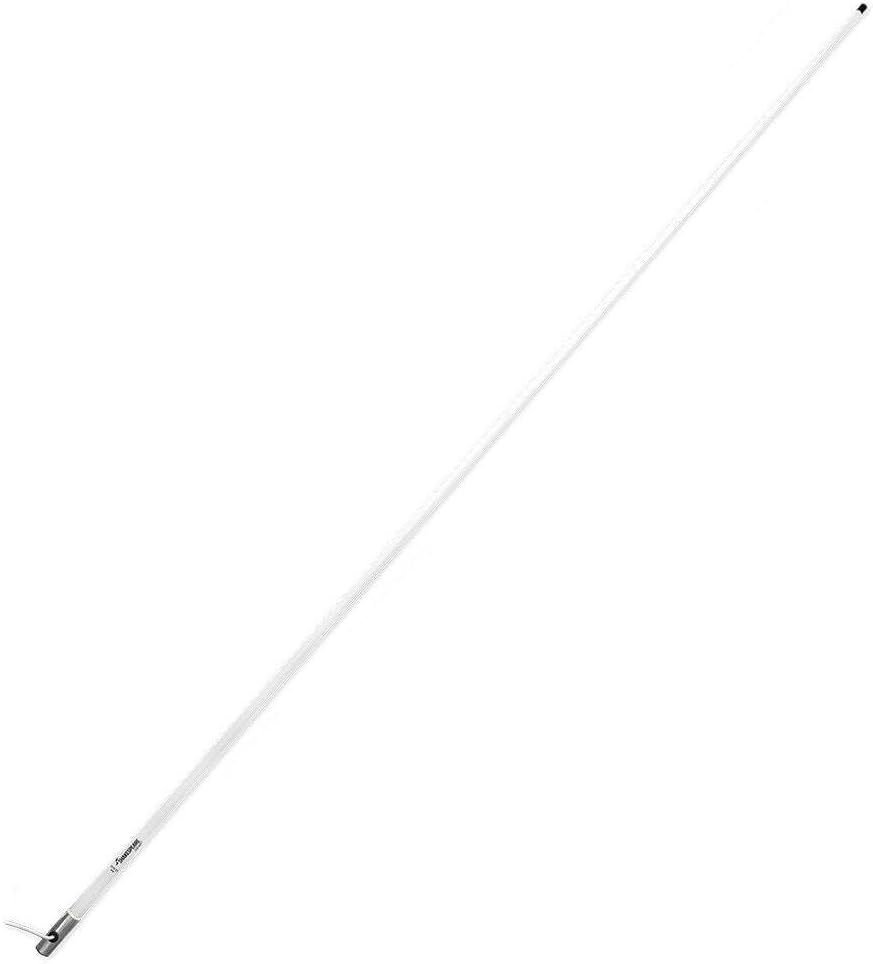

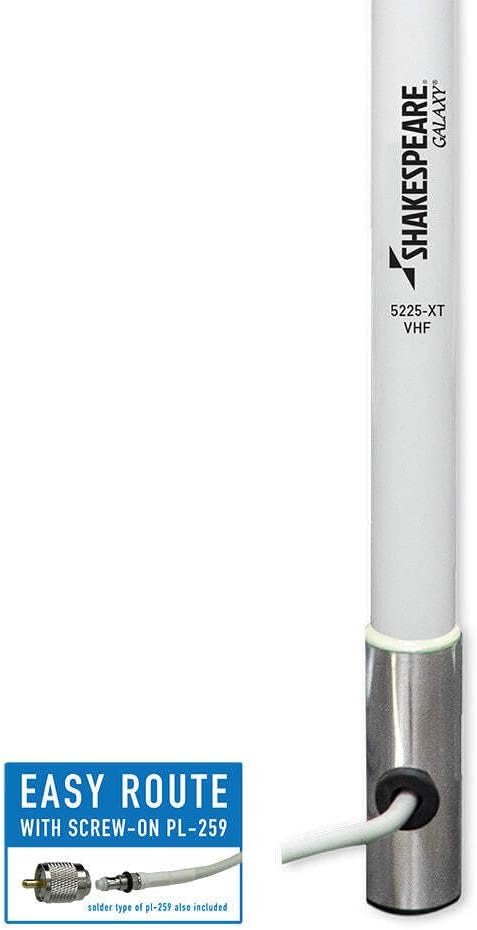

Shakespeare Galaxy 5225-XT 8' VHF Antenna - 6dB Gain - Reduced Length
Customize
Galaxy 5225-XT 8' VHF Antenna - 6dB Gain - Reduced Length EXTRA TOUGH! Shakespeare's best 8', 6dB Gain antenna. Its Galaxy design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome. Features: Collinear-phased 5/8 wave elements Brass and copper elements for maximum range and efficiency Stainless steel ferrule with standard 1"-14 thread 20' RG-8/X low-loss cable plus a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 5 years Includes FME cables Technical Specifications: Gain: 6dB Frequency: VHF Marine Band Bandwidth: 3 MHz within 2.0:1 VSWR SWR: Nominally 1.5:1 at 156.8 MHz Impedance: 50 ohms Max Input (Watts): 100 watts DC Ground: YES Polarization: Vertical, Antenna Band: VHF , Color: White , Construction: Fiberglass , Ferrule Type: Stainless Steel , Length (Inches): 96" Shakespeare Galaxy White 8' Marine Antenna features brass and copper elements; it is chrome-plated brass ferrule with standard 1 inch -14 thread. Includes 15 feet cable and a connector. Suggested mount style 4187 ratchet mount or use a 410 mounting kit.
- Great Product
- Collinear-phased 5/8 inch wave elements
- White finish
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1 inch to 14 thread
- 20 feet low-loss cable and a connector
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Fiberglass |
| Outer Material | Fiberglass |
| Product Details | |
| Antenna | Marine VHF Antenna |
| Antenna Band | Vhf |
| Construction | Fiberglass |
| Ferrule Type | Stainless Steel |
| Length (Inches) | 96" |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 96 inches |
| Product Dimensions | 96 x 3 x 3 inches |
| Size | 2T |
| Weight | 2.2 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Impedance | 5E+1 Ohm |
| Included Components | Great Product |
| Maximum Range | 8 Feet |
| Warranty Description | Warranty |
