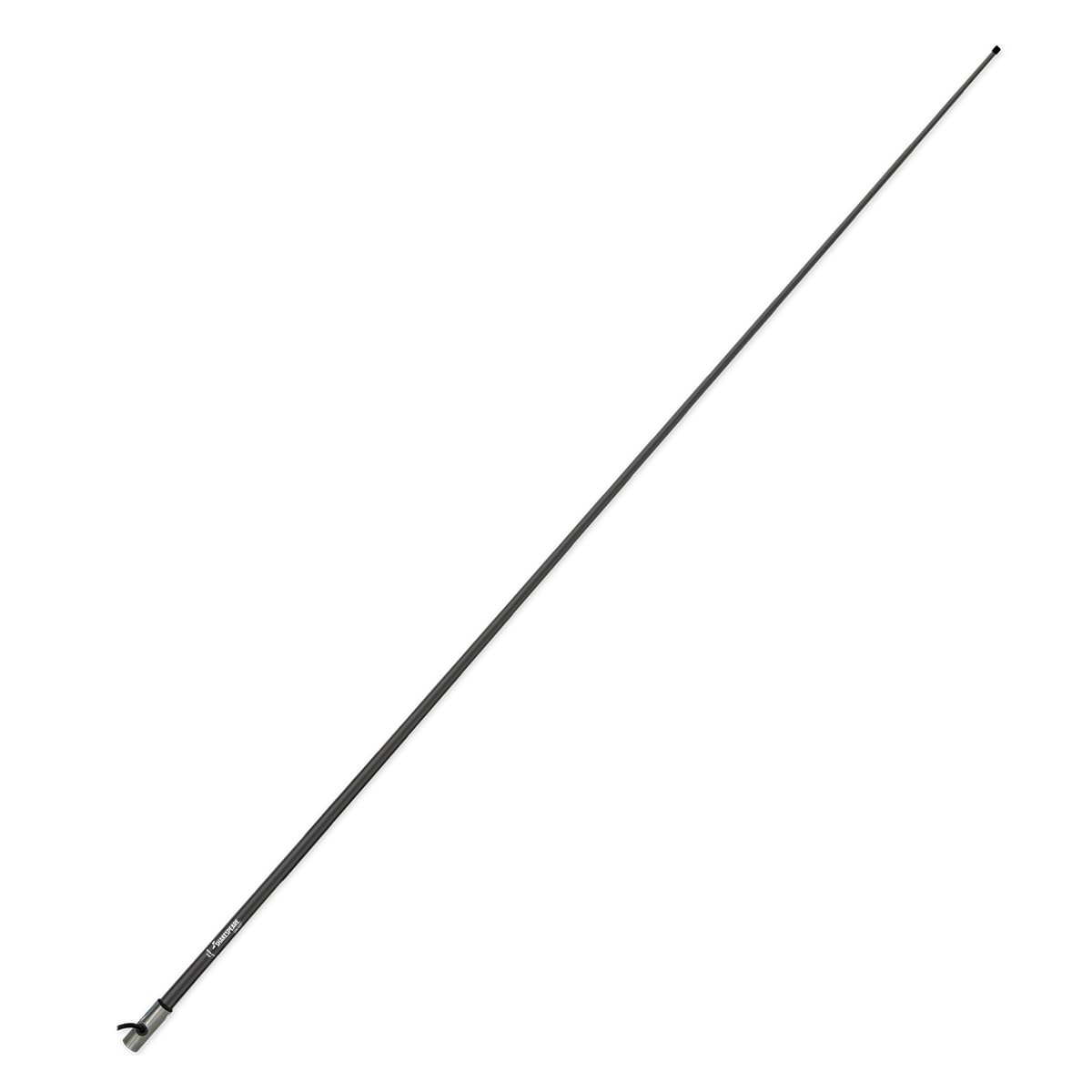

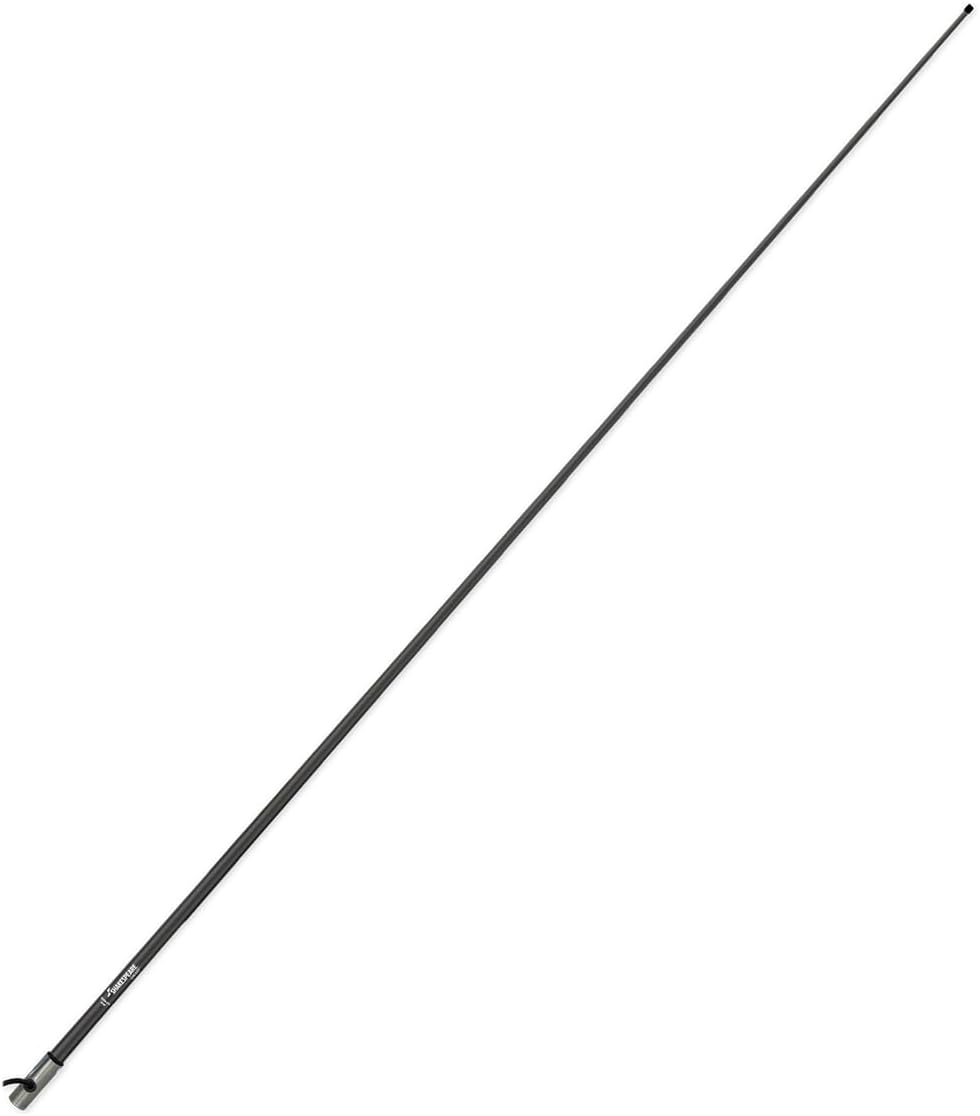

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain
Customize

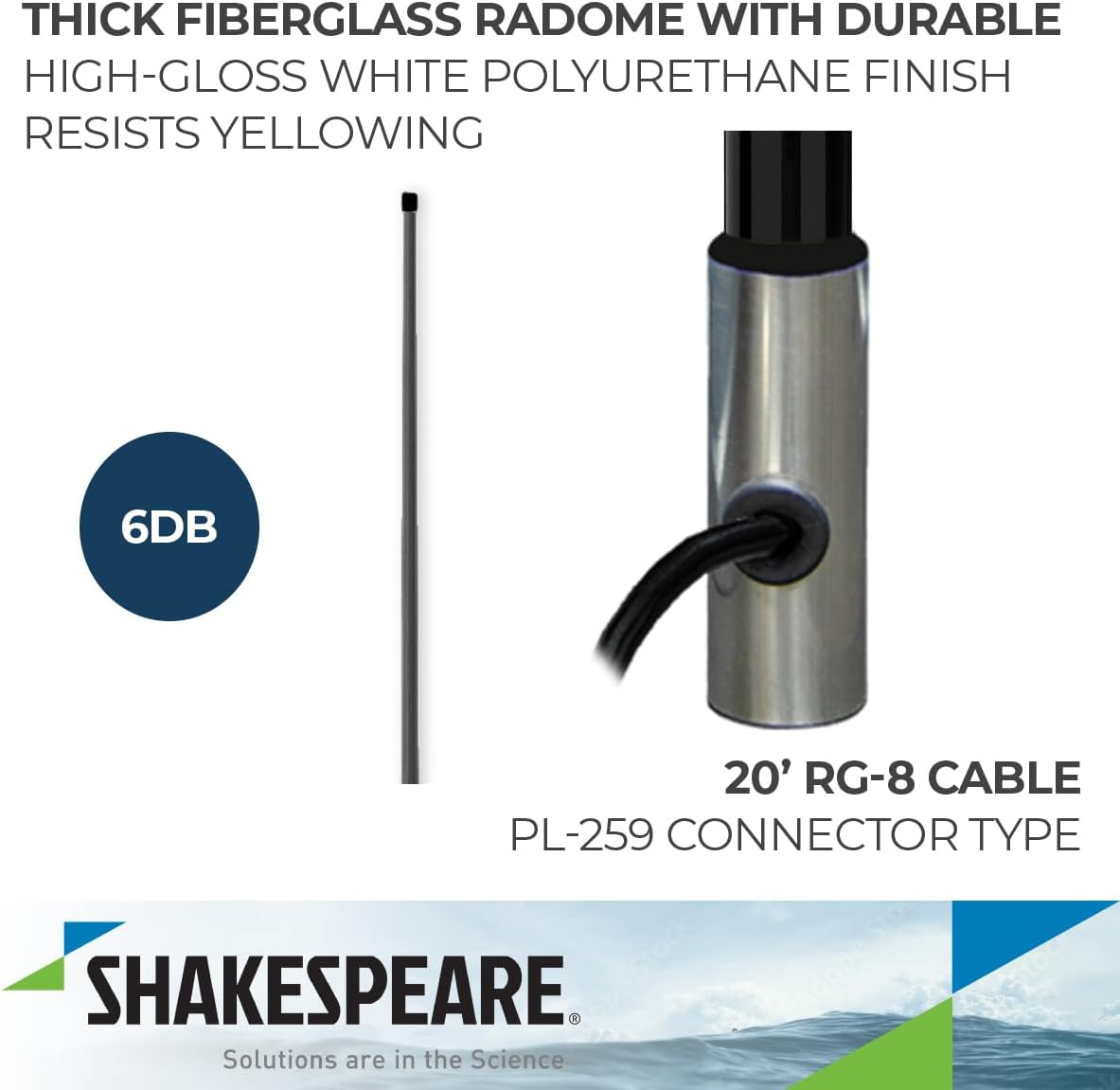

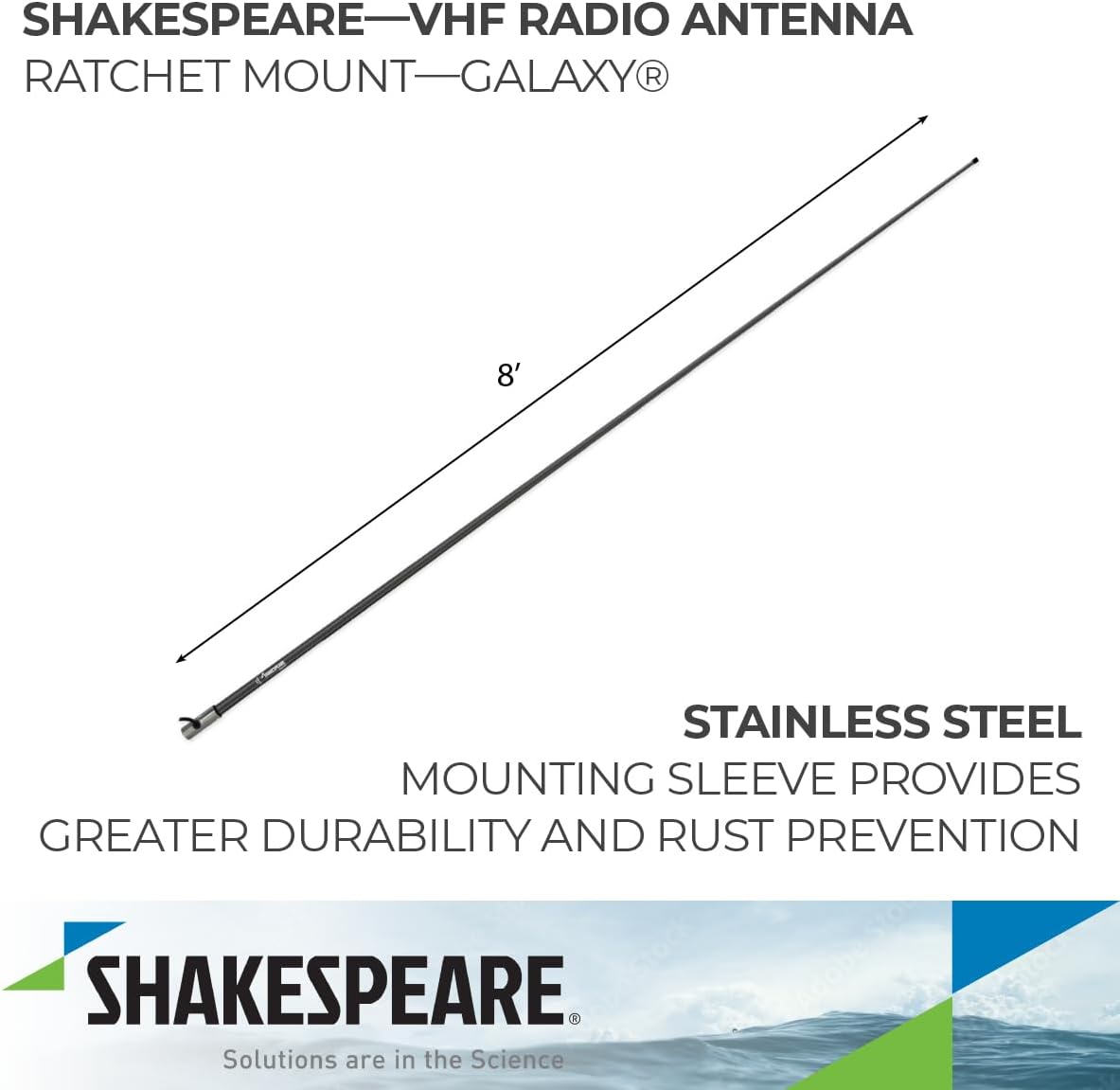

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain. EXTRA TOUGH! This antenna is the same as Style 5225-XT (reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeare's best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeare's classic Style 5225 in a new, stronger, stiffer radome. Extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome. Features include collinear-phased 5/8 wave elements, brass and copper elements for maximum range and efficiency, stainless steel ferrule with standard 1"-14 thread, 20' RG-8/X low-loss cable plus a PL-259 connector. Suggested mount: Shakespeare Style 4187 Ratchet Mount. One section. Shakespeare Limited Warranty: 5 years. Technical Specifications referenced: Frequency: VHF Marine Band; Bandwidth: 3 MHz within 2.0:1 VSWR; SWR: Nominally 1.5:1 at 156.8 MHz; Impedance: 50 ohms; Gain: 6 dB; Max Input (Watts): 100 watts; DC Ground: YES; Height: 8 feet; Polarization: Vertical; Color: Black; Construction: Fiberglass; Ferrule Type: Stainless Steel. Also listed in marketplace/spec data: Item Weight: 3 pounds; Product Dimensions: 100 x 2.25 x 2.25 inches; Item model number: 5226-XT; UPC: 719441200237.
- VHF Antenna
- 8' length
- 6dB gain
- 1"-14 threaded mount. Black
- Bandwidth-3 MHz within 2.0:1 VSWR. Coax Supplied- 20 ft of RG-8/X. Connector Supplied- PL-259, not installed
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Fiberglass |
| Outer Material | Fiberglass |
| Product Details | |
| Antenna | Radio |
| Antenna Band | Vhf |
| Construction | Fiberglass |
| Ferrule Type | Stainless Steel |
| Impedance | 50 Ohm |
| Maximum Range | 20 Feet |
| Number of Channels | 1 |
| Number of Items | 1 |
| UPC | 719441200237 |
| Sizing & Dimensions | |
| Height | 2.25 inches |
| Length | 100 inches |
| Product Dimensions | 100 x 2.25 x 2.25 inches |
| Size | 8 ft |
| Weight | 3 pounds |
| Width | 2.25 inches |
| Technical Specifications | |
| Bandwidth | 3 MHz within 2.0:1 VSWR |
| DC Ground | YES |
| Impedance (Ohms) | 50 ohms |
| Max Input (Watts) | 100 watts |
| Polarization | Vertical |
| SWR | Mominally 1.5:1 at 156.8 MHz |
