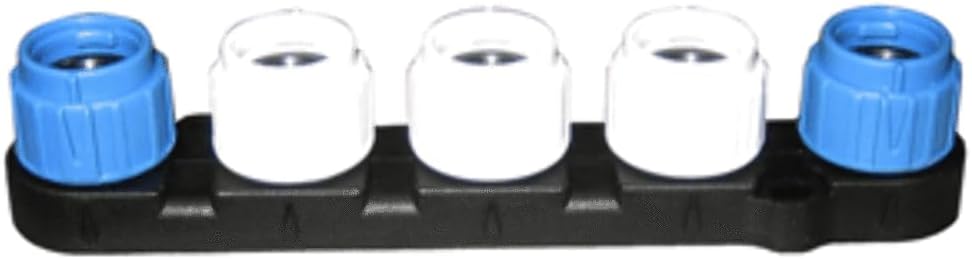

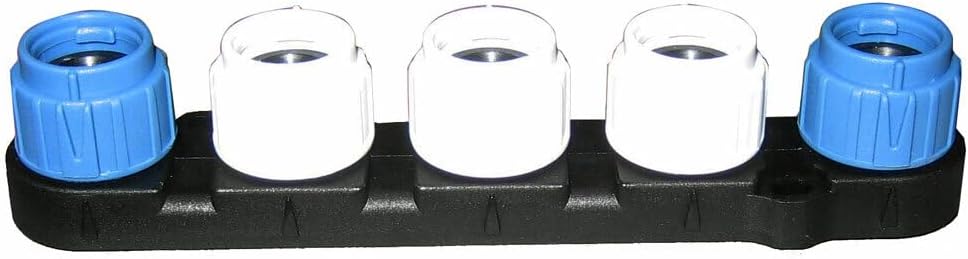

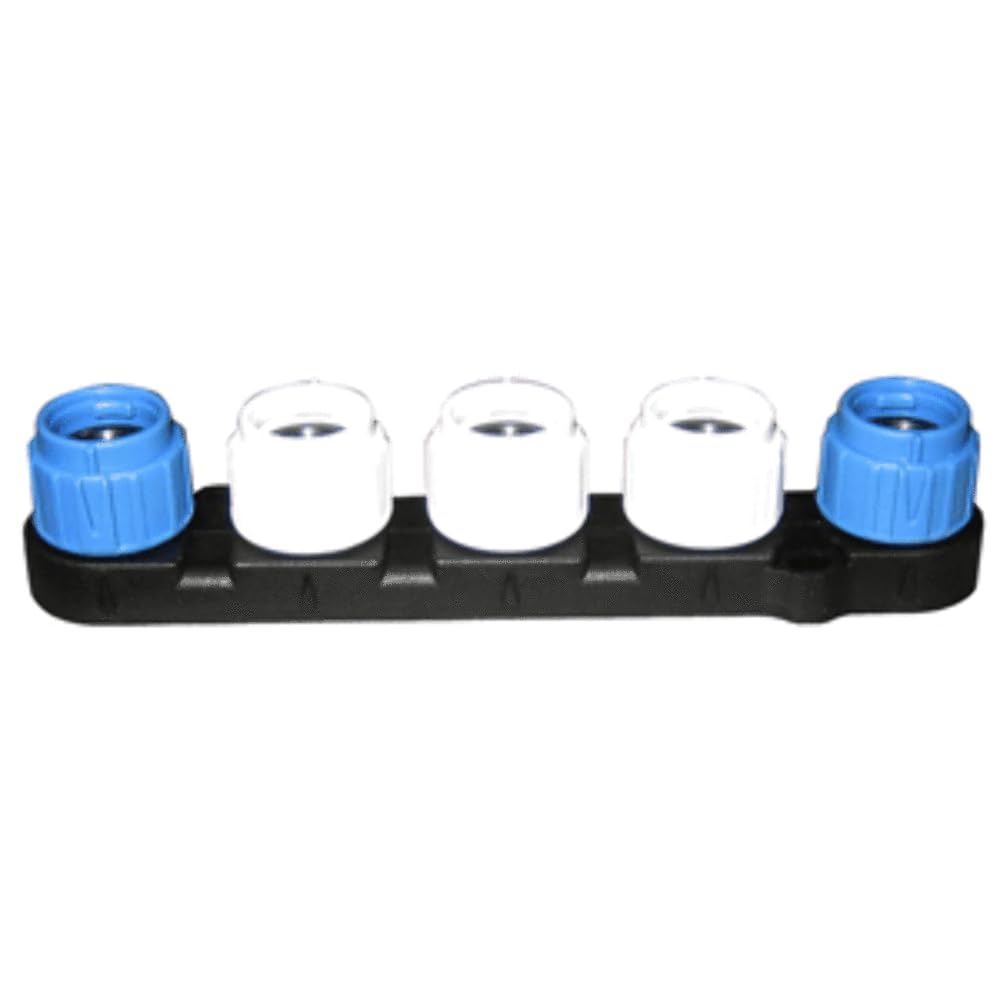

Raymarine A06064 SeaTalk ng 5-way connector block in white. The 5-way SeaTalk ng connector is used to create drops (spurs) from the SeaTalk ng backbone to connect instruments and sensors. Constructed with stainless steel components and designed for DIN rail mounting, it provides five poles/contacts and a screw-type connector. Compatible with E & C Series Widescreen, G Series, and ST70 systems. Product dimensions are approximately 5.8" W x 0.8" H and item weight is 1.44 ounces. Ideal for marine electronics installations requiring reliable spur connections on the SeaTalk ng backbone.
| Materials & Construction | |
| Color | White |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Centerline Length | 5.80 inches |
| Connector Type | Screw |
| Item Pitch | 5.80 inches |
| Model Number | A06064 |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 5 |
| Number Of Poles | 5 |
| Specification Met | Unspecified Standards/Certifications |
| Voltage | 5 Volts |
| Sizing & Dimensions | |
| Height | 0.8 inches |
| Product Dimensions | 5.8 x 0.8 inches |
| Weight | 1.44 ounces |
| Width | 5.8 inches |
