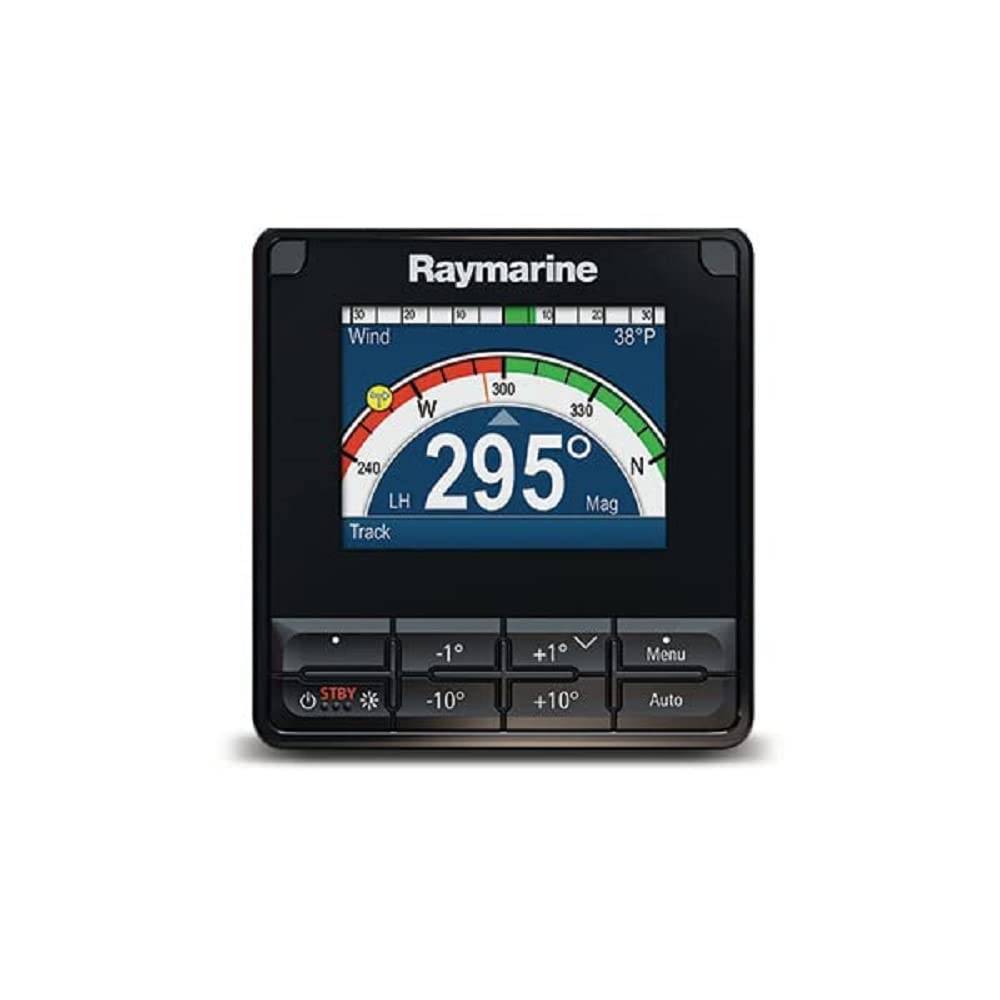

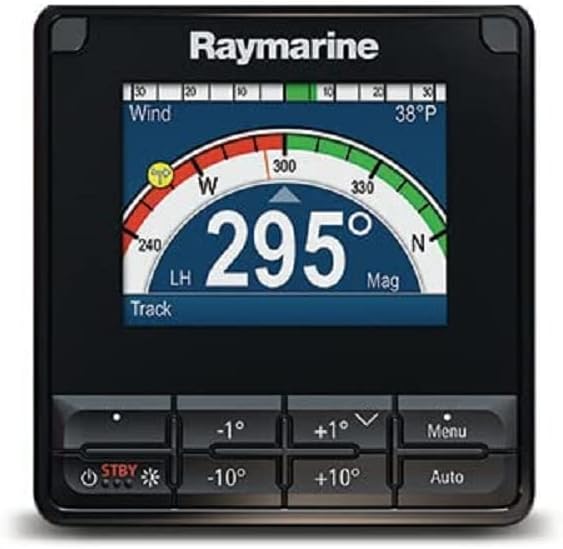

Raymarine P70S AP Control Head (Pushbutton)
Customize
p70s Autopilot Control Heads. The p70s is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and vibrant color and contrast with wide horizontal and vertical viewing angles for clear visibility from acute positions. LightHouse user interface is simple and quick to use. Start up wizard helps you configure the pilot quickly and easily. Anti-reflective coating for improved visibility in bright sunlight. Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness. Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer. Simple system and group dimming/illumination. Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required). P70s AP control head, Mfg# E70238, 3.5 inch LCD, auto; standby; pattern; track; wind vane; power Steer and jog Steer, sea talk-ng or Seatalk1 connectivity, push button operation.
- 3.5 inch Super bright oversized LCD for maximum visibility
- All weather, low power, optically bonded display technology delivers Brighter colors, Sharper contrast, and a wide viewing angle
- Button or rotary control options for Sail and power applications. Power consumption is 1.6 Watts
- Supported Autopilot modes: auto; standby; pattern; Track; wind vane; power steer and jog steer
- Display the Pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
Specifications:
| Materials & Construction | |
| Color | Black |
| Lens Color | Clear |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Assembly Required | No |
| Auto Part Position | Front |
| Included Components | Great Product |
| Lens Color | Clear |
| Model Name | E70328 |
| Model Number | E70328 |
| Number of Items | 1 |
| Size (Label) | One Size |
| Special Feature | Waterproof |
| Special Notes | Start up wizard helps configure pilot quickly and easily |
| Specific Uses For Product | Sailboat Autopilot Control |
| Type | Parts |
| Vehicle Service Type | Boat |
| Wattage | 1.6 watts |
| Year | 2022 |
| Sizing & Dimensions | |
| Height | 3.15 inches |
| Length | 3.94 inches |
| Product Dimensions | 3.94 x 3.94 x 3.15 inches |
| Size | One Size |
| Weight | 0.51 pounds |
| Width | 3.94 inches |
| Technical Specifications | |
| Connectivity | SeaTalkng/NMEA2000 and SeaTalk1 |
| Special Feature | Waterproof |
| Supported Autopilot Modes | Auto; Standby; Pattern; Track; Wind Vane; Power Steer; Jog Steer |
| Warranty | Warranty |
| Wattage | 1.6 watts |
