Raymarine Ray90 Modular Dual-Station VHF Black Box Radio System
Customize

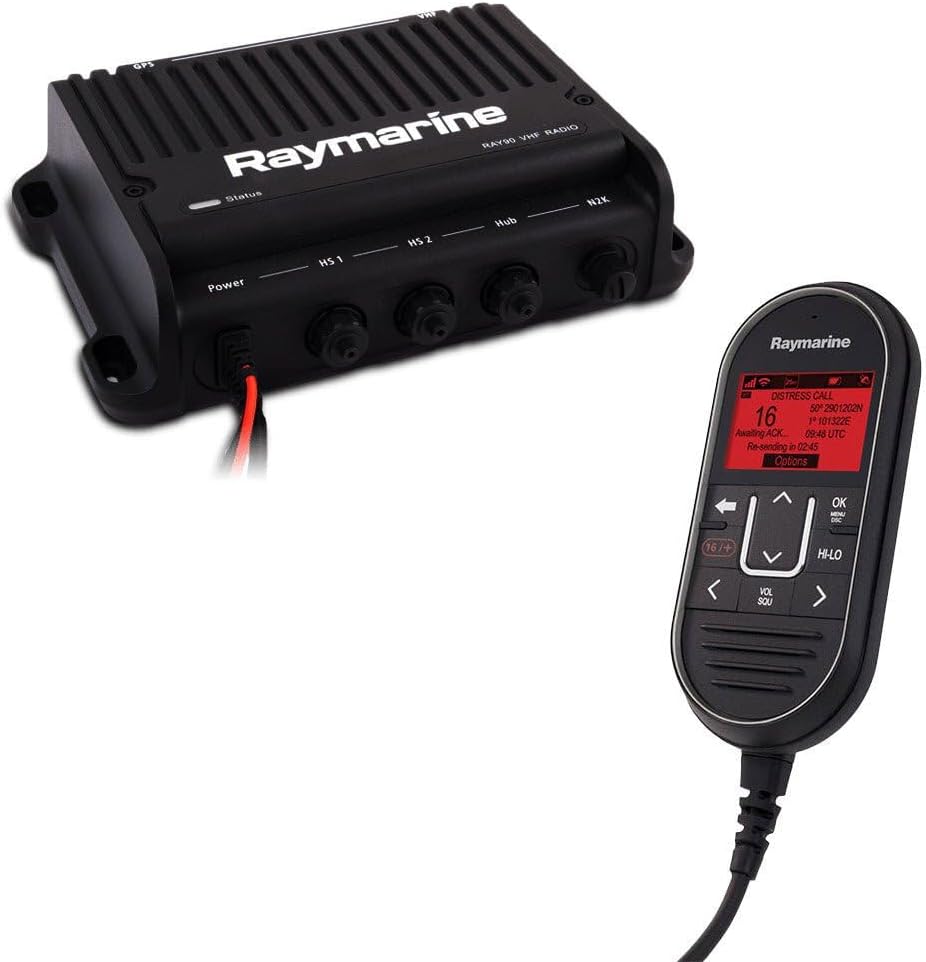

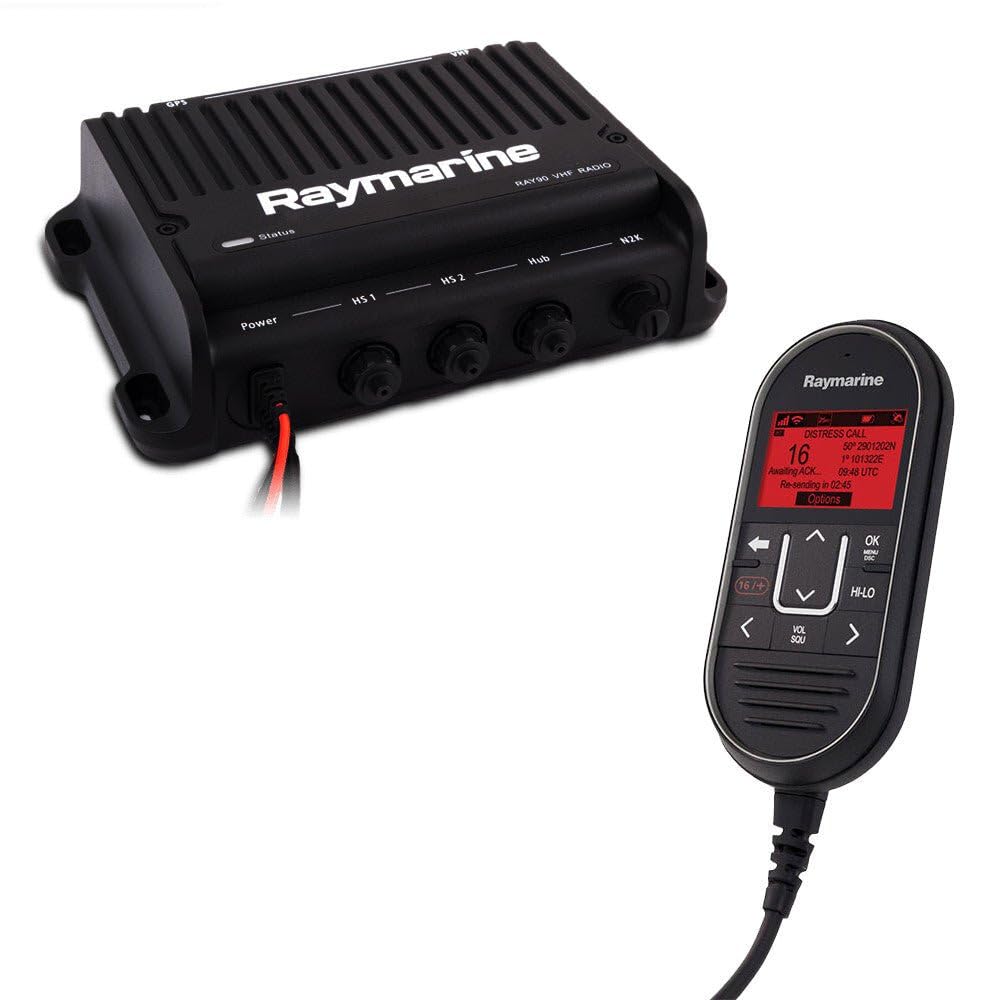

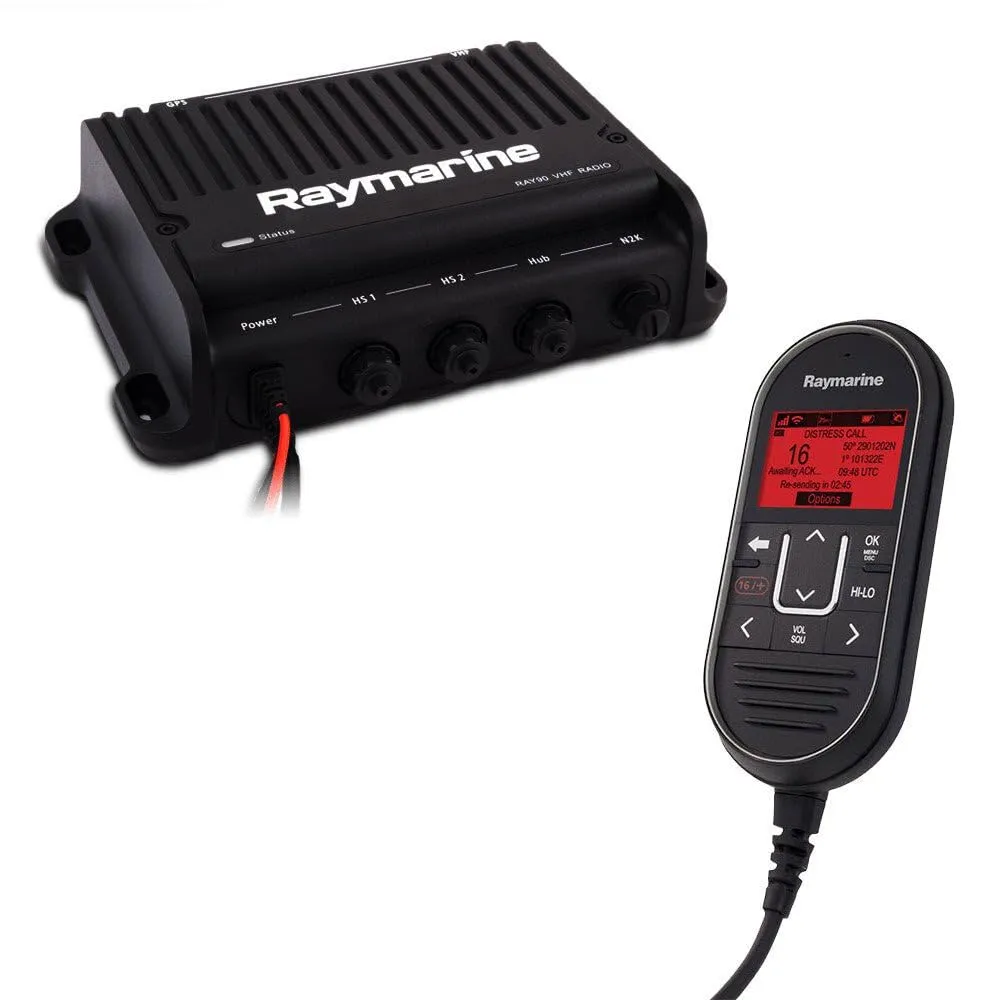

Ray90 Modular Dual-Station VHF Black Box Radio System Raymarine’s fixed-mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio. The system includes one RayMic wired handset and a passive speaker kit and is expandable to two handsets. Choose an active remote speaker for noisy environments. Features & Capabilities: - Black-box, multi-station capable VHF radio with wired RayMic handset and passive speaker included; expandable to 2 handsets. - Built-in loudhailer with fog signal capability and 2-way talkback; supports optional external hailing horn. - Powerful 25-watt transmitter and commercial-grade electronics for long life and superior performance. - Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D DSC-compatible with integrated GPS support (optional GA150 passive GPS antenna required for GPS). - Position tracking to share positions of up to 5 nearby DSC-equipped vessels with Raymarine MFDs; supports ATIS in Europe for inland waterways. - Waterproof and ruggedized transceiver cast in aluminum for shock and heat dissipation; RayMic handsets have bright backlighting and oversized keys for easy operation. Technical & Package Info (source combined): Product dimensions 14 x 13 x 4 inches; Item weight 2 Kilograms (≈4.41 pounds). Package dimensions 11.1 x 10.2 x 8.5 inches; package weight 3.56 Kilograms (≈7.85 pounds).
- Ray90's transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation
- Package weight :8.0lbs
- country of origin:United States
- Product type :TWO WAY RADIO
- package dimensions :21.6 cm L x 26.4 cm W x 28.6 cm H
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Compatible Devices | Wired handsets, passive speakers, remote microphones |
| Frequency Range | 155.500 MHz - 157.425 MHz, 156.000 MHz - 161.425 MHz |
| Included Components | Wired handset, Passive speaker |
| Model Name | E70492 |
| Number of Channels | 2 |
| Number of Items | 1 |
| Part Number | E70492 |
| Size | One Size |
| Special Feature | Wireless |
| Tuner Technology | VHF |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4 inches |
| Item Package Dimensions | 11.1 x 10.2 x 8.5 inches |
| Length | 14 inches |
| Product Dimensions | 14 x 13 x 4 inches |
| Weight | 4.41 pounds |
| Width | 13 inches |
| Technical Specifications | |
| Ais | No |
| Built-In Gps | No |
| Hailer | Yes |
| Intercom Capability | Yes |
| Nmea 2000 | Yes |
| Remote Mic Capable | Yes |
| Scrambler Capable | No |
| Water Resistance Level | Waterproof |
