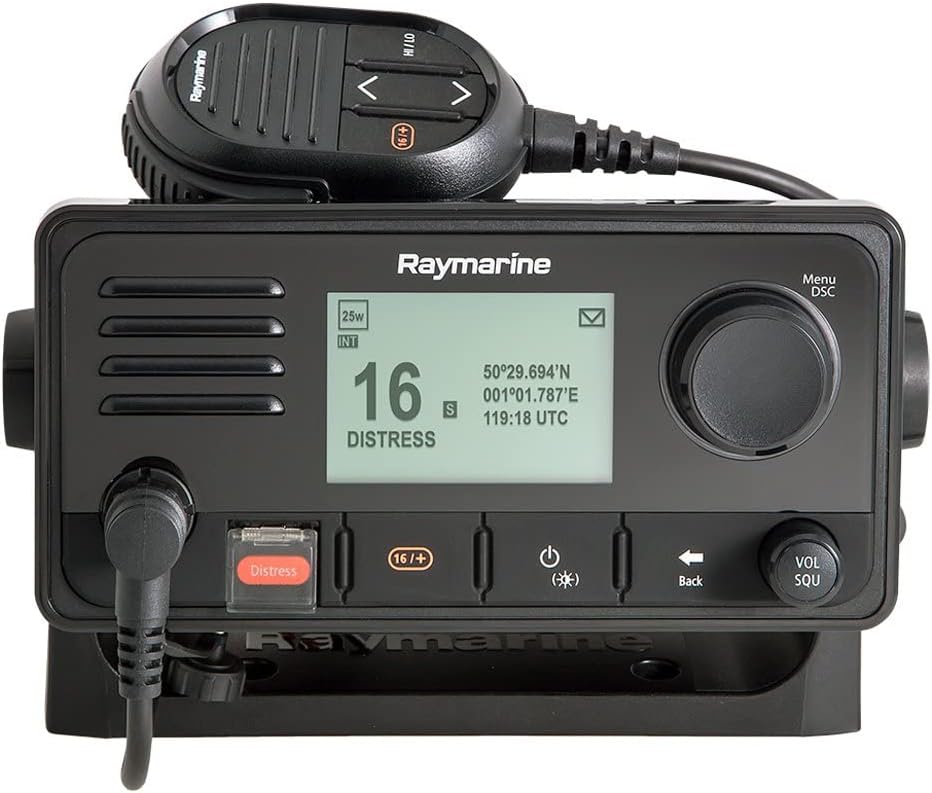

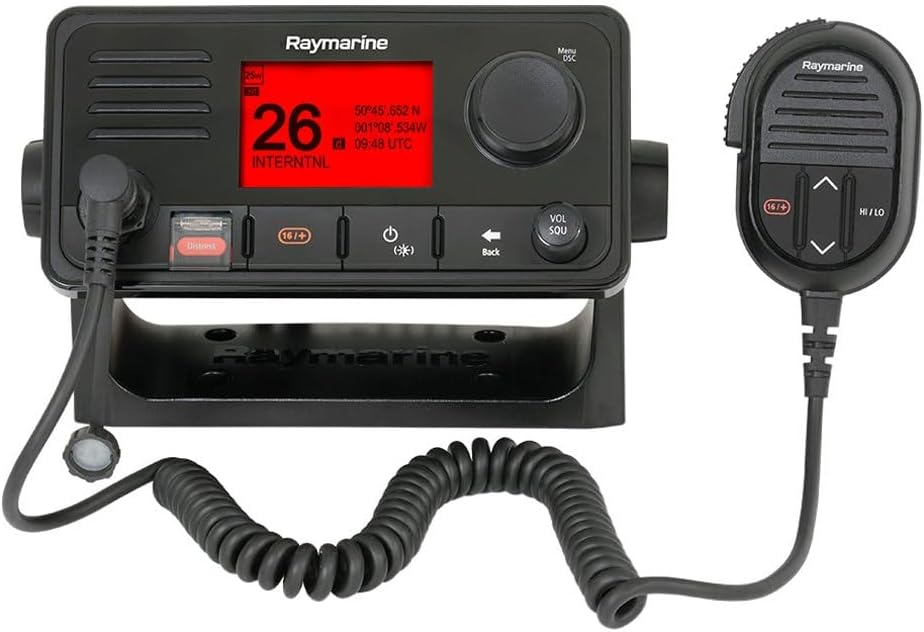

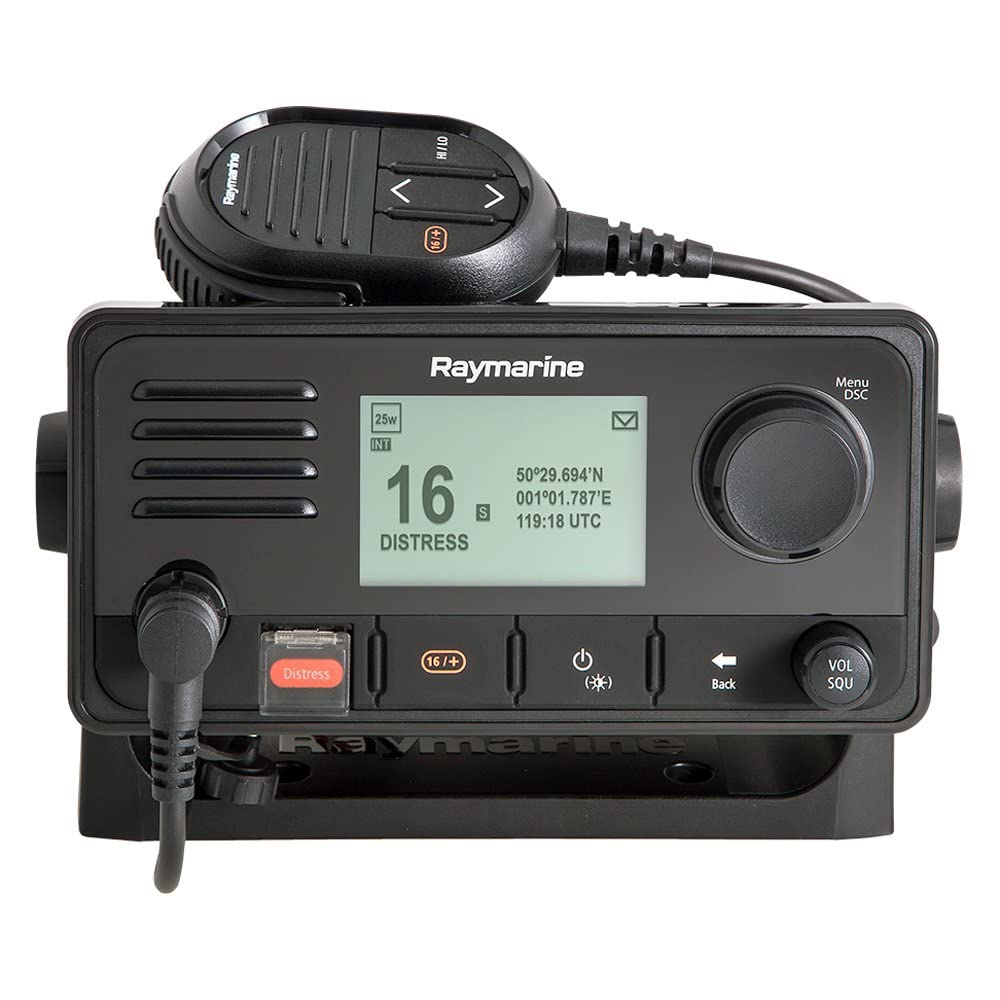

Raymarine E70517, Ray73 Marine VHF Radio with Hailer and GPS, Black, Small
Customize
Ray73 VHF Radio with AIS Receiver. Raymarine’s Ray73 radio is communications central for your boat with built-in VHF, AIS and public-address capabilities. Built on a full-sized marine radio chassis, the Ray73 features oversized controls and a large screen for easy offshore operation. Ray73 is a full-function VHF marine radio with Class D DSC and a built-in GPS/GNSS receiver—program your boat’s MMSI to enable DSC calling and safety features. The Ray73 supports both NMEA 2000 and legacy NMEA 0183 networking to connect with other onboard electronics. The radio supports an optional remote speaker (A80542) and includes a loudhailer output; add the optional hailing horn (M95435) to communicate on deck or with other vessels and to generate manual/automatic fog signals with compliant tones. Add the optional RayMic second station kit for full remote control and intercom capability. Surface and trunnion mount kits are included. Compatible with Raymarine wireless hub and wireless handset. Key features include built-in AIS receiver, built-in GPS/GNSS with external antenna connection, loudhailer/hailer output, NMEA2000 support, remote-mic capable.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AIS | Yes |
| Built-In Gps | Yes |
| Frequency Range | 156.000 MHz to 161.425 MHz |
| Hailer | Yes |
| Included Components | 1x NMEA 0183, SeaTalkng® / 2000, Front Fistmic connection, Rear connection for 2nd station, Audio (RCA), GNSS (GPS) antenna (TNC), optional hailing horn, RayMic second station kit |
| Nmea 2000 | Yes |
| Number of Channels | 8 |
| Remote Mic Capable | Yes |
| Scrambler Capable | No |
| Special Feature | Wireless |
| Talking Range Maximum | 590.55 inches |
| Tuner Technology | VHF |
| Voltage | 12 Volts (DC) |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 5.1 inches |
| Length | 11.8 inches |
| Product Dimensions | 11.8 x 11.8 x 5.1 inches |
| Size | Small |
| Weight | 5 pounds |
| Width | 11.8 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 11.8 x 11.8 x 5.1 inches |
| Item Package Dimensions L x W x H | 10.43 x 9.29 x 6.5 inches |
| Water Resistance Level | Water Resistant |
