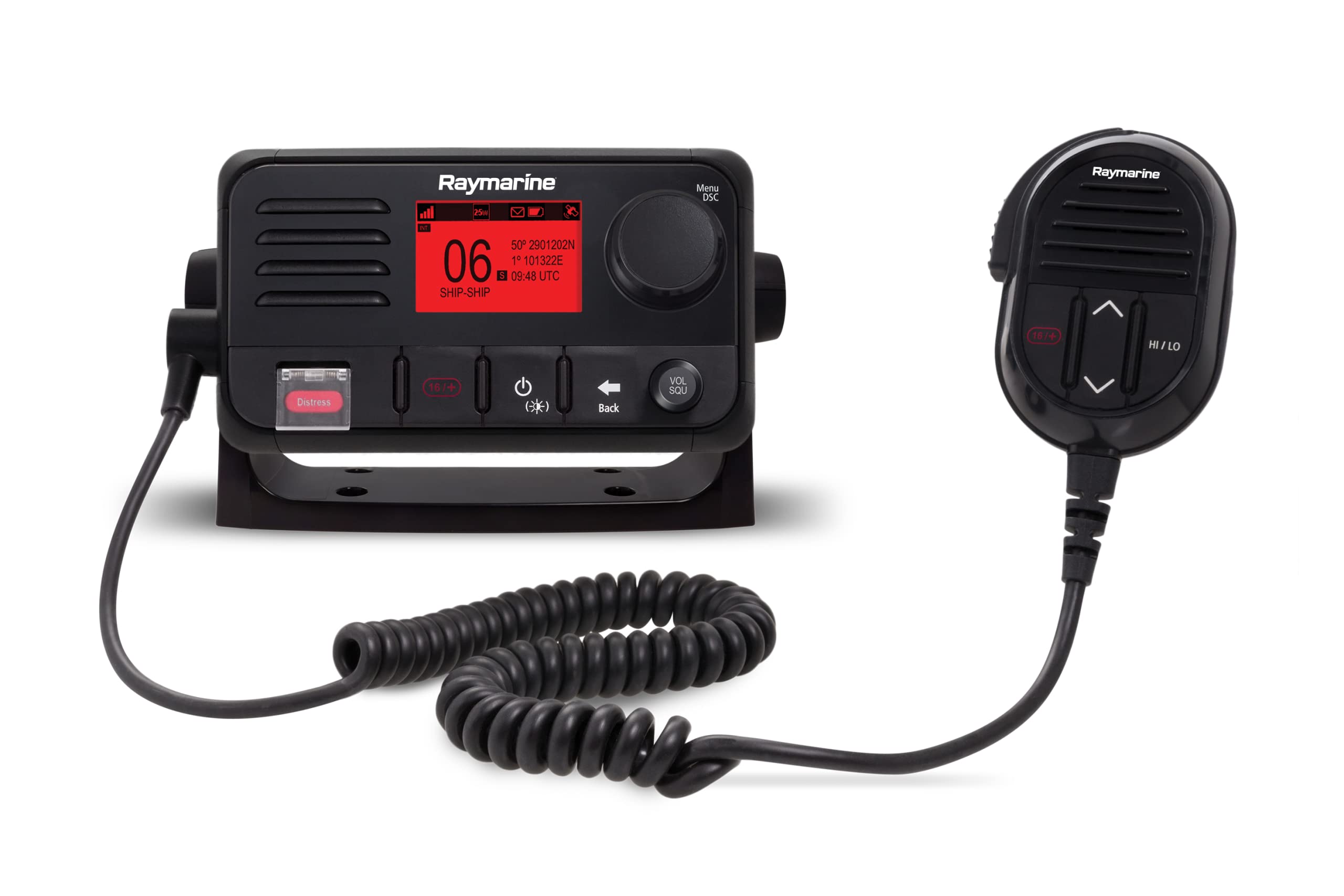

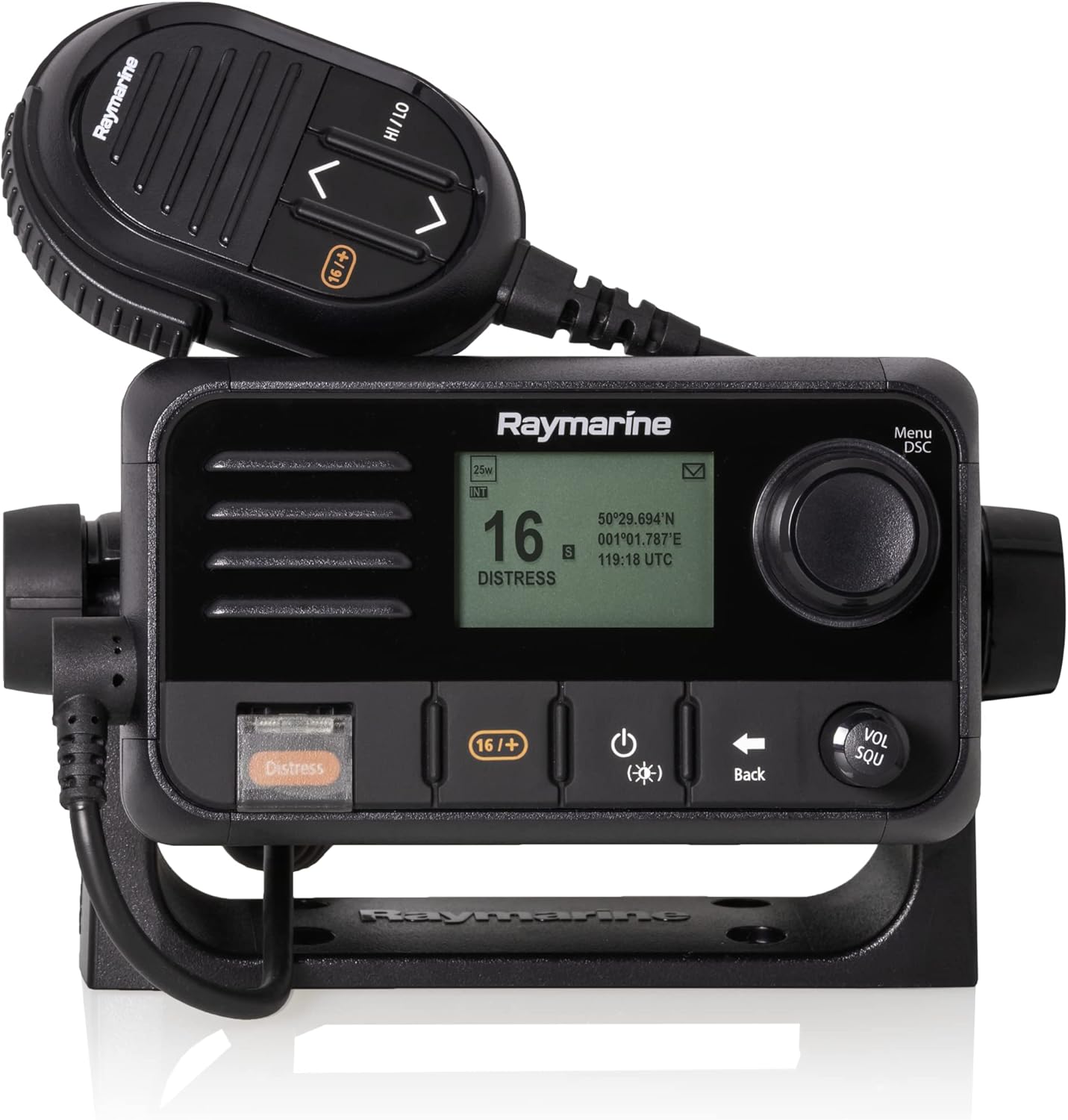

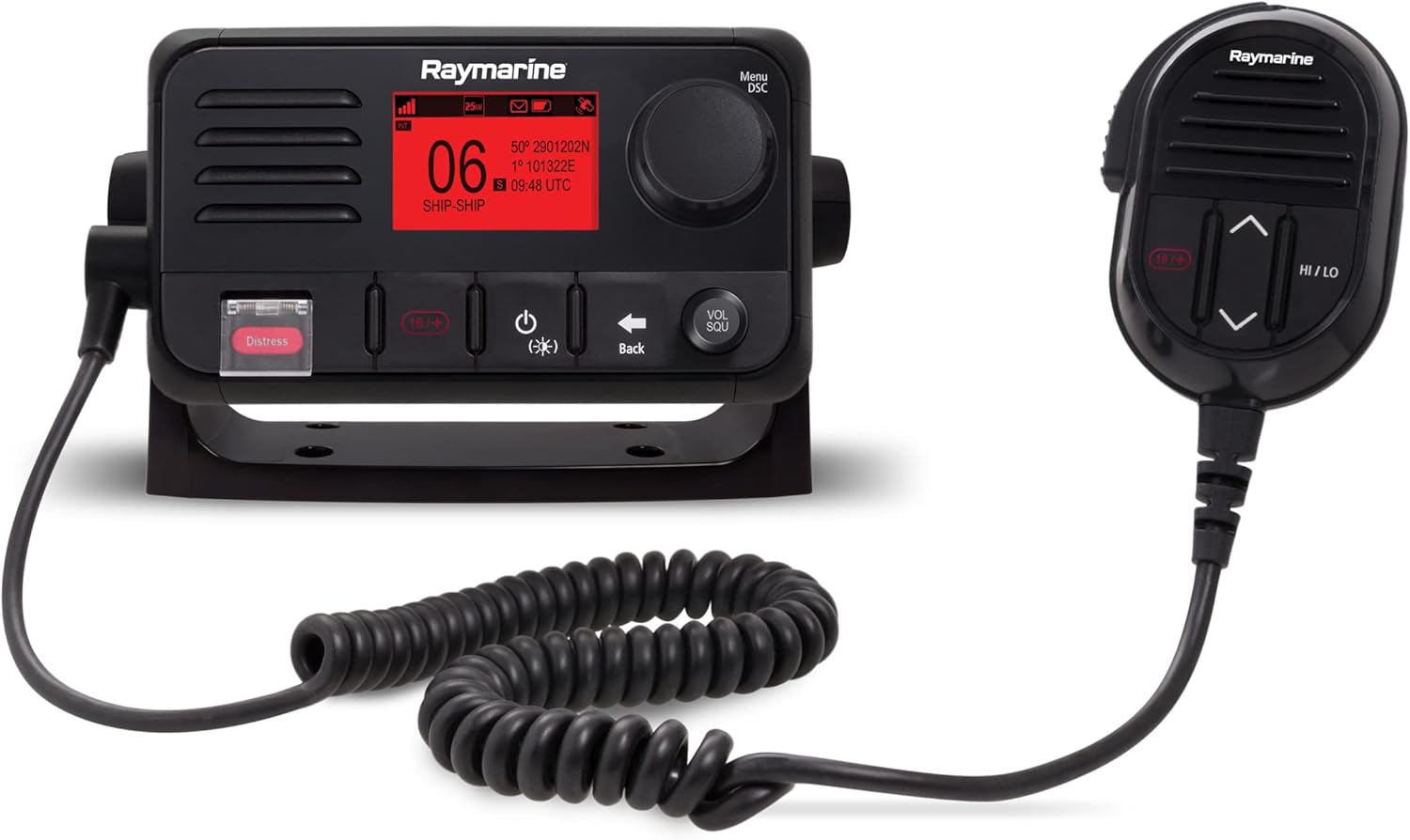

Raymarine Ray53 Compact VHF Radio w/GPS - Model E70524 (Black)
Customize
Ray53 Compact VHF Radio with GPS Raymarine’s Ray53 radio is small in size but big on features and performance. Ray53 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC. The Ray53 supports both NMEA2000 and legacy NMEA0183 networking which enables it to connect with other onboard electronics. Ray53 also supports the connection of an optional remote speaker (A80542) to provide audio at a second location. Ray53 was designed to comply with the latest international regulations and includes a connection point for an optional GPS/GNSS antenna. The optional antenna improves the GPS reception when the radio is mounted below deck, in an enclosed pilothouse, or inside a metal enclosure. Ray53 features an attractive industrial design that complements Raymarine’s Axiom family multifunction displays. The radio includes both a standard trunnion mounting kit as well as surface mounting hardware. Features: Compact marine VHF with Digital Selective Calling Built-in GPS/GNSS receiver with the optionalexternal antenna connection Surface and trunnion mount kits included Compliments the style and design of Axiom multifunction displays, AIS: No , Built-In GPS: Yes , Hailer: No , NMEA 2000: Yes , Remote Mic Capable: No , Scrambler Capable: No. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Ais | No |
| Built-In Gps | Yes |
| Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) for transmitting, and 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) for receiving |
| Hailer | No |
| Included Components | Great Product |
| Model Name | E70524 |
| Nmea 2000 | Yes |
| Number of Channels | 8 |
| Part Number | E70524 |
| Remote Mic Capable | No |
| Scrambler Capable | No |
| Tuner Technology | VHF |
| Voltage | 12 Volts (DC) |
| Warranty Description | Warranty |
| Water Resistance Level | Water Resistant |
| Sizing & Dimensions | |
| Height | 5.5 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5 x 6.1 x 5.5 inches |
| Size | Medium |
| Weight | 1.10 pounds |
| Width | 6.1 inches |
| Technical Specifications | |
| Talking Range Maximum | 10 Kilometer |
